Dual Extruder Print - PowerSpec Pro 3D Printer Startup Manual

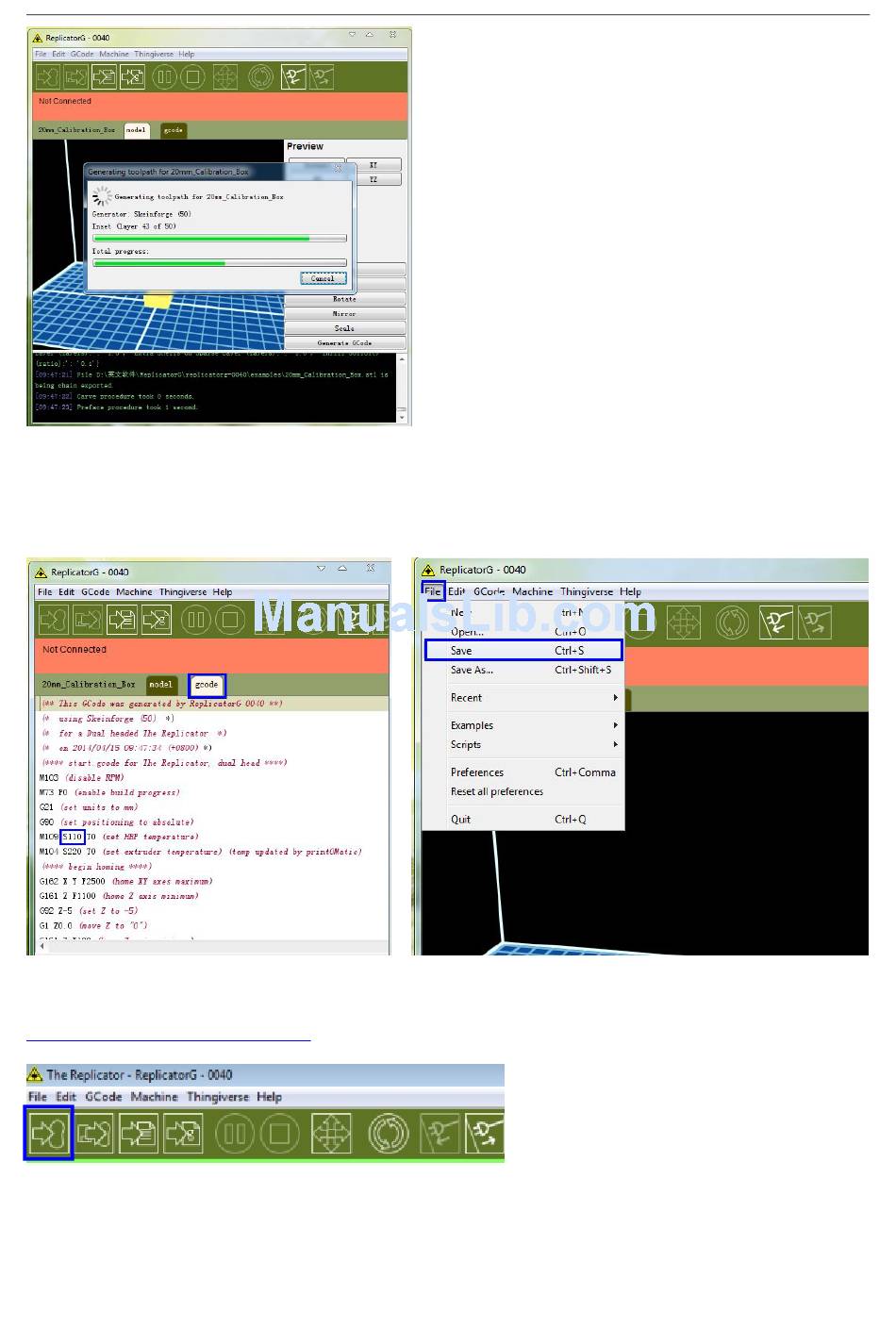

After the Gcode is generated, the temperature of the bottom plate needs to be changed if you print PLA filament. See
below for the required modification. First, select Gcode as shown highlighted in the illustration below and change
M109 S110 to M109 S50 to set the HBP temperature at 50°C. Then click File > Save to save this modification. If you
print ABS filament, then no HBP temperature modification is needed.
If you have connected Replicator G 3D Printer printer, click the left most button on the green bar near the top of the
screen. The Gcode has now been sent to the printer and the object will start printing shortly. If not, please refer to
USB Connection & Temperature Setting to connect.
8

Dual Extruder Print

Open ReplicatorG and select Gcode > Merge .stl for Dual Extrusion. You will see following:
