7.

Physical Connection

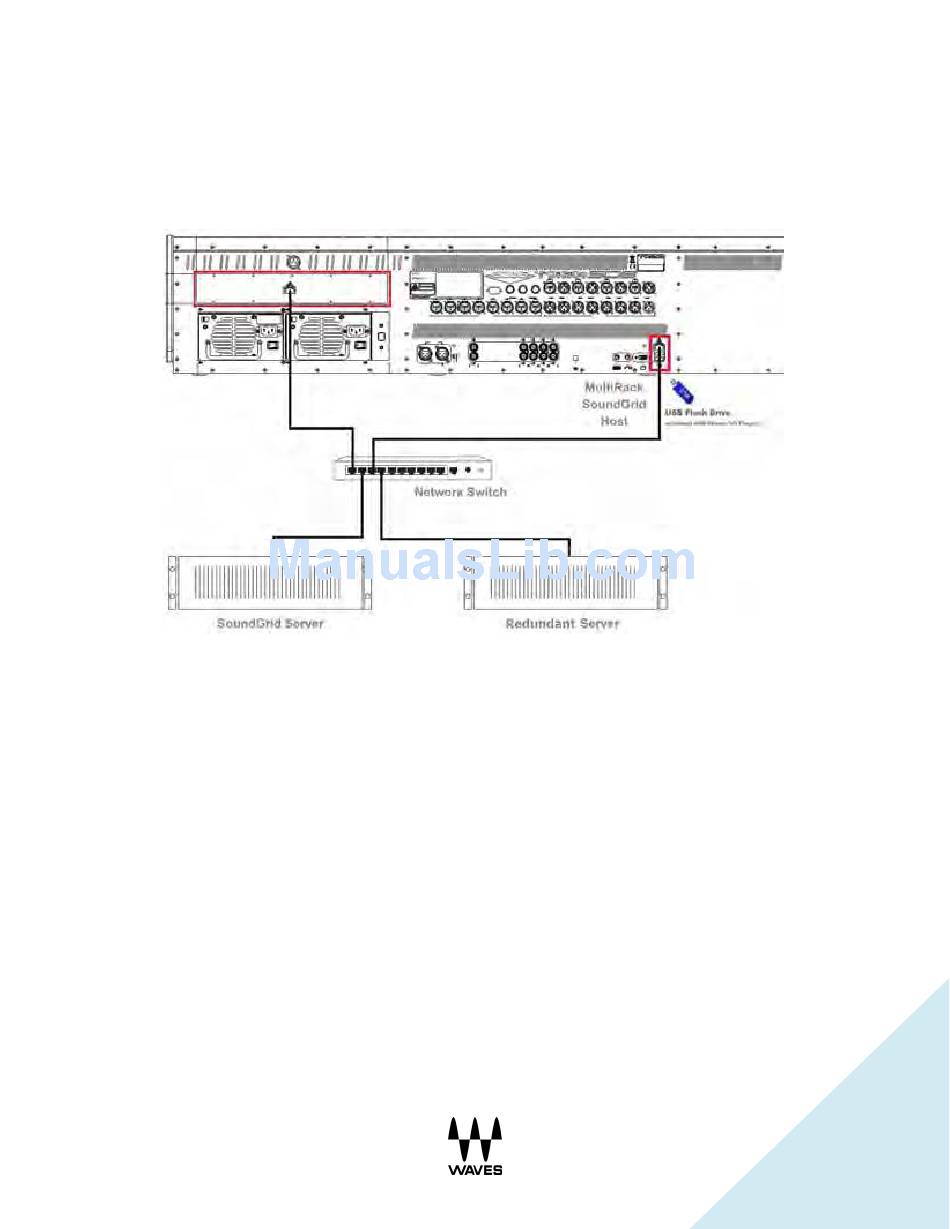

The basic connections are illustrated in the picture below.
Switch
A 1GB switch is required, due to the amount of information flowing between the I/O and
the servers.
The connection of the server to the switch must show a 1 GB link. The Host (DiGiCo
embedded computer) will show a 100 MB link. This is a limitation of the onboard
Network Adapter and is normal.
Insufficient link speed of different components will result in missing or N/A listings within
the Inventory Window.
You can determine the link speed by looking at the indicators on the switch itself. There
are indications on the Ethernet ports as well.
