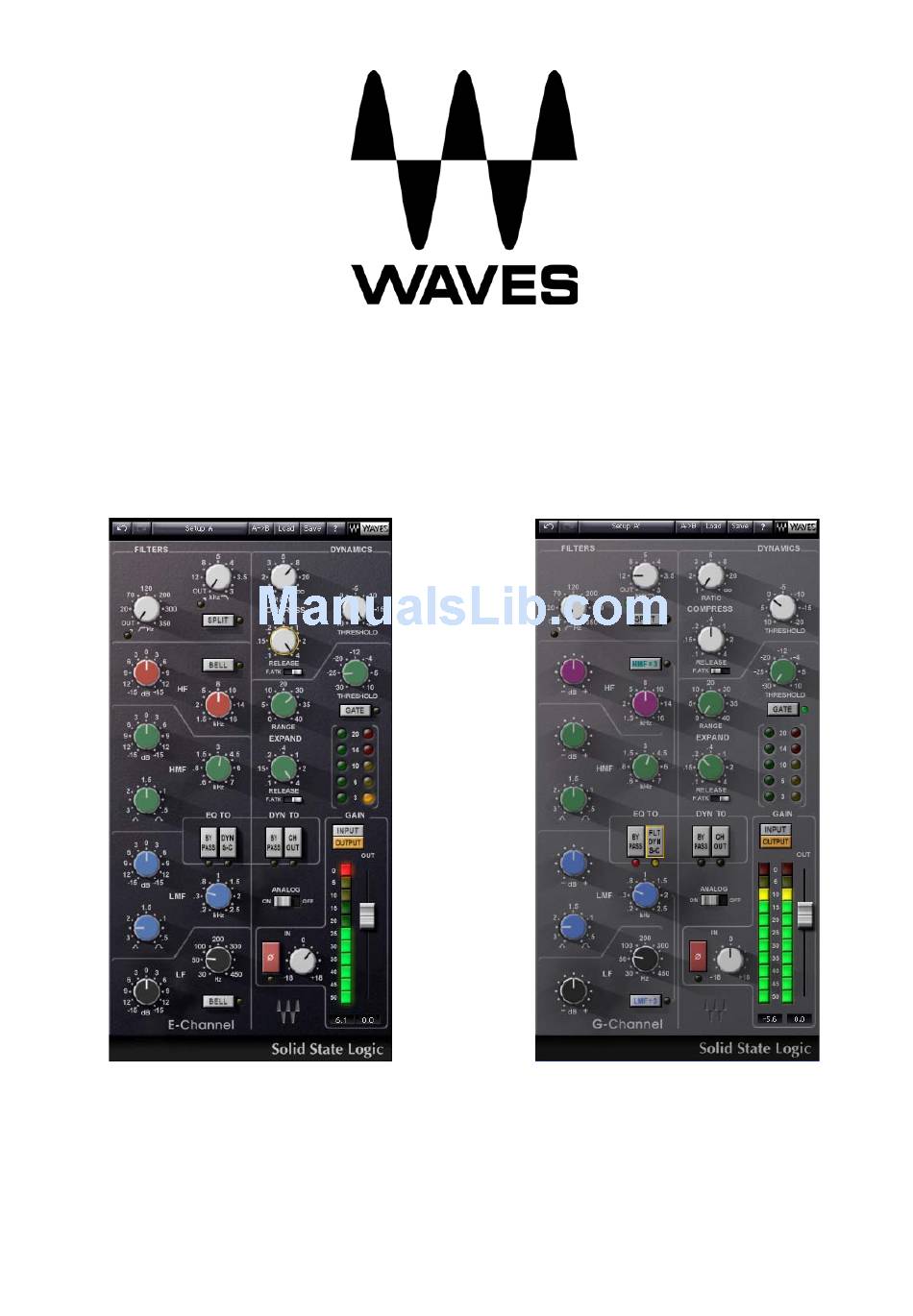

- Page 1 SSL 4000 Collection SSL 4000 E-Channel SSL 4000 G-Channel SSL E-Channel & G-Channel User Manual...
-
Page 2: Table Of Contents
High Frequency EQ Section ....................11 High Medium Frequency EQ Section ..................11 Low Medium Frequency EQ Section ...................11 Low Frequency EQ Section ....................11 EQ To ..........................12 ........................12 ASTER ECTION 4. THE WAVES SYSTEM BAR ....................13 SSL E-Channel & G-Channel User Manual... -
Page 3: Introduction
EQ plug-ins couldn’t produce the unique SSL color. The Waves SSL 4000 Collection is the result of a partnership between Waves Audio and Solid State Logic. These processors faithfully recreate the same EQ and dynamics characteristics which made legendary the SL4000 consoles. -
Page 4: Product Overview
2. Product Overview SSL E-Channel The Waves SSL E-Channel is modeled after the SL4000 E Series console, combining the dynamics section of the SL4000 channel strip with the “Black Knob” 242 EQ. The only noticeable change from the hardware original is that the EQ and Dynamics sections are side-by-side rather than inline, to better conform to computer screens. -
Page 5: Equalizer Section
Equalizer Section The equalizer is a four-band device which can be routed to the processor’s output or to the dynamics section’s sidechain. Q can be adjusted in the LMF and HMF ranges. At the top of the section is the High Pass (18 dB/octave) filter and the Low Pass (12 dB/octave) filter. -
Page 6: Ssl Channel Routing Diagram
SSL Channel Routing Diagram SSL E-Channel & G-Channel User Manual... - Page 7 SSL E-Channel & G-Channel User Manual...
-
Page 8: Controls And Interface
3. Controls and Interface SSL E-Channel & G-Channel User Manual... -
Page 9: Dynamics Section Controls
Dynamics Section Controls (white knobs) Compressor The compressor’s Ratio/Slope can be set from 1 to infinity (limiter). The Threshold is variably adjustable from +10 dB to -20 dB. When the Attack time switch is set to Slow (F.ATK off) attack time is auto-sensing and ... -
Page 10: E-Channel Eq Section Controls
E-Channel EQ Section Controls (white knobs) Low and High Pass Filters Low Pass: 12 dB/octave, 3 KHz – 22 KHz (-3 dB point). High Pass: 18 dB/octave, 16 Hz – 350 Hz (-3 dB point). Turning the knob completely to the left bypasses the filter. ... -
Page 11: G-Channel Eq Section Controls
G-Channel EQ Section Controls (white knobs) Low and High Pass Filters Low Pass: 12 dB/octave, 3 KHz – 22 KHz (-3 dB point). High Pass: 18 dB/octave, 16 Hz – 350 Hz (-3 dB point). Turning the knob completely to the left bypasses the filter. ... -
Page 12: Eq To
EQ To Bypass bypasses the EQ section. Note that selecting Bypass does not result in a flat signal , but rather one which mimics the flat response of the SSL channel strip hardware. Dyn S-C- E-Channel switches the filters and eq into the dynamics sidechain, enabling simple ... -
Page 13: The Waves System Bar
Waves plug-ins. Since the Waves System Bar is the same on practically all Waves plug-ins, you will always know how to file, compare, load and copy the parameters of a Waves plug-in, even if you have never before worked with that particular processor.
