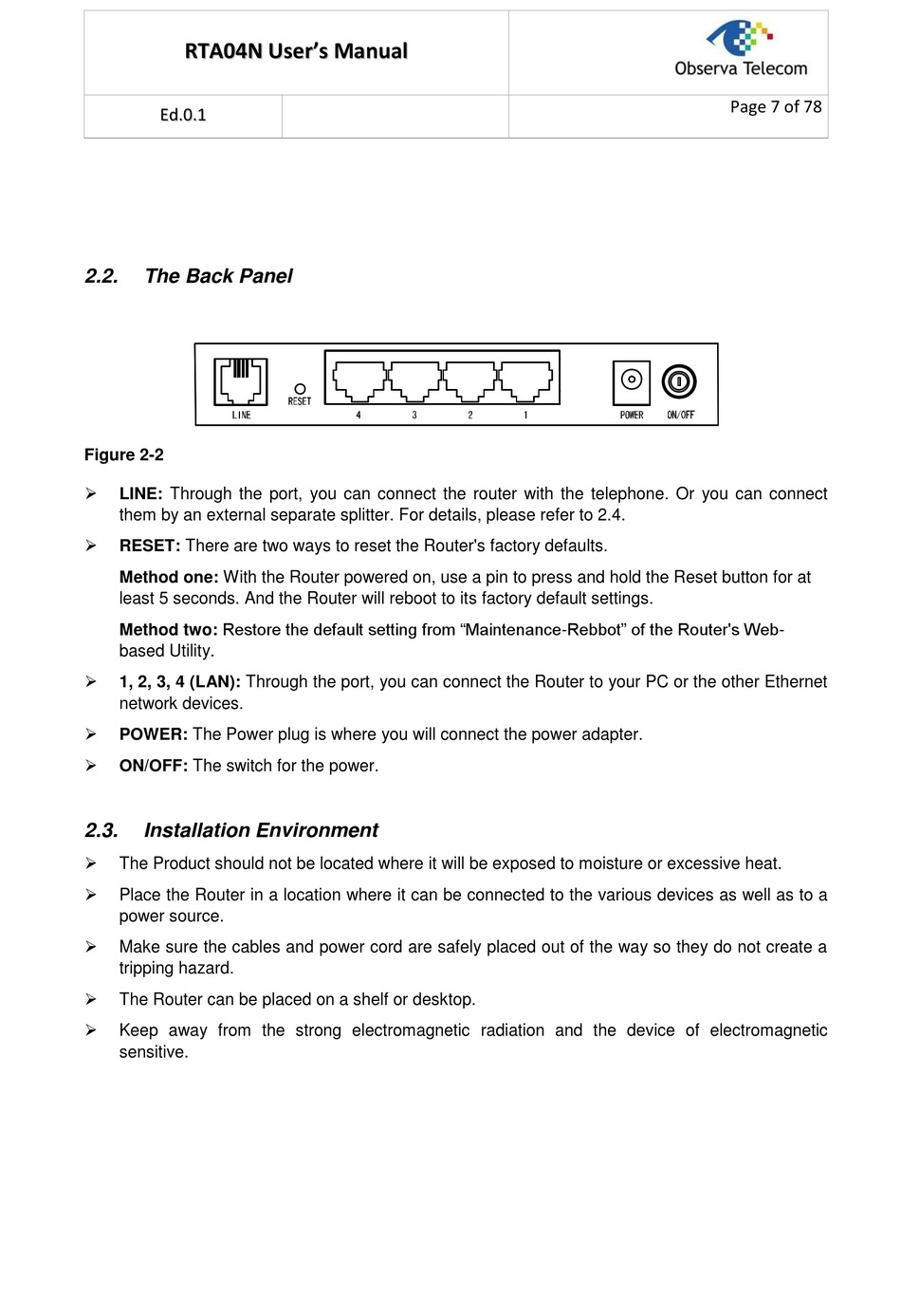

2.2.
The Back Panel
Figure 2-2
LINE: Through the port, you can connect the router with the telephone. Or you can connect
them by an external separate splitter. For details, please refer to 2.4.
RESET: There are two ways to reset the Router's factory defaults.
Method one: With the Router powered on, use a pin to press and hold the Reset button for at
least 5 seconds. And the Router will reboot to its factory default settings.
Method two: Restore the default setting from "Maintenance-Rebbot" of the Router's Web-
based Utility.
1, 2, 3, 4 (LAN): Through the port, you can connect the Router to your PC or the other Ethernet
network devices.
POWER: The Power plug is where you will connect the power adapter.
ON/OFF: The switch for the power.
2.3.
Installation Environment
The Product should not be located where it will be exposed to moisture or excessive heat.
Place the Router in a location where it can be connected to the various devices as well as to a
power source.
Make sure the cables and power cord are safely placed out of the way so they do not create a
tripping hazard.
The Router can be placed on a shelf or desktop.
Keep away from the strong electromagnetic radiation and the device of electromagnetic
sensitive.
U
s
e
r
'
s
M
a
n
u
a
l
U
s
e
r
'
s
M
a
n
u
a
l
