R
T
A
0
4
N
R
T
A
0
4
N
E
d
.
0
.
1
E
d
.
0
.
1
Note:
1.
The default PIN code of the Router can be found in its label or the WPS configuration screen as
shown in Figure 4-22.
2.
After saving your configuration, you need to click the Save button on the left panel to make your
configuration take effect.

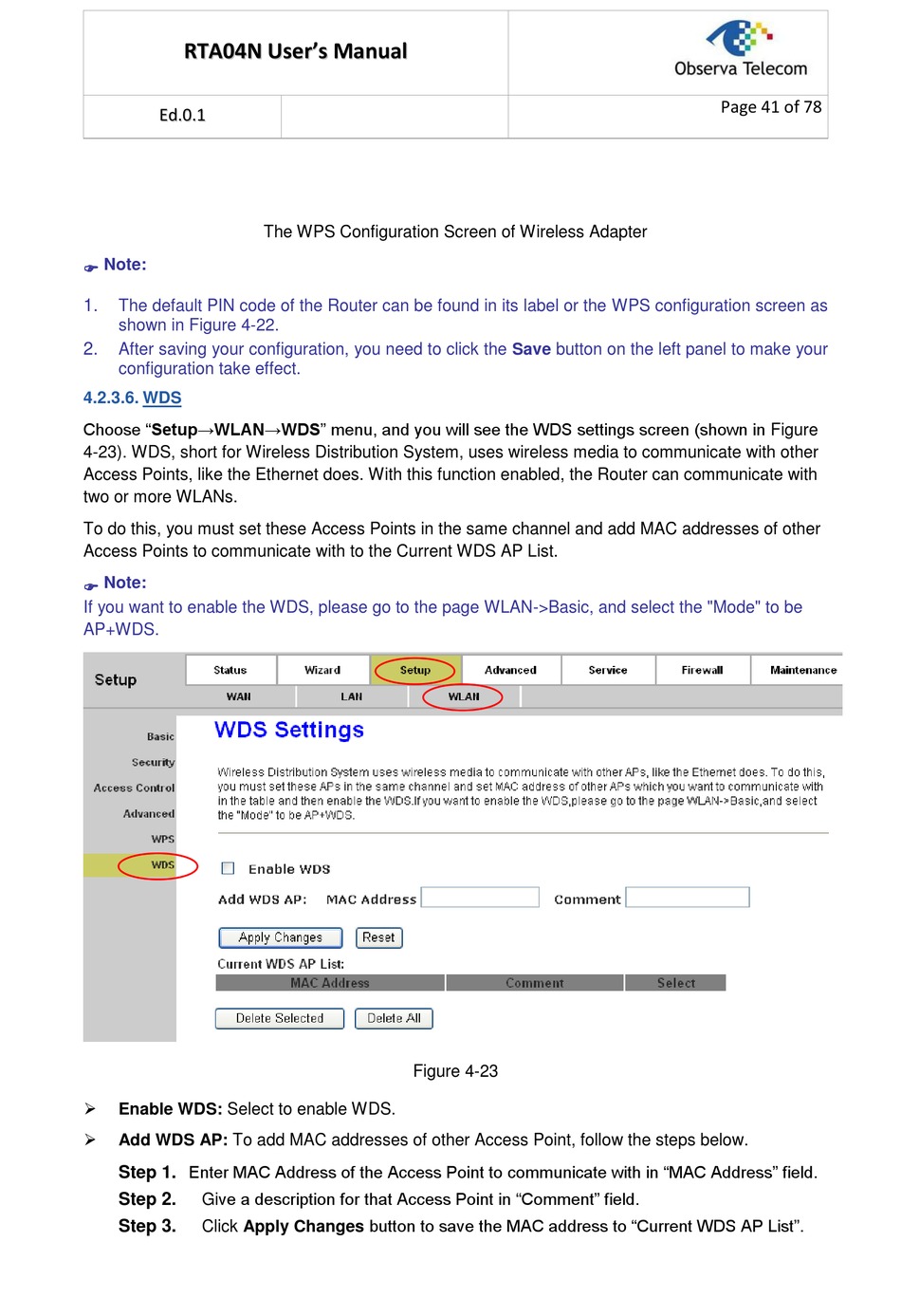

4.2.3.6. WDS
Choose "Setup→WLAN→WDS" menu, and you will see the WDS settings screen (shown in Figure
4-23). WDS, short for Wireless Distribution System, uses wireless media to communicate with other
Access Points, like the Ethernet does. With this function enabled, the Router can communicate with
two or more WLANs.
To do this, you must set these Access Points in the same channel and add MAC addresses of other
Access Points to communicate with to the Current WDS AP List.
Note:
If you want to enable the WDS, please go to the page WLAN->Basic, and select the "Mode" to be
AP+WDS.
Enable WDS: Select to enable WDS.
Add WDS AP: To add MAC addresses of other Access Point, follow the steps below.
Enter MAC Address of the Access Point to communicate with in "MAC Address" field.
Step 1.
Give a description for that Access Point in "Comment" field.
Step 2.
Click Apply Changes button to save the MAC address to "Current WDS AP List".
Step 3.
U
s
e
r
'
s
M
a
n
u
a
l
U
s
e
r
'
s
M
a
n
u
a
l
The WPS Configuration Screen of Wireless Adapter
Figure 4-23
Page 41 of 78
