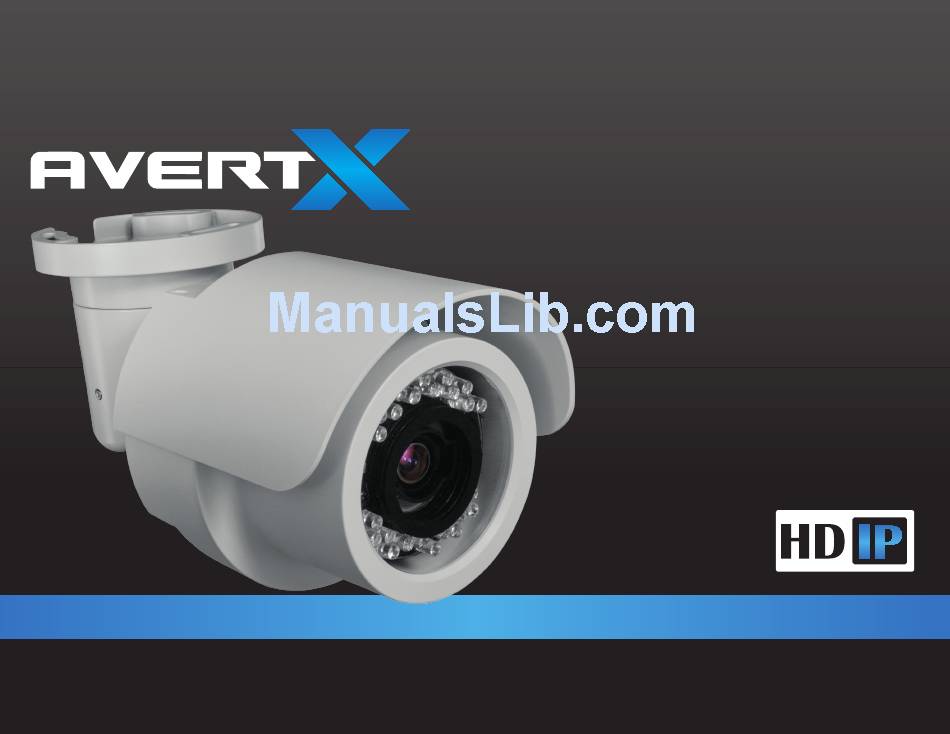

- Page 1 NIGHT VISION HD INDOOR/OUTDOOR IP BULLET User Manual MODELS: HD90IR HD90IRV HD90IRM HD90IRMH...
- Page 2 AVERTX be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without limitation, damages for loss of business profits, business interruption or loss of business information), even if AVERTX has been advised of the possibility of such damages or whether in an action, contract or tort, including negligence.
-
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Precautions Read Instructions Operating Read all of the safety and operating instructions before using • Before using, make sure power supply and others are properly the product. connected. Retain Instructions • While operating, if any abnormal condition or malfunction is Save these instructions for future reference. - Page 4 REGULATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC.
- Page 5 CAUTION...
-
Page 6: Table Of Contents
Micro SD Card Slot and Reset Button ................................12 HD90IR ........................................12 HD90IRV, HD90IRM, HD90IRMH ................................12 TWO: CAMERA FINDER ..........................................13 AvertX IP Finder ........................................14 Finding IP Cameras ......................................14 Default Username and Password ................................14 Changing the Network Type .................................... 14 THREE: SETUP AND CONFIGURATION .................................... - Page 7 Home ..........................................19 System ..........................................19 System ........................................19 Security ........................................20 Network ........................................21 DDNS ........................................22 Mail........................................... 23 FTP .......................................... 23 Motion Detection ...................................... 24 Storage Management ....................................26 Recording ......................................... 26 Snapshot ........................................27 View Log File ......................................27 View User Information ....................................
-
Page 8: Introduction
Vertical View Mode (image rotation by 90 degrees) • The HD90IR includes a fixed lens, the HD90IRV uses a varifocal lens, Smart IR Mode and the HD90IRM and HD90IRMH use motorized lenses for maximum •... -
Page 9: One: Getting Started
ONE: GETTING STARTED Box Contents Camera Overview 31626AA... -
Page 10: Box Contents
If any item is missing or has defects, DO NOT install or operate section and complete preparations for dome setup and all switch the product and contact your dealer for assistance. settings. Dimensions HD90IR-side HD90 Camera Hex Head Wrench Self-Tapping Screws Plastic Screw Anchors... -
Page 11: Connections
Connections Ceiling Installation AvertX HD90 cameras use Power over Ethernet (PoE). The only The HD90 can be installed directly on a wall or ceiling provided it has connection on the camera is the RJ45 Ethernet dongle located on the enough strength to support the camera. -
Page 12: Micro Sd Card Slot And Reset Button
Use these diagrams to locate the Micro SD Card slot and Reset button on your HD90 camera, depending on model. You must first remove the cover Reset Button and the front housing from the camera to access these items. HD90IR SD Card Slot Reset Button SD Card Slot... -
Page 13: Two: Camera Finder
TWO: CAMERA FINDER AvertX IP Finder 31626AA... -
Page 14: Avertx Ip Finder
Use the included IP Finder software to easily find your network cameras prevent unauthorized access. for initial setup. The AvertX IP Finder software is included on the CD with all AvertX IP devices. Username – Admin Password –... -
Page 15: Three: Setup And Configuration
THREE: SETUP AND CONFIGURATION Connecting to the Camera Viewer Software 31626AA... -
Page 16: Connecting To The Camera
Connecting a Stream CAMERA AvertX IP cameras are optimized for use with AvertX HDIP recorders, but you can also connect to your AvertX IP cameras using third party software like VLC media player (http://www.videolan.org). Locate the camera on the IP Finder list. -
Page 17: Connecting Over The Internet
There are three solutions to this: Connect modems on both sides directly to the recorder and There are some challenges with connecting to AvertX IP cameras over camera. If there is no router, no network address translation is WAN (internet) connections because the camera streams video over RTSP. -
Page 18: Viewer Software
VIEWER SOFTWARE Viewer Tabs Home – Monitor live video. To access the setup menu, you need to install the viewer software on System – Set the host name, system time, root password, and network your PC. The viewer software will install automatically the first time you connect to the camera. -
Page 19: Home
Home System Note The System tab is only accessible by the Administrator. System Screen Size Adjustment – Click the screen size buttons to adjust image display size x1/2 and full screen. Digital Zoom Control – In full screen mode, right-click to activate digital zoom and use the scroll wheel to zoom in/out. -
Page 20: Security
Security Add User The user name and password limited to 16 characters. There is a maximum of twenty user accounts Type the new User name and Password Select the appropriate check boxes to give the user Camera Control, Talk and Listen permissions. I/O access –... -
Page 21: Network
Click Save to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through the AvertX IP Finder software or type the IP address directly in the Address bar of your internet browser. -
Page 22: Ddns
DDNS Advanced • RTSP port – The default RTSP port is 554; setting range: DDNS (Dynamic Domain Name Service) is a service that allows a 1024 ~65535. connection to an IP address using a hostname (URL) address instead of • MJPEG over HTTP port –... -
Page 23: Mail
Mail The camera can send an e-mail via Simple Mail Transfer Protocol The camera can send alarm message to a specific File Transfer (SMTP) when motion is detected. SMTP is a protocol for sending e-mail Protocol (FTP) site when motion is detected. You can assign alarm messages between servers. -
Page 24: Motion Detection
Motion Detection When motion detection is activated, the Motion pop-up window will open. Motion Detection allows the camera to detect motion and trigger alarms when the motion level in the detected area exceeds the determined sensitivity threshold value. When motion is detected, the signals will be displayed on the Motion window as shown below. - Page 25 Triggered Action File Name – Enter a file name in the box, ex. image.jpg. The uploaded image’s file name format can be set in this section. Please select the You can specify which actions the camera should take when motion is one that meets your requirements.
-
Page 26: Storage Management
Storage Management Recording The HD90 has an integrated microSD™ card that can be used to record The recording schedule allows you to set up scheduled recording to the video or images. The card slot is compatible with a microSD™ card up microSD™... -
Page 27: Snapshot
Snapshot View Log File Click View Log File to view the system log file. The content of the file The camera supports a JPEG snapshot function. You can specify a storage location for the snapshot images. The default location is: C:\. provides useful information about configuration and connections. -
Page 28: View User Information
View User Information Factory Default The Administrator can view each user’s login information and privileges Use the factory default page to reset the IP Camera to factory default on the View User Information page. settings if necessary. View User Login Information All users for the camera are listed under User information. -
Page 29: Software Upgrade
Software Upgrade Upgrading the Camera Viewer Software Note Make sure the new firmware file is available before starting a software upgrade. Do not change the file name, or the system will not be able to update to the new firmware. Click Browse and select the firmware file. -
Page 30: Maintenance
Maintenance Video and Audio Streaming Settings Export the current configuration of the camera, or import the configuration for a camera. On the Streaming tab, you can configure specific video resolution, video Note compression mode, video protocol and audio transmission mode. Do not import configuration files from different models of cameras. -
Page 31: Video Compression
Video Compression Video Rotate Type You can change the orientation of the video output if necessary. You can select an MJPEG/H.264 compression mode on the video compression page appropriate for your application. You can also select • Normal transmits the image as the camera sees it. to display compression information on the Home page. -
Page 32: Video Ocx Protocol
Video OCX Protocol Frame Rate Control On the Video OCX protocol page, you can select different protocols for Setting the camera to transmit fewer frames can save bandwidth. Use streaming media over the network. In the case of multicast networking, the Frame Rate Control to adjust the camera’s frame settings if you can select the Multicast mode. -
Page 33: Video Mask
Video Mask Camera You can use the video mask page to define a privacy mask to keep users from viewing parts of the image. Exposure The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening (iris adjustment), the amount of exposure by the sensor (shutter speed) and other exposure parameters. -
Page 34: White Balance
White Balance Contrast A camera needs to find reference color temperature, which is a way of Correct the contrast of the entire image by adjusting the Contrast level, measuring the quality of a light source, for calculating all the other ranging from -6 ~ +19. -
Page 35: Four: Specifications
FOUR: SPECIFICATIONS 31626AA... -
Page 36: Camera Specifications
CAMERA SPECIFICATIONS Model Number HD90IR HD90IRV HD90IRM HD90IRMH White Balance Manual / AWB / ATW Model Number HD90IR HD90IRV HD90IRM HD90IRMH Auto White 2700 K – 8000 K Balance Range Image Sensor 1 / 2.7” CMOS Backlight IP Rating IP66... - Page 37 © 2013 AvertX All rights reserved. No part of this publication may be reproduced by any means without written permission from AvertX. The information in this publication is believed to be accurate in all respects. However, AvertX cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice.
