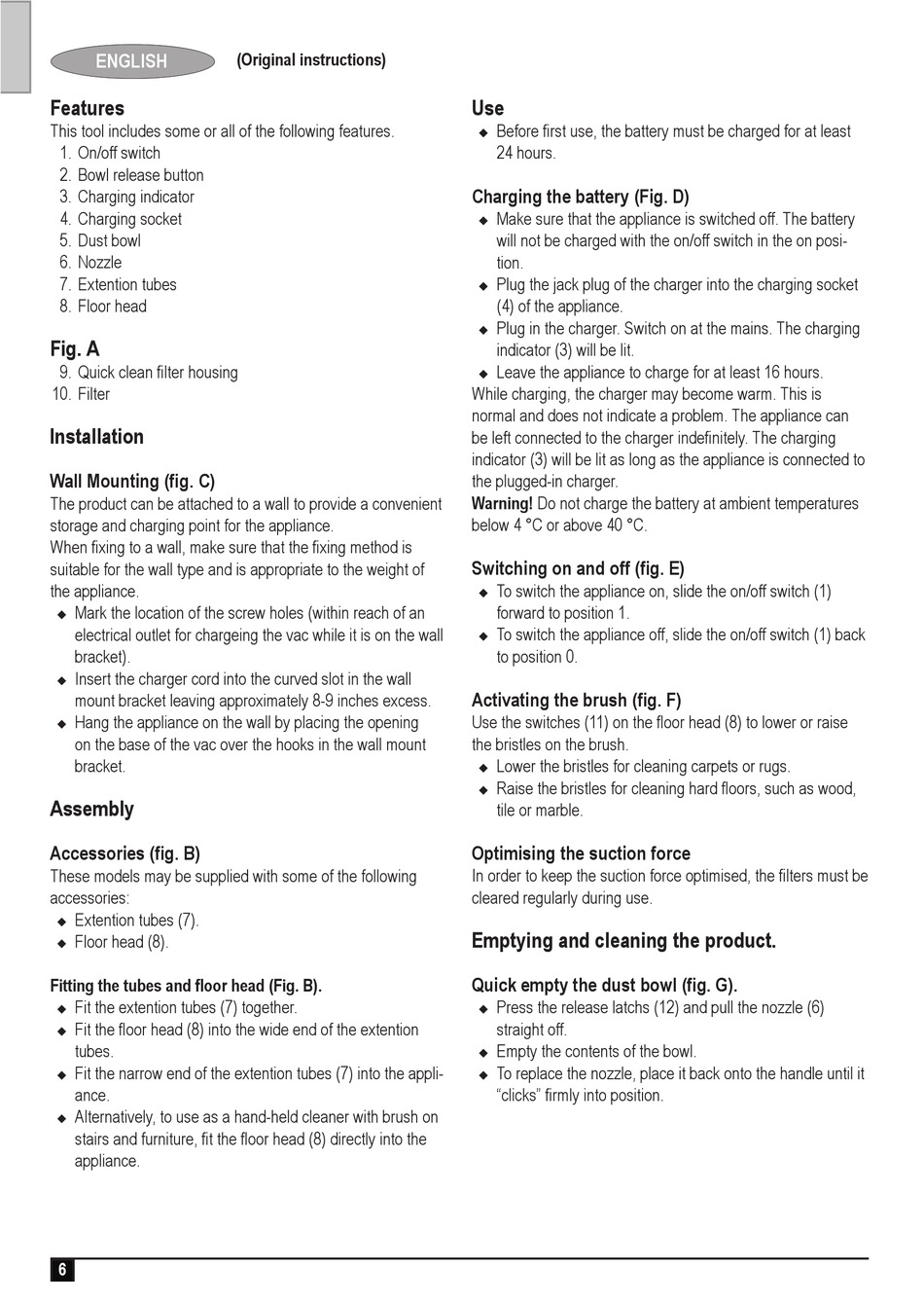

ENGLISH
Features
This tool includes some or all of the following features.
1. On/off switch
2. Bowl release button
3. Charging indicator
4. Charging socket
5. Dust bowl
6. Nozzle
7. Extention tubes
8. Floor head
Fig. A
9. Quick clean filter housing
10. Filter

Installation

Wall Mounting (fig. C)
The product can be attached to a wall to provide a convenient
storage and charging point for the appliance.
When fixing to a wall, make sure that the fixing method is
suitable for the wall type and is appropriate to the weight of
the appliance.
Mark the location of the screw holes (within reach of an
u
electrical outlet for chargeing the vac while it is on the wall
bracket).
Insert the charger cord into the curved slot in the wall
u
mount bracket leaving approximately 8-9 inches excess.
Hang the appliance on the wall by placing the opening
u
on the base of the vac over the hooks in the wall mount
bracket.
Assembly
Accessories (fig. B)
These models may be supplied with some of the following
accessories:
Extention tubes (7).
u
Floor head (8).
u
Fitting the tubes and floor head (Fig. B).
Fit the extention tubes (7) together.
u
Fit the floor head (8) into the wide end of the extention
u
tubes.
Fit the narrow end of the extention tubes (7) into the appli-
u
ance.
Alternatively, to use as a hand-held cleaner with brush on
u
stairs and furniture, fit the floor head (8) directly into the
appliance.
6
(Original instructions)
Use
Before first use, the battery must be charged for at least
u
24 hours.
Charging the battery (Fig. D)
Make sure that the appliance is switched off. The battery
u
will not be charged with the on/off switch in the on posi-
tion.
Plug the jack plug of the charger into the charging socket
u
(4) of the appliance.
Plug in the charger. Switch on at the mains. The charging
u
indicator (3) will be lit.
Leave the appliance to charge for at least 16 hours.
u
While charging, the charger may become warm. This is
normal and does not indicate a problem. The appliance can
be left connected to the charger indefinitely. The charging
indicator (3) will be lit as long as the appliance is connected to
the plugged-in charger.
Warning! Do not charge the battery at ambient temperatures
below 4 °C or above 40 °C.
Switching on and off (fig. E)
To switch the appliance on, slide the on/off switch (1)
u
forward to position 1.
To switch the appliance off, slide the on/off switch (1) back
u
to position 0.
Activating the brush (fig. F)
Use the switches (11) on the floor head (8) to lower or raise
the bristles on the brush.
Lower the bristles for cleaning carpets or rugs.
u
Raise the bristles for cleaning hard floors, such as wood,
u
tile or marble.
Optimising the suction force
In order to keep the suction force optimised, the filters must be
cleared regularly during use.

Emptying and cleaning the product.

Quick empty the dust bowl (fig. G).
Press the release latchs (12) and pull the nozzle (6)
u
straight off.
Empty the contents of the bowl.
u
To replace the nozzle, place it back onto the handle until it
u
"clicks" firmly into position.
