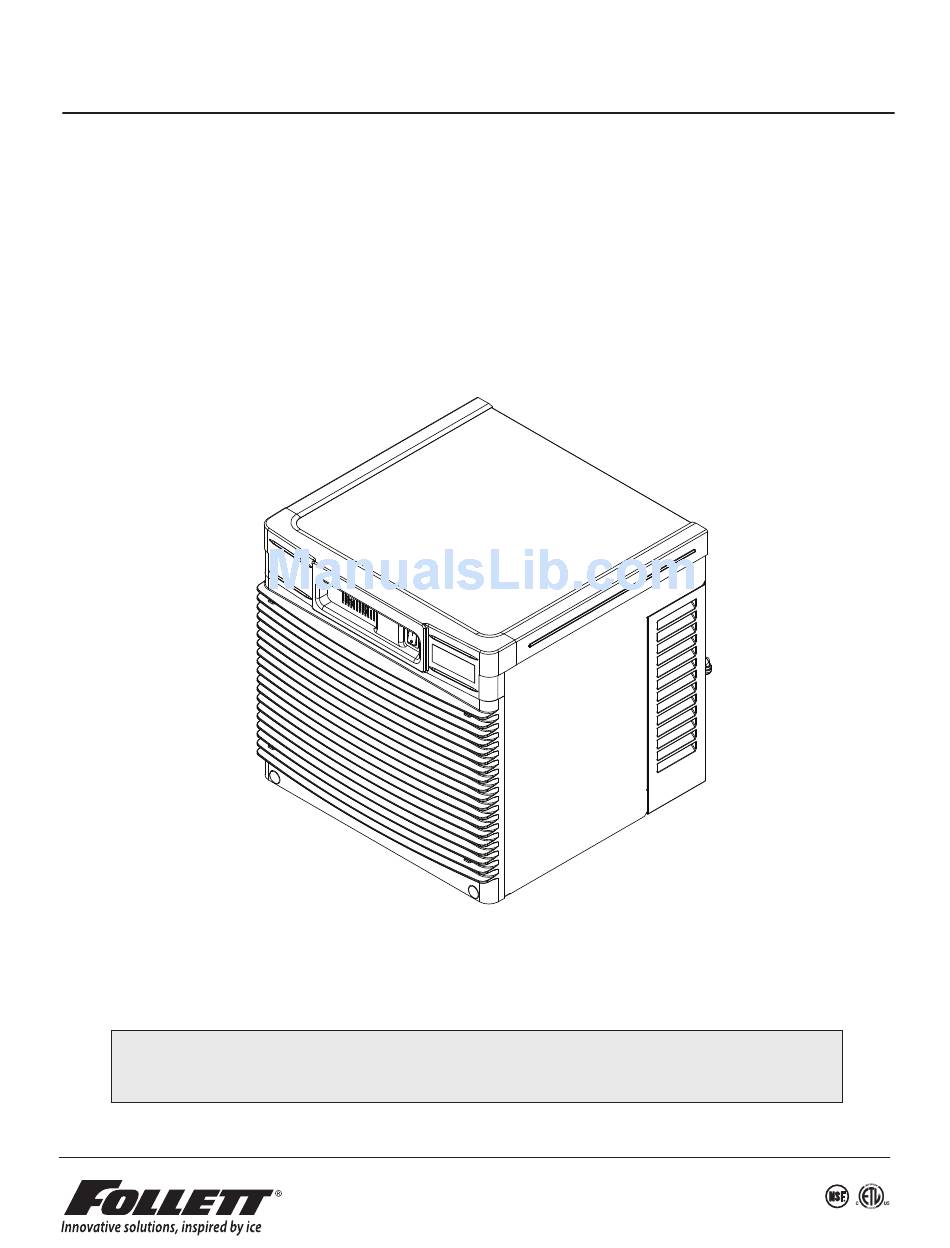

  • Page 1 HCD700R/N, HMD700R/N Ice Machines Order parts online Operation and Service Manual www.follettice.com Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-50861 • +1 (610) 252-7301 www.follettice.com...

  • Page 3: Table Of Contents

    Table of contents Welcome to Follett Corporation ........................4 Specifi cations ............................5 Operation ..............................7 Cleaning, weekly exterior care ......................7 Cleaning, semi-annual evaporator cleaning ..................7 Service ............................... 12 Ice machine operation ........................12 Water system............................. 13 Electrical system ..........................14 Normal control board operation ....................14 Test points ..........................

  • Page 4: Welcome To Follett Corporation

    After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the fi ling of a claim, if necessary.

  • Page 5: Specifi Cations

    § 3/4" vented drain line must slope a minimum of 1/4" per foot (6 mm per 30.4 cm run). § Drain to be hard piped and insulated. § Water shut-off recommended within 10 feet (3 m). § Follett recommends installation of Follett water fi lter system (part# 00130286) in ice machine inlet water line. Ambient Evaporator unit Air temperature 100 F/38 C max.
  • Page 6 Dimensions and clearances Entire front of ice machine must be clear of obstructions/connections to allow removal. § 1" (26 mm) clearance above ice machine for service. § 1" (26 mm) minimum clearance on sides. Front View Side View Back View ICE TRANSPORT HOSE CONNECTION 22.44"...

  • Page 7: Operation

    Do not use bleach to sanitize or clean the ice machine. Preventive maintenance Periodic cleaning of Follett’s ice machine system is required to ensure peak performance and delivery of clean, sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as recommended, and more often if environmental conditions dictate.
  • Page 8 Fig. 2 2. Mix 1 gallon (3.8L) 120 F (49 C) water and 7 ounces (198g) (one 7 ounce packet of Follett SafeCLEAN ice machine cleaner, part# 00132001). Locate cleaning cup. Fill until CLEANER FULL light comes on (Fig. 2).
  • Page 9 Fig. 5 5. Mix 1 gallon 120 F (49 C) water and 1.6 ounces (48ml) NU-CALGON IMS-II SANITIZER. Fill until CLEANER FULL light comes on (Fig. 5). Place one Sani-Sponge™ in remaining sanitizing solution and retain for Step 9. CLEANER Note: Do not use bleach to sanitize or clean the FULL ice machine.
  • Page 10 Fig. 8 8. Using disposable food service grade gloves, insert dry Sani-Sponge™ (kit part# 00132068). Next, insert Sani-Sponge soaked in Nu-Calgon IMS-II sanitizer solution (from Step 5). Push both Sani-Sponges down ice transport tube with supplied pusher tube (Fig. 8). Fig. 9 9.
  • Page 11 Fig. 11 11. Place a sanitary (2 gallon or larger) container in bin or dispenser to collect Sani-Sponges and ice for 10 minutes. Collect 5.5 lbs (3kg) of ice from unit. Discard ice and Sani-Sponges (Fig. 11). 11 11...

  • Page 12: Service

    The Horizon ice machine overview The Follett Horizon ice machine uses a horizontal, cylindrical evaporator to freeze water on its inner surface. The refrigeration cycle is continuous; there is no batch cycle. The evaporator is fl ooded with water and the level is controlled by sensors in a reservoir.

  • Page 13: Water System

    Water system The water level in the evaporator is controlled by a feed solenoid and level detecting sensors. Referencing the diagram below, water sensing rods extend down into the reservoir at the end of the evaporator assembly. The system works via electrical conductivity as follows: One of the longest probes is a common.

  • Page 14: Electrical System

    Electrical system Normal control board operation The PC board indicator lights provide all the information necessary to determine the machine's status. Green indicator lights generally represent “go” or normal operation; Yellow indicators represent normal off conditions; Red indicators generally represent alarm conditions, some of which will lock the machine off. A fl ashing green light labeled POWER indicates power to the machine.

  • Page 15: Error Faults

    Even cycling power will not reset a hard error. A soft error can either be automatically reset should the condition rectify, or if power is cycled. Should an error occur, consult the troubleshooting guide in this manual or a Follett service technician.

  • Page 16: Wiring Diagram, Evaporator Unit

    Wiring diagram, evaporator unit AUGER COMPRESSOR Gearmotor data (Brother) Resistance of windings Gearmotor current 1.1A (nominal) 115 vac gearmotor (Brother): white to black 16Ω white to blue 16Ω blue to black 32Ω Locked rotor amps...
  • Page 17 Single-phase condensing unit wiring diagram FAN 1 FAN 2 COMPRESSOR CONTACTOR COIL see note A TERMINAL BOARD POTENTIAL RELAY see note B CRANK CASE HEATER COMPRESSOR CONTACTOR COMPRESSOR TERMINAL BLACK START CAPACITOR WITH BLEEDER RESISTOR CAPACITOR BLACK YELLOW YELLOW...

  • Page 18: Mechanical System

    Mechanical System Fig. 12 Evaporator disassembly 1. Press CLEAN button to purge evaporator. Turn power OFF when LO WATER lights. 2. Unscrew and disconnect transport tube from louvered docking assembly. Fig. 13 3. Unplug gear motor. Fig. 14 4. Remove shuttle housing: §...
  • Page 19 Fig. 15 5. Remove gear motor: § Remove gear motor insulation (Fig. 15.1). § Remove 11/16" auger nuts and washer (Fig. 15.2). § Remove two 1/2" bolts (Fig. 15.3). § Pull gear motor from auger (Fig. 15.4). § Remove main housing insulation (Fig. 15.5). 6.
  • Page 20 Fig. 18 10. Press the lever on the back of the reservoir (Fig. 18.1) to release and remove the solenoid (Fig. 18.2). Fig. 19 11. Remove three screws to remove the reservoir insulation (Fig. 19). Fig. 20 12. Remove three screws to remove the reservoir (Fig. 20).

  • Page 21: Evaporator Reassembly

    Fig. 21 13. To remove the rear bushing, place the auger into the evaporator and use it to gently tap and dislodge the rear bushing housing (Fig. 21). Fig. 22 Evaporator reassembly 1. Remove and inspect O ring seal. Replace if damaged in any way.
  • Page 22 Fig. 24 6. Install the reservoir insulation, tube clamp, and solenoid lever with three screws. Install solenoid. Fig. 25 1. Remove and inspect O ring seal. Replace if damaged in any way (Fig. 25.1). 2. Clean O ring groove. Lubricate O ring with petrol-gel and reinstall (Fig.
  • Page 23 Fig. 27 6. Install main housing: § Slide main housing onto auger shaft (Fig. 27.1). § Install main housing insulation (Fig. 27.2). § Use an allen wrench to install 3/16" allen screws (3) (Fig. 27.3). Fig. 28 Apply a coat of petrol-gel to the auger shaft. 8.
  • Page 24 Fig. 31 14. Install gear motor insulation. Fig. 32 15. Install shuttle housing: § Install stream divider (Fig. 32.1). § Place shuttle housing and install two screws (Fig. 32.2). CONNECT § Plug in shuttle housing connections (Fig. 32.3). BLACK § Connect vent tube (Fig. 32.4). ORANGE Fig.

  • Page 25: Refrigeration System

    Refrigeration system Condenser unit operation The condensing unit is weatherproof and equipped to operate in ambient temperatures from –2 0 F to 120 F (–29 C to 48.9 C). The condensing unit is controlled by a low pressure control, which works in concert with a refrigerant solenoid valve on the evaporator module.

  • Page 26: Refrigeration System Diagram

    Refrigeration system diagram HIGH SIDE SERVICE VALVE W/ SERVICE PORT CONDENSER UNIT FILTER LOW SIDE SERVICE VALVE W/ SERVICE PORT FILTER-DRIER HEAT EXCHANGER COMPRESSOR RECEIVER SIGHT GLASS HIGH SIDE SERVICE VALVE W/ SERVICE PORT LOW SIDE SERVICE VALVE CONDENSER W/ SERVICE PORT HEAD CONTROL VALVE CHECK VALVE EVAPORATOR UNIT...

  • Page 27: Refrigerant Replacement Requirements

    Refrigerant replacement requirements 1. Non-contaminated refrigerant removed from any Follett refrigeration system can be recycled and returned to the same system after completing repairs. Recycled refrigerant must be stored in a clean, approved storage container. If additional refrigerant is required, virgin or reclaimed refrigerant that meets ARI standard 700-88 must be used.

  • Page 28: "Bin Full" Detection System

    “Bin full” detection system The Follett Horizon ice machine incorporates a unique “bin full” detection system that consists of the shuttle and actuator. The shuttle incorporates a fl ag and sensor. Referencing the fi gure below, the normal running position of the fl ag is down, on the sensor.

  • Page 29: Troubleshooting

    Troubleshooting Please see “Service” section for a description of each function. Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2.
  • Page 30 2. Ice machine will eventually start when water reaches normal lo level. 3. Replace water feed solenoid valve. 4. Replace PC board. Service required. 1. 30,000 hour bushing check. 1. Call Follett technical service group at (877) 612-5086 or +1 (610) 252-7301.
  • Page 31 This page intentionally left blank.

  • Page 32: Replacement Parts

    Replacement parts Order parts online www.follettice.com Evaporator assembly...
  • Page 33 Order parts online www.follettice.com Reference # Description Part # Tube, ice transport, molded 01006485 Shuttle assembly 01006253 Switch, shuttle 001006261 Compression nozzle 010001734 Compression nozzle, defl ector assembly 01006246 Gasket and retainer 00115600 Auger hardware 01006493 00974394 Bolt, gearmotor mounting (1) 00974352 Gearmotor, 115 V (includes capacitor) 01006220...
  • Page 34 Low side assembly...
  • Page 35 Reference # Description Part # Tubing, liquid line (includes insulation) 01021724 Tubing, suction line (includes insulation) 01021732 Sight glass 01018357 Electrical box support 00969925 Valve, expansion, thermal (includes 502830 and 00106534) 01021716 Insulation, TXV 502830 Valve, shut-off, liquid line 00107060 Valve, solenoid 00107052 Insulation, bulb, TXV...
  • Page 36 Electrical box Order parts online www.follettice.com...
  • Page 37 Order parts online www.follettice.com Reference # Description Part # Cover, electrical box, air/water-cooled 01021708 Board, control, 115 V (includes stand-offs) 01006428 Stand-offs (set of 8) 00130906 Switch, evaporator clean 00117036 Switch, ice machine power 208867 Cord, power, 115 V 00984278...
  • Page 38 Integration kit – top-mount and RIDE remote ice delivery Order parts online www.follettice.com Top mount configuration RIDE model configuration...
  • Page 39 00171397 Not shown Extension-fi ll tube, 9" 00135723 Not shown Extension-fi ll tube, 4" 00153684 Not shown Follett SafeCLEAN ice machine cleaner (case of 24 x 7oz packets) 00132001 Not shown Sani-Sponge kit 00132068 Not shown Integration kit, Vision 00997171...
  • Page 40 Skins assembly Order parts online www.follettice.com...
  • Page 41 Order parts online www.follettice.com Reference # Description Part # Grille, front 01006154 Front cover, air- & water-cooled 01006162 Tubing, water, 3/8" OD 502719 Fitting, water inlet 502924 Elbow, water inlet 502925 Coupling (includes O-ring) 00171207 O-ring 00144675 Bulkhead fi tting 00171215 00145342 Hose clamp...
  • Page 42 Order parts online Single-phase condensing unit www.follettice.com...
  • Page 43 Order parts online www.follettice.com Reference # Description Part # Shroud 01018290 Condenser 01018324 Head pressure control valve 01021401 Condenser fan motor 01018266 Condenser fan guard 01018282 Receiver 01018332 Filter drier, liquid 01018340 Compressor 01021666 Service/shut-off valve, suction line 00107078 Service/shut-off valve, liquid line 00107060 Crankcase heater 01018373...
  • Page 44 Harmony, Ice Manager, SafeCLEAN, Sani-Sponge, RIDE and Vision are trademarks of Follett Corporation Follett and Chewblet are registered trademarks of Follett Corporation, registered in the US. 801 Church Lane • Easton, PA 18040, USA 01012715R00 Toll free (877) 612-50861 • +1 (610) 252-7301 11/12 www.follettice.com...
