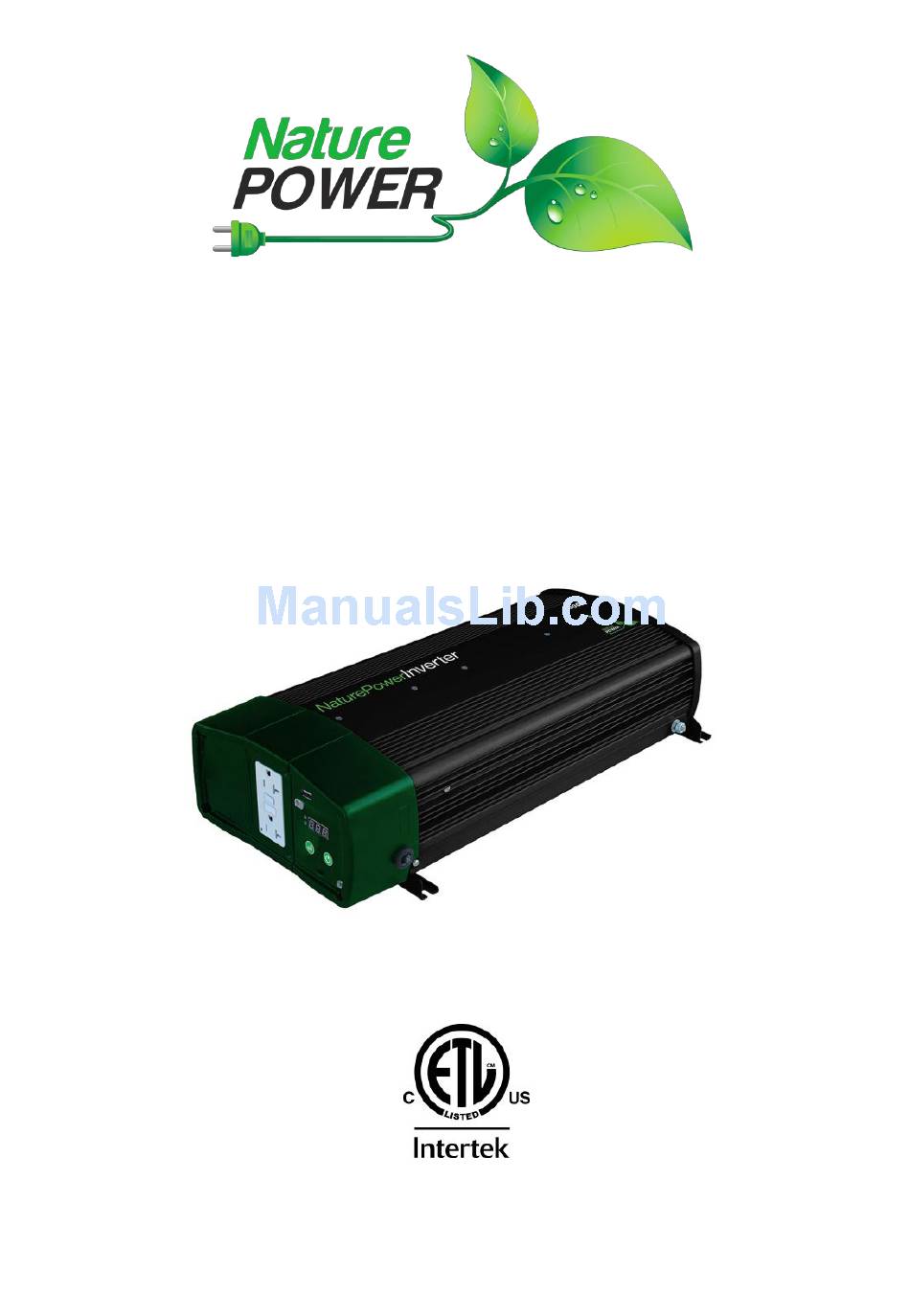

  • Page 1 Version 1.1 Inverter 2000W with 55Amp Inverter Charger (38326) Owner’s Manual...
  • Page 2 Important Please be sure to read and save the entire manual before using your Nature Power Inverter- Charger. Misuse may result in damage to the unit and/or cause harm or serious injury. Read manual in its entirety before using the unit and save manual for future reference.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ....................4 PRODUCT DESCRIPTION ................. 5 INSTALLATION ....................5 UNIT OPERATION ....................9 TROUBLESHOOTING ..................11 SPECIFICATIONS ..................... 14 WARRANTY ....................... 15 Page 3...

  • Page 4: Introduction

    1. INTRODUCTION Thank you for purchasing the Nature Power Inverter 2000W with 55Amp Inverter Charger. With our state of the art, easy to use design, this product will offer you reliable service by providing AC power and 5V USB power for your home, cabin, boat, RV or Trailer and recharge your battery automatically when utility AC is available.

  • Page 5: Product Description

    3. INSTALLATION WARNING: Nature Power recommends that all wiring be done by a certified technician or electrician to ensure adherence to the applicable electrical safety wiring regulations and installation codes. Failure to follow these instructions can damage the unit and could also result in personal injury or loss of life.
  • Page 6 Preparing for Installation Typical Wiring block diagram of the Power Inverter: Output: DC Disconnect Fuse or Circuit Inverter-Charger AC Output Switch Breaker Port 1-3 & 12 V Battery Bank (32326) Input: Branch AC Source Breaker 12V Battery Bank:  The use of deep cycle battery is highly recommended for power inverter application ...
  • Page 7 Installation:  Choose an appropriate mounting location.  For indoor use, the unit can be mounted in any direction except with the DC Input panel facing downwards.  Use the mounting template below to mark the positions of the mounting screws. ...
  • Page 8 AC Output Connections: CAUTION: Please be sure that the AC Input source is not energized before making any AC Input and Output connection and that the DC disconnect switch is turned OFF. The AC Output connection has three types of configurations: Use of the provided GFCI AC socket for AC load: This configuration does not require AC Output installation.

  • Page 9: Unit Operation

    4. UNIT OPERATION Auto Backup Mode (Factory default setting): The unit is fully automatic. When utility power is available, the unit is running in AC bypass mode. AC output is supplied from the utility. The internal AC charger is ON and will automatically top up the battery bank that is connected to the unit.
  • Page 10 Understanding the Error Code Code Condition Corrective Action Input battery voltage is too low and Recharge battery immediately and unit has shutdown restart unit Input battery voltage is too high and Check battery voltage or determine if unit has shutdown any external charger is connected to the battery bank AC output is overloaded or short...

  • Page 11: Feature Setting

    5. FEATURE SETTING To understand more about the unit features, read the following section and follow the instructions to make changes to the desired setting. Default Factory Setting: In (Inverter): In1- inverter enabled in standby mode with load sense off 55A –...
  • Page 12 >6Aac and <11Aac 15 Adc >1Aac and <6Aac 35 Adc <1Aac 55 Adc Same as above. Set the maximum current draw from shore power is 20A >16Aac 5 Adc >11Aac and <16Aac 15 Adc >6Aac and <11Aac 35 Adc <6Aac 55 Adc Same as above.
  • Page 13 Page 13...

  • Page 14: Troubleshooting

    Check AC Load Sense setting AC Load connected must be below the AC Load sense setting 7. SPECIFICATIONS Note: Specifications are subject to change without notices. Specification 38326 Inverter AC Output Power 2000W AC Output Current 16.6A AC Surge Power (Peak)

  • Page 15: Warranty

    The limited warranty program is the only one that applies to this unit, and it sets forth all the responsibilities of Nature Power. There is no other warranty, other than those described herein. Any implied warranty of merchantability of fitness for a particular purpose on this unit is limited in duration to the duration of this warranty.
