V1.1-M 11Aug2020

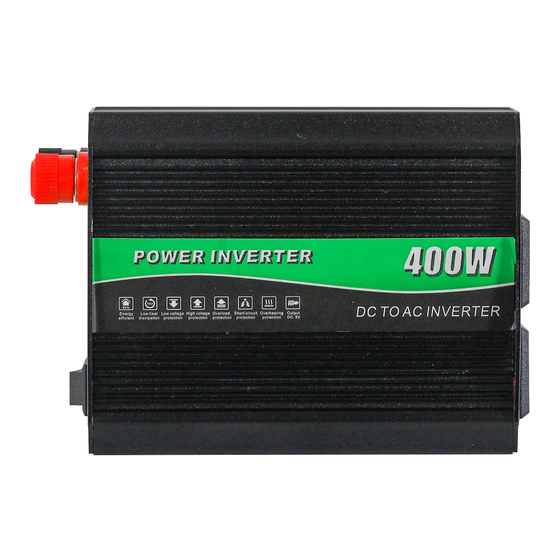

Nature Power 400 Watt Power Inverter
User Manual
WARNING: Read carefully and understand all assembly and operation
instructions before operating. Failure to follow the safety rules and other basic
safety precautions may result in serious personal injury.
#30400
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30400 and is the answer not in the manual?

Questions and answers

Related Manuals for Nature Power 30400

Summary of Contents for Nature Power 30400

  • Page 1 V1.1-M 11Aug2020 Nature Power 400 Watt Power Inverter User Manual WARNING: Read carefully and understand all assembly and operation instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. #30400...

  • Page 2: Intended Use

    Intended Use Power Inverters convert DC electricity to AC electricity then offer power to small electrical equipment and digital products. It has been widely used in cars, steamboats, mobile office, post and telecommunications, public security and emergency. Electrical equipment can not be used: 1, Generally capacitive load and perceptual load appliances are inapplicability: Air condition, high power electric drill, fridge, microwave oven, blender.

  • Page 3: Specifications

    Specifications Operating input voltage .................10-15 VDC Nominal input voltage ................12.8-13.2 VDC Nominal output voltage ................115±5 VAC Output frequency ....................60±3 Hz USB ......................2 x 5V/2.1A Continuous output power ................Up to 400 W Surge output power ....................700W Waveform ..................Modified sine wave Efficiency (typical)....................

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. This manual contains important safety and operating instructions for power inverter. This manual will show you how to use your inverter safely and effectively. Please read, understand and follow these instructions and precautions carefully. 2. Keep out of reach of children. 3.
  • Page 5 Operating instruction Connecting inverter to 12V battery / vehicle 1. Locate the Positive and Negative terminals on the inverter 2. From the POSITIVE (RED) and the NEGATIVE (BLACK) terminals, remove the hex nut, 3. Place the POSITIVE (RED) ring connector onto the POSITIVE (RED) inverter terminal. Place the NEGATIVE (BLACK) ring connector onto the NEGATIVE (BLACK) inverter terminal.
  • Page 6 Operating 1. Connect the inverter to power source (see inverter connecting section). 2. Switch the inverter’s ON/OFF switch to the ON (I) position. 3. The GREEN LED indicator will light, indicating the inverter is receiving power. 4. Switch the inverter’s ON/OFF switch to the OFF (O) position. 5.

  • Page 7: Troubleshooting

    Trouble Shooting Problem Possible Cause Reason/solution Check for poor connection to battery or power supply. make sure connection points Poor contact at terminals are clean. RED LED is ON Connection reversed Unplug the inverter and reverse the clamps. Alarm sounds and/or inverter does not function Battery low...

  • Page 8: Limited Warranty

    If defective part or unit should be returned, a Return Authorization Number must be issued by Nature Power and the defective part or unit should be returned to the authorized location at the purchasers’ expense. A dated proof of purchase is required to receive warranty service.
