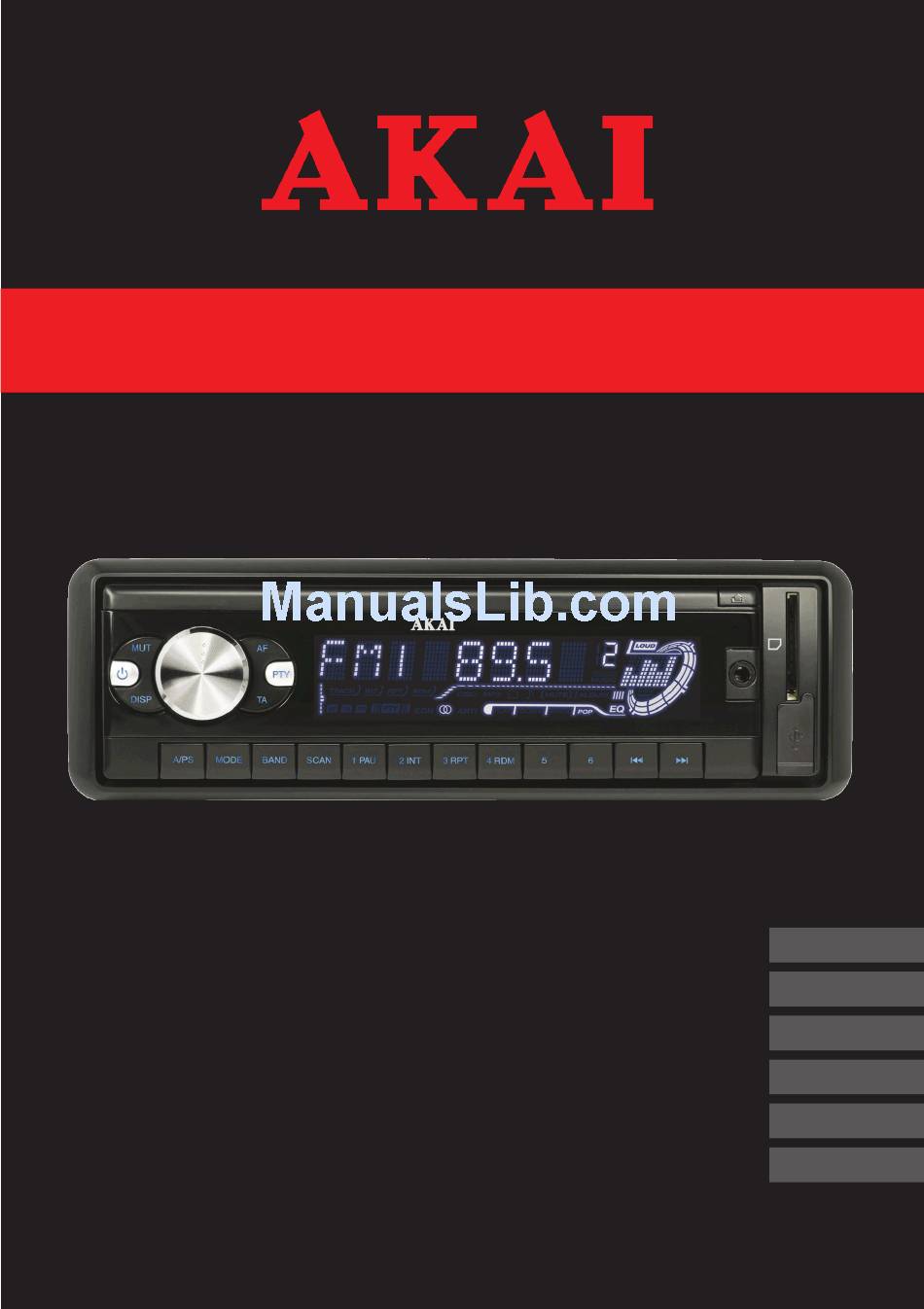

- Page 1 Carradio CD-player with USB-port, Cardreader and Front line-in ACAC105UC User manual NL 23 Gebruiksaanwijzing FR 45 Manuel de l’utilisateur ES 68 Manual de instrucciones DE 91 Gebrauchsanleitung Οδηγίες χρήσεως EL 137...
-
Page 2: Table Of Contents
Table of contents Safety ................3 Intended use ..............3 Labels in this manual ............3 General safety instructions ..........4 Preparations for use ........... 4 Unpacking ................4 Package contents ............5 Installation ..............5 ISO Cable Connection .............7 Connecting random equipment ........8 Functions ..............9 Control panel..............9 Operation .............. -
Page 3: Safety
ACAC105UC Safety Intended use The Car Radio Music System plays music from CD, USB device, memory card and radio. Read the manual carefully before the first use. Due to the great variety of products with external memory connection (USB, SD/MMC, etc.) and their sometimes quite... -
Page 4: General Safety Instructions
General safety instructions WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury. CAUTION Do not spill any liquid on the appliance. WARNING Do not insert any objects in the ventilation holes. CAUTION Do not block the ventilation holes. -
Page 5: Package Contents
ACAC105UC Package contents The following items are included in the received package: 1x Car Radio Music System 1x Detachable front panel 1x Protective carrying case for detachable front panel 1x Mounting bracket 2x Release keys 1x Support strap 1x Tapping screw... - Page 6 ● Remove the outer edge from the unit. ● Remove the detachable control panel. ● Remove the release screws. ● Insert the release keys to separate the unit from the mounting bracket. Keep the release keys in a safe place for future use.
-
Page 7: Iso Cable Connection
ACAC105UC ACAC105UC ISO Cable Connection ISO A CONNECTOR Depending on the manufacturer, the contacts on your vehicle connection may be assigned differently. This is not a defect of the device but caused by a deviating connector pin assignment by the manufacturer of your vehicle. -
Page 8: Connecting Random Equipment
Connecting random equipment ANTENNE LINE OUT Audio connections (output) ● Connect a suitable cable to the L/R channels of the LINE OUT connection. Cable connection ● Insert the vehicle's antenna cable into the RADIO ANTENNA connection. -
Page 9: Functions
ACAC105UC Functions Control panel 25 24 10 11 12 13 14 15 16 POWER button 14 TRACK SEARCH UP button MUTE button 15 PREV button SELECT button/VOLUME dial 16 NEXT button DISPLAY button 17 Line in jack AUTO SEEK button... -
Page 10: Operation
Behind control panel 27 EJECT button 28 Disc slot 29 RESET button RESET Operation Detachable control panel The control panel can be detached in order to disencourage burglary. Attaching the control panel < 10° ● Insert the left side of the control panel into the main unit. -
Page 11: General Functions
ACAC105UC CAUTION ● Do not insert the control panel from the right side. It can damage the control panel. ● This control panel is not waterproof. Do not expose it to water or excessive moisture. ● Do not place the control panel on the dashboard or nearby areas where the temperature rises high. -
Page 12: Radio Functions
● Upon switching on, the appliance is default in the radio mode, unless there is a disc in the slot. ● Selection of the USB mode or the memory card mode only works if a USB device or a memory card is placed in the slot. Radio functions ●... - Page 13 ACAC105UC - PTY SPEECH: the search is limited to radio stations with program type SPEECH - PTY OFF: the search is not limited to a specific program type Radio stations with the program type MUSIC will be stored under the...
-
Page 14: Cd Functions
- The volume level will be increased to the threshold value if it was under the threshold value CD functions ● To insert a disc: - Press the OPEN PANEL button (21) and wait for the control panel to move out of the way. - Insert the disc into the slot (28) with the label upwards. -
Page 15: Usb Functions
ACAC105UC USB functions ● To insert a USB device: - Open the cover (19). - Insert the device in the slot (18). ● Press the MODE button (6) until USB appears on the display. Playback will start automatically. ● Refer to the instructions under "CD functions" for explanation of the functions available during playback. -
Page 16: Advanced Functions
● Press the SELECT button (3). The first digit is fixed and the second digit starts blinking. ● Turn the VOLUME dial (3) to select the second digit of the track number that you are looking for. ● Proceed in the same way for the third digit. After selection of the third digit, the selected track number will be played. - Page 17 ACAC105UC ● To exit the menu at any time, press the DISP button (4), or wait for approx. 8 seconds. After 8 seconds the unit automatically exits the menu. TA SEEK - TA SEEK: when the currently tuned radio station does not receive any...
-
Page 18: Resetting The Appliance
SEEK - SEEK 1: the automatic search for a preset radio station is stopped when a radio station is detected, even if you keep pressing the AUTO SEEK button (12) - SEEK 2: the automatic search for a preset radio station is not stopped when a radio station is detected, as long as you keep pressing the AUTO SEEK button. -
Page 19: Cleaning And Maintenance
ACAC105UC Cleaning and maintenance Cleaning the cabinet Wipe with a soft cloth. If the cabinet is very dirty, dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean. Cleaning the connector Use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel. -
Page 20: Troubleshooting
Troubleshooting Trouble Action No power. The car ignition is not on. If the power supply is properly connected to the car accessory, switch the ignition key to "ACC". The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player. Remove the disc in the player, then insert the new disc. -
Page 21: Technical Data
ACAC105UC USB playback Trouble Action No playback USB device is not installed or installed incorrectly. Insert USB device into slot. Incompatible USB device used. Playback using any USB device cannot be guaranteed. Please try another USB device. Technical data Parameter... -
Page 22: Disposal Of Used Electrical And Electronic Equipment
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu...
