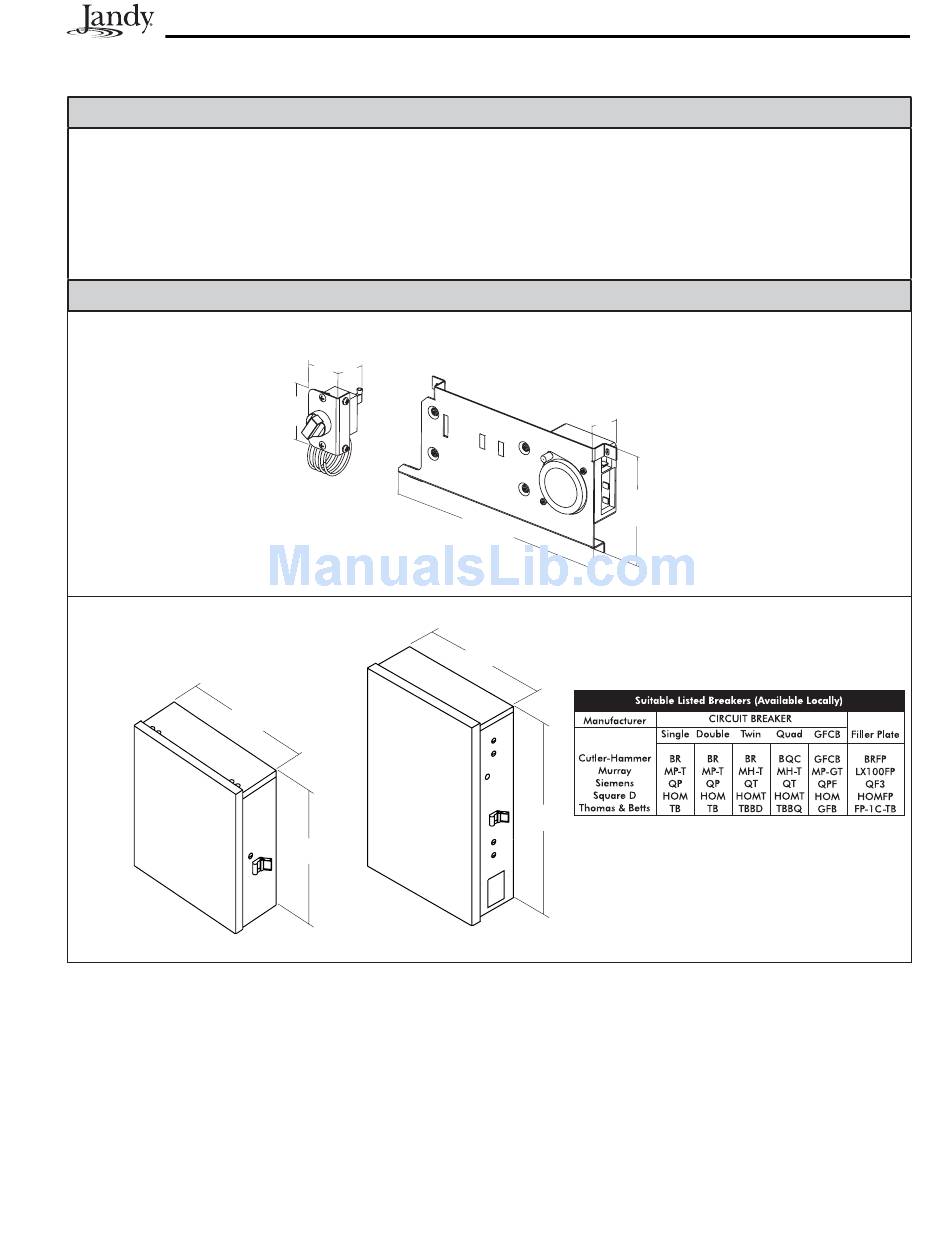

System Component Specifi cations and Dimensions
Table 1
Specifications (USA and Canada)
Power Supply
Contact Rating
Service Switch
Dimensions
Pool Link Control System
Power Centers (required and sold separately)
14½"
6613/6613AP
Standard Power
Cen ter
120 VAC; 60 Hz; 3 A
High voltage - 25 A; 3HP @ 240 VAC
Low Voltage - Class Two, 1 A @ 24 VAC
All Circuits (located at Power Center)
5½"
3"
2½"
13¾"
6614/6614AP
Sub-Panel
Power Cen ter
1½ HP @ 120 VAC
1500 Watts Incandescent
2"
5"
10½"
14½"
20"
