Page 12
3.4.7 Connect System Power to Printed
Circuit Board
Plug the three-pin 24 VAC plug from the
transformer into the three-pin terminal P5 on the
back of the Control System PCB (see Figure 8).
Mount the Bezel to the Control System using the
screws provided.

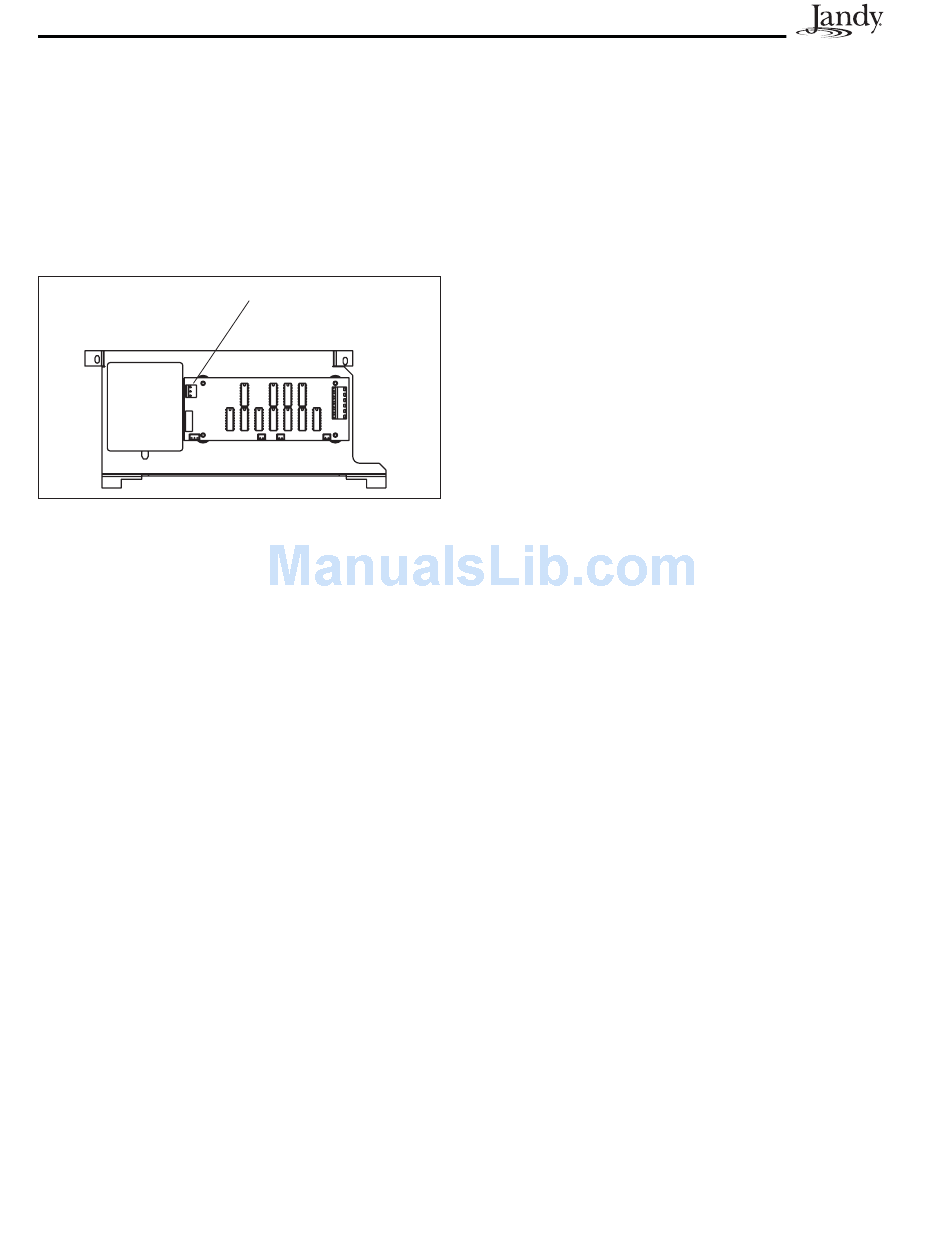

Figure 8.
Pool Link Control Panel (Back View)
24 VAC Power Plug
Connection
