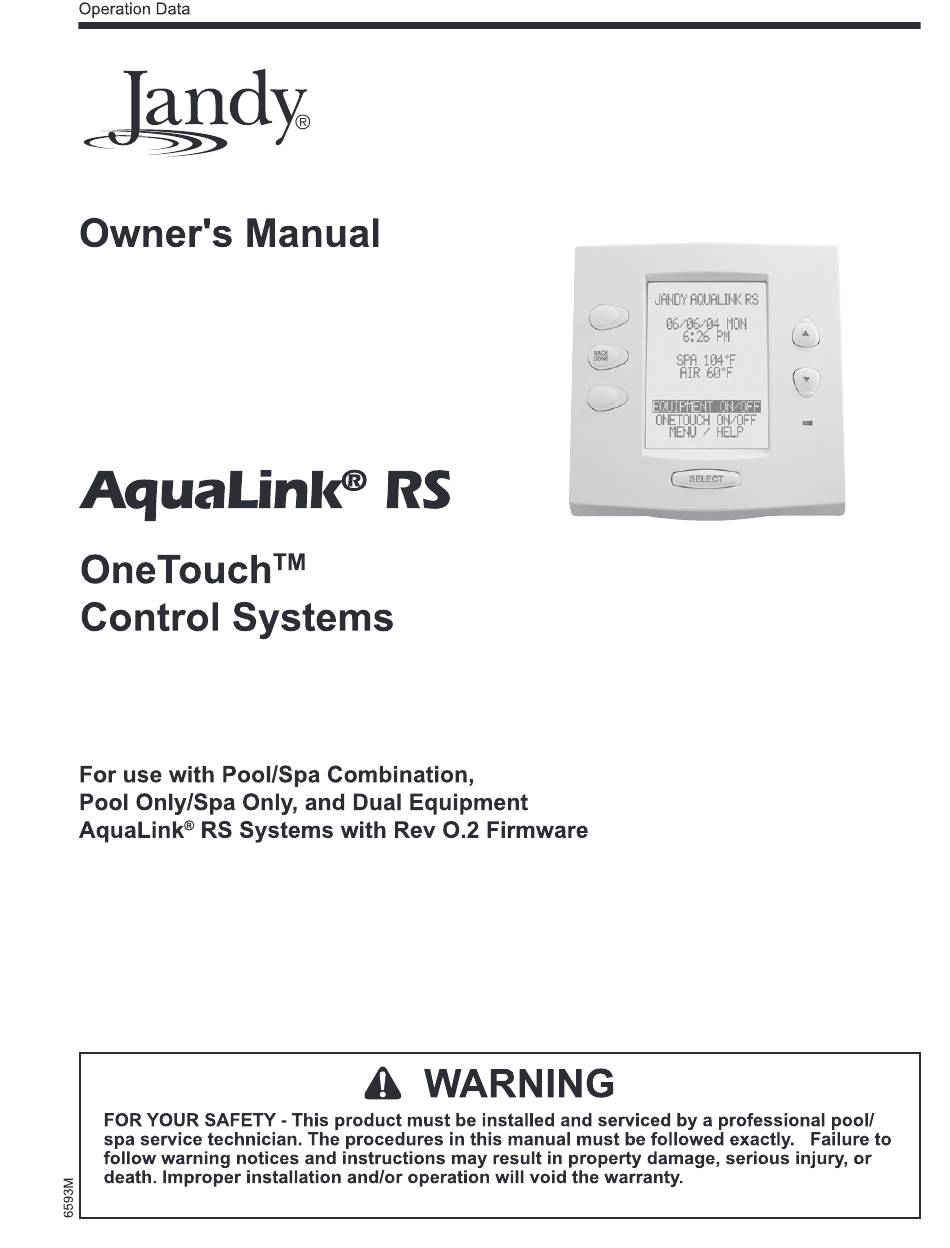

Jandy AquaLink RS OneTouch Owner's Manual

Hide thumbs Also See for AquaLink RS OneTouch:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AquaLink RS OneTouch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jandy AquaLink RS OneTouch

Summary of Contents for Jandy AquaLink RS OneTouch

  • Page 5 All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:...
  • Page 6 fi...
  • Page 7 ® This document gives in struc tions for operating the Jandy AquaLink RS OneTouch indoor control panel. The in struc tions must be fol lowed exactly. Read through the instructions com plete ly before operating the equipment. ® The AquaLink RS OneTouch can turn your pool/spa equipment on and off in any of the following three ways: Activate the equipment manually through the EQUIPMENT ON/OFF menu.
  • Page 8 SELECT button to turn the equipment on or off. Return to the main menu by using the BACK button, or use the UP/ DOWN arrow keys to highlight another device. Highlight ALL OFF and press SELECT. After using ALL OFF, return to the main menu by using the BACK button. ALL OFF JANDY AquaLink RS FILTER PUMP 01/31/03 MON POOL HEAT...
  • Page 9 AUX 5 AUX 5 AUX 6 AUX 6 AUX 6 AUX 7 AUX 7 AUX 7 FILTER PUMP ON JANDY AquaLink RS POOL HEAT POOL HEAT 01/31/00 MON ENABLED SPA HEAT 6:00 PM SOLAR HEAT SET TO 80°F AUX 1 POOL 65°F...
  • Page 10 The SPA HEAT enables the heater for the spa. When the LED is green, the heater is enabled. When the LED is red, the heater is on and firing. It uses the settings from SET TEMP menu, or you can increase/decrease when enabling. Highlight SPA and press SELECT.
  • Page 11 The AUX modes control each of the auxiliary devices plus an extra AUX. To assign a different name to an auxiliary device, use the SYSTEM SETUP and LABEL AUX menus. Highlight an AUX and press SELECT. Use the SELECT button to turn the equipment on or off. FILTER PUMP ON FILTER PUMP ON POOL HEAT...
  • Page 12 Highlight HEAT PUMP and press SELECT. Press the SELECT button to enable/disable the HEAT PUMP. The HEAT PUMP uses the heater temperature set point. The CHILLER selection controls the chilling operation of the heat pump. In order to use the chiller mode of the heat pump, the filter pump must be turned on and the heat pump must be in CHILLER MODE (see Section 7, Using the System Setup Menu), and the switch on the heat pump on the equipment pad must also be set to CHILLER MODE.
  • Page 13 Highlight CHILLER and press SELECT. Press the SELECT button to enable/disable the CHILLER. The CHILLER uses the desired chilling temperature set point. Press SELECT to accept the value. The LAMINAR PULSE CONTROL menu is used to set the pulse rate of the laminar jets. FILTER PUMP ON LAMINAR PULSE LAMINAR LIGHT...
  • Page 14 The SET COLOR menu is used to set the color of a color light and then turn the light on. Highlight the auxiliary assigned to the color light and press SELECT. A list of available colors will be displayed. The most recently selected color will be highlighted.
  • Page 15 In addition to the individual sprinkler programming, the user may enable or disable all sprinkler programs, cancel sprinkler programs for 24 hours, or manually start one or more sprinkler programs. Selecting CANCEL TODAY, MANUAL START, DISABLE PROGRAMS or ENABLE PROGRAMS will supersede the current state of the sprinkler system.
  • Page 16 To automatically run programs at their start times, the sprinkler control system must be in the enabled (ENA) state. To enable the sprinkler system, select ENABLE PROGRAMS from the utility/system screen. AUX5 SPRINKLERS AUX5 AUX6 AUX6 AUX7 AUX7 CANCEL TODAY EXTRA AUX EXTRA AUX MANUAL START...
  • Page 17 The speed of a variable speed pump can be changed from the EQUIPMENT ON/OFF screen. The speed can be turned ON or OFF and it can be changed. In the example below the SPEED PRESET #3 is turned on and set to 2750 RPM. Highlight EQUIPMENT ON/OFF and press SELECT.
  • Page 18 is the priority temperature. It must be set higher than , and it overrides whenever it is enabled. Set temperature for before setting temperature for Highlight TEMP1 and press SELECT twice. Use the UP/DOWN arrow keys to set the desired water temperature and press SELECT to make that degree setting take effect.
  • Page 19 Turning on the spa activates the filter pump. The SPA mode must be on to display the spa temperature and/or to heat the spa. Highlight SPA PUMP and press SELECT. Use the SELECT button to turn the spa on or off. FILTER PUMP OFF FILTER PUMP SPA PUMP...
  • Page 20 Use this menu to turn on or off one of six mood/scene settings. Highlight ONETOUCH ON/OFF and press SELECT. To activate a mood/scene setting, use the button directly opposite to select the proper mode. JANDY AquaLink RS SPA MODE ONETOUCH4 OFF...
  • Page 21 In the HELP menu you will find the KEYS menu. The KEYS menu identifies the buttons on the control panel. Highlight MENU/HELP and press SELECT, highlight HELP and press SELECT. Highlight KEYS by using the UP/DOWN arrow keys and pressing SELECT. Return to the main menu by highlighting CONTINUE and pressing SELECT or use the BACK button.
  • Page 22 The Program menu allows on and off times for any equipment controlled by the AquaLink ® RS. You can program equipment to turn on or off all days, weekends, weekdays, or any specific day of the week. Each piece of equipment can be programmed for multiple on/off times each day.
  • Page 23 This section describes how to program a variable speed pump. A variable speed pump can be programmed to run at any one of its eight (8) speeds. If the variable speed pump is used for pool filtration, then it will be powered from the FILTER PUMP relay. Therefore to program the variable speed pump you must first set a program time for the FILTER PUMP, then you need to program the pump speeds to turn on/off during the FILTER PUMP cycle.
  • Page 24 The SET TEMP menu allows you to preset the pool and spa thermostats. The default pool temperature is 80°F. The default spa temperature is 102°F. (The default TEMP1 temperature is 80ºF. The default TEMP2 temperature is 60ºF.) SET TEMP will allow you to ENABLE the Maintain Temperature feature and adjust the hours to limit the time of day the Maintain Temperature feature will be active.
  • Page 25 The SET TIME menu allows the correct time and date to be entered. The correct time and date ensures that programming will work properly. Highlight MENU/HELP and press SELECT, highlight SET TIME and press SELECT. Use the UP/DOWN arrow keys to set values.
  • Page 26 The LOCKOUTS menu prevents changes to specific AquaLink ® RS operations. When SYSTEM feature is on ® "LOCK", changes to program and system setup items are prevented. When SPALINK RS and SPA SWITCH features ® are on "LOCK", all control from the SpaLink RS and Spa Side Switch are prevented.
  • Page 27 Highlight MENU/HELP and press SELECT, highlight PASSWORD and press SELECT. Use the UP/DOWN arrow keys to change the number. Press SELECT to move to the next number. Highlight DEVICES and press SELECT. Use the UP/DOWN arrow keys to choose any device and press SELECT. Use the UP/DOWN arrow keys to ENABLE and press SELECT.
  • Page 28 ® If a Password is Enabled and Entered for a SpaLink or a Spa Side Remote and a user tries to use either of those devices, the units will not respond. To enable any of these devices, highlight MENU/HELP and press SELECT, highlight PASSWORD and press SELECT.
  • Page 29 Program groups are useful for changing between specific settings for summer, winter, or vacation. The AquaLink ® will store on/off times for equipment in each group. Use the Program Group menu to switch between Program Group A and Program Group B. Group A is the default. Program Group A or B will not appear unless PROGRAM GROUP has been selected.
  • Page 30 This feature automates the selection of PROGRAM GROUP A and PROGRAM GROUP B. The example below shows how to enable the automatic switching of GROUP A on May 17th to GROUP B on September 8th. Highlight MENU/HELP and press SELECT, highlight PROGRAM GROUP and press SELECT. Highlight AUTO PGRM GROUP and press SELECT.
  • Page 31 Check with installer before making changes to the SYSTEM SETUP. Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT. Use the UP/DOWN arrow keys to move the highlight bar up or down, use PAGE UP or PAGE DOWN to move through the menus. Press SELECT on the highlighted item to move to the next screen.
  • Page 32 This menu allows custom configuration of the six OneTouch mood/scene buttons. You can choose a predetermined name from the SELECT NAME menu or enter a CUSTOM NAME. You can also select specific devices for each mood/scene button. Each mood setting allows for an independent thermostat setting. OneTouch setting can also be assigned to any SpaLink ®...
  • Page 33 If a variable speed pump is part of the system it is possible to assign a speed of that pump to a ONETOUCH button. In the example below SPEED3 has been assigned to the ONETOUCH 4 button. The LABEL AUX menu allows custom naming of auxiliary equipment. For example, you can set the display to read YARD LIGHT instead of AUX 4 .
  • Page 34 Use this menu to adjust the number of hours or mode of Boost Pool. ® The system will auto-detect the AquaPure chlorine generator. ® Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight AquaPure press SELECT. Use the UP/DOWN arrow keys to select TIME or MODE. If selecting MODE, use the UP/DOWN arrow keys to select either SPILLOVER or POOL.
  • Page 35 Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight FREEZE PROTECT and press SELECT. Use the UP/DOWN arrows keys to change the activation temperature. Once the temperature is set, use the SELECT button to move to the next screen to assign freeze protection to a selected piece of equipment.
  • Page 36 This menu is used to ENABLE or DISABLE the automatic in floor cleaning feature. When enabled the AquaLink rotates the in-floor Jandy Valve Actuators (JVAs) every 20 minutes. Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight IN FLOOR CLEANING and press SELECT.
  • Page 37 The Solar Priority/Heat Pump menu allows the system to use Solar Heat/Heat Pump primarily. If Solar Heat is no longer available, the system will automatically switch to the alternate heat source. Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight SOLAR PRIORITY and press SELECT.
  • Page 38 The ASSIGN JVAs menu allows Jandy Valve Actuators (JVAs) to be assigned to any auxiliary button. This means that whenever you press that auxiliary button, a valve turns. On pool/spa combination models, there are two extra JVAs that can be assigned to auxiliary buttons: the Cleaner JVA and the Solar JVA. On pool/spa only models, there are four JVAs that can be assigned to auxiliary buttons.
  • Page 39 The Spa Side Switch menu allows you to define which equipment is controlled by the buttons on the optional Spa Side Switch(es). Default settings are spa, spa heat, Aux1 and Aux2. You may want to write down your spa side switch button assignments so that you can label the buttons on the switch with the label pack provided.
  • Page 40 The Dusk Setup menu is used to set a device to automatically turn on at sunset. You can set the duration, a time adjust value if you live between major city selections or in a heavily shaded area, and set specific devices. Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight DUSK SETUP and press SELECT.
  • Page 41 SELECT. A warning message will appear, this message reads "THIS FEATURE REQUIRES THE ADDITION OF A SPRINKLER MODULE FROM JANDY", select OK to continue. Press SELECT to highlight the program number. Use an UP/DOWN arrow key to choose a program number. Press SELECT to accept the program number, and advance to the program ON/OFF field.
  • Page 42 Highlight the SET WATER DAYS and press SELECT. Use an UP/DOWN arrow key to select the DAY to water and press SELECT. An "X" is displayed with each enabled water day. SPRINKLER SETUP SET WATER DAYS SET WATER DAYS PROGRAM 2 PROGRAM 2 PROGRAM 2: ON START: 9:30AM...
  • Page 43 Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight PRODUCT INFO and press SELECT. Select any entry to change and press SELECT. SYSTEM SETUP PRODUCT INFO SOLAR PRIORITY Product Name ASSIGN JVAs JANDY AquaLink RS DIMMERS COLOR WHEELS Service Info SPA SWITCH Local Service Co SPA LINK...
  • Page 44 Use the UP/DOWN arrow keys to highlight an auxiliary to be assigned to a color light, then press SELECT. “JC” will appear next to the AUX if a Jandy Colors has been assigned. “JL” will appear next to the AUX if a Jandy LED Light has been assigned.
  • Page 45 The DEVICE RUNTIME menu is used to assign a runtime for a device or auxiliary. When the device is turned on from the EQUIPMENT ON/OFF menu, it will run for the duration specified on the DEVICE RUNTIME menu. Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight DEVICE RUNTIME and press SELECT.
  • Page 46 Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT, highlight HEAT PUMP and press SELECT. Use the UP/DOWN arrow keys to highlight either HEAT or CHILL, then press SELECT. A message will be displayed informing the user that they must walk out to the heat pump and set it to heat or chill mode as well.
  • Page 47 The MAINTAIN TEMP menu provides the ability to specify how often the water temperature is sampled when MAINTAIN TEMP is active. Previously the sampling interval was fixed at 2 hours. This feature allows for the sampling intercal to be set to 1, 2, or 4 hours. The default value will be 2 hours. Highlight MENU/HELP and press SELECT, highlight SYSTEM SETUP and press SELECT.
  • Page 48 The previous screens show the seasonal adjust feature being enabled for filtration. The FILTRATION adjustment value has been set to one (1) hour. The following example shows how the feature operates. FILTER PUMP PGM 1 of 1 8:00 AM In our example we will assume that 4:00 PM ALL DAY a program for the FILTER PUMP is...
  • Page 49 ® The RS InterLink allows a single controller to access two power centers on the AquaLink RS system. For ease of operation, it is suggested that each power center be given a custom product name that would allow a user to identify to which power center the controller is connected. During operation, this name will appear on the OneTouch™...
  • Page 50 AC, IntelliFlo VF, IntelliFlo VS, or IntelliPro VS), and to select the various pump settings. The user has the option to control one of four types of variable speed pumps, the Jandy ePump™ DC, Jandy ePump™ ® ® AC, the IntelliFlo VF, or IntelliFlo VS.
  • Page 51 This screen allows the user to set a minimum and maximum global speed or flow for the indicated pump. The SCALE ® setting is fixed to RPM for the Jandy ePump™ DC, Jandy ePump™ AC, and IntelliFlo VF. The SCALE setting is ®...
  • Page 52 The default label for preset #1 is POOL. This label is tied to the pool filtration mode. Anytime the pool pump is supposed to turn on, this preset is selected. On combo systems the default label for preset #2 is SPA. This label is tied to the spa filtration mode, anytime the spa pump is supposed to turn on, this preset is selected.
  • Page 53 Each of the eight (8) speed presets has a label and each of those labels can be changed from the default value. In the SPEED SETTINGS menu, highlight LABEL SPEEDS and press SELECT. Use the UP/DOWN arrow keys to highlight the desired PUMP, then press SELECT. Use the UP/DOWN arrow keys to highlight either GENERAL LABELS or CUSTOM LABELS and then press SELECT.
  • Page 54 The default label is SPEED4. For the Pool Pump the default label is POOL HEAT. When the pool heater is enabled the pump will run at this speed. For the Spa Pump the default label is SPEED5. For the Pool Pump the default label is SPEED6. For the Spa Pump the default label is SPA HEAT.
  • Page 55 Whenever the variable speed pump is turned on it will go into the priming mode for a predetermined amount of time (1-5 minutes). This menu allows for the priming speed to be adjusted. ® In the VSP SETTINGS menu, highlight PRIME and press SELECT. Use the UP/DOWN arrow keys to highlight the desired pump, then press SELECT.
  • Page 56 Any device can be locked out. This will prevent the locked out device from being turned on manually. However, the device will turn on/off when it is being controlled by a program. The fi lter pump turns off while valves rotate between pool and spa to prevent damage to the pool equipment.
  • Page 57 This message is displayed if the pool cleaner is activated when in spa mode (i.e., water is circulating to spa). The pool cleaner requires that water be circulating to the pool in order for it to operate. Return to pool mode to activate the cleaner. The return valve has been rotated to the spa position to give the spa spillover effect.
  • Page 61 DE grids, or cartridge elements; or damage caused by running the pump with insufficient quantities of water. LIMITATION OF LIABILITY: This is the only warranty given by Jandy Pool Products, Inc. No one is authorized to make any other warranties on behalf of Jandy Pool Products, Inc. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
  • Page 62 Page 27 EQUIPMENT INFORMATION RECORD DATE OF INSTALLATION INSTALLER INFORMATION INITIAL PRESSURE GAUGE READING (WITH CLEAN FILTER) PUMP MODEL HORSEPOWER FILTER MODEL SERIAL NUMBER CONTROL PANEL MODEL SERIAL NUMBER NOTES:...
  • Page 63 Page 26 Cancel Button Flow Chart CANCEL SOME Select device to PROGRAMS be canceled CANCEL ALL Press ENTER to remove all devices, FRZ PROTECT except the pump, from freeze protection, or cancel to abort Select AUX to AUX LABELS Label removed remove label CANCEL BUTTON Press ENTER...
  • Page 64 Page 25 Section 7. Flow Charts Main Menu Flow Chart ON ALL DAYS SELECT PROGRAM EQUIPMENT ON WEEKENDS PROGRAMS ON WEEKDAYS TEMP SET ON SPECIFIC DAY ALL OFF TIME REVIEW SPA SWITCH POOL TEMP SPA LINK SPA TEMP SET TEMP FRZ PROTECT MAINTAIN TEMP SET YEAR, DAY...
  • Page 65 Page 24 Glossary of Controller Messages CLEANER CANNOT BE TURNED ON WHILE SPA IS ON - This message is displayed if the pool cleaner is activated when in spa mode (i.e., water is circulating to spa). The pool cleaner requires that water be circulating to the pool in order for it to operate.
  • Page 66 Page 23 Section 6. Glossaries Glossary of Safety Delays and Lockouts Lockouts - Any device can be locked out, which will prevent those items from being turned on either by programming or manually. Pool/Spa Switching Filter Pump Delay - The lter pump turns off while valves rotate between pool and spa to prevent damage to the pool equipment.
  • Page 67 Page 22 Section 5. Using the Cancel Button Cancel Button ® The CANCEL button lets you cancel specific programs and settings for the AquaLink RS. When using the MENU button, the CANCEL button also allows you to cancel steps in the Menu. Below is a brief list of things that you can do with the CANCEL button: •...
  • Page 68 Page 21 4.27 Pump Lockout Menu The PUMP LOCKOUT menu allows you to enable (pump off) or disable (pump on) when valves are rotating from pool to spa. 4.27.1 To operate Pump Lockout Under SYSTEM SETUP, use the FORWARD or BACK arrow to move to PUMP LOCKOUT, press ENTER. Use the FORWARD or BACK arrow button to turn PUMP LOCKOUT on or off.
  • Page 69 Page 20 4.24 Set Dimmer Menu The SET DIMMER menu is used to assign auxiliary buttons to control a dimmable light. Please note that your installer must install a Light Dimming Relay in order for your light(s) to be dimmable. NOTE An optional Light Dimming Relay must be installed and only 110 VAC lighting can be dimmed.
  • Page 70 4.22 Assign JVA Menu The ASSIGN JVA menu lets you assign Jandy Valve Actuators (JVAs) to any auxiliary button. This means that whenever you press that auxiliary button, a valve turns. On pool/spa combination models, there are two JVAs that can be assigned to auxiliary buttons: the Cleaner JVA and the Solar JVA.
  • Page 71 The electronic sensor of the AquaLink RS is very accurate. Ensure that your other thermometer is reading reliably before recalibrating. If the temperature is off by more than 4 degrees Fahrenheit, contact Jandy as to the possible cause. 4.21.1 To adjust the temperature dis play NOTE Be sure the water temperature sensor is properly connected and the filter pump is turned on while using this procedure.
  • Page 72 Page 17 4.17 Freeze Protection Menu The Freeze Protection menu lets you assign freeze protection to your pool and spa equipment. When a piece of ® equipment is assigned to freeze protection, it will turn on when the AquaLink RS detects freezing conditions. The main filter pump is freeze-protected as a default.
  • Page 73 Page 16 4.15 Spa Side Switch Menu The Spa Side Switch menu allows you to define which equipment is controlled by the buttons (4 buttons per Spa Side Switch) on the optional Spa Side Switch(es). You may want to write down your spa side switch button assignments so that you can label the buttons on the switch with the label pack provided.
  • Page 74 Page 15 4.13 Label AUX Menu The LABEL AUX menu allows custom naming of auxiliary equipment. For example, you can set the display to read YARD LIGHT ON instead of AUX 4 ON. NOTE Some labels add special features (for example, 30 minute timed off times) to the Auxiliary. See Section 6.2, Glossary of Special Auxiliary Labels, for more details.
  • Page 75 Page 14 4.10 All Off Menu The ALL OFF menu will turn off equipment that has been turned on by any means (manual or pre-programmed). This includes any of the heater enables that were on (unless in use by the Maintain function). NOTE Specific time to activate ALL OFF can be set in the SYSTEM SETUP menu.
  • Page 76 Page 13 4.6.2 To pause or stop Boost Pool Press the MENU button. Use the FORWARD or BACK buttons to move to the BOOST POOL Menu and press ENTER. Use the FORWARD or BACK buttons to toggle between PAUSE, RESTART, and STOP. When the option you want is displayed, press ENTER.
  • Page 77 Page 12 Set Temperature Menu The SET TEMP menu allows you to preset the pool and spa thermostats. The default pool temperature is 80°F. The default spa temperature is 102°F. (The default TEMP1 temperature is 80ºF. The default TEMP2 temperature is 60ºF.) SET TEMP will allow you to enable the Maintain Temperature feature and adjust the hours to limit the time of day the Maintain Temperature feature will be active.
  • Page 78 Page 11 Program Menu ® The PROGRAM menu lets you program on and off times for any equipment controlled by the AquaLink You can program equipment to turn on or off at any time you want, including all days, weekends, weekdays, or any specific day of the week.
  • Page 79 Page 10 Section 4. Using the Menu Cancel Button Menu Button Back Button Forward Button Enter Button Accesses menu Cancels commands Moves backward Moves forward Chooses selection in Menu options or of options. while in MENUs; cancels through list through list of individual programs, of options.
  • Page 80 Page 9 Heater Buttons The HEATER buttons enable the heater for the pool or spa. The solar heater button controls solar heating. When the green LED above a HEATER button is il lu mi nat ed, that heater is enabled (i.e., ready to heat, but not heating). When the red LED above a HEATER button is illuminated, that heater is on (i.e., firing).
  • Page 81 Page 8 Spa Button The SPA button switches water circulation from pool to spa (pool and spa combo models only). Turning on the spa also activates the filter pump (after a delay for valve rotation) and deactivates the pool cleaner if it is on. The SPA button must be on to display the spa tem per a ture and/or to heat the spa.
  • Page 82 Page 7 Section 3. Using the Main Buttons Filter Pump Button The FILTER PUMP button turns the main fil tra tion pump on and off for circulation to the pool. This pump also activates if the spa is turned on, if the pool cleaner is turned on, if a spa spill-over effect is activated, or if maintain heat is active.
  • Page 83 Page 6 Section 2. Control Panel Overview Display Rotates between messages indicating time/date/ temperature and status of equipment. Display Hold/ Release Button Stops or starts the display rotating Filter Pump Button through messages (i.e., time, Turns on the filter date, temperature). pump and starts water circulation.
  • Page 84 Page 5 WARNING People with infectious diseases should not use a spa or hot tub. To avoid injury, exercise care when entering or exiting the spa or hot tub. Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.
  • Page 85 Page 4 Important Safety Instructions Section 1. READ AND FOLLOW ALL INSTRUCTIONS Lire la notice technique. All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: DANGER To reduce the risk of injury, do not remove the suction fittings of your spa or hot tub.
  • Page 86 Page 3 Table of Contents ® NOTE Some of the features described in this Manual DO NOT apply to all AquaLink RS models. Section 1. Important Safety Instructions ..4 Section 5. Using the Cancel Button ....22 Cancel Button ........... 22 Section 2.
  • Page 88 Operation Data Owner's Man u al All Button Control Systems For use with Pool/Spa Combination, Pool Only/Spa Only, and Dual Equipment AquaLink ® RS Systems with Rev O.2 Firmware WARNING FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/ spa service technician.
