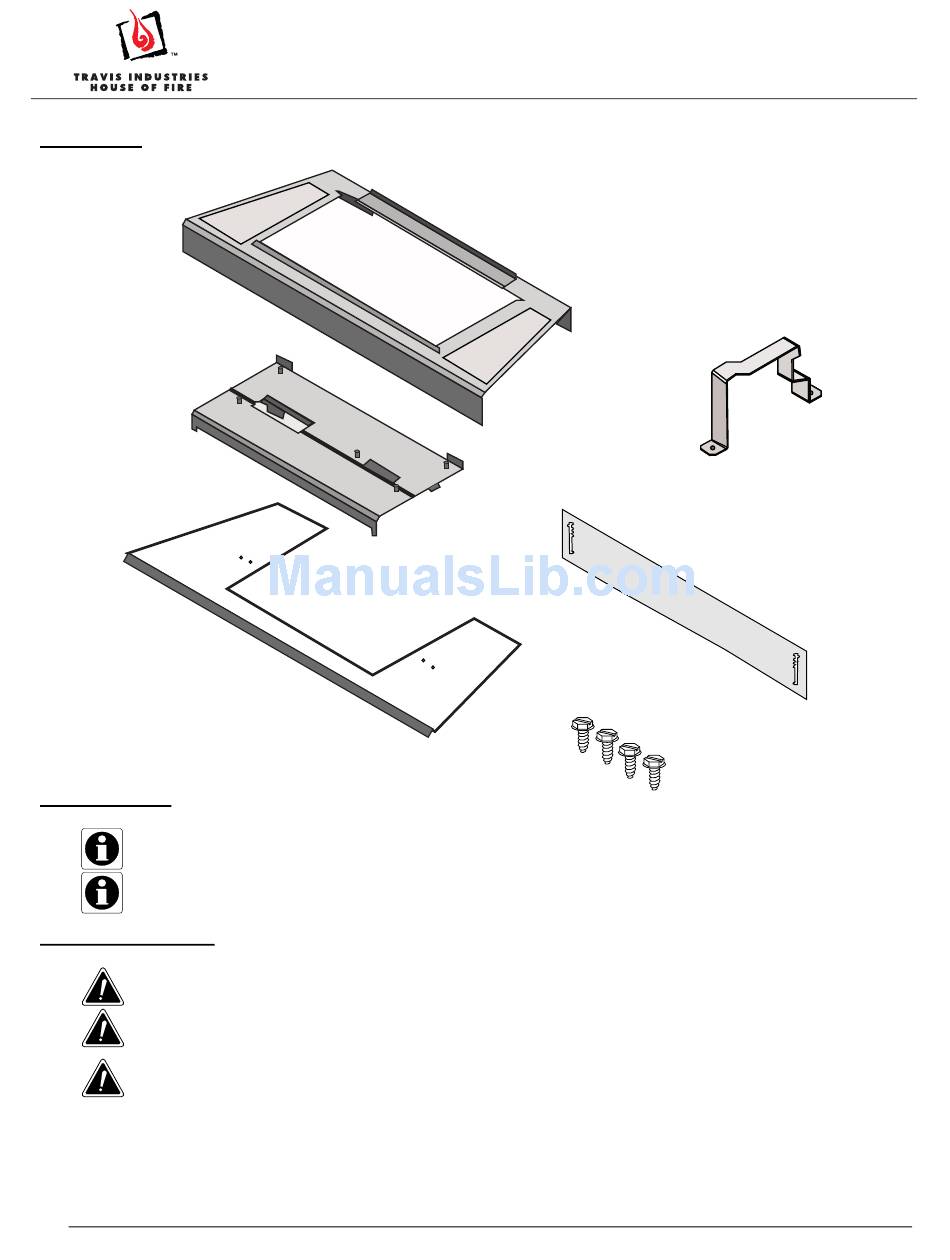

Packing List
Installation Tips
If using propane (LP), convert the appliance before installing the burner.
Make sure to have the firebacks for the appliance on hand. They will be installed during
Installation Warnings
Make sure the gas control valve is OFF and the heater is cool before servicing.
Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
The burner must be correctly positioned before installing the media (driftwood, stones, etc.).
Make sure the burner is fully seated and the pilot is properly aligned.
Page 1 of 6
564 HO DiamondFyre Burner
Media Tray
Burner
Fireback Stand
17601656 — 8/21/13
(sku: 96900115)
Burner Support Bracket
Intake Restrictor
4 Sheet Metal Screws
© Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for Travis Industries 564 HO DiamondFyre
Summary of Contents for Travis Industries 564 HO DiamondFyre
- Page 1 564 HO DiamondFyre Burner Installation Instructions (sku: 96900115) Packing List Media Tray Burner Support Bracket Burner Intake Restrictor Fireback Stand 4 Sheet Metal Screws Installation Tips If using propane (LP), convert the appliance before installing the burner. Make sure to have the firebacks for the appliance on hand. They will be installed during burner installation.
- Page 2 564 HO DiamondFyre Burner Installation Instructions (sku: 96900115) Burner Installation 1. Remove both accent light assemblies from the brackets at the rear of the firebox (discard the screws). Remove and discard the front light cover from both assemblies. See Figure 2 below.
- Page 3 564 HO DiamondFyre Burner Installation Instructions (sku: 96900115) 3. Install the burner support bracket at the left side of the firebox, as shown below. Figure 5: Burner support bracket screws location Figure 6: Burner support bracket installed 4. Install the fireback stand into the firebox, as shown below.
-
Page 4: Installation Instructions
564 HO DiamondFyre Burner Installation Instructions (sku: 96900115) 5. Install the rear, left, and right firebacks as shown below. Remove the clip located on the firebox ceiling near the front (both sides). The side fireback clip has a keyhole slot. It can be removed by loosening the screw and sliding the clip out. - Page 5 564 HO DiamondFyre Burner Installation Instructions (sku: 96900115) 6. Attach the accent lights to the fireback stand using the 4 included sheet metal screws. Figure 7: Accent lights screws location Figure 8: Accent lights attached 7. Install the burner inside the firebox.
- Page 6 564 HO DiamondFyre Burner Installation Instructions (sku: 96900115) 9. Install the front fireback skirt at the front of the fireplace. Note how the skirt overlaps the media tray. Page 6 of 6 17601656 — 8/21/13 © Travis Industries, Inc.
