Page 1: Operating Instructions

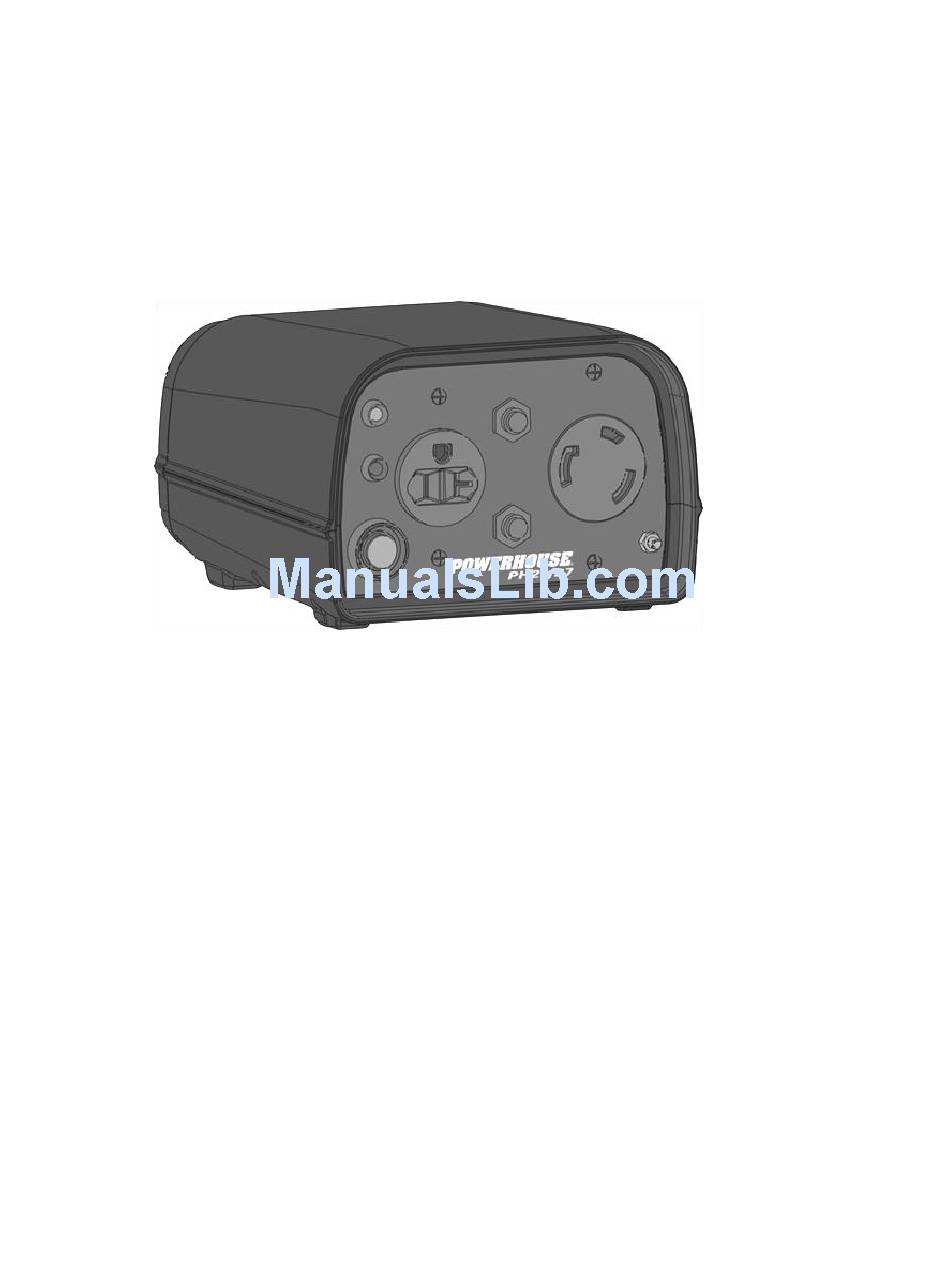

PH21/27 POWERHOUSE ® Dual Generator Parallel Kit Operating Instructions PLEASE READ THIS MANUAL CAREFULLY BEFORE USING... -
Page 2: Table Of Contents
The special parallel cables for the PH2100PRi and PH2700PRi are specific to the parallel operation of two POWERHOUSE® generators. DO NOT use them for other brands of generators or other applications. ... -
Page 3: Parallel Operation Procedure
3 Parallel Operation Procedure: 1. Prepare two POWERHOUSE® generators for operation. 2. Parallel power and signal connections MUST be done with the generator engine NOT running. DO NOT connect or disconnect the parallel power or signal cables while the engine is running. -
Page 4: Parallel Output And Overload Lights
5. To reset the overload condition (Red light), press and release the (Green) overload reset button on the parallel panel. The (Green) indicator lights should be illuminated on both generators and on the parallel panel within 15 seconds. PH21/27 Parallel Kit 3/12/2010... -
Page 5: Shutting Off The Generators
Some air conditioner manufacturers offer a start capacitor or rapid start kit as an extra cost option. The lack of a start capacitor can cause the air conditioner to draw too much starting current and overload the generator. PH21/27 Parallel Kit 3/12/2010... -
Page 6: Troubleshooting Parallel Operation
The green indicator light on both generators and the parallel kit should come on within 15 seconds. Repeatedly pressing the reset button without correcting the short circuit may cause permanent damage to the generators and/or parallel kit. PH21/27 Parallel Kit 3/12/2010... - Page 7 An excessive load is Remove or reduce parallel panel generators and parallel connected to either excessive loads. panel are on. The the 30A or 20A generators are running at receptacle on the Reset circuit breakers. high idle. parallel panel. PH21/27 Parallel Kit 3/12/2010...
