Proline PL167GWA Instruction Manual

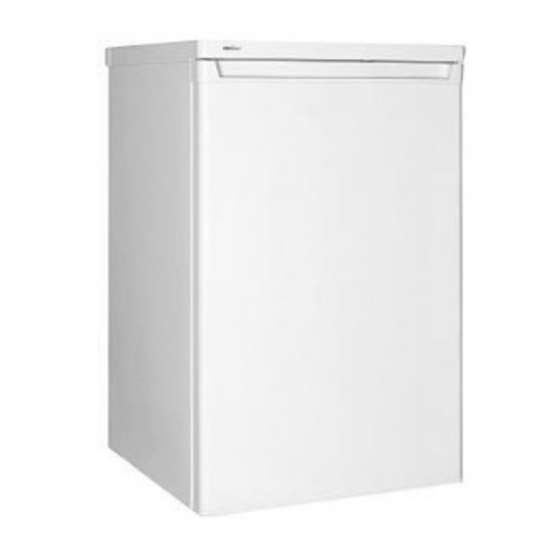

55cm under counter larder
Hide thumbs
Table of Contents

Advertisement

Quick Links

55cm UNDER COUNTER LARDER
INSTRUCTION MANUAL
MODEL No.: PL167GWA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL167GWA and is the answer not in the manual?

Questions and answers

Related Manuals for Proline PL167GWA

Summary of Contents for Proline PL167GWA

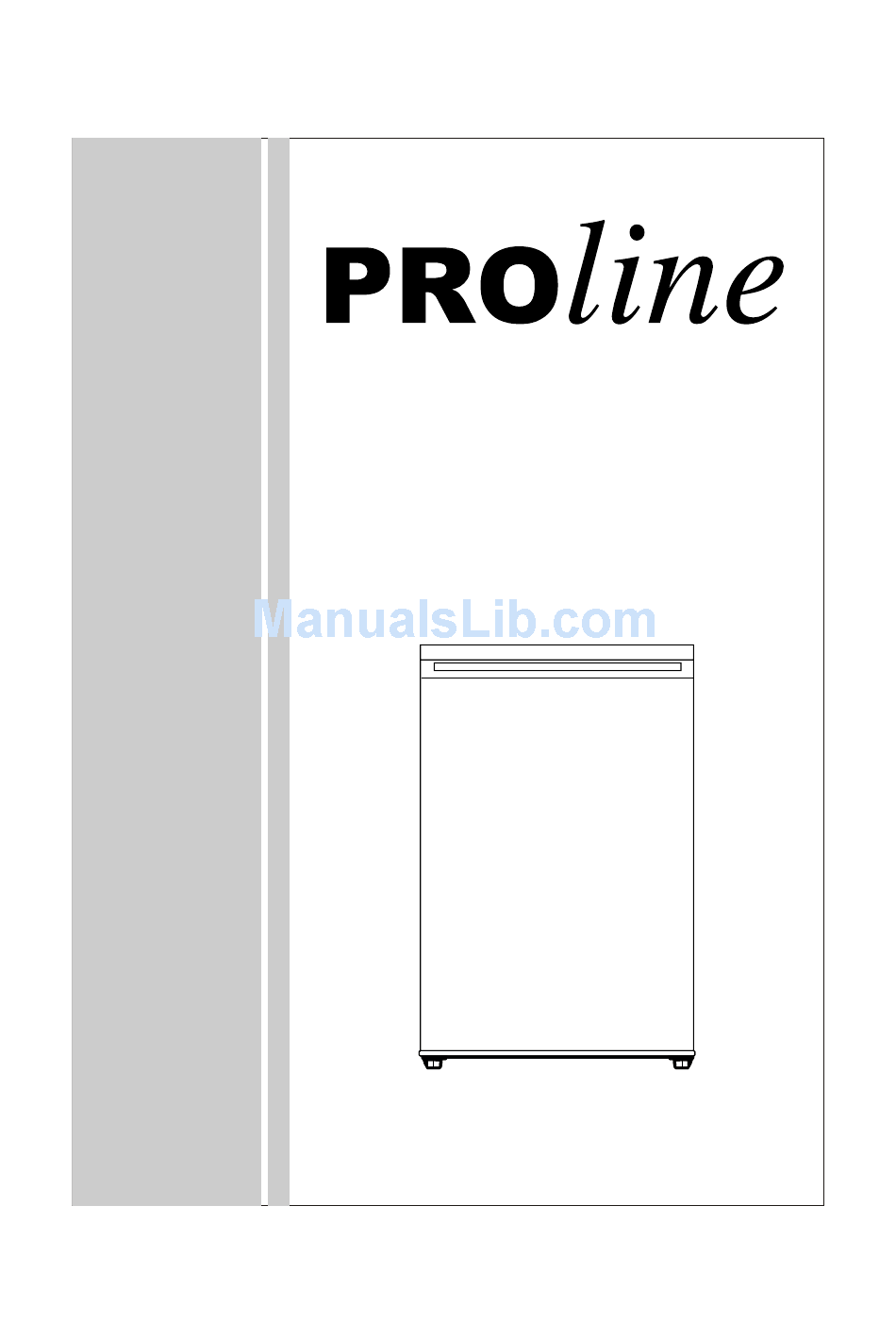

  • Page 1 55cm UNDER COUNTER LARDER INSTRUCTION MANUAL MODEL No.: PL167GWA...

  • Page 2: Table Of Contents

    Please read this instruction manual carefully before operation Keep these instructions in a safe place for future reference CONTENTS Getting to know your larder fridge Safety Information Installation Electrical Connection Operating your refrigerator Setting the Thermostat Control Defrosting the fridge Storage of fresh food in the refrigerator Cleaning your refrigerator Replacing the lamp...

  • Page 3: Getting To Know Your Larder Fridge

    Getting to know your larder fridge 1. Top Cover 2. Cabinet 3. Shelves 4. Crisper Box Cover 5. Crisper Box 6. Levelling Legs 7. Bottle Racks 8. Door Storage Compartment 9. Recessed Door Handle 10. Temperature Control Knob/Lamp 11. Door switch...

  • Page 4: Safety Information

    Dear Customer Thank you for buying a Proline Refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this manual. Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

  • Page 5: Electrical Connection

    ELECTRICAL CONNECTION For your safety please read the following information Warning: This appliance must be earthed. The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug or a15 amp fuse in the consumer unit.

  • Page 6: Operating Your Refrigerator

    Operating your refrigerator Before plugging in your refrigerator for the first time remove all packing, clean the refrigerator with warm water and bicarbonate of soda. Wipe dry with a soft cloth. Plug the refrigerator into the mains power supply ensuring that the voltage is the same as the rating label and then turn the thermostat control knob that is situated at the right hand side of the refrigerator to the midway position.

  • Page 7: Storage Of Fresh Food In The Refrigerator

    Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf.

  • Page 8: Cleaning Your Refrigerator

    Cleaning your refrigerator Turn the Thermostat control to “OFF” position then remove the mains plug from the wall socket, open the door and remove all the contents to a cool place, remove the shelves. Wipe the inside surface with a warm water and bicarbonate of soda solution. The solution should be about 2 tablespoon of bicarbonate of soda to 2 pints of water.

  • Page 9: Reversing The Door

    Reversing the door Warning! When changing the way the door opens, the appliance must not be connected to the mains. Remove the plug from the mains before working on the door. Remove the two screws (6) and remove the worktop by raising the rear and pushing it forwards. Remove the two screws (1) and remove the upper hinge (5) from the right side of the fridge.

  • Page 10: Maintenance

    6. Maintenance Maintenance The refrigerator should be cleaned and maintained once a month. When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet. Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth.

  • Page 11: Troubleshooting

    Troubleshooting 1. When the refrigerator does not work Check if there is a power failure. Check if the power plug is plugged into the power outlet. Check that the fuse has not blown. 2. When the refrigerator is cooling excessively The temperature control dial may be set too high.
  • Page 12 Before calling for service Please check the following points: 1. The refrigerator is not working Check the plug is inserted correctly into the wall socket Check there is power to the wall socket by plugging in another appliance, if the other appliance works, check the fuse in the appliance plug.

  • Page 13: Prolonged Off Periods

    Prolonged off periods If the refrigerator is not in use for a long period of time, proceed as follows: Disconnect the refrigerator from the main supply by removing the plug from the socket. Clean and dry the inside as instructed under the heading of cleaning the appliance. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.
  • Page 14 Do's and don'ts (continued) Do- Clean and defrost your appliance regularly (See “Defrosting”) Do- Take off any unusable leaves on vegetables and wipe off any soil. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap raw meat and poultry loosely in polythene Do- Wrap fish and offal in polythene bags.

  • Page 15: Technical Data

    Technical data Brand Proline Appliance type Larder Fridge Star rating Total gross volume (l.) 166L 128L Total storage volume (l.) Freezer storage volume (l.) 128L Refrigerator storage volume Freezing capacity (kg/24h) Climate Class +Ambient Range N (+16C to +32C) Energy class (1)

  • Page 16: Important Disposal Instructions

    IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this product and its packaging according to local laws and regulations.
