Proline PL120WD Instruction Manual

Proline PL120WD Instruction Manual

48cm under counter larder fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

48cm UNDER COUNTER LARDER FRIDGE
INSTRUCTION MANUAL
PL120WD
MODEL No.:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL120WD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Proline PL120WD

Summary of Contents for Proline PL120WD

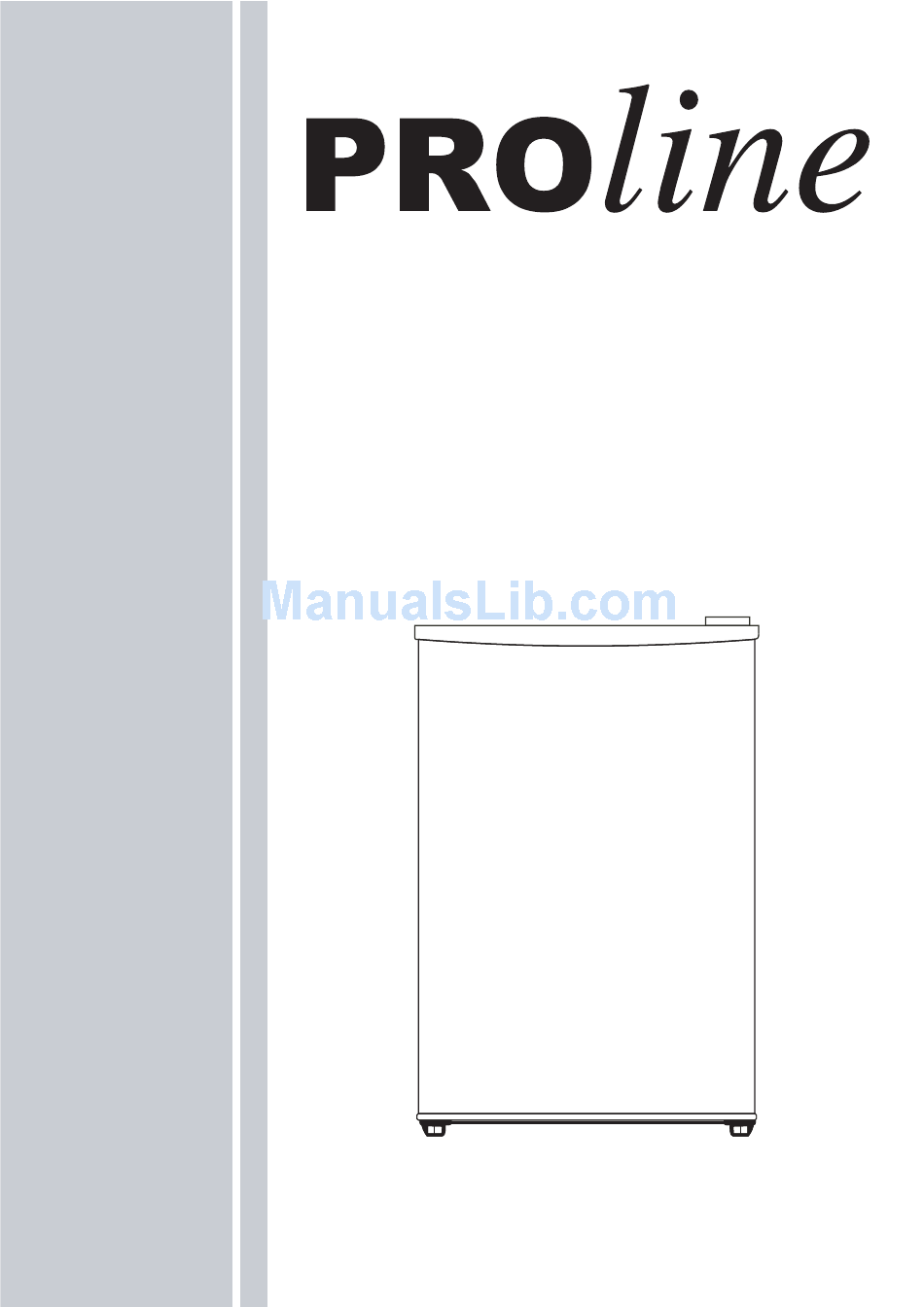

  • Page 1 48cm UNDER COUNTER LARDER FRIDGE INSTRUCTION MANUAL PL120WD MODEL No.:...

  • Page 2: Table Of Contents

    Please read this instruction manual carefully before operation Keep these instructions in a safe place for future reference CONTENTS Name of parts Safety Information Installation Important safety information Electrical Connection Instructions for use Temperature Control The Internal Light Storage of fresh food in the refrigerator Refrigerator defrost process Cleaning and maintenace Changing the light bulb...

  • Page 3: Name Of Parts

    Name of parts ○ 1 Evaporator ○ 2 Wire Shelves ○ 3 Crisper Cover ○ 4 Crisper Box ○ 5 Leveling Feet ○ 6 Bottle Racks ○ 7 Recessed Handle ○ 8 Door Switch ○ 9 Thermostat Knob...

  • Page 4: Safety Information

    THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION This appliance must be used on the electric voltage shown on the rating plate on the base of this appliance, failure to use the correct voltage will render the guarantee VOID. This appliance is intended for domestic use only, any other use may invalidate the warranty and might be dangerous.

  • Page 6: Electrical Connection

    ELECTRICAL CONNECTION For your safety please read the following information Warning: This appliance must be earthed. This appliance operates from a 3-pin 13-amp plug. The voltage rating is 220-240 volts and should be protected by a 13-amp fuse either in the plug or distribution board. The appliance is supplied with a rewireable 13 amp 3-pin plug fitted with a 13amp fuse.

  • Page 7: Instructions For Use

    Instructions for use Remove all packing materials and wash the interior of the appliance using lukewarm water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2 litres (2 pints) of water. Do not use detergents or soaps as they may taint the food. After cleaning, dry all parts thoroughly.

  • Page 8: Storage Of Fresh Food In The Refrigerator

    Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf.

  • Page 9: Reversing The Door

    Reversing the door This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below: 1. Remove the upper hinge cover (6) first. 2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the fridge body.

  • Page 10: Maintenance

    Maintenance Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantity of glass wax is recommended to polish the refrigerator surface with a flannelette.

  • Page 11: Before Calling For Service

    Before calling for service Please check the following points: 1. The refrigerator is not working Check the plug is inserted correctly into the wall socket Check there is power to the wall socket by plugging in another appliance, if the other appliance works, check the fuse in the appliance plug.

  • Page 12: Positioning The Appliance

    Do’s and don’ts Do- Clean your appliance regularly. Do- Take off any unusable leaves on vegetables and wipe off any soil. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap raw meat and poultry loosely in polythene Do- Wrap fish and offal in polythene bags.

  • Page 13: Technical Data

    Technical data Brand Proline Appliance type Refrigerator Star rating Total gross volume (L) Total storage volume (L) Freezer storage volume (L) Refrigerator st orage volume(L) Maximum bulb power(W) Climate Class +Ambient Range Energy class (1) Power consumption (kWh/year) (2) 146...

  • Page 14: Important Disposal Instrucions

    IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
