Summary of Contents for Proline PL115ABB

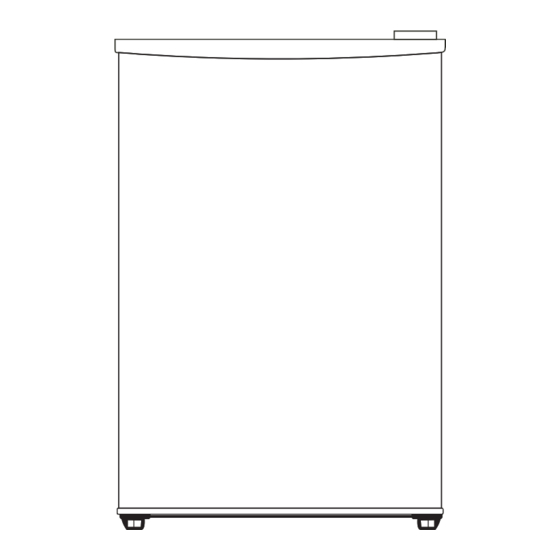

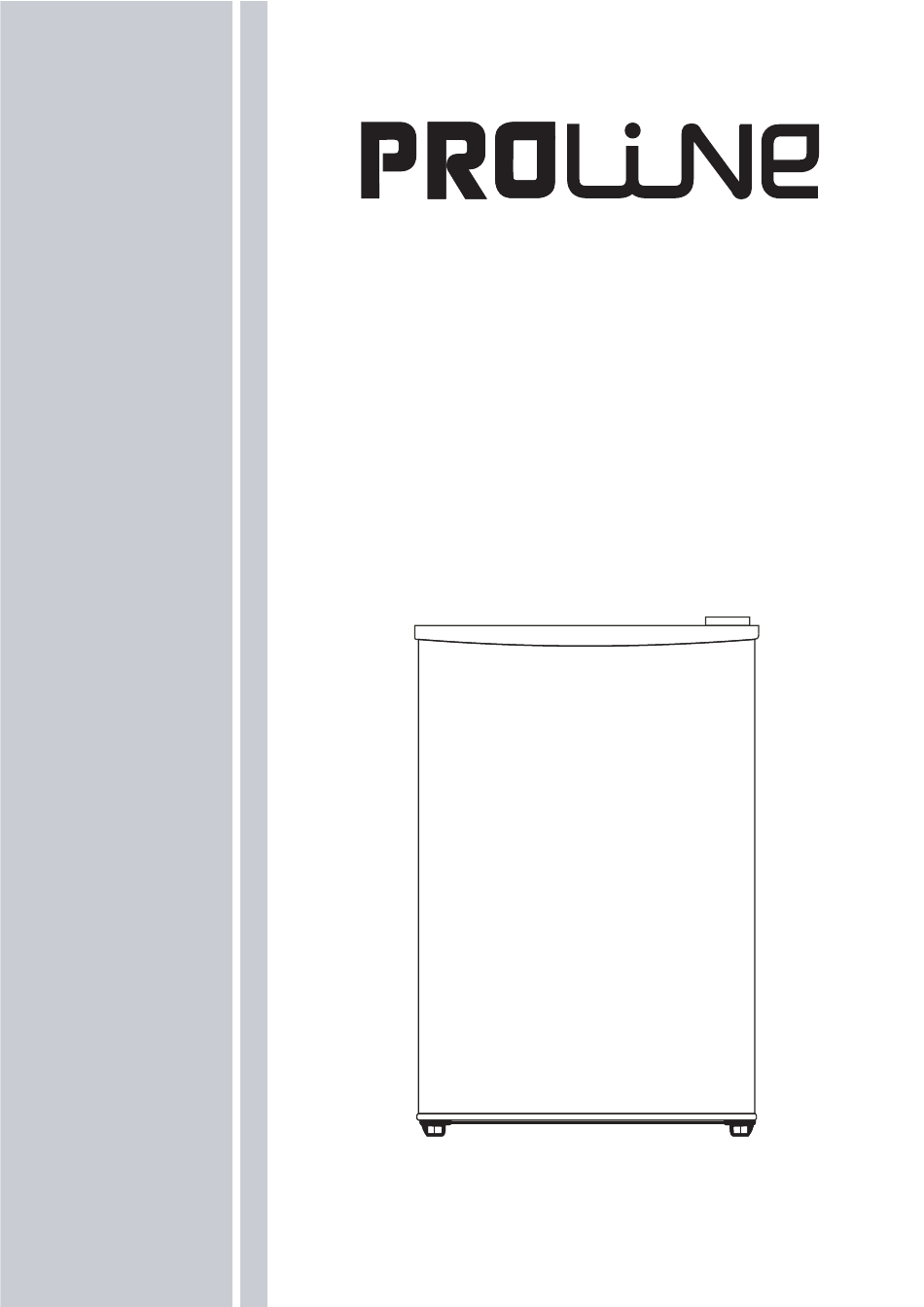

- Page 1 50cm Under Counter Larder Fridge INSTRUCTION MANUAL PL115ABB MODEL No.:...
-
Page 2: Table Of Contents
Please read this instruction manual carefully before operation Keep these instructions in a safe place for future reference CONTENTS Name of parts Safety Information Installation Important safety information Electrical Connection Instructions for use Temperature Control The Internal Light Storage of fresh food in the refrigerator Refrigerator defrost process Cleaning and maintenace Changing the light bulb... -
Page 3: Name Of Parts
Name of parts ○ 1 Evaporator ○ 2 Wire Shelves ○ 3 Crisper Cover ○ 4 Crisper Box ○ 5 Leveling Feet ○ 6 Bottle Racks ○ 7 Recessed Handle ○ 8 Door Switch ○ 9 Thermostat and lamp assembly... -
Page 4: Safety Information
THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Please ensure that the voltage marked on the rating label matches the supply voltage in your location. The rating label is located on the rear of the product. Failure to use the correct voltage will render the guarantee VOID and may damage the appliance. This refrigerator is intended for domestic use only;... -
Page 6: Electrical Connection
ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information. Warning: This appliance must be earthed. The appliance must be connected to a 220 - 240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse. -
Page 7: Instructions For Use
Instructions for use Remove all packing materials and wash the interior of the appliance using lukewarm water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2 liters (2 pints) of water. Do not use detergents or soaps as they may taint the food. -
Page 8: Storage Of Fresh Food In The Refrigerator
Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf. -
Page 9: Reversing The Door
Reversing the door This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below: 1. Remove the upper hinge cover (6) first. 2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the fridge body. -
Page 10: Maintenance
Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantity of glass wax is recommended to polish the refrigerator surface with a flannelette. -
Page 11: Before Calling For Service
Before calling for service Please check the following points: 1. The refrigerator is not working Check the plug is inserted correctly into the wall socket Check there is power to the wall socket by plugging in another appliance, if the other appliance works, check the fuse in the appliance plug. -
Page 12: Do's And Don'ts
Do’s and don’ts Do- Clean your appliance regularly. Do- Take off any unusable leaves on vegetables and wipe off any soil. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap raw meat and poultry loosely in polythene Do- Wrap fish and offal in polythene bags. -
Page 13: Technical Data
Technical data Brand Proline Appliance type Larder Refrigerator Star rating Total gross volume (l.) 117L Total storage volume (l.) 115L Freezer storage volume (l.) Refrigerator st orage volume 115L Maximum bulb power (W) Climate Class +Ambient Range N (+16C to +32C) -
Page 14: Important Disposal Instrucions
IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
