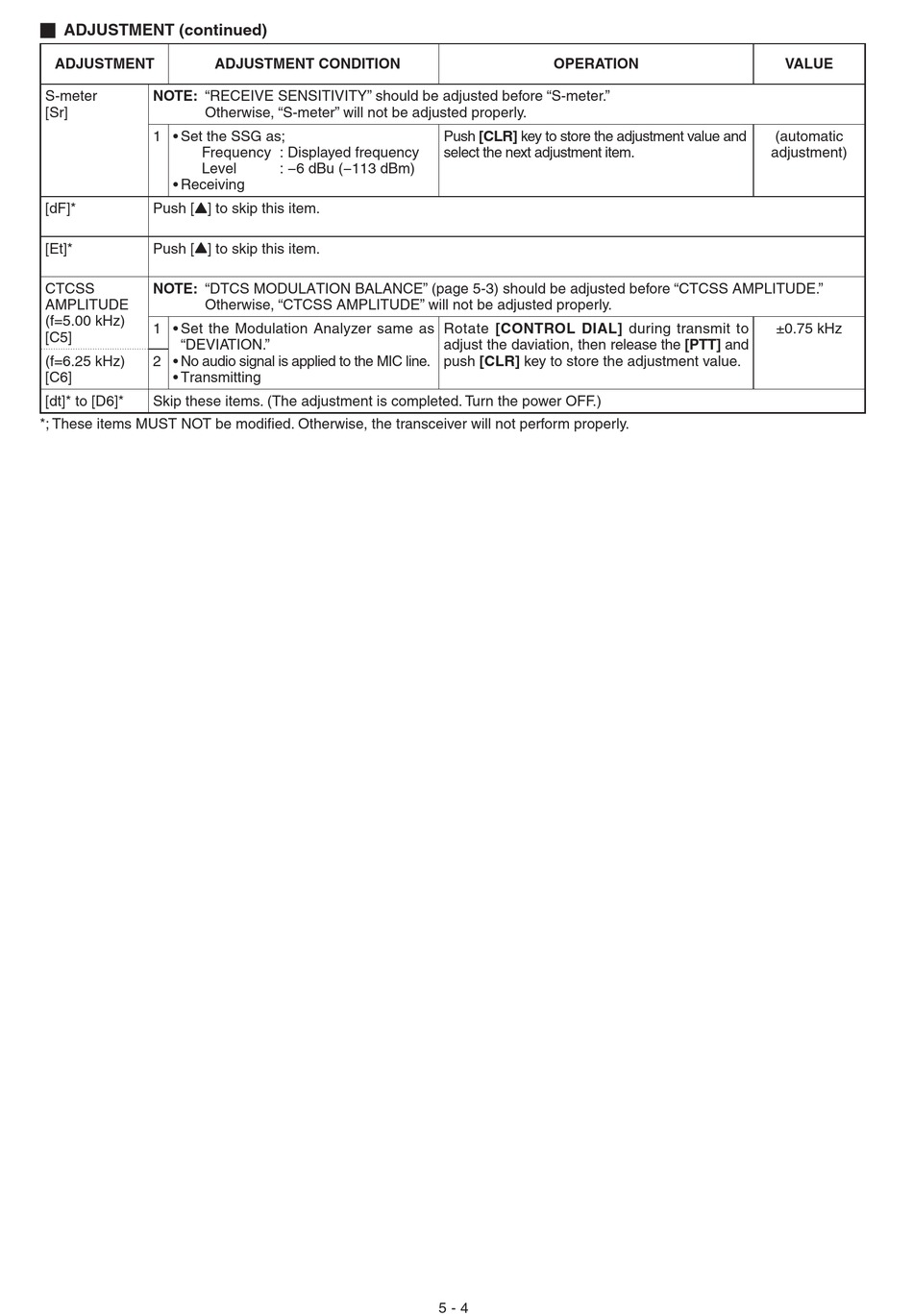

¤ ADJUSTMENT (continued)
ADJUSTMENT
S-meter NOTE: "RECEIVE SENSITIVITY" should be adjusted before "S-meter."
[Sr] Otherwise, "S-meter" will not be adjusted properly.
1 • Set the SSG as;
Frequency : Displayed frequency
Level
• Receiving
[dF]* Push [Y] to skip this item.
[Et]* Push [Y] to skip this item.
CTCSS NOTE: "DTCS MODULATION BALANCE" (page 5-3) should be adjusted before "CTCSS AMPLITUDE."
AMPLITUDE Otherwise, "CTCSS AMPLITUDE" will not be adjusted properly.
(f=5.00 kHz)
1 • Set the Modulation Analyzer same as
[C5]
"DEVIATION."
(f=6.25 kHz) 2 • No audio signal is applied to the MIC line.
[C6] • Transmitting
[dt]* to [D6]* Skip these items. (The adjustment is completed. Turn the power OFF.)
*; These items MUST NOT be modifi ed. Otherwise, the transceiver will not perform properly.
ADJUSTMENT CONDITION
: −6 dBu (−113 dBm)
OPERATION
Push [CLR] key to store the adjustment value and
select the next adjustment item.
Rotate [CONTROL DIAL] during transmit to
adjust the daviation, then release the [PTT] and
push [CLR] key to store the adjustment value.
5 - 4
VALUE
(automatic
adjustment)
±0.75 kHz
