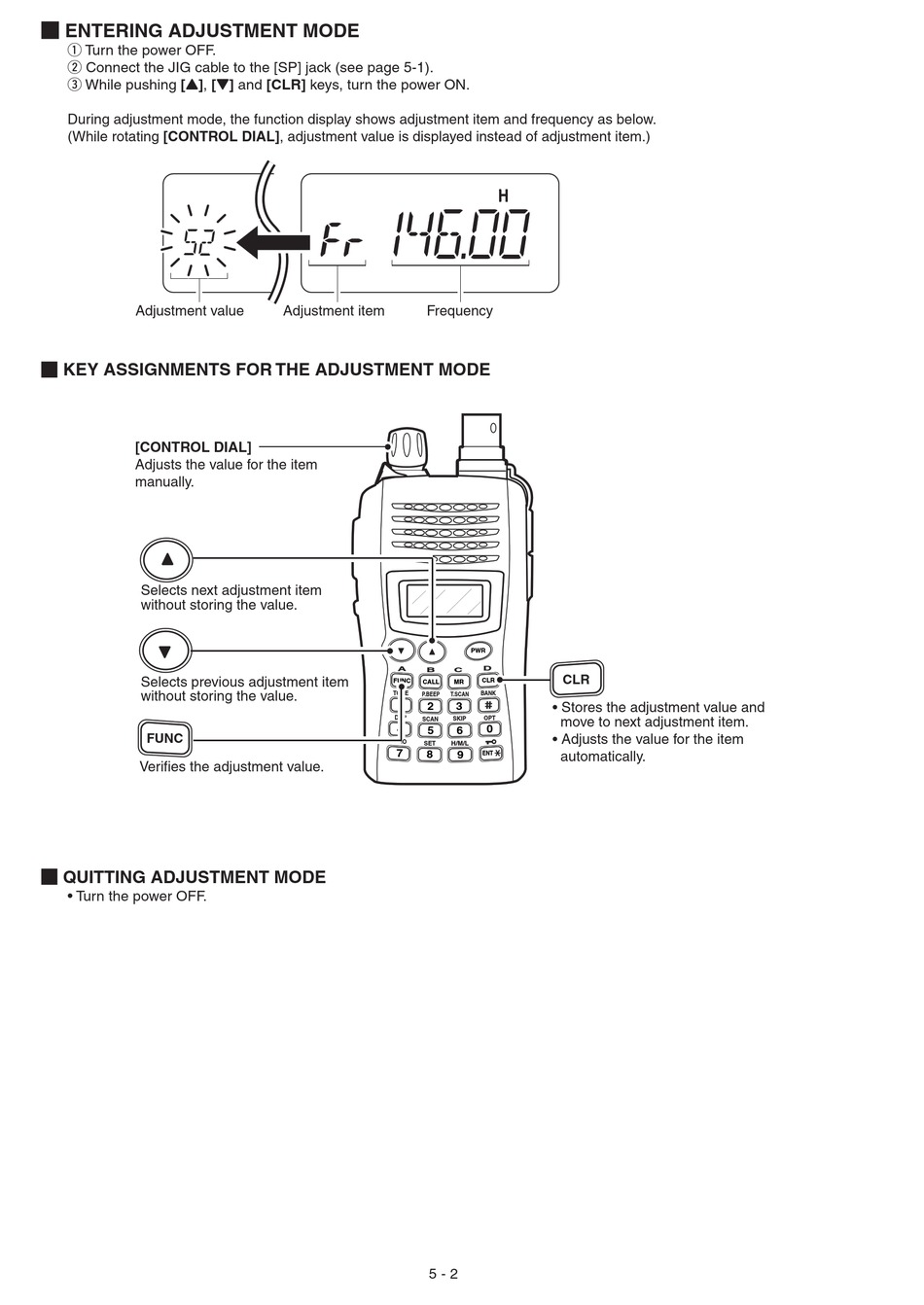

M ENTERING ADJUSTMENT MODE
q Turn the power OFF.
w Connect the JIG cable to the [SP] jack (see page 5-1).
e While pushing [Y], [Z] and [CLR] keys, turn the power ON.
During adjustment mode, the function display shows adjustment item and frequency as below.
(While rotating [CONTROL DIAL], adjustment value is displayed instead of adjustment item.)
Adjustment value
M KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
[CONTROL DIAL]
Adjusts the value for the item
manually.
Selects next adjustment item
without storing the value.
Selects previous adjustment item
without storing the value.
FUNC
Verifies the adjustment value.
M QUITTING ADJUSTMENT MODE
• Turn the power OFF.
Adjustment item Frequency
A
B
FUNC
CALL
TONE
P.BEEP
1
2
DUP
SCAN
4
5
PRIO
SET
7
8
5 - 2
PWR
D
C
CLR
CLR
MR
BANK
T.SCAN
3 • Stores the adjustment value and
OPT
SKIP move to next adjustment item.
0
6
• Adjusts the value for the item
H/M/L
9
ENT automatically.
