Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
Maintenance and Service Guide

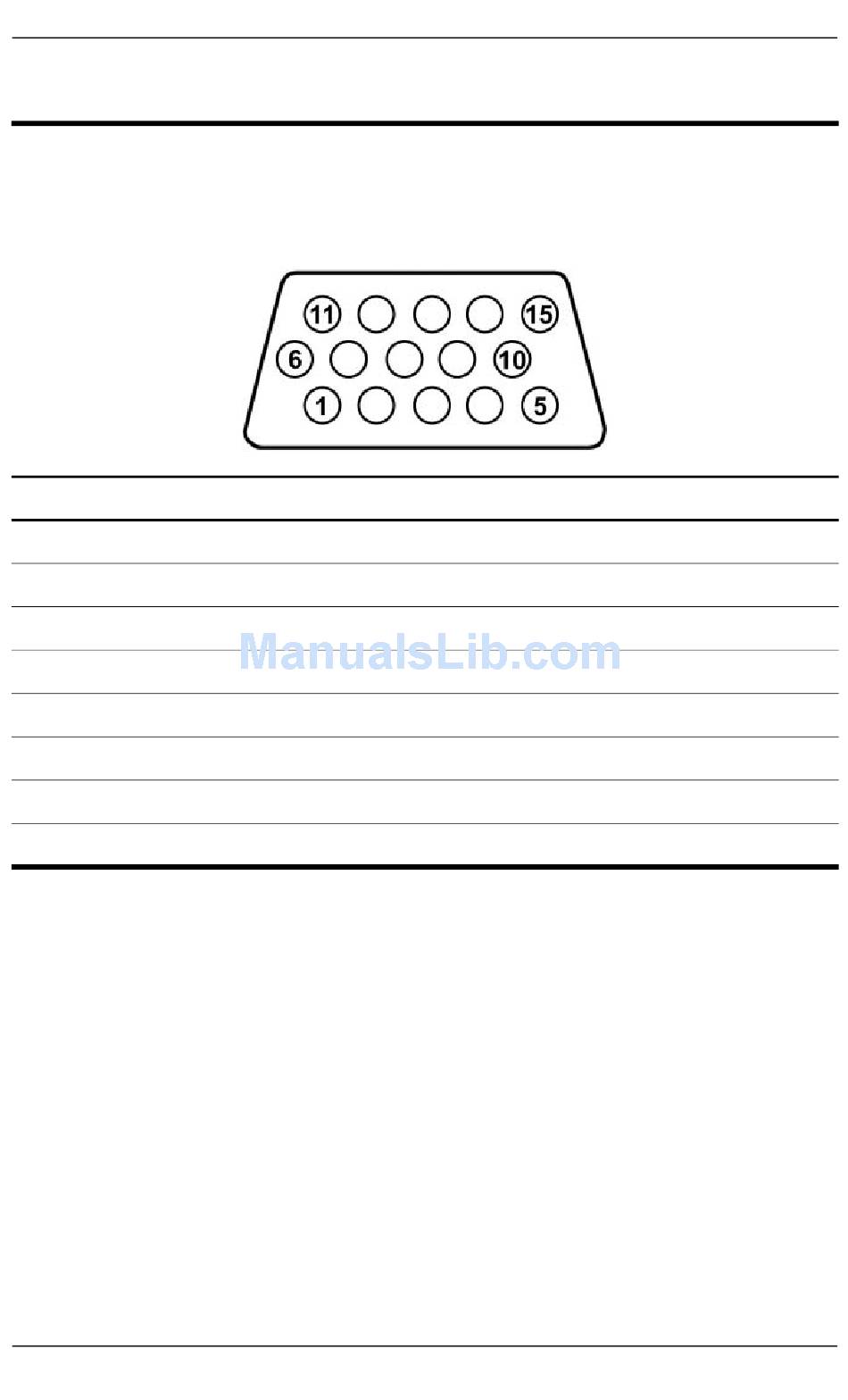

Table A-3
External Monitor Port
Pin
9
10
11
12
13
14
15
Connector Pin Assignments
Signal
+5 VDC
Ground
Monitor detect
DDC 2B data
Horizontal sync
Vertical sync
DDC 2B clock
A–3
