Ups Status Table - HP UPS Network Module User Manual

Diagram element
AC Automatic Bypass Status
AC Output Flow
AC Output
The bottom part of the screen displays various tables containing UPS information. The table that displays
depends on your selection in the pull-down menu. Available options include:
•
UPS Status
the UPS
•
UPS Alarms
•
About your UPS
and software version of the UPS and the UPS Network Module

UPS Status table

The UPS Status table displays the following basic information about power and output:
•
Power source—Indicates whether the UPS is on utility power or running on the UPS battery
•
Output load level—The power percentage used at the UPS output
•
Output—Indicates whether the individual UPS outputs are protected
Entire UPS—Indicates whether the UPS is powered on
o
Load segment 1 and Load segment 2—Indicates whether the controlled load segments (if available)
o
are powered
A green outlet icon (
the load segment is off. A gray outlet icon (
•
Battery capacity—The remaining percentage of battery charge and the battery status:
Charging—Utility power is present and the battery charge is in progress
o
Discharging—The UPS is operating on battery power
o
Fault—The battery is faulty
o
•
Remaining backup time—The estimated maximum battery backup time remaining before UPS shutdown

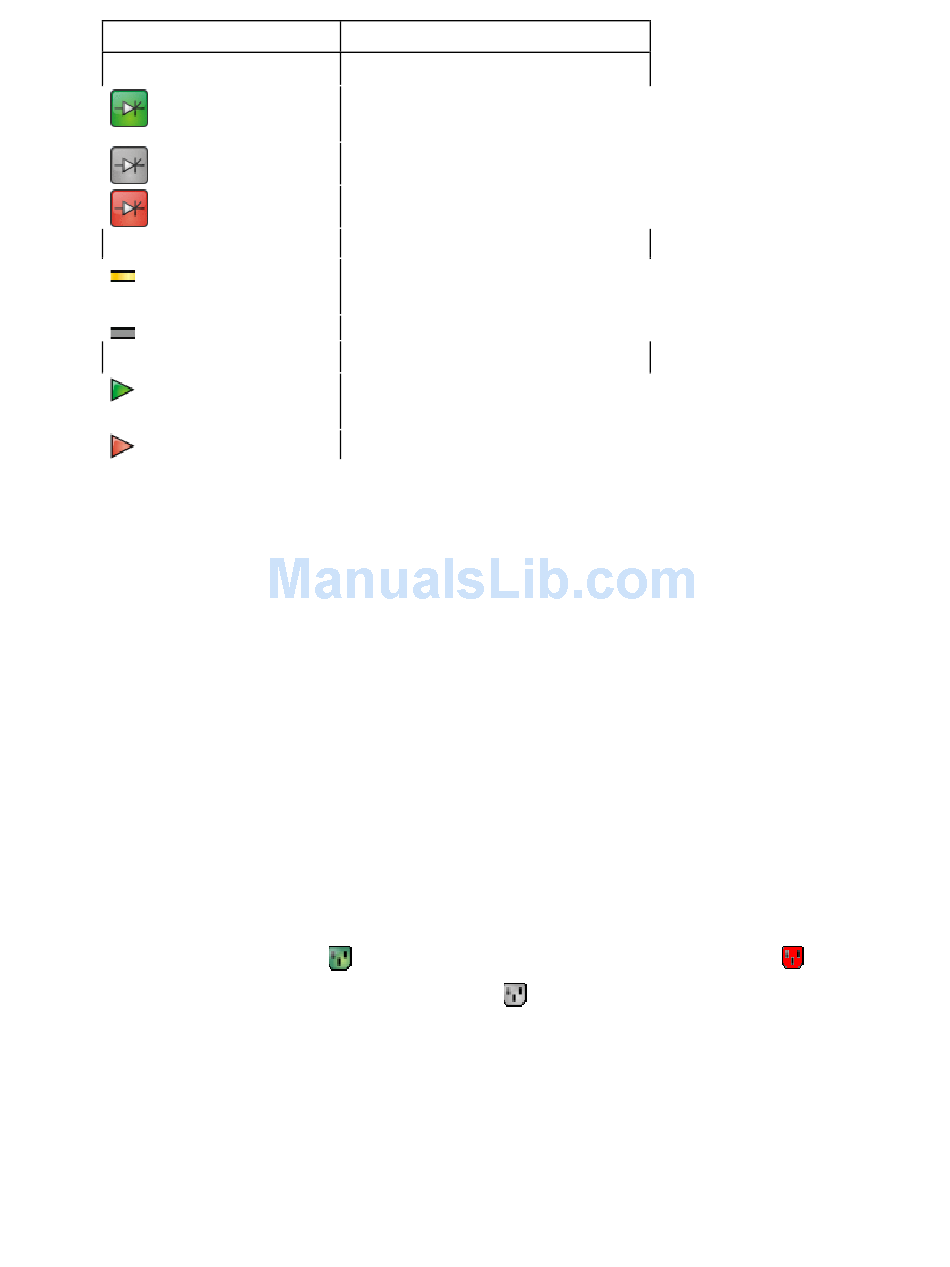

Description
Green—Powered
Gray—Not powered
Red—Internal failure
Yellow—Energy flow present
Gray—No energy flow
Green—Load protected
Red—Load not protected
("UPS Status table" on page 23)—Provides essential information about the power status of
("UPS Alarms table" on page 24)—Displays a list of current alarms
("About your UPS table" on page 24)—Provides information about the model range
) indicates that the load segment is on. A red outlet icon (
) indicates that the load segment status is unknown.
HP UPS Network Module web interface 23
) indicates that
