ASSEMBLY / PRE-OPERATION

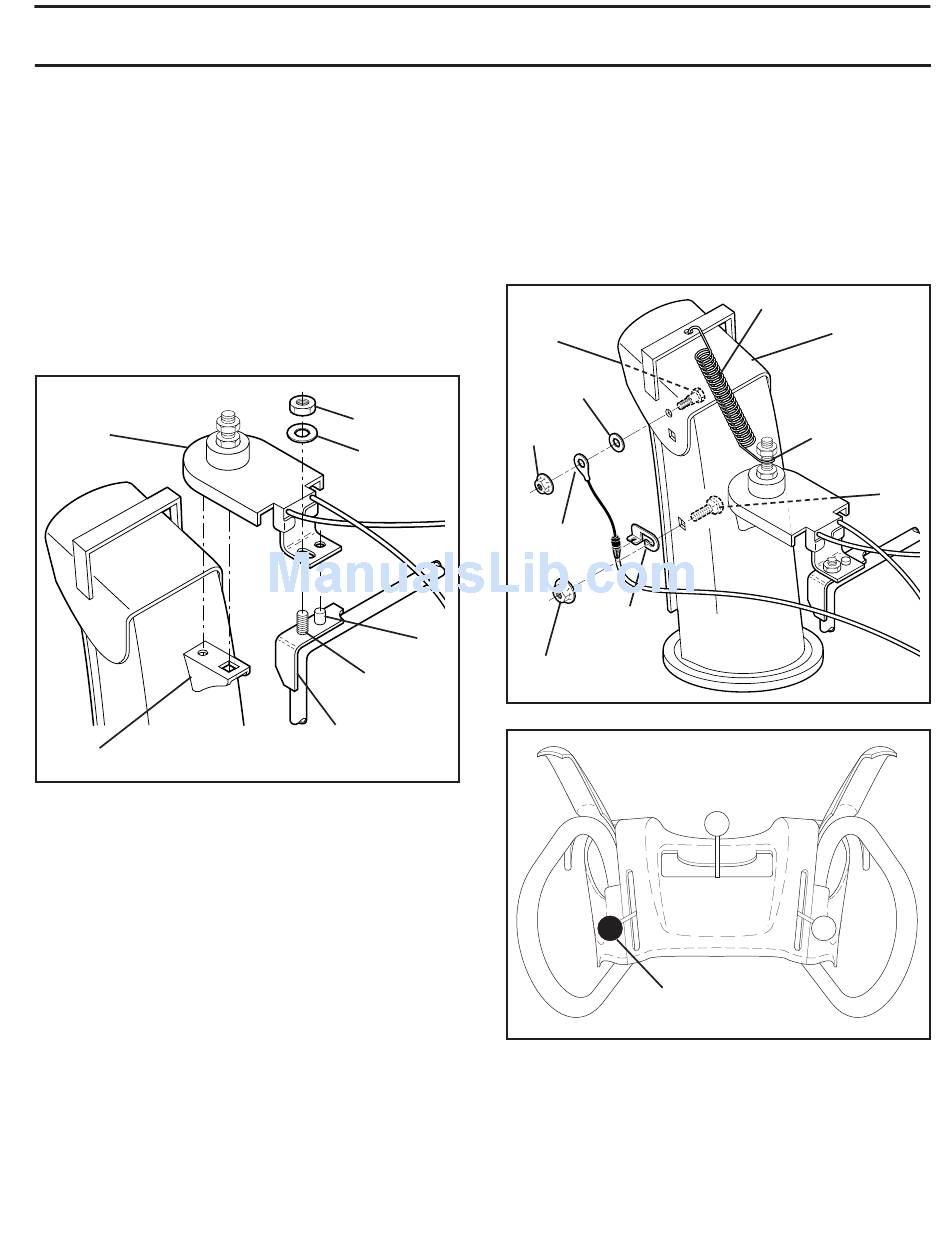

INSTALL DISCHARGE CHUTE / CHUTE ROTATOR
HEAD (See Fig. 7)
NOTE: The multi-wrench provided in your parts bag may
be used to install the chute rotator head.
1. Place discharge chute assembly on top of chute base
with discharge opening toward front of snow thrower.
2. Position chute rotator head over chute bracket. If nec es-
sary, rotate chute assembly to align square and pin on un-
derside of chute rotator head with holes in chute brack et.
3. With chute rotator head and chute bracket aligned,
position chute rotator head on pin and threaded stud
of mounting bracket.
4. Install 3/8 washer and locknut on threaded stud and
tighten securely.
CHUTE
ROTATOR
HEAD
ALIGN BEFORE
CHUTE
BRACKET TIGHTENING LOCKNUT
3/8 LOCKNUT
3/8 WASHER
THREADED
STUD
ROTATOR HEAD
MOUNTING
BRACKET
FIG. 7
INSTALL CHUTE DEFLECTOR REMOTE CONTROL
(See Figs. 8 and 9)
1. Install remote cable bracket to discharge chute with
5/16-18 carriage bolt and 5/16-18 locknut as shown.
Tighten securely.
2. Install remote cable eyelet to chute defl ector with
1/4-20 shoulder bolt, nylon friction washer and 1/4-20
locknut as shown. Tighten securely.
3. Install spring hooks between hex nuts on chute rotator
head and into hole in chute defl ector as shown.
1/4-20
SHOULDER
BOLT
NYLON
WASHER
1/4-20
LOCKNUT
CABLE
EYELET
REMOTE
CABLE
PIN
BRACKET
5/16-18
LOCKNUT
CHECK TIRE PRESSURE
The tires on your snow thrower were overinfl ated at the fac-
tory for shipping purposes. Correct and equal tire pres sure
is important for best snow throwing performance.
• Reduce tire pressure to 14-17 PSI (19-24.5 N-m).
7
SPRING
DEFLECTOR
HOOK
BETWEEN
HEX NUTS
ON CHUTE
ROTATOR
HEAD
FIG. 8
CHUTE DEFLECTOR
CONTROL LEVER
FIG. 9
CHUTE
5/16-18
CARRIAGE
BOLT
