- Page 1 VENTILATION PARTS 30" SLIDE OUT RANGE HOOD For Model: KWVU205YBA1 (Brushed Aluminum) Part No. 885899 12−97 Litho in U.S.A. (rmb)

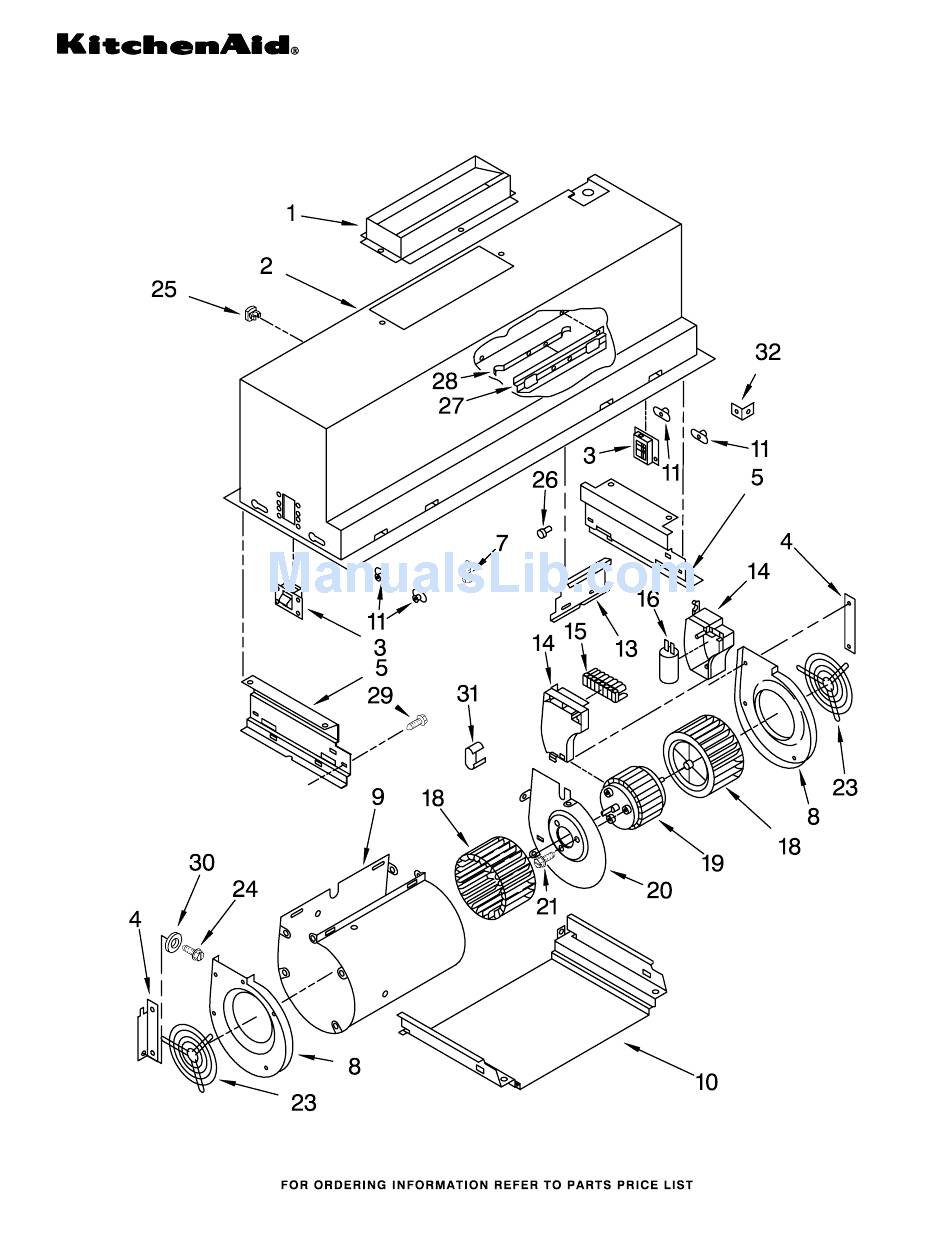

- Page 2 VENTILATION PARTS For Model: KWVU205YBA1 (Brushed Aluminum) Illus. Part DESCRIPTION 4360001 Damper Canopy Canopy, Non−serviceable 4360002 Support Canopy (2) Bracket Blower 4360003 Left Side 4360054 Right Side Support Blower Housing 4360004 Left Side 4360087 Right Side 4360006 Screw 5 x 1/2 (3)
- Page 3 DOOR AND CONTROL PARTS For Model: KWVU205YBA1 (Brushed Aluminum) 885899...
- Page 4 DOOR AND CONTROL PARTS For Model: KWVU205YBA1 (Brushed Aluminum) Illus. Part DESCRIPTION 4360010 Guide Door (2) Housing Guide 4360104 Left Side 4360105 Right Side 4360012 Support, Guide (2) 4360013 Socket Lamp (2) 4360097 Lamp 4360015 Filter 4360076 Glass Door 4360017 Brace Glass (2)
-
Page 5: Control Panel Parts
CONTROL PANEL PARTS 885899 For Model: KWVU205YBA1 (Brushed Aluminum) Illus. Part DESCRIPTION 4360106 Button, Control (5) 4360107 Spring, Button (5) 4360108 Washer (5) 4360109 Housing, Control 4360110 Panel, Touch 4360111 Cover, Control 4360113 Frame, Control Panel 4360117 Connector 4360118 Escutcheon...
