KitchenAid KWVU265YBA1 Parts List

36" slide out range hood
Hide thumbs


Advertisement

VENTILATION PARTS
36" SLIDE OUT
RANGE HOOD
For Model: KWVU265YBA1
(Brushed Aluminum)
5−96 Litho In U.S.A. (jcn)
1
Part No. 885812

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KWVU265YBA1

  Summary of Contents for KitchenAid KWVU265YBA1

  • Page 1 VENTILATION PARTS 36" SLIDE OUT RANGE HOOD For Model: KWVU265YBA1 (Brushed Aluminum) 5−96 Litho In U.S.A. (jcn) Part No. 885812...

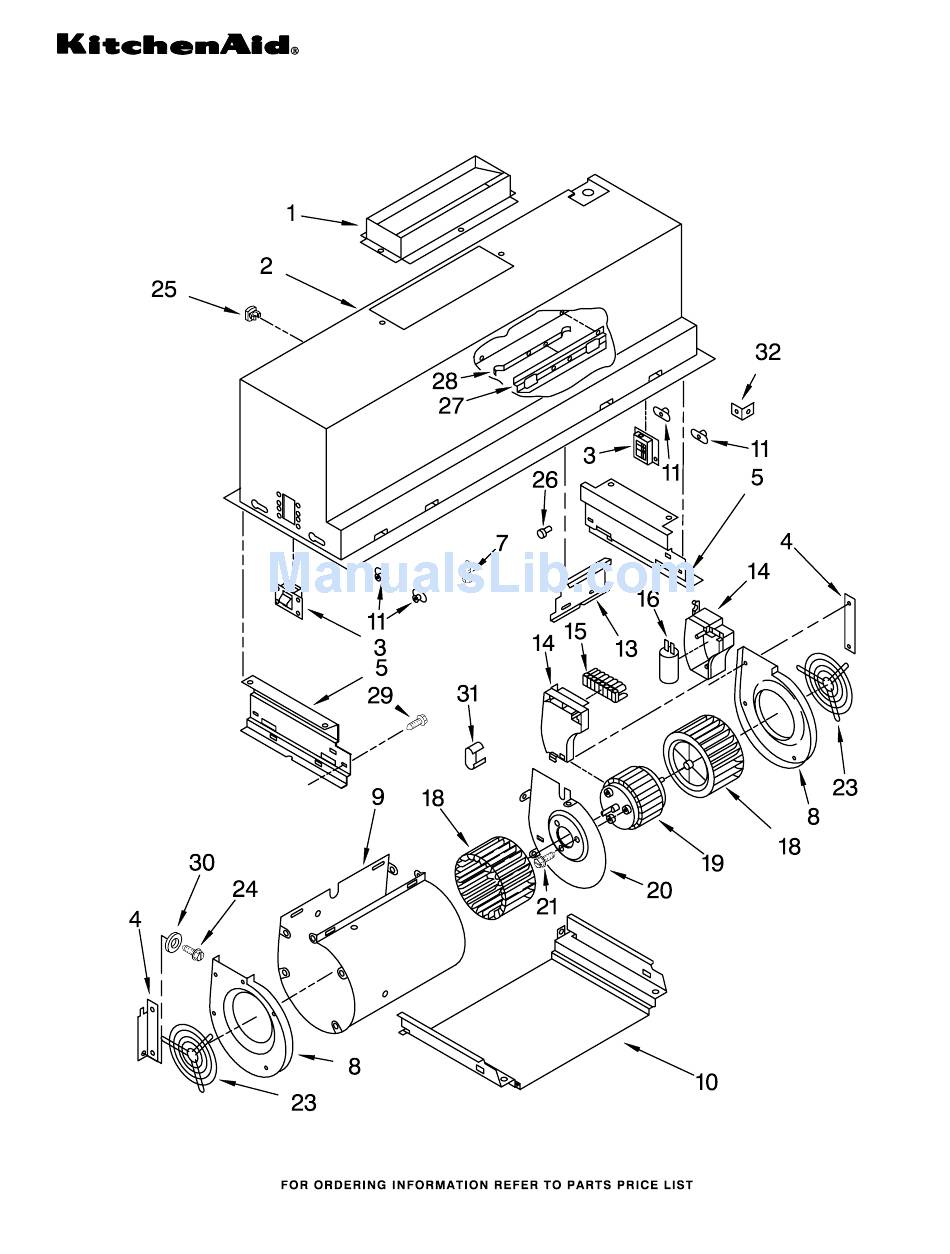

  • Page 2 VENTILATION PARTS For Model: KWVU265YBA1 (Brushed Aluminum) Illus. Part DESCRIPTION 4360001 Damper Canopy Canopy, Non−serviceable 4360002 Support Canopy (2) Bracket Blower 4360003 Left Side 4360054 Right Side Support Blower Housing 4360004 Left Side 4360087 Right Side 4360006 Screw 5 x 1/2 (3) Endcap Blower 4360007 Left 4360053 Right...
  • Page 3 DOOR AND CONTROL PARTS For Model: KWVU265YBA1 (Brushed Aluminum) 885812...
  • Page 4 DOOR AND CONTROL PARTS For Model: KWVU265YBA1 (Brushed Aluminum) Illus. Part DESCRIPTION 4360010 Guide Door (2) Housing Guide 4360104 Left Side 4360105 Right Side 4360012 Support, Guide (2) 4360013 Socket Lamp (2) 4360125 Lamp 4360015 Filter 4360076 Glass Door 4360017 Brace Glass (2) Frame Door 4360018 Left Side 4360024 Right Side...
  • Page 5: Control Panel Parts

    CONTROL PANEL PARTS For Model: KWVU265YBA1 (Brushed Aluminum) Illus. Part DESCRIPTION 4360106 Button, Control (5) 4360107 Spring, Button (5) 4360108 Washer (5) 4360109 Housing, Control 4360110 Panel, Touch 4360111 Cover, Control 4360129 Frame, Control Panel 4360117 Connector 4360118 Escutcheon End Cap, Handle 4360020 Left Side 4360022 Right Side Following Parts Not Illustrated...
