PRODUCT MODEL NUMBERS
KICU265H
KICU285H
Electrical: 120-volt, 60-Hz, AC-only, 15-amp.
electrical supply. Use copper wire only. A time-
delay fuse or circuit breaker and separate circuit is
recommended.
VENTING REQUIREMENTS
Vertical roof venting
roof cap
3-1/4" x 10"
(8.3 cm x 25 cm)
through
the roof
Note: 3-1/4" x 10"
(8.3 cm x 25 cm)
rectangular vent must
be used inside chimney
cover. Round vent will
not fit inside chimney
cover.
Horizontal wall venting
3-1/4" x 10"
(8.3 cm x 25 cm)
wall cap
through the wall
Note: 3-1/4" x 10"
(8.3 cm x 25 cm)
rectangular vent must
be used inside chimney
cover. Round vent will
not fit inside chimney
cover.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®

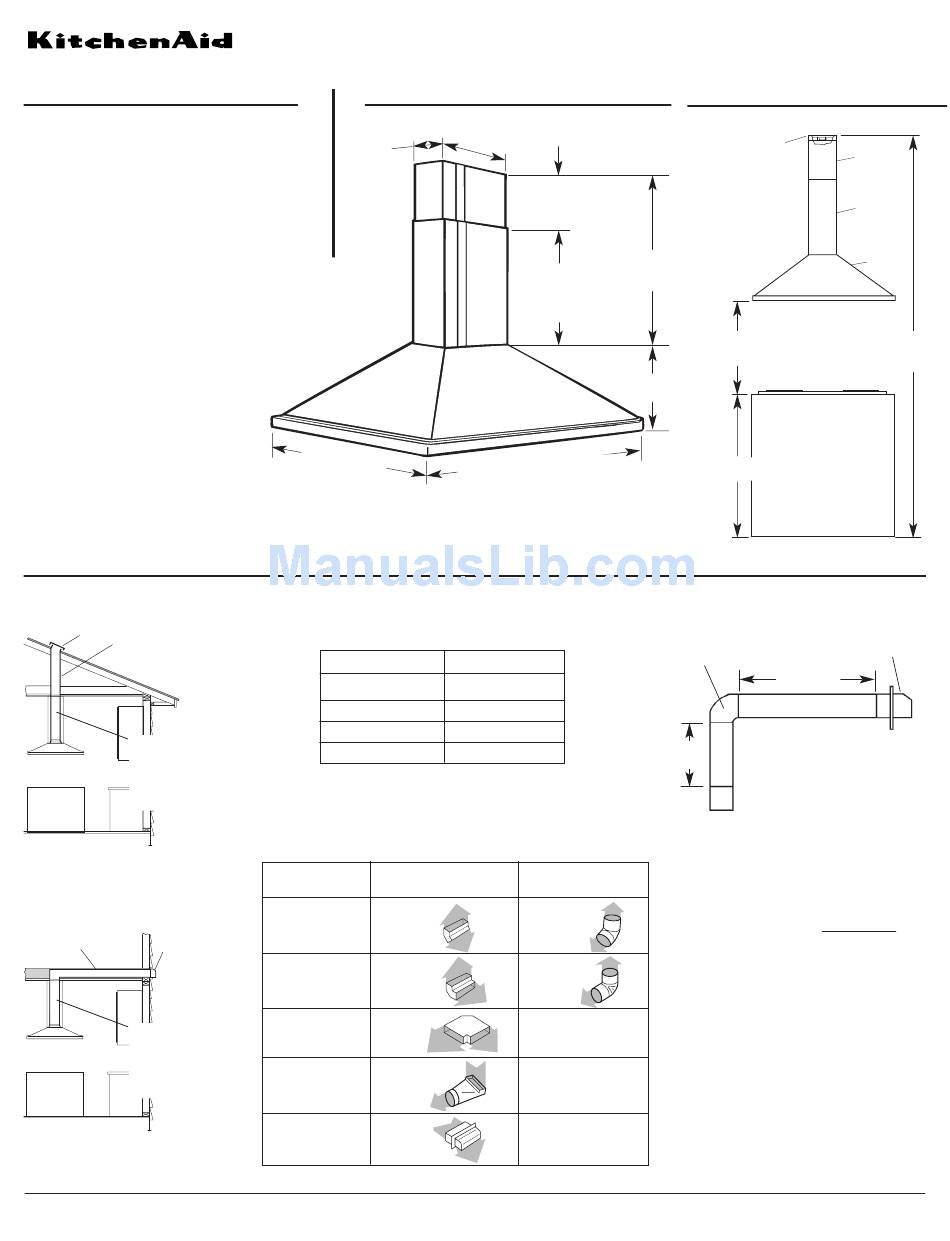

36" and 48" Island Canopy Range Hood
OVERALL DIMENSIONS
7 1/16"
(17.9 cm)
23-5/8" (60 cm)
overall depth
The vent system length should not
exceed the lengths shown in the
chart below.
Vent size
3-1/4" x 10"
(8.3 cm x 25 cm)
7" (17.8 cm) round
8" (20.3 cm) round
9" (22.9 cm) round
To calculate the length of the system you need, add the
equivalent feet for each vent piece used in the system.
Vent Piece
3-1/4" x 10" (8.3 cm x 25 cm) 7" (17.8 cm), 8" (20.3 cm)
Rectangular
45° elbow
7.0 feet
(2.1 m)
90° elbow
5.0 feet
(1.5 m)
90° flat elbow
12.0 feet
(3.7 m)
transition to round
5.0 feet
(1.5 m)
wall cap
0.0 feet
(0.0 m)
10 7/8"
(27.6 cm)
1" (2.5 cm) min. -
11-1/8" (23.8 cm) max.
upper chimney height
24-5/8" (62.5 cm) min. -
23-5/8"
34-3/4" (88.3 cm) max.
(60 cm)
overall chimney height
lower
chimney
height
10-1/4" (26 cm)
canopy height
36" hood 35-3/8" (89.9 cm) or
48" hood 47-1/4" (120 cm)
overall width
Maximum length
35 ft. (10.7 m)
40 ft. (12.2 m)
50 ft. (15.2 m)
60 ft. (18.3 m)
or 9" (22.9 cm) Round
2.5 feet
(0.8 cm)
5.0 feet
(1.5 m)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
CABINET OPENING DIMENSIONS
support
structure
24" (61 cm) min.
bottom of canopy to
cooking surface
36" (91.4 cm)
base cabinet
height
3-1/4" x 10" (8.3 cm x 25 cm)
vent system
3-1/4" x 10"
(8.3 cm x 25 cm)
elbow
6 ft. (1.8 m)
2 ft.
(0.6 m)
Maximum length
= 35 ft. (10.7 m)
1 — 90° elbow
= 5 ft. (1.5 m)
8 ft. (2.4 m) straight
= 8 ft. (2.4 m)
1 — wall cap
= 0 ft. (0 m)
Length of 3-1/4" x 10"
(8.3 cm x 25 cm)
system
= 13 ft. (4 m)
Note: Flexible vent is Not
recommended.
If it is used, each foot of flexible vent
used is equivalent to two feet (61 cm)
of straight metal vent when
calculating the vent system length.
(Example: A flexible elbow equals two
standard elbows.)
Ref. 4360369 Rev. C
upper
chimney
lower
chimney
canopy
8' (2.4 m) min. -
9' (2.7 m) max.
ceiling to floor
wall
cap
10-15-02
