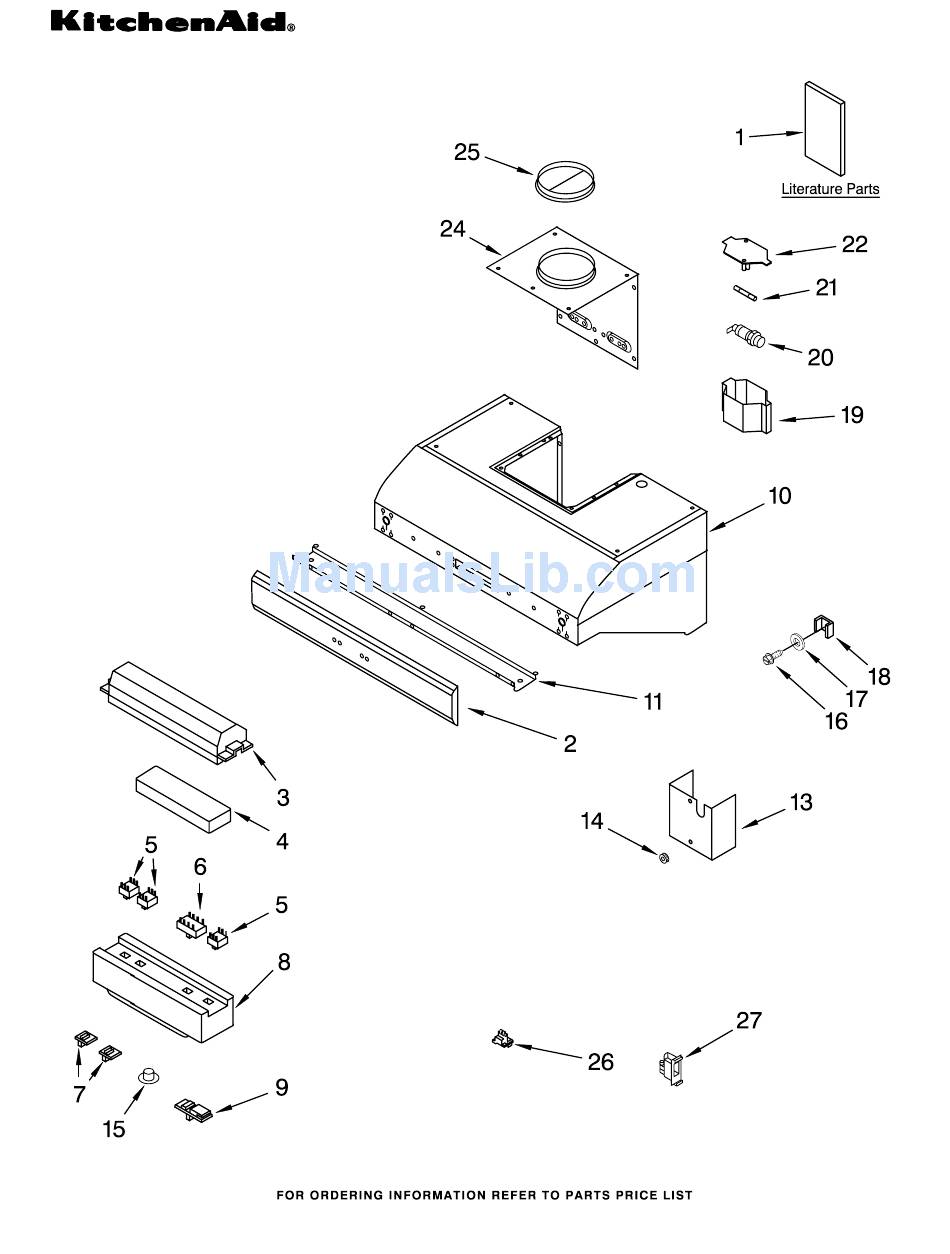

HOOD PARTS
30" or 36" RANGE HOOD
For Models: KHTU705RSS1, KHTU765RSS1
(Stainless)
(Stainless)
02−08 Litho in U.S.A. (jac)
Part No. 8191122
