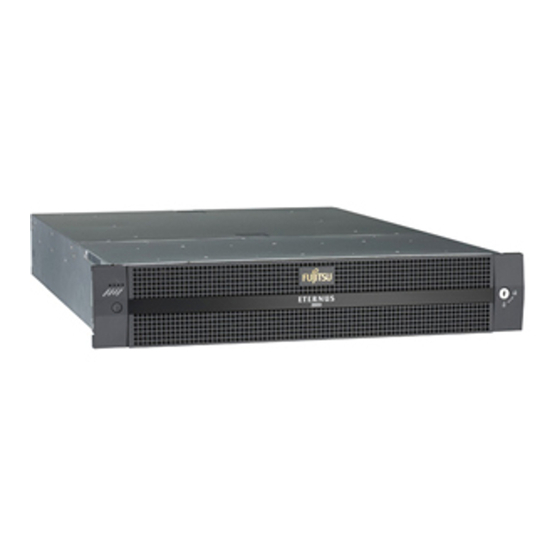

Fujitsu Eternus Connection Manual

Disk storage systems (fibre channel) for oracle solaris.
Hide thumbs

Advertisement

Advertisement

   Also See for Fujitsu Eternus

   Related Manuals for Fujitsu Eternus

   Summary of Contents for Fujitsu Eternus

  • Page 3

    Also, note that in this document the ETERNUS2000 models 100 and 200, ETERNUS4000 models 300, 400, 500, and 600, and ETERNUS8000 models 700, 800, 900, 1100, 1200, 2100, and 2200 Disk storage systems are collectively referred to as ETERNUS Disk storage systems. First Edition...

  • Page 4: Naming Conventions

    After reading, store this manual in a safe place for future reference. FUJITSU has made every effort to ensure the safety of the users and other personnel, and to prevent property damage. When using this product, carefully follow the instructions described in this manual.

  • Page 5: Table Of Contents

    Setting the Configuration File (/etc/system) ............. 14 Chapter 4 Logical Unit Recognition ............15 Appendix A Management Table Template ..........17 WWN Instance Management Table for the Server ........... 17 P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 6: Chapter 1 Workflow

    Chapter 1 Workflow This manual is used when performing the setup procedure described in "Installing the Driver and Setting Up the Server" and "Logical Unit Recognition" of the "ETERNUS Disk storage systems Server Connection Guide (Fibre Channel) for Oracle Solaris". Workflow Fiber Channel Card Driver Installation Install the driver.

  • Page 7

    Chapter 1 Workflow > Logical Unit (LUN) Recognition Make the server recognize the ETERNUS Disk storage system logical units. Refer "Chapter 4 Logical Unit Recognition" (page 15) After completing all the required procedures in this manual, proceed to "Setting the Multipaths"...

  • Page 8: Chapter 2 Installing The Fibre Channel Card Driver

    Install the Fibre Channel card driver. Download and install the driver from the Brocade web-site. Refer to the following Brocade web-site for instructions on how to install the driver. http://www.brocade.com/products/all/adapters/index.page P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 9: Chapter 3 Setting Up The Server

    Chapter 3 Setting Up the Server The server setup will vary according to how the ETERNUS Disk storage systems and server are to be connected. Only Fabric connections are supported. The Fibre Channel card Instance name, target WWN, and target ID information are necessary.

  • Page 10

    Use the following command to check the display order of the Fibre Channel card physical path names. # prtpicl -v -c scsi-fcp | grep devfs-path Example # prtpicl -v -c scsi-fcp | grep devfs-path :devfs-path /pci@7c0/pci@0/pci@8/bfa@0 :devfs-path /pci@7c0/pci@0/pci@8/bfa@0,1 P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 11

    Physical path name name name /pci@7c0/pci@0/pci@8/bfa@0 PCIE1 100000051ee7457b bfa0 /pci@7c0/pci@0/pci@8/bfa@0,1 PCIE2 bfa1 100000051ee7457c End of procedure This completes the "WWN instance management table for the server". P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 12: Setting Up Brocade Fibre Channel Cards

    --topology <port_id> [auto | p2p] • Frame data size Set the frame data size value to "2048". "bcu" command format bcu port --dfsize <port_id> [<dfsize>] P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 13

    # bcu port --speed 1/0 Current port speed is: Configured port speed is: • Topology confirmation # bcu port --topology 1/0 Current topology is: Configured topology is: P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 14: Setting The Configuration File (/etc/system)

    Procedure Edit the configuration file. Edit the configuration file (/etc/system) and specify the command queue depth. The appropriate "ssd_max_throttle" parameter value is determined by the ETERNUS Disk storage system model, as follows: ETERNUS Disk storage system Command queue depth setting...

  • Page 15: Chapter 4 Logical Unit Recognition

    Chapter 4 Logical Unit Recognition Set the server to recognize the ETERNUS Disk storage systems' logical units. Execute the following commands to check the path of the ETERNUS Disk storage system to be connected. Procedure Execute the following command to confirm that the server can access the logical units.

  • Page 16

    Searching for disks...done AVAILABLE DISK SELECTIONS: 0. c0t0d0 <SUN146G cyl 14087 alt 2 hd 24 sec 848> /pci@780/pci@0/pci@9/scsi@0/sd@0,0 1. c2t500000E0D0400006d0 <FUJITSU-E2000-0000 cyl 379 alt 2 hd 64 sec 256> /pci@7c0/pci@0/pci@8/bfa@0/fp@0,0/ssd@w500000e0d0400006,0 2. c2t500000E0D0400006d1 <FUJITSU-E2000-0000 cyl 379 alt 2 hd 64 sec 256> /pci@7c0/pci@0/pci@8/bfa@0/fp@0,0/ssd@w500000e0d0400006,1 3.

  • Page 17: Appendix A Management Table Template

    Use it as required. WWN Instance Management Table for the Server WWN instance management table for the server Physical slot Physical path Controller number Instance name name name P3AM-4562-01ENZ0 ETERNUS Disk storage systems Server Connection Guide for Oracle Solaris Copyright 2010 FUJITSU LIMITED...

  • Page 18

    • Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual. •...
