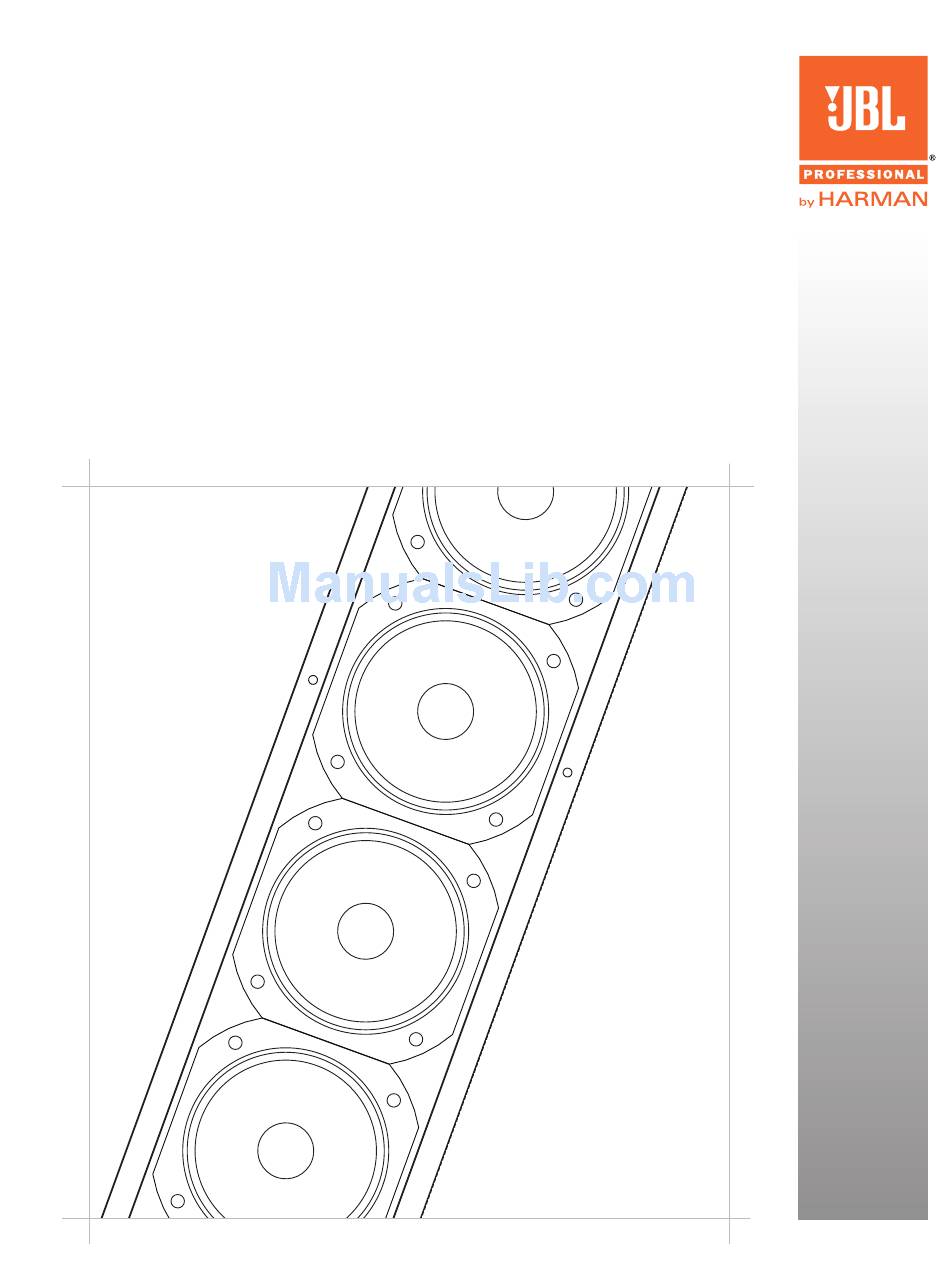

Installation Manual
JBL Professional Intellivox - DC/DS/DSH/DSX
115, 180, 280, 380, 430 & 500 models
(Part Nos. 585000, 585001, 585020, 585021, 585060, 585061, 585120,
585121, 585160, 585161, 585300, 585301, 587000, 587001, 587020,
587021, 587040, 587041, 587060, 587061, 587080, 587081, 587120,
587121, 587140, 587141, 587160, 587161, 587180, 587181, 587300,
587301, 587350, 587351, 587400, 587480, 587481)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JBL Intellivox-DC115
Summary of Contents for JBL Intellivox-DC115
-
Page 1: Installation Manual
Installation Manual JBL Professional Intellivox - DC/DS/DSH/DSX 115, 180, 280, 380, 430 & 500 models (Part Nos. 585000, 585001, 585020, 585021, 585060, 585061, 585120, 585121, 585160, 585161, 585300, 585301, 587000, 587001, 587020, 587021, 587040, 587041, 587060, 587061, 587080, 587081, 587120,... -
Page 2: Reference To Statements Of Conformity
CAN/CSA 60065-03 + Amd 1 and checked for accuracy; however no guarantee is given with UL 60065-07 (pollution degree 2) respect to its correctness. JBL Professional accepts no Mains Harmonics: responsibility or liability for any errors or inaccuracies that EN 61000-3-2 :2001... -
Page 3: Table Of Contents
JBL Intellivox Installation Manual TABLE OF CONTENTS Reference to Statements of Conformity ....2 User’s Notice and disclaimer ......2 1. -
Page 4: Important Safety Instructions
JBL Intellivox Installation Manual 1. IMPORTANT SAFETY INSTRUCTIONS This symbol is intended to alert you to the 12) Use only with the cart, stand, tripod, bracket or presence of uninsulated dangerous voltages table specified by the manufacturer, or sold with the within the product's enclosure that may be of apparatus. -
Page 5: Introduction

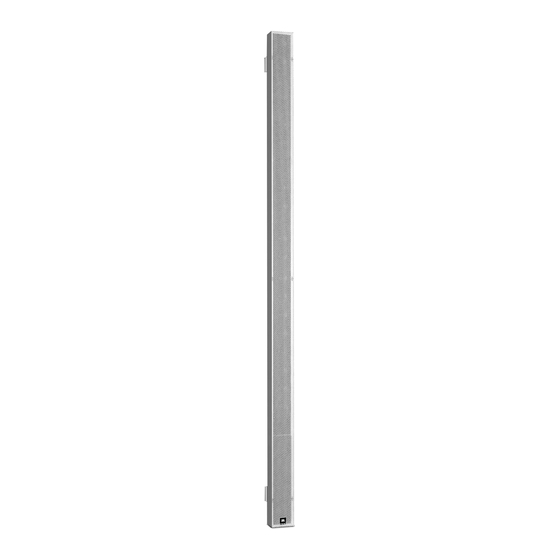

The various models in the Intellivox range are fitted with range of loudspeakers. different numbers of drive units. The JBL Intellivox is a type of loudspeaker known as an This manual applies to the following JBL active DSP-controlled loudspeaker array, which utilises the... -
Page 6: What's In The Packaging
This results in a loudspeaker with different dimensions from acoustical mounting height the standard models, requiring a different mounting procedure. Note that this manual is NOT applicable to these versions; please contact JBL for more information. DC115 DC115 amp at bottom amp at top WHAT’S IN THE PACKAGING... -
Page 7: Installation Guide
JBL Intellivox Installation Manual 3. INSTALLATION GUIDE PREPARING FOR INSTALLATION SIGNAL AND CONTROL CABLES Before starting to install the Intellivox loudspeaker, a • In addition to the mains supply, some or all of the following number of points should be considered. -
Page 8: Connector And Wiring Details
*Note that the optional external ANS microphone is combined with a temperature sensor in a single unit (JBL Order Code 97661101). If both functions are required, the use of 2-pair screened cable is recommended. -
Page 9: Ac Mains
Green Blue White A stranded wire clamp is available from JBL to make the transition from rigid mains installation wiring to stranded appliance cable, should no suitable mains outlet or connection plate be available. Refer to page 22 for ordering information. -
Page 10: Wago Connectors
5-way mating male connectors for the other two sockets are available separately from JBL if required (see page 22), but will be shipped with the unit if specified fig.7.2 - Using the WAGO insertion tool at the time of order. -
Page 11: Audio Inputs
JBL Intellivox Installation Manual AUDIO INPUTS If the source equipment has a well-designed balanced The Intellivox is normally supplied with two transformer- output and the wiring strategy shown below is used, there balanced line inputs. Selection of Input 1 or Input 2 as audio should be no problems with hum or other extraneous noise. -
Page 12: Network Connection
JBL Intellivox Installation Manual NETWORK CONNECTION CAT-5 type UTP or FTP cable is NOT suitable. Please refer to the Appendix section of this manual for cable specifications. The RS-485 network connection should be permanently wired in any of the following situations: •... -
Page 13: Fault Monitoring/Fan Control Connector
JBL Intellivox Installation Manual FAULT MONITORING/FAN CONTROL CONNECTOR Fault Monitoring The Intellivox includes a single-pole changeover relay The pinout of this connector is as follows: whose contacts are accessible on the Failure Relay connector. The conditions under which the relay operates are defined as part of the device configuration in... - Page 14 Intellivox will be exposed to direct sunlight. For outdoor an external relay (e.g. to control a mains-voltage fan). applications JBL offers an off-the-shelf solution (see Contact JBL for details with respect to the interfacing to weather-proofing kit in the appendix). Dedicated forced mains-voltage fans.
-
Page 15: External Ambient Spl/Temperature Sensor
(height > 3 m) within the coverage range of the independent of each other and either or both may be used, Intellivox. as required. The use of the optional JBL combined Ambient SPL/Temperature sensor is recommended, although either Temperature sensor of the two functions may be used alone if wished. -
Page 16: Mechanical Installation
JBL Intellivox Installation Manual MECHANICAL INSTALLATION Acoustic Centre Mounting an Intellivox loudspeaker is a straightforward procedure, but it is essential to understand that the height of the unit above floor level is extremely critical. The “correct operational height” is defined as part of the... -
Page 17: Mounting Options
JBL Intellivox Installation Manual Mounting Options of the enclosure by the four M5 pan head screws instead of the standard brackets. Two versions of swivel bracket are The Intellivox has two or three (depending on the model) available, permitting the Intellivox to be rotated through attachment points at the rear of the enclosure;... -
Page 18: Mounting Procedure
JBL Intellivox Installation Manual Mounting Procedure The general mounting procedure using the standard 6. Using a Philips H2 Screwdriver, attach the brackets to brackets is described below. It is assumed that all necessary the Intellivox enclosure with the M5 x 12 pan-head cabling is already prepared with connectors fitted as... -
Page 19: Unit Checks
JBL Intellivox Installation Manual 4. UNIT CHECKS After installation and connection are complete, the installer CONNECTING THE PC TO THE INTELLIVOX should upload the settings file into the Intellivox and verify If connecting directly to the Intellivox, use the 5-pin XLR to correct operation with WinControl software. -
Page 20: Settings File Upload
JBL Intellivox Installation Manual SETTINGS FILE UPLOAD Click File > Load settings…, which will open the two • Apply mains power to the Intellivox, turn on the PC and dialogue boxes shown below, Load control parameters launch WinControl. Open Options > Communications settings and Control parameters. - Page 21 JBL Intellivox Installation Manual • The File Name field (at the top of the Load control • Select the correct settings file and click Open. Then in parameters settings dialogue box) indicates the the Load control parameters settings dialogue box, last-used settings file name.
-
Page 22: Appendix
JBL Intellivox Installation Manual 5. APPENDIX OPTIONAL ACCESSORIES Listed below are a number of additional components which may be required for an individual installation. Mating connectors and components for external wiring: CONNECTOR DESCRIPTION ORDER CODE Mains power IEC socket 6A... - Page 23 JBL Intellivox Installation Manual Available input modules: DESCRIPTION ORDER CODE 1 x Line Level and 1 x 70V/100V 381001 Dual 70V/100V 381003 Dual 70V/100V with DC blocking 381005 DM1-TP Optocore SANE input board 381006 Weather proofing kits: DESCRIPTION ORDER CODE Weather-proofing kit for Models DC115/180, DS115/180, DSX/180 (amp at top only)
-
Page 24: Common Analogue Grounding Issues
JBL Intellivox Installation Manual COMMON ANALOGUE GROUNDING ISSUES SOFTWARE AND FIRMWARE UPDATES Correctly connecting the Intellivox to ground has several The WinControl application is freely available and can be benefits: downloaded from the download area of our website; http://www.jblpro.com. We advise installers, users and 1. -
Page 25: Failure Monitoring On 70 V/100 Vconnection
JBL Intellivox Installation Manual FAILURE MONITORING ON 70 V/100 V Configuring PCB960 CONNECTION. The impedance between pin 1 and 2 of the audio input If the Intellivox is equipped with an input module that connector has two states: supports direct interfacing to a 70 V/100 V signal, a simple •... -
Page 26: Configuring Pcb124
JBL Intellivox Installation Manual Configuring PCB124 The impedance between pin 1 and 2 of the audio input connector has two states: • High impedance (approximately 140 kOhm @ DC). • Low impedance (approximately 2.2 kOhm @ DC). The states are switched by a separate change-over contact of the Intellivox's internal Failure Relay. -
Page 27: Failure Relay Configuration
JBL Intellivox Installation Manual NOTE: Relay shown in FAILURE RELAY CONFIGURATION INTERNAL RELAY energised state - i.e., ‘no fault’. Intellivox units equipped with input board PCB124 (see fig.17) support configuration of the internal Failure Relay for either volt-free or impedance-sensing (10k / 20k Ω) operation. - Page 28 JBL Professional 8500 Balboa Boulevard Northridge, CA 91329 U.S.A. © Copyright 2014 JBL Professional www.jblpro.com...
