Summary of Contents for JBL IS5

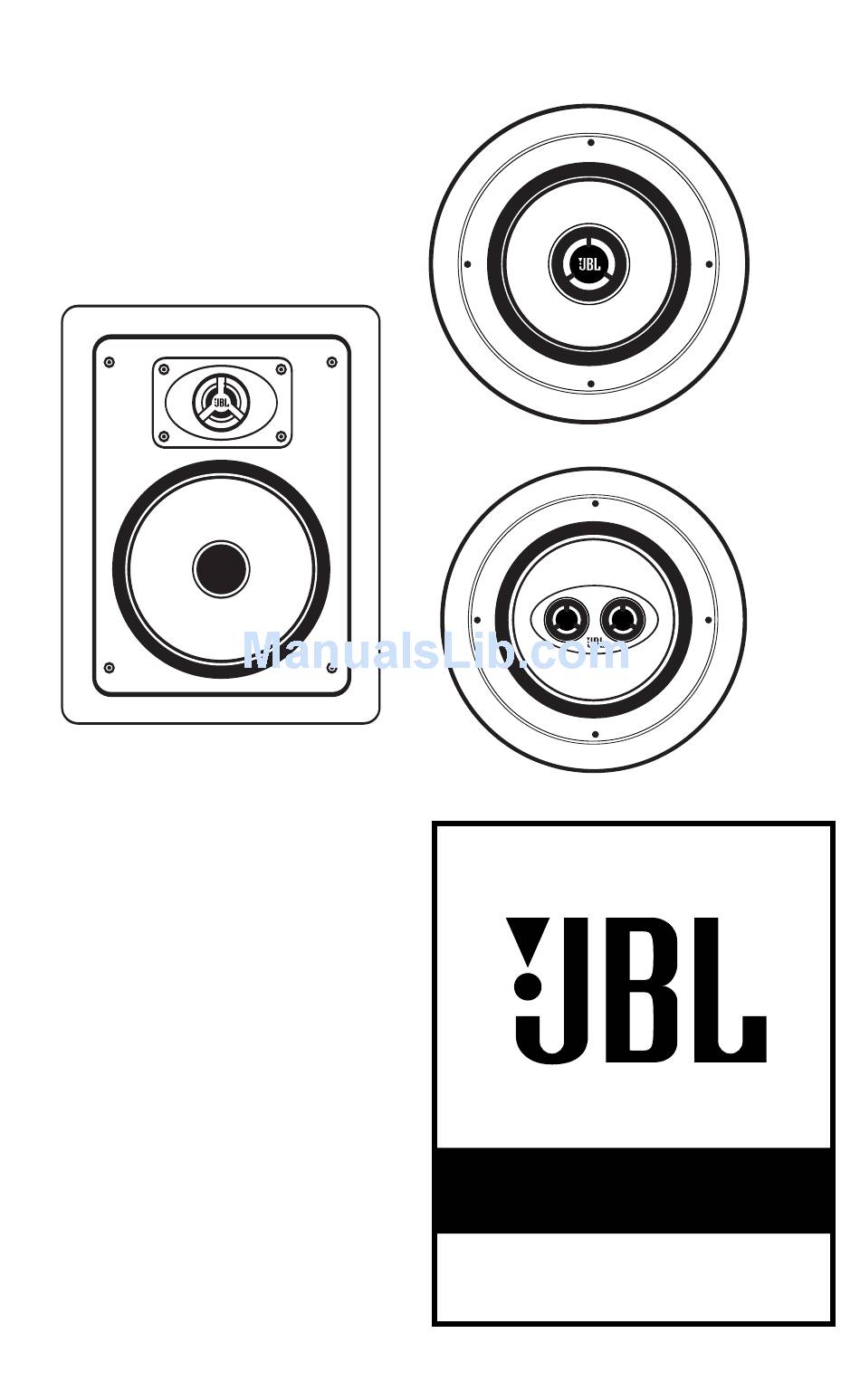

- Page 1 ® ™ PERFORMANCE INTEGRATOR IS5, IS6, IS8, IS6C, IS8C, IS6DT OWNER’S GUIDE...
-
Page 2: Speaker Placement
THANK YOU FOR CHOOSING JBL For more than 60 years, JBL has been involved in every aspect of music and film recording and reproduction, from live performances to monitoring the recordings you play in your home, car or office. INCLUDED... - Page 3 FRONT SPEAKERS WALL – 60 MODELS IS5, IS6, IS8 AS REAR SPEAKERS WALL WALL MODEL IS6DT IN-CEILING The IS6DT has the capability of playing two channels through...
-
Page 4: Speaker Connections
Speakers and elec- tronics terminals have corre- sponding (+) and (–) terminals. Most manufacturers of speakers and electronics, including JBL, † use red to denote the (+) termi- nal and black for the (–) termi- nal. It is important to connect... -
Page 5: Existing Construction
The tweeter will not swivel more than 15 degrees in any direction; do not attempt to force it to move further. You may also rotate the tweeter to orient the JBL logo as desired. ≥1/2" ≥1/2" ≥1/2" Note: Always allow at least... - Page 6 Place the frame assembly in the wall. any further. You may also rotate the tweeter to orient the JBL logo as desired. The dual tweeters of the IS6DT speaker may be swiveled independently. Optimum imaging will be...
-
Page 7: New Construction
• Check all wires and connec- tions between receiver/ampli- fier and speakers. Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut, punctured or touching each other. • Review proper operation of your receiver/amplifier. -
Page 8: Specifications
M O D E L S : IS5, IS6, IS8, IS6C, IS8C, IS6DT, Combine the superior performance of traditional DESIGN GOAL: JBL loudspeakers with the convenience of in-wall installation. Titanium-laminate-dome with swivel mount TWEETER TYPE: Titanium-laminate cone with rubber surround...
