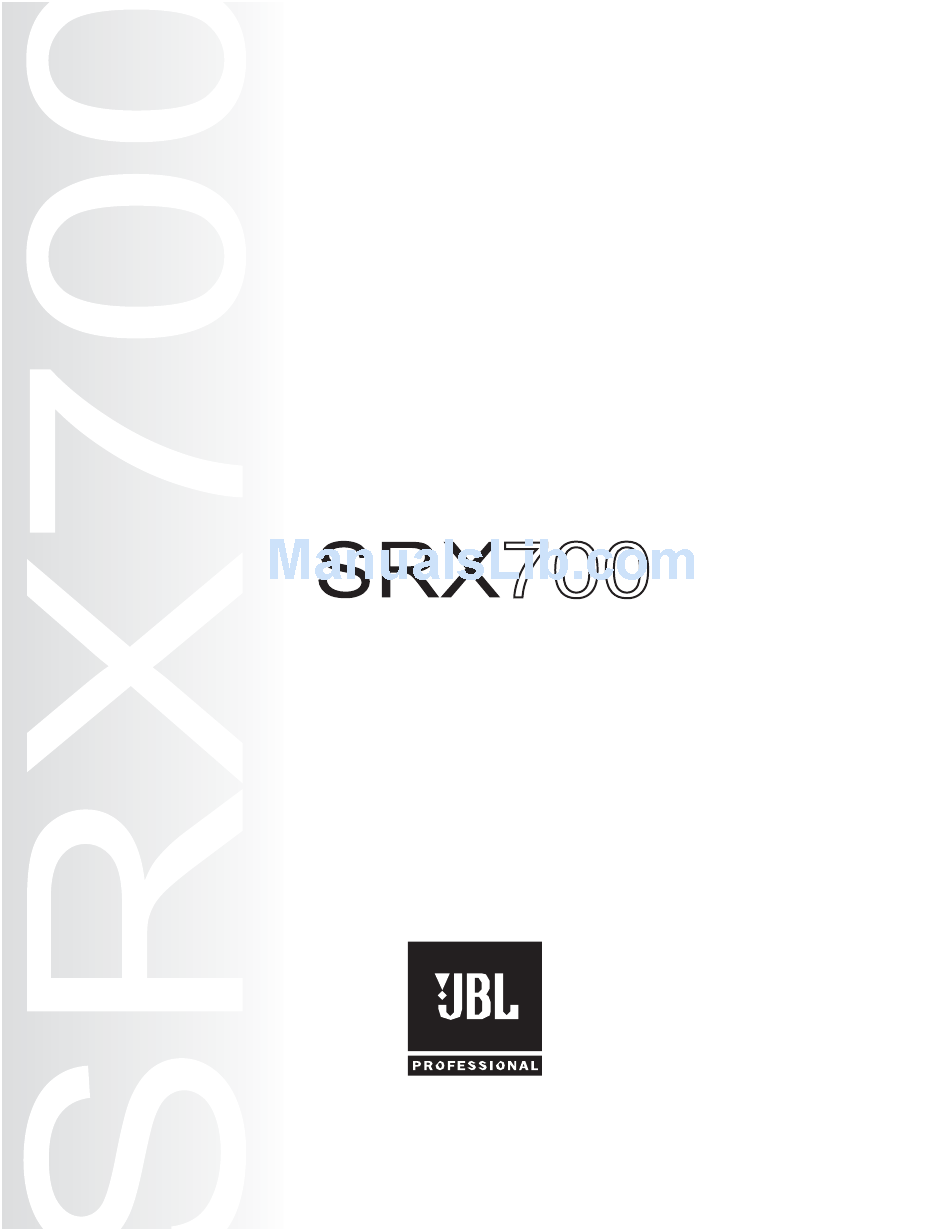

- Page 1 SRX700 Series User’s Guide Part Number: 354538-002...
-
Page 2: Product Specifications
Before You Begin - Important Information Product Specifications Recommended Amplifer Power & Infrasonic Filter Settings Processor Tunings, DuraFlex™ Finish & Removable JBL Logo Badge Input Panel and Block Diagram Flying and Suspension JBL Professional Warranty and Contact Information Explanation of Graphic Symbols... -
Page 3: Before You Begin
Stand mounting safety precautions Some SRX700 models include a 35 mm receptacle cup to allow mounting on tripod stands or on a pole over subwoofers. When using stands or poles, be sure to observe the following precautions: Check the stand or pole specification to be certain the device is designed to support the weight of the speaker. -
Page 4: Specifications
Bi-amp HF: 75 W / 150 W / 300 W 131 dB SPL peak 96 dB SPL (passive mode) 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium-magnet and dual voice-coils 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium-magnet compression driver Passive:... - Page 5 System Sensitivity (1w @ 1m): 97 dB SPL (passive mode) LF Driver: 2 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium-magnet and dual voice-coils HF Driver: 1 x JBL 2451H 102 mm (4 in) voice-coil, neodymium-magnet compression driver...
- Page 6 108 dB SPL (bi-amp mode) 1 x JBL 2268H 457 mm (18 in) Differential Drive® woofer 1 x JBL CMCD-81H Cone Midrange Compression Driver™, integral 2169H 200 mm (8 in) Differential Drive® 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium-magnet compression driver...
- Page 7 A High Pass Filter will protect your SRX700 system from excess infrasonic energy with little, if any loss of significant program content. Refer to the above chart for infrasonic filter settings.
- Page 8 INPUT PANELS AND BLOCK DIAGRAMS SRX700 BI-AMP Serial No. ±1 LF: 8 ±2 HF: 8 SRX712M JBL PROFESSIONAL Northridge, CA USA Made in USA Serial No. SRX738 FULL RANGE ±1 IN: 8Ω ±2 N/C Remove input platre to change bi-amp / passive mode Serial No.
- Page 9 None of the information presented herein is intended as a representation or warranty on the part of JBL. Anyone making use of this information assumes all liability arising from such use.
- Page 10 JBL is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. Furthermore, JBL is not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures or any other abuse.
- Page 11 Suspension in Fixed Installations (Secondary Suspension) For fixed installations of SRX700F models using M10, forged-shoulder eyebolts, order JBL Part number 229- 00009-01 which includes 3 x 10 mm forged eyebolts with washers. Suspension of SRX700 speakers must employ both top attachment points. When "bridling" an SRX700,two (2) legs of equal length must be used.
- Page 12 Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you'll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL prod- uct to the factory without prior authorization.
