Summary of Contents for ADJ MOD HEX100

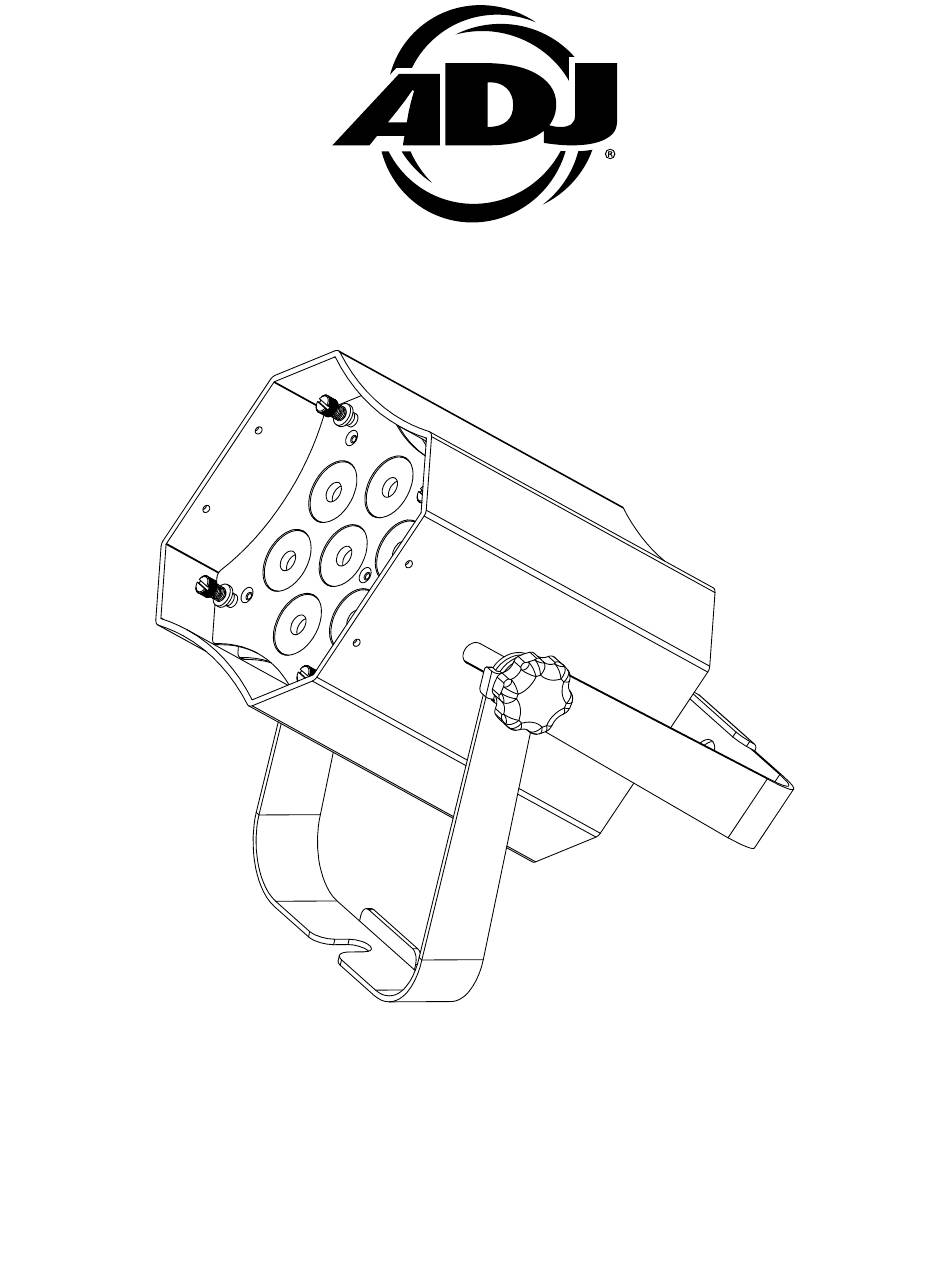

- Page 1 MOD HEX100 User Instructions...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all a昀케liated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, unsu昀케cient and negligent assembly, installation, rigging, and opera-...
-
Page 3: Table Of Contents
Operating Instructions Master-Slave Con昀椀guration UC IR/Airstream IR Control Dimmer Curve Chart Dimensional Drawings Housing Change / Frost Filter Power Linking / Trouble Shooting / Cleaning Warranty Technical Speci昀椀cations ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 2... -
Page 4: Introduction
Introduction: The ADJ MOD HEX100 is a DMX intelligent, high powered LED par fixture. This 昀椀xture can be used in a stand alone set up or connected in a Master/Slave set up. The MOD HEX100 has seven operating modes: Sound Active mode, Auto Run mode, Color Change mode, Color Fade mode, RGBWA+UV Dimmer mode, Static Color mode, and DMX controlled. - Page 5 MOD HEX100 Warranty Registration The MOD HEX100 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.
-
Page 6: Safety Precautions
C. The fixture has been exposed to rain or water. D. The fixture does not appear to operate normally or exhibits a marked change in performance. E. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 5... - Page 7 INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE. ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 6...
-
Page 8: Control Panel Layout
DOWN BUTTON DOWN SET UP BUTTON SET UP POWER IN DMX IN DMX IN DMX IN POWER IN DMX OUT POWER OUT POWER OUT DMX OUT DMX OUT ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 7... - Page 9 DMX-512 protocol. The MOD HEX100 has 5 DMX channel modes. The DMX address is set on the rear panel of the MOD HEX100. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1).
-
Page 10: Dmx Set Up
Pin 1 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 9... -
Page 11: Dmx Addressing
昀椀xture. In the case of the MOD HEX100, when in 12 Channel you should set the starting DMX address of the 昀椀rst unit to 1, the second unit to 13 (12 + 1), the third unit to 25 (13 + 12), and so on. (See chart below for more details.) - Page 12 WHITE 0 - 255 0% - 100% AMBER 0 - 255 0% - 100% 0 - 255 0% - 100% MASTER DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 11...
- Page 13 PULSE STROBING SLOW - FAST 160 - 191 LED ON 192 - 223 RANDOM STROBING SLOW - FAST 224 - 255 LED ON MASTER DIMMER 0 - 255 0% - 100% ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 12...
- Page 14 COLOR MACRO MODE 103 - 153 COLOR CHANGE MODE 154 - 204 COLOR FADE MODE 205 - 255 SOUND ACTIVE MODE 11 CHANNEL MODE CONTINUED ON THE NEXT PAGE ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 13...
- Page 15 176 - 191 COLOR FADE 12 192 - 207 COLOR FADE 13 208 - 223 COLOR FADE 14 224 - 239 COLOR FADE 15 240 - 255 COLOR FADE 16 ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 14...
- Page 16 Channel 11 will control the color fade speed. When Channel 9 is between the values of 205-255, Channel 10 is in Sound Active Mode, and Channel 11 will control the sound sensitivity. ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 15...
- Page 17 COLOR MACRO MODE 103 - 153 COLOR CHANGE MODE 154 - 204 COLOR FADE MODE 205 - 255 SOUND ACTIVE MODE 12 CHANNEL MODE CONTINUED ON THE NEXT PAGE ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 16...
- Page 18 176 - 191 COLOR FADE 12 192 - 207 COLOR FADE 13 208 - 223 COLOR FADE 14 224 - 239 COLOR FADE 15 240 - 255 COLOR FADE 16 ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 17...
- Page 19 Channel 11 will control the color fade speed. When Channel 9 is between the values of 205-255, Channel 10 is in Sound Active Mode, and Channel 11 will control the sound sensitivity. ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 18...
- Page 20 72-75=B+UV 200-203=R+B+A+UV 76-79=W+A 204-207=R+W+A+UV 80-83=W+UV 208-211=G+B+W+A 84-87=A+UV 212-215=G+B+W+UV 88-91=R+G+B 216-219=G+B+A+UV 92-95=R+G+W 220-223=G+W+A+UV 96-99=R+G+A 224-227=B+W+A+UV 100-103=R+G+UV 228-231=R+G+B+W+A 104-107=R+B+W 232-235=R+G+B+W+UV 108-111=R+B+A 236-239=R+G+B+A+UV 112-115=R+B+UV 240-243=R+G+W+A+UV 116-119=R+W+A 244-247=R+B+W+A=UV 120-123=R+W+UV 248-251=G+B+W+A+UV 124-127=R+A+UV 252-255=R+G+B+W+A+UV ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 19...
-
Page 21: System Menu
LCD backlight will be off after 20 seconds OPTION IR:ON IR remote function on OPTION IR:OFF IR remote function off OPTION SYSRESET Initialize the unit at the extra factory setting ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 20... -
Page 22: Operating Instructions
Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The MOD HEX100 has 5 DMX modes: 6 channel mode, 7 channel mode, 8 channel mode, 11 channel mode, and 12 channel mode. See pages 11-18 for each modes DMX traits. - Page 23 2. Press the SET UP button and “SPEED: XX” will be displayed. Use the UP and DOWN buttons to adjust the speed of the Auto Run. The speed can be adjusted between “01” (slowest) to “16” (fastest). ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 22...
- Page 24 • “MANUA” (Manual) - if the DMX signal is lost or interrupted, the unit will automatically go into the last color set up in manual dimmer mode. 3. Press the UP or DOWN buttons to scroll through and select a desired DMX state. ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 23...
-
Page 25: Master-Slave Con昀椀Guration
ADJ UC IR & Airstream: This function is used to activate and deactivate the infared sensor. When this function is activated the unit can be controlled using the ADJ UC IR or Airstream IR app. Please see page 25 for remote controls and functions. -
Page 26: Uc Ir/Airstream Ir Control
The UC IR infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away. To use the ADJ UC IR you must first activate the fixtures infrared sensor, to activate the sensor please see the in- structions on page 24. -
Page 27: Dimmer Curve Chart
Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 26... - Page 28 MOD HEX100 Dimensional Drawing 7.75” / 197mm 5.5” / 140mm ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 27...
-
Page 29: Housing Change / Frost Filter
MOD HEX100 Frost Filter The MOD HEX100 comes with 3 interchangeable frost 昀椀lters. To install the frost 昀椀lter unscrew the four thumb screws holding lens in place. Remove the lens and install the 昀椀lter inside the unit. Line up the thumb screw holes on the edges of 昀椀lter with screw holes of the unit. Screw the thumb screws back into place securing the lens. - Page 30 The maximum that can be connected is 5 昀椀xtures @ 120V and 9 昀椀xtures @ 240V. After the maximum connected 昀椀xtures you will need to use a new power outlet. NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE MOD HEX100 AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY!
- Page 31 ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
-
Page 32: Power Linking / Trouble Shooting / Cleaning
Warranty: 2 Year (730 days) Please Note: Speci昀椀cations and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - MOD HEX100 User Manual Page 31... - Page 33 ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-582-2941 www.adj.com / info@americandj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.adj.eu / support@adjgroup.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99...
