SAFETY AND OPERATING MANUAL
Lithium-Ion Cordless Circular Saw WX523

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WX523 WorxSaw and is the answer not in the manual?

Questions and answers

Related Manuals for Worx WX523 WorxSaw

Summary of Contents for Worx WX523 WorxSaw

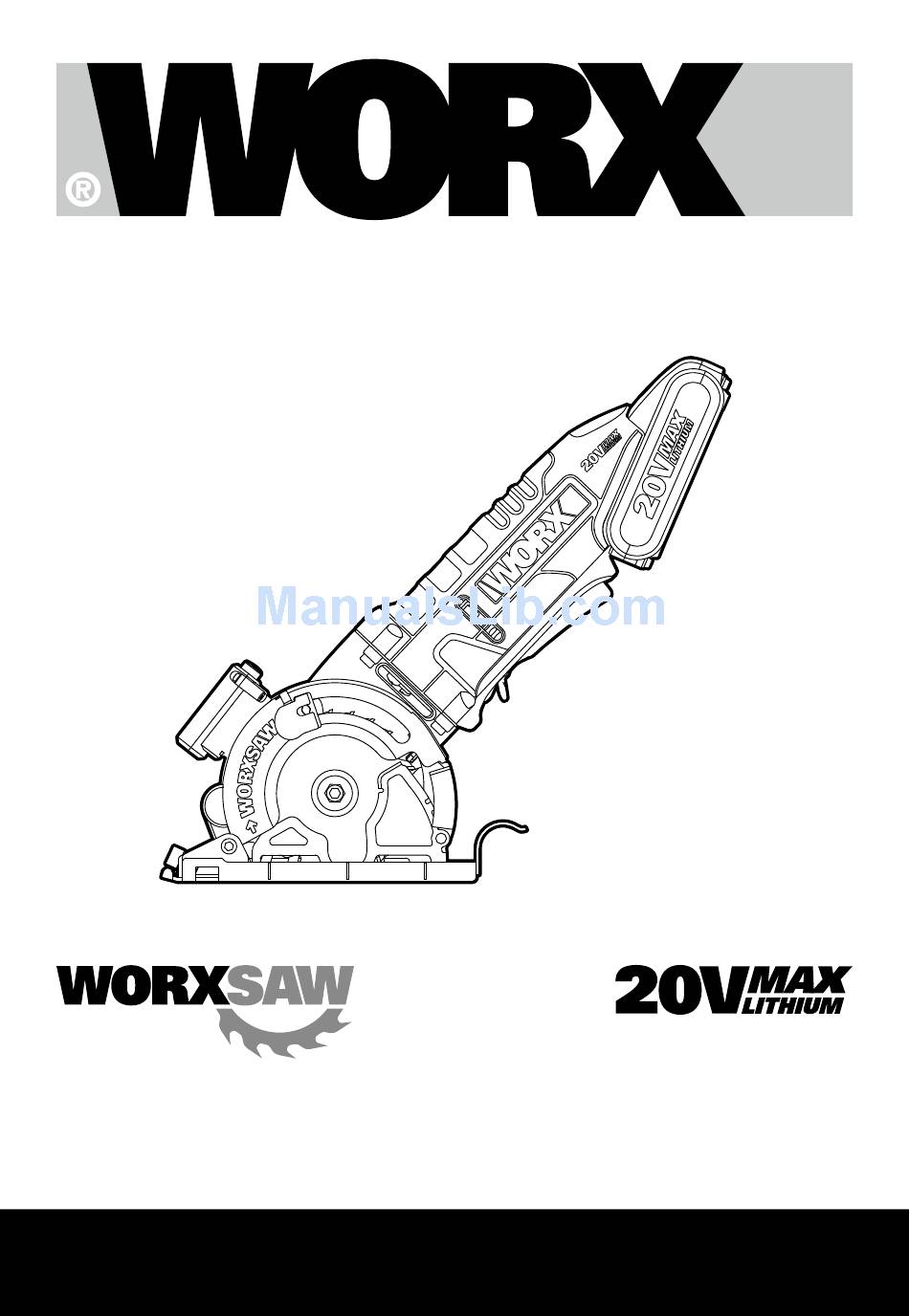

  • Page 1 SAFETY AND OPERATING MANUAL Lithium-Ion Cordless Circular Saw WX523...
  • Page 7 SOFT GRIP HANDLE FIXED UPPER GUARD VACUUM ADAPTER DUST EXTRACTION OUTLET PARALLEL GUIDE CLAMPING FIXTURE PARALLEL GUIDE LOWER BLADE GUARD BASE PLATE LOWER GUARD LEVER 10. DEPTH ADJUSTMENT LEVER 11. LOCK OFF BUTTON 12. ON/OFF SWITCH 13. BATTERY PACK 14. SPINDLE LOCK BUTTON 15.

  • Page 8: Technical Data

    TECHNICAL DATA Charger voltage 100-240V ~ 50/60Hz Rated voltage Max** No load (rated) speed 2300/min TCT blade 85mmx15mmx1.2mmx24T Blade size HSS blade 85mmx15mmx1.2mmx44T Diamond disc 85mmx15mmx1.2mmx60G Max cutting depth 27mm Wood 27mm Aluminum Recommended maximum material PVC pipe (diameter) 13mm thickness Tile Sheet steel...

  • Page 9: General Power Tool Safety Warnings

    GENERAL POWER TOOL f) If operating a power tool in a damp location is unavoidable, use a residual SAFETY WARNINGS current device (RCD) protected supply. Use of an RCD reduces the risk of WARNING: Read all safety warnings electric shock. and all instructions.

  • Page 10: Safety Instructions For All Saws

    b) Use power tools only with 4. POWER TOOL USE AND CARE a) Do not force the power tool. Use specifically designated battery packs. the correct power tool for your Use of any other battery packs may create application. The correct power tool will a risk of injury and fire.

  • Page 11: Further Safety Instructions For All Saws

    contact hidden wiring or its own cord. b) When blade is binding, or when interrupting a cut for any reason, Contact with a "live" wire will also make release the trigger and hold the exposed metal parts of the power tool saw motionless in the material until "live"...

  • Page 12: Safety Instructions For Abrasive Cutting- Off Operations

    and depths of cut. for your power tool. Just because an b) Check the operation and condition of accessory can be attached to your power the guard return spring. If the guard tool, it does not assure safe operation. and the spring are not operating C) The rated speed of the accessory properly, they must be serviced must be at least equal to the...
  • Page 13 shield, safety goggles or safety liquid coolants may result in electrocution glasses. As appropriate, wear dust mask, or shock. hearing protectors, gloves and shop apron capable of stopping small abrasive or FURTHER SAFETY workpiece fragments. The eye protection must be capable of stopping flying debris INSTRUCTIONS FOR generated by various operations.

  • Page 14: General Safety

    GENERAL SAFETY tendency to snag the rotating accessory and cause loss of control or kickback. WARNINGS FOR YOUR e) Do not attach a saw chain, LASER woodcarving blade, segmented diamond wheel with a peripheral WARNING: Read all safety warnings gap greater than 10 mm or toothed and all instructions.

  • Page 15: Safety Instructions For Battery Pack

    (20°C ± 5°C). m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by WORX. Do not use any Lithium-Ion Cordless Circular Saw WX523...
  • Page 16 SYMBOLS To reduce the risk of injury, user Wood must read instruction manual Warning Metal Wear ear protection Aluminium Wear eye protection Plastic Wear dust mask Tile Do not stare into beam Incorrect Laser radiation Correct RCM marking Lock Waste electrical products must not Unlock be disposed of with household waste.

  • Page 17: Maintain Tools With Care

    OPERATING INSTRUCTIONS Choice of blades: 24 teeth for general work, approx. 40 teeth for finer cuts, more than 40 NOTE: Before using the tool, read the teeth for very fine cuts into delicate surfaces, instruction book carefully. diamond for tile, cement board, etc. Only use saw blades recommended.

  • Page 18: Troubleshooting

    TROUBLE SHOOTING Symptom Possible Causes Possible Solution Check to make sure battery park is Battery park not plugged in. connected well into a working outlet Tool will not start when Battery park is powered off. Charging the battery. operating the on/off switch. Carbon brush has worn down Replace the carbon brush using a qualified maintenance person.
  • Page 20 Copyright © 2014, Positec. All Rights Reserved. 2CSC08APK11001A0...

This manual is also suitable for:

Wx523Wx523.9
