Lig hting Audio System
OW NE R 'S MANUAL
Read the supplied b o ok let "S afet y B ro ch ure" b efore us i ng t h e u n it.
AB

Advertisement

   Also See for Yamaha LSX-70 Relit

   Related Manuals for Yamaha LSX-70 Relit

   Summary of Contents for Yamaha LSX-70 Relit

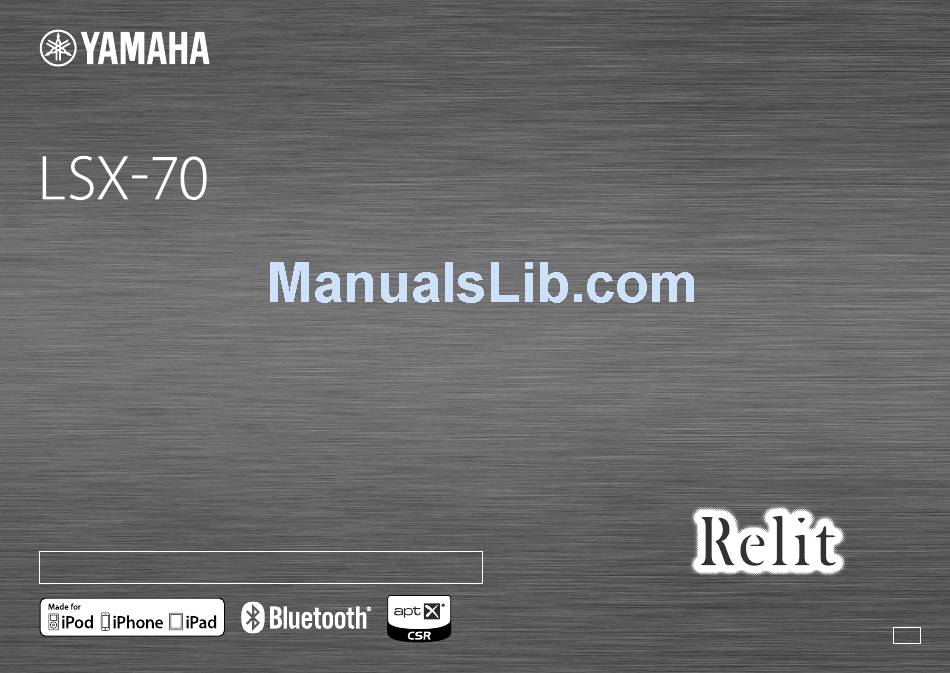

  • Page 1

    Lig hting Audio System OW NE R ’S MANUAL Read the supplied b o ok let “S afet y B ro ch ure” b efore us i ng t h e u n it.

  • Page 2: Table Of Contents

    Contents Introduction Supplied accessories.... About this manual.... Recharging this unit.... Part names ....5 Preparations Installing “DTA CONTROLLER”.... Turning on the lighting/power.... Listening to music via Bluetooth connection Pairing a device with the unit.... Performing pairing and playing back music.... Connecting a paired Bluetooth device and playing back music.... Terminating the Bluetooth connection....

  • Page 3

    High quality sound with ease of use Plug and play convenience of your mobile devices with enhanced sound.....7, 10 Convenient remote operation by your mobile device.....6 Music anywhere you want ....4 A fusion of music and lighting Start your day in the right light and on the right note. Wake to your favorite song in a comfortable atmosphere.

  • Page 4: Introduction

    Introduction Confirm the package contents and thoroughly read this manual. Supplied accessories Recharging this unit When using this unit for the first time, connect the supplied AC adaptor to the unit and charge it from a wall outlet. • If charging the unit with both the power and light turned off, the indicator blinks slowly in orange. Once charging is complete, the indicator turns off.

  • Page 5: Part Names

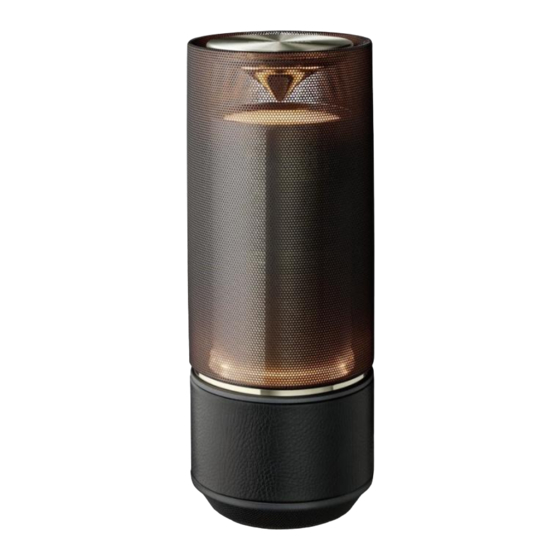

    Part names Familiarize yourself with all parts and these functions. Light/speaker Light Speaker (VOLUME) Controls the volume. (Power) ( P.6) Press: Turns the unit on/off. Press and hold: Disconnects a Bluetooth device. The unit plays a startup tone when turned on and a shutdown tone when turned off.

  • Page 6: Preparations

    Installing DTA CONTROLLER application on a mobile device, such as a smartphone or tablet Connect the AC adaptor to the unit and plug the power plug computer, allows you to use a variety of additional convenient features of Yamaha desktop into a wall outlet.

  • Page 7: Listening To Music Via Bluetooth Connection

    Listening to music via Bluetooth connection You can listen to sound wirelessly from a Bluetooth compatible device. • If pairing information for a device is deleted, you Pairing a device with will need to perform pairing of that device again in order to connect it again.

  • Page 8: Performing Pairing And Playing Back Music

    P.5) blinks in blue and the unit plays a Bluetooth connection tone when a Bluetooth connection is established. • If the device does not connect to the unit automatically after the pairing is completed, select “LSX-70 Yamaha” again in the Bluetooth setting on your device.

  • Page 9: Connecting A Paired Bluetooth Device And Playing Back Music

    Perform Bluetooth connection. • Turn on the Bluetooth function on the device and Music enhancer select “LSX-70 Yamaha.” This function enhances the sound of compressed • The indicator blinks in blue and the unit plays a digital sound by regenerating musical elements...

  • Page 10: Listening To External Sources

    Listening to external sources This unit allows playback of external devices connected to the AUX terminal. A commercially available 3.5 mm stereo mini-plug cable is required for this connection. Be sure to turn off the unit by pressing before connecting the external device. Connecting an external device Plug the cable into the AUX terminal...

  • Page 11: Using The Smart Timer

    Using the SMART TIMER The SMART TIMER allows you to turn on the lighting at the brightness you set and play back your favorite music as a wake-up timer every morning. You can also turn off the lighting and stop music playback automatically while you are in bed listening to music. SMART TIMER can be used only when the unit is connected to a power source.

  • Page 12: Troubleshooting

    Refer to the table below if the unit does not function properly. If your solution is not listed below or if the instruction below does not help, turn off the unit, disconnect the AC adaptor, and contact your nearest authorized Yamaha dealer or service center.

  • Page 13

    Troubleshooting Bluetooth Problem Cause Solution The unit is turned off. Turn the unit on and perform the paring ( P.8). Terminate current Bluetooth connection, and perform pairing with the new Another Bluetooth device is connected. device. This unit and the device are too far apart. Pair the unit and device within a distance of 10 m (33 ft).

  • Page 14: Specifications

    Playable time 200 mW) license. Power-on condition: About 7 hours • Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance Recharge time with a license agreement. Power-off condition: About 4 hours Handling Bluetooth communications General •...

  • Page 15

    © 2014 Yamaha Corporation Printed in China ZN46790...
