Logik L24DVDB19 Instruction Manual

24” full hd digital lcd tv with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

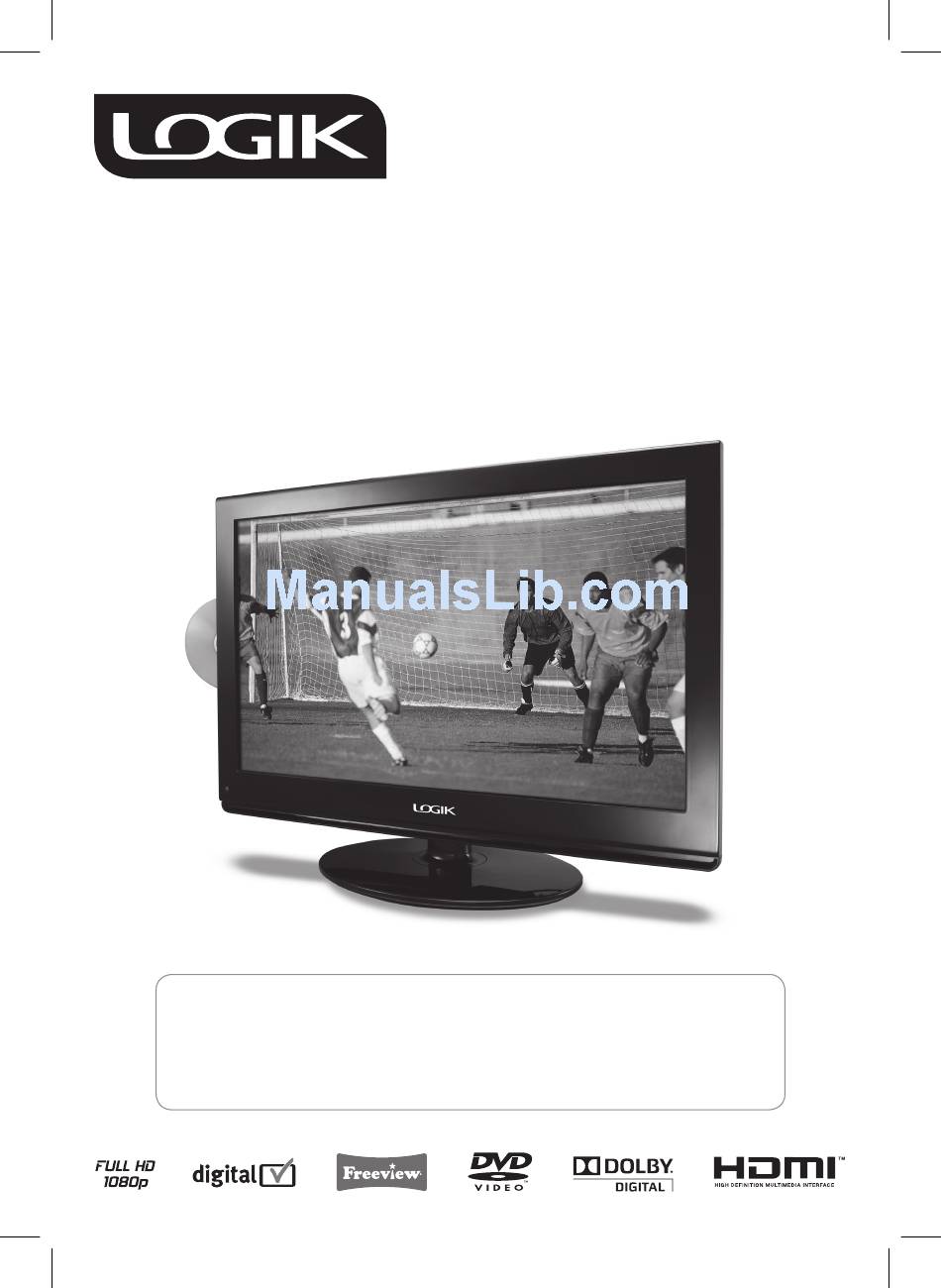

24" Full HD Digital LCD TV
with DVD Player

INSTRUCTION MANUAL

Congratulations
Your new television has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual in order that you fully
understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
on the purchase of your new LOGIK TV.
L24DVDB19

Advertisement

Table of Contents
loading

Related Manuals for Logik L24DVDB19

Summary of Contents for Logik L24DVDB19

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL Congratulations on the purchase of your new LOGIK TV. Your new television has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features.

  • Page 2: Table Of Contents

    Contents Preparation ....................................4 Unpacking the TV ........................................4 Installing / Removing the Base Stand ................................5 Front / Top / Side View and Controls ................................6 Rear View and Jacks .......................................7 Remote Control ........................................8 Installing Batteries in the Remote Control ..............................10 Remote Control Operation Range .................................
  • Page 3 Customising the TV Settings (HDMI and YPbPr Modes) ........................30 Teletext (Analogue TV Mode) ..................................31 − To Turn on Teletext Function ................................31 Digital Teletext (DTV Mode) ..................................... 32 − Teletext within Digital Service ................................32 EPG (Electronic Programme Guide) (DTV Mode) ............................. 32 −...

  • Page 4: Preparation

    Preparation Unpacking the TV Remove all packaging from the TV. Retain the packaging. If you dispose it please do so according to local regulations. The following items are included: TV with TV Base TV Base’s part number: I.01.526302031 Video Video Remote Control / AAA Batteries x 2 AV Cable part number I.14.000000564 and...

  • Page 5: Installing / Removing The Base Stand

    Installing / Removing the Base Stand Remove the base stand before mounting the TV onto the wall. The LCD display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it.

  • Page 6: Front / Top / Side View And Controls

    Front / Top / Side View and Controls Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as its function may be affected. Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode.

  • Page 7: Rear View And Jacks

    Rear View and Jacks Item Description Connect the mains cable to the mains socket. Allows the insertion of a USB storage device. You can view media files or record DTV DVR USB port programmes through this port. S-VIDEO Connect to VCR, DVD Player, or other AV devices with S-Video output jacks. HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/ HDMI video interface between this TV and any HDMI-device, such as a set-top box, Blu-ray...

  • Page 8: Remote Control

    Remote Control Switch the TV between on and standby mode. Mute and restore your TV sound. 3 P.MODE Selects picture mode: Personal / Standard / Movie / Mild / Game. S.MODE Selects sound mode: Standard / Music / Voice / Theatre / Personal.
  • Page 9 13 SOURCE Zoom in / zoom out the displayed frame. (DVD mode) Select among the different input signal sources: 25 REVEAL DTV / TV / DVD / AV / S-VIDEO / SCART / YPBPR / HDMI / Reveal hidden information such as the answer to a quiz in Teletext.

  • Page 10: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control Press and lift the back cover up to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.

  • Page 11: Connections

    Connections Making Video and Audio Connections Refer to the owner’s manual of any external A/V device for connection procedures. When connecting any external A/V device, do not connect the mains cable to the mains socket until all other connections are completed.

  • Page 12: Connecting An A/V Device With Component (Ypbpr) Cable

    Connecting an A/V Device with Component (YPbPr) Cable Rear View of TV Not all A/V devices have the ability to connect to a TV. Please check your A/V devices user guides for compatibility. Use a component cable to connect the external A/V device’s component output jacks to the TV’s YPbPr IN jacks.

  • Page 13: Connecting An A/V Device With Hdmi Cable

    PC, and then press the OK button or the button. The best resolution of L24DVDB19 is 1920 * 1080. If you set your computer to shut down after a few minutes of idle mode, the TV might also be in standby mode due to no signal.

  • Page 14: Connecting A Coaxial Audio Receiver

    Connecting a Coaxial Audio Receiver For better sound quality, you may want to play the DVD audio through your multi-channel audio receiver. (DVD mode) Rear View of TV Use an audio cable to connect the audio receiver’s audio COAXIAL IN jacks to TV’s COAXIAL OUT jack. Plug the connected devices into the mains socket before switching on the POWER ON/OFF switch at the bottom of the TV.

  • Page 15: Connecting The Aerial

    Connecting the Aerial Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket on the rear of your TV. Do not connect the TV to the mains supply until you have completed all the connections.

  • Page 16: Selecting The Input Source

    Selecting the Input Source Press the SOURCE button to display the input source list. Press the buttons to select the input source that you want: DTV / TV / DVD / AV / S-VIDEO / SCART / YPBPR / HDMI / PC. Press the OK button to confirm your selection.

  • Page 17: Customising The Picture Setting

    Using the Features Customising the PICTURE Setting Picture Mode Allows you to set your preferred picture mode. Press the MENU button and then use the buttons to select the PICTURE menu and then press the button. Press the buttons to highlight an individual Picture option. Press the buttons to change the following settings.

  • Page 18: Customising The Sound Setting

    Customising the SOUND Setting Sound Mode Allows you to select an audio-enhancement technique. Press the MENU button and then use the buttons to select the SOUND menu and then press the button. Press the buttons to highlight an individual Sound option. Press the buttons to change the following settings.

  • Page 19: Customising The Function Setting

    Customising the FUNCTION Setting Video Size Allows you to watch the screen in various picture formats. For analogue TV Mode, Auto / Full / 4:3 / 14:9 / Zoom are the available options. For DTV mode, Auto / Full are the available options. For YPbPr and HDMI mode, Auto / 4:3 are the available options. MENU button and then use the Press the buttons to select the...

  • Page 20: Tt Language

    TT Language Allows you to select your preferred Teletext language. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. Press the buttons to select TT Language. Press the buttons to change the settings. MENU button to save the setting and return back to the previous Press the menu.

  • Page 21: Osd Timer

    OSD Timer Allows you to select the display time of the on-screen menu. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. Press the buttons to select OSD TIMER. Press the buttons to select time: 5 / 10 / 30 / 60 sec / NEVER.

  • Page 22: Key Locked

    button to select CHANGE CODE. Press the button and then the Use the 0–9 buttons to input a 4-digit password. The default password is “0000”. If you change the password, be sure to remember the new password! If you forget your password, press the master password “8899” on the remote control.

  • Page 23: Reset

    Reset Restores all settings to factory defaults. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. Press the buttons to select RESET and then press the OK button or the button.

  • Page 24: Customising The Tv Setting (Analogue Tv Mode)

    Customising the TV Setting (Analogue TV Mode) Country Allows you to select the country where you are using the TV. Press the MENU button and then use the buttons to select the TV menu and then press the button. Press the buttons to select COUNTRY.

  • Page 25: Manual Tuning

    Manual Tuning Allows you to make manual fine tuning adjustments if the channel reception is poor under analogue TV mode. In the TV menu, press the buttons to select MANUAL TUNING and then press the OK button or the button. Press the buttons to change the following settings.

  • Page 26: Customising The Tv Settings (Dtv Mode)

    To Lock Press the buttons to highlight a channel and then press the BLUE button. Press the BLUE button again to unlock. To Move Press buttons and then press the button to selected channel. Press buttons to move the selected channel. the OK button to confirm.

  • Page 27: Manual Tuning

    Manual Tuning Allows you to make manual fine tuning adjustments if the channel reception is poor under DTV mode. Press the MENU button and then use the buttons to select the DTV menu and then press the button. Press the buttons to select MANUAL TUNING and then press the OK button or the button.

  • Page 28: Timer

    Timer Timer programming is only available when a USB storage device is connected. Press the MENU button and then use the buttons to select the DTV menu and then press the button. Press the buttons to select TIMER and then press the OK button or the button.

  • Page 29: Ci (Common Interface) (Dtv Mode)

    CI (Common Interface) (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV and others. The Common Access Module and viewing card can be obtained from the service provider.

  • Page 30: Customising The Tv Settings (Pc Mode)

    Customising the TV Settings (PC Mode) Allows you to adjust the PC desktop content. MENU button and then use the buttons to select the PC menu Press the and then press the button. Press the buttons to highlight an individual PC Position option. Press the buttons to change the following settings.

  • Page 31: Teletext (Analogue Tv Mode)

    Teletext (Analogue TV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

  • Page 32: Digital Teletext (Dtv Mode)

    Digital Teletext (DTV Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. The subtitle will temporarily auto off when digital teletext function is turned on. Teletext within Digital Service OK button to display the Channel List. Press the In DTV mode, press the buttons to select a channel with a icon displayed.

  • Page 33: Using The Features Via Usb Port

    Using the Features via USB Port Before Using the Features via USB Port Rear View of TV Switch off the TV before connecting any USB storage device. Connect your USB storage device to the TV via the USB port. Portable Switch on the TV now.

  • Page 34: My Music

    MEDIA button to return to Thumbnail view. Press the Press the buttons to navigate in the thumbnail view. Press the OK button to select the photo you want to view. DISPLAY button to display the function bar. Press the Press the RED button to zoom in the picture. Press the GREEN button to display the music folder, so you can play music at the same time.

  • Page 35: My Movie

    RED button to pause the music playback and press again to Press the resume the playback. Press the GREEN button to stop the music playback. Press the YELLOW button to set repeat mode of the music (Repeat All/ Repeat One/ Repeat OFF). Press the BLUE button to fast forward the music playback.

  • Page 36: My Recorder

    My Recorder SOURCE button and select DTV mode, then press the MEDIA Press the button. Press the buttons and then press the OK button to select My Recorder to enter the DVR SETUP menu. Recorded List You can play or delete from the recorded programme list. DVR SETUP menu, press the In the buttons and then press...

  • Page 37: Recording Device

    To Delete Press the buttons to select the recorded programme you want to delete. Press the RED button to delete the recorded programme and then press the OK button to confirm. MENU button or the MEDIA button to return to the previous Press the menu.

  • Page 38: Recording Preference

    Recording Preference In the DVR SETUP menu, press the buttons and then press the OK button to select Recording Preference. Press the buttons to adjust the settings. Time Shift Size The minimum USB’s time shift size is 768MB. The time shift size will vary depending on the size of USB storage device.

  • Page 39: Dvr (Digital Video Recorder)

    DVR (Digital Video Recorder) Time Shift Function This function allows the TV to automatically record live TV and make it available for viewing at any time. With the Time Shift Mode set to Auto or Pause, you may pause or rewind normal TV viewing at any time without missing any of the live broadcast.

  • Page 40: Recording Dtv Programme Onto A Usb Storage Device

    Recording DTV Programme onto a USB Storage Device Use this function to record the DTV programme you are watching on the main screen and save them for future viewing. You may use the DVR Time Shift function during recording to view the recorded programme instantly. Please refer to the section “Time Shift Function”...

  • Page 41: Timer Programming

    Timer Programming This function is used to perform scheduled recording. EPG button on the remote control. The EPG menu will appear. Press the RED button on the remote control to enter the Timer Programming Press the menu. Alternative You may press the MENU button and then use the buttons to select the DTV menu and then press the button.

  • Page 42: Using The Dvd Features

    Using the DVD Features Using the Built-in DVD Player Press the SOURCE button and select DVD mode. Insert a disc with label side facing backward to you. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW). Allow 10 seconds for the player to load the disc.

  • Page 43: Basic Dvd Playback Functions

    Basic DVD Playback Functions Playing the DVD Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the button to toggle between Play and Pause mode. This product also supports Menu / Title / Sequential / Program Playback. Menu Playback (for DVD) Press the DVD MENU button.

  • Page 44: Info (For Dvd / Cd / Jpeg Discs)

    Info (for DVD / CD / JPEG discs) Press the INFO button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information. For DVD discs, press the INFO button once to display the first page as shown below: Disc Type Chapter -/- (Current / Full)

  • Page 45: Using The Dvd System Setup Page

    Using the DVD System Setup Page If the signal source is DVD, press the DVD SETUP button on the remote control. Press the buttons to select the System Setup menu, and the buttons to select the menu options. Press the DVD Setup button to exit the menu. In Setup mode, the disc playback function will not be available.

  • Page 46: Using The Dvd Language Setup Page

    Option Description PASSWORD PASSWORD MODE Select to change old password to new password. (Factory default is 0000) PASSWORD CHANGE To change the password, you need to: Input old password. Input a 4-digit new password. Input the new password again to confirm. RATING RATING Allows the user to set a maximum rating level for a movie...

  • Page 47: Using The Dvd Audio Setup Page

    Option Description SUBTITLE LANG SUBTITLE Select the Subtitle language. Not all DVD offer subtitles in multiple languages. MENU LANG DISC MENU Select the Disc Menu language. The default language is English. Using the DVD Audio Setup Page If the signal source is DVD, press the DVD SETUP button on the remote control. Press the buttons to select the Audio Setup menu, and the buttons to select the menu options.

  • Page 48: Using The Dvd Speaker Setup Page

    Using the DVD Speaker Setup Page If the signal source is DVD, press the DVD SETUP button on the remote control. Press the buttons to select the Speaker Setup menu, and the buttons to select the menu options. Press the DVD Setup button to exit the menu. In Setup mode, the disc playback function will not be available.

  • Page 49: Maintenance

    Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the POWER ON/OFF switch and disconnect the mains cable from the mains socket before you start any cleaning. Use a soft dry cloth to wipe away the dust from the screen and surfaces. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water.

  • Page 50: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. The TV does not operate properly. • Check to see if there are any objects between the TV and the remote control causing an obstruction.
  • Page 51 There is a problem in VGA mode. The signal is out of range (Invalid • Adjust resolution, horizontal frequency, or vertical frequency. format) Vertical bar or stripe on background • Use Auto configure or adjust clock, phase, or H/V position. &...

  • Page 52: Display Modes

    Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and that the display will be scaled to fit the native resolution of the screen automatically.

  • Page 53: Specification

    Specification Model L24DVDB19 Panel System 23.6 inch LCD panel Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) Television System PAL I/BG/DK, SECAM L/BG/DK Brightness 250-300 cd/m Contrast Ratio 600-800:1 Inputs/Output SCART HDMI PC/VGA IN PC AUDIO IN S-VIDEO YPbPr...

  • Page 54: Safety Warnings

    Safety Warnings • Read all the instructions carefully before using the unit Safety and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit.
  • Page 55 Earphones Service • Listening to loud sounds for prolonged periods of time • To reduce the risk of electric shock, do not remove may permanently damage your hearing. screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified •...
  • Page 56 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control I.14.000000564 Batteries (x2) E.17.101570001 AV Cable E.14.113150013 Base Stand I.01.526302031 Screws x 4 I.03.MP4010001 Instruction Manual I.08.995247700 Quick Start Guide I.08.015247700...
