Logik L32DLCD11 Instruction Manual

Logik L32DLCD11 Instruction Manual

32” hd ready 1080p digital lcd tv with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

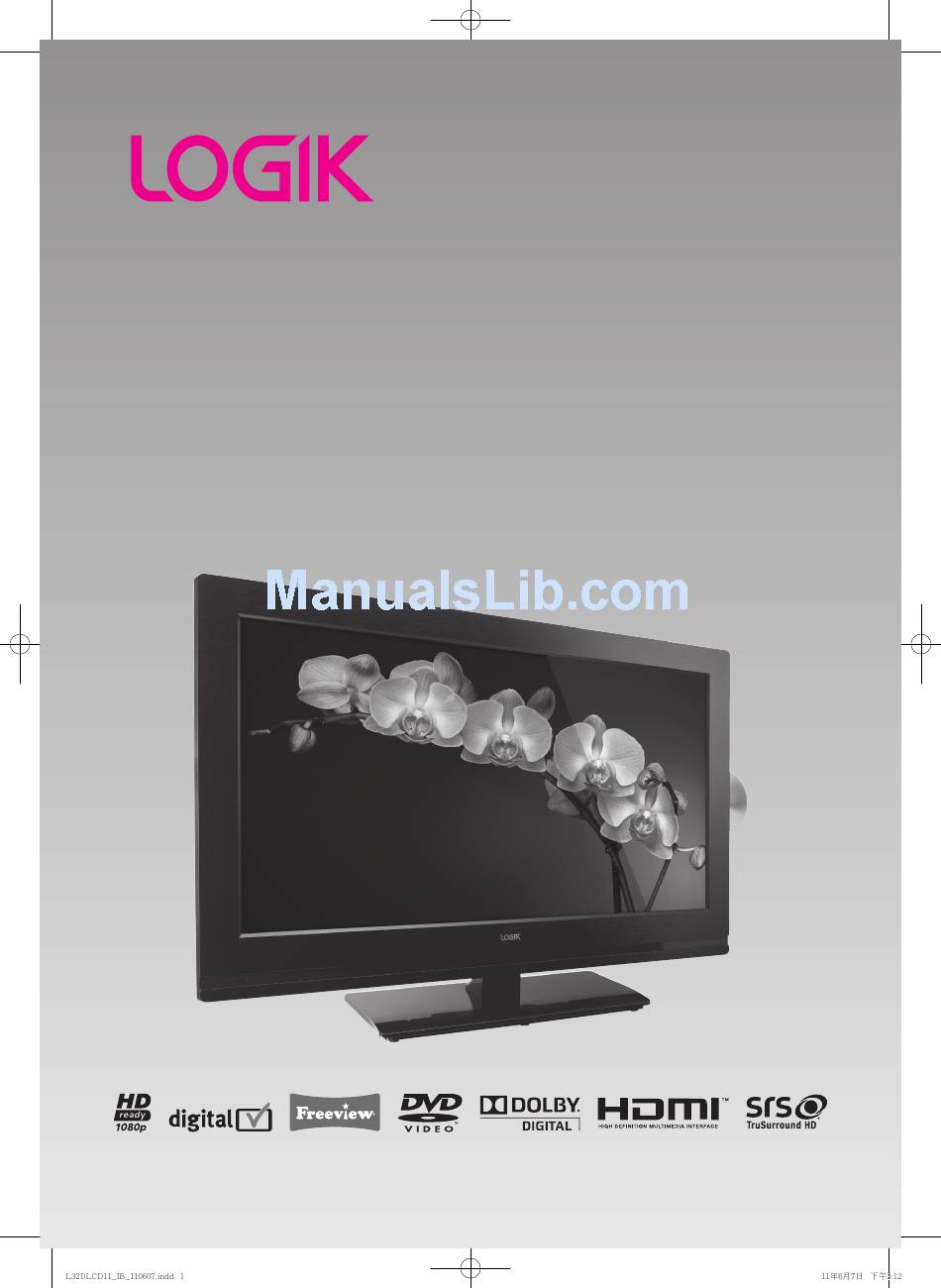

32" HD Ready 1080p Digital LCD TV
with DVD Player
Instruction Manual
L32DLCD11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L32DLCD11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L32DLCD11

Summary of Contents for Logik L32DLCD11

  • Page 1 32” HD Ready 1080p Digital LCD TV with DVD Player Instruction Manual L32DLCD11...

  • Page 3: Table Of Contents

    Contents Preparation......................................5 Unpacking the TV ..........................................5 Installing / Removing the Base Stand ..................................6 Front / Right Side View and Controls ...................................7 Rear View and Sockets ........................................8 Installing Batteries in the Remote Control ................................9 Remote Control Operation Range ....................................9 Remote Control ..........................................10 Connections.......................................13 Making Video and Audio Connections ..................................13 Connecting an AV Device with an HDMI Cable ..............................13 Connecting a Computer with a VGA Cable ................................14 Connecting an AV Device with a Component (YPbPr) Cable ...........................14 Connecting an AV Device with a SCART Cable ..............................15 Connecting an AV Device with Composite Cable ..............................15 Connecting a Coaxial Audio Receiver ..................................16 Connecting Earphones ........................................16 Connecting a USB Storage Device ....................................17 Connecting the Aerial ........................................17 Initial.Setup.......................................18 Turning the TV on for the First Time .
  • Page 4 Teletext (ATV Mode) ........................................43 − To Turn on Teletext Function................................... 43 Digital Teletext (DTV Mode) ......................................44 − Teletext within Digital Service ..................................44 EPG (Electronic Programme Guide) (DTV Mode) ..............................44 − Switch On / Off EPG ......................................44 − Select a Programme ......................................45 Using.the.Features.via.USB.Port..............................46 Photo ..............................................46 Music ..............................................46 Movie ..............................................47 Text ................................................ 48 PVR.(Personal.Video.Recorder).

  • Page 5: Preparation

    Thank.you .for purchasing your new Logik 32" HD Ready 1080p Digital LCD TV with DVD Player. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. Preparation .Unpacking.the.TV Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Video Video Remote Control / AAA Batteries x 2 AV Cable (P.N.:.I.14.000000760.&.E.17.101570001) (P.N.:.E.14.113150013) TV Base Screw A x 6 Cover Board (P.N.:.I.01.501321001) (P.N.:.I.03.TP4016A01) (P.N.:.I.01.532606281) Instruction Manual Quick Start Guide Digital TV Switchcover Addendum (P.N.:.I.08.103285201) (P.N.:.I.08.246328521) (P.N.:.I.08.557724771) If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.

  • Page 6: Installing / Removing The Base Stand

    .Installing./.Removing.the.Base.Stand • Remove the base stand before mounting the TV onto the wall. • The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack. 1.. Disconnect all cables connected to the TV. 2.. Lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. 3.. To install the base stand first screw make sure you position the front of the base stand at the front of the TV. Align the 6 screw holes and then use the 6 screws to fix the base stand to the TV. Base Stand Front TV Front The screw holes will only align if the front Screw A x 6 of the base stand is at (P.N.:.I.03.TP4016A01) the front of the TV. 4.. To remove the base stand, lay the TV down on a flat unscrew surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. Untighten the 6 screws that hold the base stand to the rear of the TV. Slide the base stand out.

  • Page 7: Front / Right Side View And Controls

    .Front./.Right.Side.View.and.Controls Item Description Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER.LED mode. The LED will illuminate blue when the timer programming has started in the standby mode. Receives IR signals from the remote control. IR.(Infrared.Receiver) Do not put anything near the sensor, as its function may be affected. Press to stop playback. (DVD mode) Press to skip to the beginning of the previous or next chapter / track / photo. (DVD mode) Press to start playback or pause. (DVD mode) Press to eject disc. (DVD mode) Adjusts the volume. VOL.+./.– Press to select and adjust a setting in the OSD menu. CH. ./. . Press to select a channel or select a sub-menu from the OSD menu. MENU Displays the OSD (on screen display) menu. Press to select among different input signal sources: 10. SOURCE DTV / ATV / DVD / AV1 / AV2 / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / MEDIA. Confirmed the selection on OSD menu. Switches the TV on from standby mode. ./.I Switches the TV back to standby mode. Insert the disc with the label side facing backwards you (12 cm discs only. Don't insert 12. Disc.Slot 8 cm discs)

  • Page 8: Rear View And Sockets

    .Rear.View.and.Sockets COMPONENT POWER HDMI3 HDMI2 HDMI1 ON/OFF OUTPUT 5V 500mA AV1 IN Socket Description POWER.ON/OFF Switch on the POWER.ON/OFF switch to turn the TV to standby mode. Connects the mains cable to the mains socket. Allows the insertion of a USB storage device to play video, audio, photo and text files USB.Output.5V. .500mA (Media mode) and record DTV programmes on to a USB storage device. To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray HDMI1./.2./.3 disc player or AV receiver. VGA./.PC.AUDIO. To connect to a computer or other devices with a VGA interface. CI.(Common.Interface).Slot Allows the insertion of a Common Access Module. (Refer to page 24 for details) SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket. COAXIAL To connect to the audio socket on the digital/standard 5.1 audio system. To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component Y,.PB,.PR./.AUDIO.(L/R) (YPbPr) video and audio output sockets. To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video 10. AV1.VIDEO./.AUDIO.(L/R) devices. 11. RF To connect to the aerial socket on the wall with the RF coaxial cable.

  • Page 9: Installing Batteries In The Remote Control

    .Installing.Batteries.in.the.Remote.Control 1.. Press and lift the back cover to open the battery compartment of the remote control. 2.. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment. 3.. Close the battery compartment cover. Handling.the.Batteries Handling.the.Remote.Control • Improper or incorrect use of batteries may cause • Take care of your fingernails when you press and corrosion or battery leakage, which could cause hold the battery release tab. fire, personal injury or damage to property. • Do not drop or cause impact to the remote • Only use the battery type indicated in this control. manual. • Do not spill water or any liquid on the remote • When the batteries are exhausted, the remote will control. not function. Replace both batteries at the same • Do not place the remote control on a wet object. time with new ones. • Do not place the remote control under direct • Do not install new batteries with used ones and sunlight or near sources of excessive heat. do not mix different types of batteries. • Remove the battery from the remote control • Do not dispose of used batteries as domestic when not in use for a long period of time, as it...

  • Page 10: Remote Control

    .Remote.Control Switches the TV between on and standby mode. .MUTE Mutes and restores your TV sound. 3.. 0-9.Number.Button Press to select a programme. (ATV / DTV mode) Select numbered items in a menu. (DVD mode) 4.. LIST • Display channel list. (ATV / DTV mode) • Press to select a track number above 10. For example, to select track 23 press twice followed by 3. (DVD mode) .RECALL Return to the previous viewing channel. (ATV / DTV mode) 6.. SLEEP Sets the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min. 7.. VOL.+./.– Adjusts the volume. 8.. CH.+./.– Select a channel. • Display the present channel information such as the current time and channel name. (ATV / DTV mode) • Display the present disc information. (DVD mode) 10..S.MODE Select sound mode: Standard / Music / Movie / Sports / Personal. 11..ASPECT Allows you to watch the screens in various formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Dot to Dot / Subtitle. (Dot to Dot only operates in YPBPR / HDMI mode) 12..GUIDE Displays the EPG (Electronic Programme Guide). (DTV mode) TITLE Displays the DVD title content. (DVD mode) 13..P.MODE...
  • Page 11 19..FAV Display the favourite channel list. (ATV / DTV mode) SETUP Display and exit the DVD setup menu. (DVD mode) 20.. To turn on / off the SRS Tru Surround HD function. 21..TV.RD A short-cut to switch input source to TV / Digital radio channels. (DTV mode) Eject a disc. (DVD mode) 22..AD.(Audio.Description) To turn on / off the Audio Description (AD) function (only applicable when the TV programme has this feature). (DTV mode) 23..ANGLE Select different angles for the video. (DVD mode) 24... S TEP To play the playback forward frame by frame. (DVD mode). 25... Z OOM Zoom in on the displayed frame. (DVD mode) 26.. .REC Record the current programme. (DTV mode) 27... • To start the timeshift playback. (DTV mode) • To start playback or pause. (Media / DVD mode) 28..PROG Programme the DVD. (DVD mode) 29.. .Stop To stop the playback or recording. (DVD / Media mode) 30..T.SHIFT Start the time-shift function (DTV mode) 31..
  • Page 12 35.. .REVEAL Reveals hidden information such as the answer to a quiz in teletext. (ATV mode). To skip to the beginning of the next chapter / track / photo. (DVD / Media mode) 36.. .HOLD Freezes a multi-page passage on screen in teletext. (ATV mode) To skip to the beginning of the previous chapter / track / photo. (DVD / Media mode) 37.. .SUBPAGE Displays the subpage on the teletext screen. (ATV mode) MENU Display the DVD menu. (DVD mode) 38.. .INDEX To select the page number of the index from teletext. (ATV mode) AUDIO • Switches between the audio languages (only applicable when the TV programme / disc has this features.) (DTV / DVD mode) • Select stereo / Dual Sound Reception. (ATV mode) 39..Coloured.buttons Access the TELETEXT items or channel edit when using Digital / Freeview TV Channels. (ATV / DTV mode) GOTO.(RED) To skip to a specific location on a DVD / CD. (DVD mode) SLOW.(GREEN) Play video slow. (DVD mode) REPEAT.(YELLOW) Select between different repeat modes. (DVD mode) A–B.(BLUE) Repeat a segment between A and B. (DVD mode)

  • Page 13: Connections

    Connections .Making.Video.and.Audio.Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete. Separate.Audio. Best.Video. Signal.Type Performance Connection.Required HDMI (480i/480p/576i/576p/720p/1080i/1080p) HDMI Component Video (480i/480p/576i/576p/720p/1080i/1080p) SCART (RGB Input) Composite Video .Connecting.an.AV.Device.with.an.HDMI.Cable • This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection) Protocol. • The TV has a total of 3 HDMI input sockets, please make sure the correct input source is selected corresponding to your connected HDMI input socket. • When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source. • To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p. Rear View of TV COMPONENT 1.. Use a HDMI cable to connect the TV’s HDMI1 / HDMI2 / HDMI3 input socket to the external AV device’s HDMI POWER HDMI3 HDMI2 HDMI1 ON/OFF OUTPUT 5V 500mA...

  • Page 14: Connecting A Computer With A Vga Cable

    .Connecting.a.Computer.with.a.VGA.Cable 1.. Use a VGA cable to connect the TV’s VGA input Rear View of TV socket to a computer’s VGA output socket. Use an COMPONENT audio cable to connect the TV’s PC AUDIO input POWER socket to the computer’s audio output socket. HDMI3 HDMI2 HDMI1 ON/OFF OUTPUT 5V 500mA AV1 IN 2.. Plug the connected devices into the mains socket before switching on the POWER.ON/OFF switch which is located at the rear of the TV next to the mains cable. VGA Cable Audio Cable 3.. Press the. /.I button at the front right side of the (not included) (not included) TV or the. button on the remote control to turn on your TV. 4.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control to display the Source List. Use the buttons to select PC and then press the OK button to confirm. • The best resolution is 1920 x 1080. • If your computer is set to shut down after a few minutes of idle mode, the TV will also Computer...

  • Page 15: Connecting An Av Device With A Scart Cable

    .Connecting.an.AV.Device.with.a.SCART.Cable Rear View of TV 1.. Use a SCART cable to connect the TV’s SCART input COMPONENT socket to an external AV device’s SCART output socket. POWER HDMI3 HDMI2 HDMI1 ON/OFF OUTPUT 5V 500mA AV1 IN 2.. Plug the connected devices into the mains socket before switching on the POWER.ON/OFF switch which is located at the rear of the TV next to the mains cable. 3.. Press the. /.I button at the front right side of the TV or the. button on the remote control to turn on SCART Cable your TV. (not included) 4.. The TV will change the input source to SCART automatically once the AV device is switched on. Set-top Box DVD Player / Recorder Satellite Receiver .Connecting.an.AV.Device.with.Composite.Cable 1.. Use the supplied AV cable to connect the TV’s Rear View of TV Rear Right Side of TV AUDIO(L/R)/VIDEO input...

  • Page 16: Connecting A Coaxial Audio Receiver

    .Connecting.a.Coaxial.Audio.Receiver For better sound quality, you may want to play the audio through your multi-channel audio receiver. 1.. Use an audio cable to connect the TV’s COAXIAL Rear View of TV output socket to an external audio receiver’s COMPONENT audio coaxial input socket. POWER HDMI3 HDMI2 HDMI1 ON/OFF OUTPUT 5V 500mA AV1 IN 2.. Plug the connected devices into the mains socket before switching on the POWER.ON/OFF switch which is located at the rear of the TV next to the mains cable. 3.. Press the. /.I button at the front right side of the Audio Cable TV or the. button on the remote control to turn on (not included) your TV. 4.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control to display the Source List. Use the buttons to select any desired input source and then press the OK button to confirm. The TV’s volume control will have no effect. You may control the audio level via the Audio Receiver.

  • Page 17: Connecting A Usb Storage Device

    .Connecting.a.USB.Storage.Device 1.. Switch off the TV before connecting any USB Rear View of TV storage device. COMPONENT 2.. Connect your USB storage device to the USB port POWER HDMI3 HDMI2 HDMI1 ON/OFF OUTPUT 5V 500mA AV1 IN of your TV. 3.. Plug the connected devices into the mains socket before switching on the POWER.ON/OFF switch which is located at the rear of the TV next to the USB Cable mains cable. (not included) 4.. Press the. /.I button at the front right side of the TV or the. button on the remote control to turn on your TV. 5.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control to display the Source List. Use the buttons to USB Hub select MEDIA and then press the OK button to Adapter Portable confirm.

  • Page 18: Initial.setup

    Initial.Setup .Turning.the.TV.on.for.the.First.Time 1.. Connect the mains cable to the mains socket after you have completed all the connections. 2.. Switch on the POWER.ON/OFF switch which is located at the rear of the TV next to the mains cable. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV. 3.. In standby mode, press the. /.I button at the front right side of the TV or the. button on the remote control to turn the TV on. The red LED indicator will turn blue. To the mains socket Always disconnect the TV from the mains socket when not in use for a long period of time. The. /.I button at the front right side of the TV or the. button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket or switch off the POWER.ON/OFF switch. 4.. The first time you turn the TV on, it will go straight into the First. Time.Installation menu. Please ensure the aerial is plugged in and then press the OK button. (If you have already installed the TV using the Quick Start Guide, please go to the next step Please ensure aerial is plugged in!! “Selecting.the.Input.Source” on the next page.) Then press OK button to start 5..

  • Page 19: Selecting The Input Source

    Selecting.the.Input.Source 1.. Press the.SOURCE button at the front right side of the TV or the Input Source Input Source INPUT button on the remote control to display the Input source list. MEDIA 2.. Press the buttons to select the input source that you want: DTV / ATV / DVD / AV1 / AV2 / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / MEDIA. 3.. Press the OK button to confirm your selection. If you do not press SCART the OK button to confirm, the TV will automatically confirm the YPBPR selected input source within 4 seconds. HDMI1 HDMI2 In DTV mode, press the TV.RD button to switch to HDMI3 TV / digital radio channels directly. Move Move Press the CH ./. buttons on the remote control repeatedly or • the 0-9 buttons to select the channel. Alternative Press the LIST button to enter the Channel.List. Then use the buttons to highlight and select the channel. Press the OK button to view the selected channel. If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 22-23 for details on Channel.Edit).

  • Page 20: Using.the.features

    Using.the.Features .Customising.the.Channel.Setting.(TV,.DTV.or.Radio.Mode) Auto.Tuning.(ATV./.DTV.mode) Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house. 1.. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Auto.Tuning and then press the OK button. Auto Tuning Auto Tuning ATV Manual Tuning DTV Manual Tuning Channel Edit Channel Edit Software Update(OAD) Off Signal Information Software Update(USB) CI Information Software Update(OAD) Off Software Update(USB)

  • Page 21: Atv Manual Tuning (Atv Mode)

    ATV.Manual.Tuning.(ATV.mode) Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode. 1.. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select ATV.Manual.Tuning and then press the OK button. Auto Tuning ATV Manual Tuning Channel Edit Software Update(OAD) Off Software Update(USB) 3.. The ATV Manual Tuning screen will pop up. Use the buttons to select the following options and the buttons to adjust the setting. ATV Manual Tuning Current CH 0 Programme Current.CH Displays the current channel number.

  • Page 22: Channel Edit (Atv Mode)

    2.. Press the buttons to select DTV.Manual.Tuning and then press the DTV Manual Tuning OK button. UHF CH 21 0 Programme Press OK to search Freq: 474.00 MHz Good 3.. The DTV Manual Tuning screen will pop up. Press the buttons DTV Manual Tuning to select the desired UHF channel and then press the OK button to UHF CH 21 0 Programme commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen. 4.. Press the MENU button to return back to the main menu. 5.. Press the EXIT button to exit the menu. Press OK to search Freq: 474.00 MHz Good Channel.Edit.(ATV.Mode)

  • Page 23: Channel Edit (Dtv Mode)

    d.. Skip Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it. e.. FAV (Favourite) Press the FAV button to set the selected channel as one of the favourite programmes. Press the FAV button again to undo it. 4.. Press the MENU button to return back to the main menu. 5.. Press the EXIT button to exit the menu. Channel.Edit.(DTV.Mode) Allows you to edit TV programmes in the Channel List. 1.. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Channel.Edit and then press the OK button. Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB) 3..

  • Page 24: Signal Information (Dtv Mode)

    Signal.Information.(DTV.Mode) Allows you to view the signal information. 1.. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Signal.Information and then press the OK button to view the signal information. Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB) 3.. Press the BACK button to return to the previous menu. Signal Information 4.. Press the EXIT button to exit the menu. Channel 50 Frequency 706.00Mhz Quality 99 Strength 91...

  • Page 25: Software Update (Over Air Download) (Dtv Mode)

    To.view.the.module.information CHANNEL 1.. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select CI.Information and then press the OK button. Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(OAD) Off Software Update(USB) 3.. A CI Information Main menu will pop up. Press the buttons to CI Information display the module information, smart card information, language, Conax Conditional Access software download. Press the OK button to confirm.

  • Page 26: Software Update (Usb)

    5.. During normal DTV viewing, if the TV detects the latest firmware from the DTV signal, the Over Air Download screen will appear. Press the buttons New Fireware is available to select Yes./ No for upgrade procedure. TV Version V0.01 Stream Version v0.02 Yes to upgrade No to exit the upgrade 6.. If you select Yes, the over air download will start. Press the EXIT button if you want to stop the download and exit the menu. Download During the download, please do not turn off or unplug your TV. EXIT 7.. When the download is complete software update menu will appear, the TV will automatically upgrade the software. Do not switch off the TV during the software update. Software Update(OAD) 8.. When the update is complete, the TV will return to standby mode. 9.. Press the. /.I button at the front right side of the TV or the. button on the remote control to switch on the TV.
  • Page 27 2.. Press the buttons to select the following picture options and then press the OK button. Picture Mode Standard Contrast Brightness Colour Tint Sharpness Colour Temp Normal Noise Reduction SCREEN Picture.Mode Press the buttons to cycle among picture mode: Dynamic / Picture Mode Standard / Mild / Personal and then press the OK button to confirm. Dynamic Standard Alternative Mild Personal You may press the P.MODE button to select the picture mode directly. BACK EXIT MENU Contrast Press the buttons to adjust the difference between light and dark levels in the picture. (for Personal mode) Brightness Press the buttons to increase or decreases the amount of white in the picture. (for Personal mode) Colour...

  • Page 28: Customising The Sound Setting

    .Customising.the.Sound.Setting Allows you to select an audio-enhancement technique. 1.. Press the MENU button and then press the buttons to select the SOUND menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select the following sound options and then press the OK button. Sound Mode Standard Treble Bass Balance Auto Volume SRS TruSurround HD SPDIF Mode Auto AD Switch Sound.Mode Press the the buttons to select an audio-enhancement technique: Standard / Sound Mode Music / Movie / Sports / Personal and then press the OK button to confirm. Standard Music Alternative Movie...

  • Page 29: Stereo / Dual Sound Reception (Atv Mode)

    Stereo./.Dual.Sound.Reception.(ATV.Mode) When a programme is selected, press the AUDIO button to display the sound information for the selected station. Broadcast On.Screen.Display Mono MONO NICAM STEREO Stereo Dual NICAM DUAL I, NICAM DUAL II, NICAM DUAL I/II Mono.sound.selection If the stereo signal is weak in stereo reception, you can switch to mono by pressing the AUDIO button. In mono reception, the clarity of sound is improved. To switch back to stereo, press the AUDIO button again. Language.selection.for.dual.language.broadcast If a programme can be received in two languages (dual language), you can switch to DUAL.I, DUAL.II or DUAL.I/II by pressing the AUDIO button repeatedly. DUAL I Sends the primary broadcast language to the loudspeakers. DUAL II Sends the secondary broadcast language to the loudspeakers. DUAL I/II Sends the primary and secondary broadcast languages to the loudspeakers. Speaker.Sound.Output.Selection.(DTV.Mode) While watching a DTV programme, you can press the AUDIO button to display the audio language list (only applicable when the TV programme has this feature). Press the buttons to select an audio language or audio format if available and then press the buttons to select sound track between L/R (Stereo), L/L (Mono Left) and R/R (Mono Right). Press the OK button to confirm and exit.
  • Page 30 Clock The clock is set automatically when receiving a digital signal. (DTV mode) Time.Zone When you select a Time Zone city, the TV time is set by Time Zone the time offset information based on Time Zone and GMT Canary GMT Rabat GMT Berlin GMT+1 (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal. Lisbon GMT Amsterdam GMT+1 Brussels GMT+1 Press the buttons to select the desired time zone London GMT Beograd GMT+1 Budapest GMT+1 city and then press the OK button to confirm. Move Menu Sleep.Timer The sleep timer automatically switches the TV to standby Sleep Timer after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be 10min set before using Sleep Timer function. 20min 30min Press the...

  • Page 31: Customising The Option Setting

    .Customising.the.Option.Setting OSD.Language Allows you to select your desired on screen menu language. 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select OSD.Language and then press the OK OSD Language English button. The default on-screen menu language is set as English. TT Language West Audio Language English Subtitle Language English Hearing Impaired PVR File System Aspect Ratio Auto Blue Screen Back Light HDMI CEC Restore Factory Default...

  • Page 32: Audio Language (Dtv Mode)

    3.. Press the buttons to select your desired TT Language. Press the OK TT Language button to confirm and return to the previous menu. West 4.. Press the EXIT button to exit the menu. East Russian Arabic Farsi BACK EXIT MENU Audio.Language.(DTV.Mode) Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.) 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Audio.Language and then press the OK OSD Language English button. TT Language West Audio Language English Subtitle Language English...

  • Page 33: Subtitle Language (Dtv Mode)

    Subtitle.Language.(DTV.Mode) Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.) 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Subtitle.Language and then press the OSD Language English OK button. TT Language West Audio Language English Subtitle Language English Hearing Impaired PVR File System Aspect Ratio Auto Blue Screen Back Light HDMI CEC Restore Factory Default...

  • Page 34: Pvr File System (Dtv Mode)

    PVR.File.System.(DTV.Mode) Allows you to select your preferences in the PVR File System. 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select PVR.File.System and then press the OK OSD Language English button. TT Language West Audio Language English Subtitle Language English Hearing Impaired PVR File System Aspect Ratio Auto Blue Screen Back Light HDMI CEC Restore Factory Default Select.Disk...

  • Page 35: Aspect Ratio

    Aspect.Ratio Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Subtitle / Smart Zoom / Dot to Dot. 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Aspect.Ratio and then press the OK OSD Language English button. TT Language West Audio Language English 3.. Press the buttons to change the following settings and then press Subtitle Language English Hearing Impaired the OK button to confirm to return to previous menu. PVR File System Aspect Ratio Auto Blue Screen Back Light...

  • Page 36: Blue Screen

    Blue.Screen Allows the blue background to turn On or Off during weak or no signal conditions. 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Blue.Screen and then press the OK OSD Language English button to select On./.Off. TT Language West Audio Language English 3.. Press the BACK button to return to the previous menu or press the Subtitle Language English Hearing Impaired MENU button to return back to the main menu. PVR File System Aspect Ratio Auto 4..

  • Page 37: Hdmi Cec (Consumer Electronics Control) (Hdmi Mode)

    HDMI.CEC.(Consumer.Electronics.Control).(HDMI.Mode) Allows you to command and control two or more HDMI CEC compliant devices, that are connected through HDMI, by using only one of the TV remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). HDMI CEC also allows individual HDMI CEC compliant devices to command and control each other without user intervention. Make sure that your HDMI CEC compliant device is connected to your TV using a HDMI cable and the correct HDMI input source is selected prior to using this function. (Some HDMI cables may not support HDMI-CEC functions.) HDMI-CEC.Connection • This unit can only communicate with HDMI-CEC compatible HDMI Cable (not included) devices. • To be sure that the HDMI-CEC HDMI CEC compliant device device has this feature, check to see if there is HDMI-CEC compatible logo on it. 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select HDMI.CEC and then press the OK button. OSD Language English TT Language West Audio Language English Subtitle Language English...

  • Page 38: Restore Factory Default

    Restore.Factory.Default Restores all settings to the factory defaults. 1.. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Restore.Factory.Default and then press OSD Language English the OK button. TT Language West Audio Language English Subtitle Language English Hearing Impaired PVR File System Aspect Ratio Auto Blue Screen Back Light HDMI CEC Restore Factory Default 3..

  • Page 39: Set Password

    2.. Press the buttons to select Lock.System and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 3.. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu. The default password is “0000”. Please enter password If you change the password, be sure to remember the new password! If you forget the new password, press the master password“8899”. 4.. Press the buttons to select Lock.System and then the OK buttons to select On / Off. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Program Edit / First Time Installation / Restore Factory Default. 5.. Press the BACK button to return to the previous menu. 6.. Press the EXIT button to exit the menu. Set.Password 1.. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button. CHANNEL PICTURE SOUND TIME...

  • Page 40: Block Channel

    Block.Channel Block Channel is designed to prevent children watching unsuitable programmes. 1.. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Lock.System and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 3.. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu. The default password is “0000”. Please enter password If you change the password, be sure to remember the new password! If you forget the new password, press the master password“8899”. 4.. Press the buttons to select Block.Channel and then press the OK button. Lock System Set Password Block Channel...

  • Page 41: Parental Guidance

    Parental.Guidance This function allows you to set up blocking schemes to block specific programmes and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate. This allows you to set up blocking schemes to block specific programmes and ratings. This TV is programmed to remember which option it was last set to even if you switch the TV off. 1.. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Lock.System and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 3.. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On. The default password is “0000”. Please enter password If you change the password, be sure to remember the new password! If you forget the new password, press the master password“8899”. 4..

  • Page 42: Key Lock

    Key.Lock Key Locked is designed to prevent children from pressing the buttons on the TV. The Lock System must be set to On for this function to operate. If the Key Locked is set to On, all buttons on the TV will be locked. All TV operations can be controlled by the remote control only. 1.. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2.. Press the buttons to select Lock.System and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 3.. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On. Please enter password The default password is “0000”. If you change the password, be sure to remember the new password! If you forget the new password, press the master password“8899”. 4.. Press the buttons to select Key.Lock and then press the OK button to select On./.Off.

  • Page 43: Teletext (Atv Mode)

    .Teletext.(ATV.Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. To.Turn.on.Teletext.Function Make sure the TV channel you are watching transmits teletext. “No Teletext” sign will show on the screen if teletext is not available. .TEXT.button to enter Teletext mode. Press the .INDEX.button to display the index page. In ATV mode, press the Press the .TEXT button twice to exit and the TV will return to the channel you were watching. To.select.a.page.of.text Find the number of the page in the index and enter it using the 0-9 buttons. The number of the page will appear on the top left corner of the screen. The page counter will search for your page. When it finds it, the page will be displayed. To move to the next page of text, press the button. To move to the previous page, press the button. .INDEX button. To return to the index page, enter the "100" by using the 0-9 buttons or press the .TEXT.button twice. The text will be superimposed over the To view a page of text while watching a TV programme, press the TV programme. Double.height.text If you have difficulty reading the text on the TV you can double the height of the text. .SIZE button. The top half of the page will be displayed in double height text. Press the .SIZE button again. The bottom half of the page will be displayed in double height text. Press the Press the .SIZE button again to return to the full page. Page.HOLD If the page of text you have selected contains subpages, these subpages will automatically be displayed in order with a delay to allow you to have enough time to read the page. To stop the movie to the next sub page, press the .HOLD button. To continue moving through the sub pages, press the .HOLD button again. Alternative Press the .SUBPAGE button, and then use the 0-9 buttons to enter a 4-digit page number.

  • Page 44: Digital Teletext (Dtv Mode)

    .Digital.Teletext.(DTV.Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle.Function before using teletext (refer to page 33 for details). Teletext.within.Digital.Service 1.. In DTV mode, press the LIST button to display the Channel List. 2.. Press the .TEXT button to display the teletext page. 3.. Press the 0-9 buttons to select a page number. 4.. Follow the instructions on digital teletext and move onto the next step by pressing OK, , RED, GREEN, YELLOW, BLUE or 0-9 buttons etc. 5.. To change digital teletext service, select a different service by pressing the 0-9 buttons or the buttons. Alternative You may press the RED button to the .TEXT button to display the teletext information when you see a red logo displayed on the screen (e.g. BBC). 6.. Press the .TEXT button to exit. .EPG.(Electronic.Programme.Guide).(DTV.Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster). This function can be used only when the EPG information is broadcast by broadcasting companies. The EPG displays the programme details for the next 7 days. Switch.On./.Off.EPG 1.. Press the GUIDE button to switch on EPG. 2.. Press the GUIDE button or the EXIT button again to switch off EPG and return to normal TV viewing. PROGRAMME GUDIE current channel name BBC ONE current date and time...

  • Page 45: Select A Programme

    Select.a.Programme Press the buttons to select the desired channel and then press the buttons to select the desired programme. Press the OK button to confirm. Button.Functions.in.a.7.Days.Guide Remote.Control.Button Function • Timer.Programming RED (Record) See page 50 for details on Timer.Programming. • Press the RED button in the Schedule.List to delete the selected preset reminder. Press the GREEN button to view the preset Schedule List 15:30 10th Mar Delete Back reminders or scheduled recordings in the Programme Title Time Date Channel Name Schedule.List. GREEN (Schedule) Press to highlight the current date. Press the buttons to select the date and then press the YELLOW (Date) YELLOW button again to confirm. Press the BLUE button while on the selected programme, Reminder setting the Reminder.setting menu will be displayed.

  • Page 46: Using.the.features.via.usb.port

    Using.the.Features.via.USB.Port Photo 1.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control then press the buttons to select the MEDIA mode and then press the OK button to display the root menu. 2.. Press the buttons to select PHOTO and then press the OK button. 3.. Press the buttons to select your storage device and then press the PHOTO OK button. File format supported: JPEG. 4.. Press the buttons to navigate in the picture folder and then press the OK button. Select the picture file and then press the OK button to view. If you need to delete the file, press the RED button and then press the button to confirm. 5.. Press the button or the OK button to display the function bar. Press the buttons and then press the OK button to select the function: Play / Prev. / Next / Stop / Repeat All / Music / Playlist / Info / Rotate clockwise / Rotate anti-clockwise / Zoom In / Zoom Out / Move View. If this folder also contains music file. You can select a music rack to play at the same time while viewing your photo. 6.. Press the EXIT button to return back to the previous menu and to select another file to play. Press the EXIT button repeatedly to return to the root menu. Music 1.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control then press the buttons to select the MEDIA mode and then press the OK button to display the functions bar.

  • Page 47: Movie

    3.. Press the buttons to select your storage device and then press the OK button. 4.. Press the buttons to navigate in the music folder and then press the OK button. Select the music you want to play and then press the OK button to play it. If you need to delete the file, press the RED button and then press the button to confirm. • Some audio file formats will not be supported. • Supported file formats: mp3 5.. Select the music you want to play, it will show the music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size). 6.. Press the buttons and then press the OK button to select the function: Pause / FB / FF / Prev / Next / Stop / Repeat All / Playlist / Goto Time. 7.. Press the EXIT button to return back to the previous menu and to select another file to play. Press the EXIT button repeatedly to return to the root menu. Movie 1.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control then press the buttons to select the MEDIA mode and then press the OK button to display the root menu. 2.. Press the buttons to select MOVIE and then press the OK button. 3.. Press the buttons to select your storage device and then press the OK button.

  • Page 48: Text

    5.. Press the button or the OK button to display the function bar. Press the buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info / Aspect Ratio. 6.. Press the EXIT button to return back to the previous menu and to select another file to play. Press the EXIT button repeatedly to return to the root menu. Text 1.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control then press the buttons to select the MEDIA mode and then press the OK button to display the root menu. 2.. Press the buttons to select TEXT and then press the OK button. 3.. Press the buttons to select your storage device and then press the OK button. 4.. Press the buttons to navigate in the text folder. Select the text file and then press the button to view. If you need to delete the file, press the RED button and then press the button to confirm. 5.. Press the button or the OK button to display the function bar. Press the buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info. If this folder also contains music file. You can select a music rack to play at the same time while viewing your text. 6.. Press the EXIT button to return back to the previous menu and to select another file to play. Press the EXIT button repeatedly to return to the root menu.

  • Page 49: Pvr.(Personal.video.recorder)

    PVR.(Personal.Video.Recorder) .Time.Shift.Function.(DTV.Mode) This function allows the TV to virtually record the live viewing broadcast programme. If the transfer rate of the USB storage device is too slow • Time Shift Mode and Recording functions for recording or time shift function, a warning statement may not work if the signal strength is weak. will be shown on the screen. If this happens, please • Stop the time-shift function before upgrade your USB storage device. switching to another input source. During normal TV viewing, you may press the T.SHIFT button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). " " will show on the screen. Alternative Press the OK button to display the PVR Time Shift progress bar and then press the buttons to select " Play" on the bar. Press the OK button to confirm. When you have returned, press the button to play the missed broadcast programme. " " will show on the screen. The video and sound may have a little bit of delay or be out-of-sync for a few seconds when the unit starts to playback the missed broadcast programme. It will soon turn to normal. The.‘PVR.Time.Shift.Progress.Bar’ 1 Indicates the status of the currently displayed video ( / / 2 Indicates the time lagging behind the live broadcast (DVR reviewing) 3 Indicates the available recording time on your USB storage device 4 Indicates the current time Using.the.Remote.Control You can shift playback to any point of the virtually recorded programme. The PVR Time Shift progress bar will be displayed on the screen for 15 seconds. Press the OK button to display the PVR Time Shift progress bar again.

  • Page 50: Recording Dtv Programme Onto A Usb Storage Device

    .Recording.DTV.Programme.onto.a.USB.Storage.Device Use this function to record the DTV programme you are watching on the main screen and save them for future viewing. Make sure that your connected USB storage device has enough available memory space. 1.. Press the REC button to record the programme that you are currently watching. The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the OK button or the REC button. 2.. Press the .Stop button to stop recording. Recording will stop automatically when the disk is full. If you want to turn off your TV during recording, press the button. A dialogue will display. The recording is still inprogress. Do you want to switch off the TV? Yes, Stop recording and Yes, turn off the screen switch off the TV and sound but keep recording the programme Press the buttons to select your desired option and then press the OK button to confirm.

  • Page 51: Play Recorded Programme

    3.. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display. Timer Save Success 800 TVE 1 11 Mar 2008 10:00 4.. The Schedule.List will then be displayed with your preset reminders shown. Schedule List 15:30 10th Mar Delete Back 5.. Press the GREEN button to return to the EPG. Time Date Programme Title Channel Name 6.. Press the EXIT button to exit EPG. • When the preset time is reached, the TV will start recording automatically. • If a programme recording starts when the TV is in standby mode, the LED indicator will alternatively flash red and blue. .Play.Recorded.Programme. You can play a recorded programme from the recorded programme list or from a USB Storage Device. 1..
  • Page 52 5.. Press the button or the OK button to display the function bar. 6.. Press the buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info. 7.. Press the EXIT button or the .Stop button to stop the current playback and to return back to the previous menu.

  • Page 53: Using.the.dvd.features

    Using.the.DVD.Features .Using.the.Built-in.DVD.Player 1.. Press the.SOURCE button at the front right side of the TV or the INPUT button on the remote control and select DVD mode. 2.. Insert a disc with the label side facing backwards you. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW). Allow 10 seconds for the player to load the disc. 3.. After the disc is inserted, the DVD will show the content of the disc automatically. 4.. If the DVD player does not automatically play the disc, press the button to start playing. 5.. Press the button if you want to remove the disc. Only insert 12cm discs. Do not insert or play 8cm discs. They will get stuck. .Compatible.Disc.Types Disc.Types Disc.Logo Recorded.Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format AUDIO + VIDEO + JPEG or JPEG files) CD-RW (CD-Rewritable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) AUDIO-CD (Compact Disc Digital Audio) AUDIO Supported.Formats...

  • Page 54: Basic Dvd Playback Functions

    .Basic.DVD.Playback.Functions Playing.the.DVD Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the button to toggle between Play and Pause mode. This product also supports Menu / Title / Sequential / Program Playback. Menu.Playback.(for.DVD) For DVD discs, the screen will display the DVD Disc Menu (Root Menu). Press the OK button or the button to start from the highlighted content. Press the DVD.MENU button to return to the Root Menu when playing the disc. For some DVD discs you may need to press the DVD.MENU button or the TITLE button to display the Disc Menu. Stopping.Playback Press the button once to stop. Press the button to resume from where you stopped. Press the button twice to stop. Press the button to start from the beginning. In order to protect the disc, press the button and then press the button to eject the disc. When the disc is ejected, hold the disc edge slightly and remove it from the disc slot. When not using the DVD function (in stand-by-mode or using others modes for a long period of time), please take out the disc to protect the DVD loader and the disc. Previous./.Next.(for.DVD./.CD./.Multimedia.discs) Press the button to play the last Title / Chapter / Track. Press the button to play the next Title / Chapter / Track. If the current track is the first one, pressing the button will stop the playback. If the current track is the last one, pressing the button will stop the playback. For DVD discs, the above functions may very due to different DVD disc’s structure. Forward./.Backward.(for.DVD./.CD./.Multimedia.discs) There are 4 speeds for forward. Press the button to toggle between the different forward options in sequence. (FORWARD x 2 / FORWARD x 4 / FORWARD x 8 / FORWARD x 20 / Play). Press the button to return to normal speed playback. For DVD discs, when selecting backward to first title / chapter, the disc will start from the beginning. The sound will be off during Forward or Backward.

  • Page 55: Info (For Dvd / Cd / Multimedia Discs)

    Info.(for.DVD./.CD./.Multimedia.discs) Press the button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information. For DVD discs, press the button once to display the first page as shown below: Disc Type -/- (Current / Full) -/- (Current / Full) Elapsed disc time Title Chapter Press the button again to display the second page as shown below: Audio Language Subtitle -/- (Current / Full) or OFF Angle ON / OFF -/- (Current / Full) or OFF Audio Type PROG.(for.DVD./.CD./.Multimedia.discs) (Allows you to set the title and charpter you want to skip to play) 1.. Press the PROG button to display the first page as shown below. 2.. Press the 0-9 buttons to set T (title number). 3.. Then press the button and press the 0-9 buttons to set C (charpter number). 4.. Press the button to select PLAY or CLEAR, press the OK button confrim. 5.. Press the PROG button to exit the program menu. Angle.(for.DVD) (Allows you to switch the viewing angle of video) Press the ANGLE button repeatly to select the different angle you want ( Only for the dics has this characture). Step.(for.DVD) (Allows you to watch program in datails of every frame) Press the STEP button repeatly to watch every frame. Press the button to exit the step mode.

  • Page 56: Audio (For Dvd / Cd)

    Audio.(for.DVD./.CD) Press the AUDIO button to toggle between different audio modes in sequence. For CD discs: Stereo / MonoL / MonoR Some disc may contain multi-languages which can be selected by pressing the AUDIO button. Repeat.A-B.(for.DVD./.CD) When playing DVD, CD disc, press the A-B button to repeat certain content. Press the A-B button on the start point (A) and the end point (B) to select the repeat part. Press the A-B button a third time to cancel the A-B button function and return to normal playback. .Playing.Multimedia.Discs After loading the multimedia disc, the disc contents will automatically be displayed and sorted by different file formats into Music / Picture / Video folders. 1.. Press the buttons to navigate through the folders and files. 2.. Press the 0-9 buttons to select the contents directly (for example, to select track 23, press the LIST button twice Folders Files in the followed by 3). selected folder 3.. When playing or pausing with picture playback, you may use the buttons to flip / rotate the picture. Music Picture Video folder folder folder...

  • Page 57: Using The Dvd System Setup Page

    .Using.the.DVD.System.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the System.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description TV.SYSTEM In order for the disc to play, the colour system of the DVD player, disc and TV should match. NTSC This format is used by some other countries, e.g. USA. This is the format used in UK. AUTO This format can be used if your TV / DVD is capable of both PAL and NTSC formats and this is the default setting. PAL format is generally used for TV’s in the UK. If NTSC is selected with a non-compatible television, you may experience interference or picture scrolling. SCREEN.SAVER When the player stops or the picture becomes motionless for a couple of minutes, there will be a screen saver to prevent damage to the display screen. ON: To activate screen saver. OFF: To disable screen saver. TV.TYPE 4:3.Pan.Scan Widescreen picture shown in the full screen with some part cut. 4:3.Letter.box Widescreen picture shown in the full screen with black bars on the top and bottom of the screen. 16:9 Widescreen picture shown in the full screen.

  • Page 58: Using The Dvd Language Setup Page

    Option Description PASSWORD PASSWORD.CHANGE To change the password, you need to: 1. Input old password. (for initial use, please enter factory default password “0000”) 2. Input a new 4 digit password and then press the OK button to confirm. If you forget your DVD password, please enter the master password “2009”. RATING RATING Allows the user to set a maximum rating level for a movie that can be played (e.g. PG rating). Movies rated higher than the level set will not be played. The parental lock can only be changed after inputting the correct password. This function is available only when the discs have ratings encoded on them. DEFAULT DEFAULT To restore all setup parameters to the factory settings EXCEPT the password. This function is available in stop state or when the tray is opened. .Using.the.DVD.Language.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the Language.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description AUDIO.LANG Set the audio language to your language of choice. Not all DVD discs support multiple audio languages.

  • Page 59: Using The Dvd Audio Setup Page

    Option Description SUBTITLE.LANG SUBTITLE Select the Subtitle language. Not all DVD discs support multiple audio languages. MENU.LANG DISC.MENU Select the Disc Menu language. The default language is English. .Using.the.DVD.Audio.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the Audio.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description TONE Adjust the tone setting.

  • Page 60: Using The Dvd Speaker Setup Page

    .Using.the.DVD.Speaker.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the Speaker.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description DOWNMIX LT/RT Select this option when the DVD player is connected to an external amplifier with Pro-Logic decoding function. STEREO Press the button to select STEREO and then press the OK button to confirm. Press the button to select VSS (Virtual Surround Sound) and then press the OK button to confirm. .Using.the.DVD.Dolby.Digital.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the Digital.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description DYNAMIC.RANGE When the dynamic range is set to FULL, the audio level during quiet and loud parts of the movie will be automatically adjusted. This setting is used to play Dolby Digital encoded discs. Best used for night time viewing. DUAL.MONO STEREO The player will output both left channel and right channel audio. MONO.L It means that the player will output left channel audio only.

  • Page 61: Maintenance

    Maintenance .Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the POWER.ON/OFF switch at the rear of the TV next to the mains cable and then press the. ./.I button at the front right side of the TV or the. .button on the remote control to turn off the TV. Disconnect the mains cable from the mains socket before any cleaning. 1.. Use a soft dry cloth to wipe away the dust from the screen and surfaces. 2.. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. Wring the cloth until it is almost dry, then use it to wipe the TV. 3.. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on. Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust. Handling.Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning.Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean. • If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth. • Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc. Storing.Discs • Do not store discs in places subjected to direct sunlight or near heat sources. •...

  • Page 62: Hints.and.tips

    Hints.and.Tips .Hints.and.Tips The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0844.561.1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. The.TV.does.not.operate.properly. The.TV.does.not.respond.when. • The TV may freeze up during use. Disconnect the mains cable from the mains socket pressing.any.buttons for a few minutes. Reconnect the mains cable and try to operate it again as usual. • Check that the TV is connected to the mains supply and the POWER.ON/OFF switch TV.cannot.be.switched.on at the rear of the TV next to the mains cable is switched on. • Make sure all connected AV devices are switched off before switching on your TV. • Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at The.remote.control.does.not.work the TV. • Ensure that the batteries are installed with the correct polarity (+ to +, - to -). • Install new batteries. • Check the power of the TV. The mains supply maybe interrupted. Power.is.suddenly.turned.off • Check if the sleep timer is set. • Check whether the Auto Standby is activated. The.video.function.does.not.work. • Check whether the TV is switched on. No.Picture.&.No.Sound • Try another channel. The problem may be caused by the broadcaster. Picture.appears.slowly.after. • This is normal, the image is muted during the TV startup process. Please contact switching.on your service centre, if the picture has not appeared after five minutes.
  • Page 63 There.is.a.problem.in.PC.mode. The.signal.is.out.of.range.(Invalid. • Adjust the resolution, horizontal frequency, or vertical frequency. format) Vertical.bar.or.stripe.on.background. • Use Auto configure or adjust clock, phase, or H/V position. &.Horizontal.Noise.&.Incorrect. position Screen.colour.is.unstable.or.single. • Check the signal cable. colour • Reinstall the PC video card. The.DVD.function.does.not.work. • Check if the disc is correctly inserted. • Check that the disc is clean. DVD.will.not.read.the.disc • Check if there is any obvious damage to the disc. • Try to play the disc on another DVD to check whether it is has content. DVD.does.not.have.the.signal • Check if the TV is in DVD mode. • Select PASSWORD in the SYSTEM.SETUP of DVD menu, then enter the following Lost.DVD.password master DVD password “2009”. The master password clears your previous password and allows you to enter new password. FAQs.(Frequently.Asked.Questions) • It happens sometimes, if you have a weak signal. Usually it just means you’ll need to rescan your digital box or TV. Don’t worry, it easy to do. And once you’ve done it, Why.have.I.lost.some./.all.of.my. you should get all the Freeview channels available to you. If problems persist you channels? may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.

  • Page 64: Display.modes

    Display.Modes .Display.Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr.Mode Resolution Vertical.Frequency.(Hz) Aspect.Ratio 480I: 720 x 480 480P: 720 x 480 576I: 720 x 576 576P: 720 x 576 Auto / Smart Zoom / Zoom / 16:9 / 720P: 1280 x 720 4:3 / Dot to Dot / Subtitle 1080I: 1920 x 1080 1080P: 1920 x 1080 PC.Mode Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video. Resolution Vertical.Frequency.(Hz) Aspect.Ratio 640 x 480 800 x 600 4:3 / 16:9 1024 x 768 1360 x 768 1920 x 1080 HDMI.Mode. Resolution Vertical.Frequency.(Hz) Aspect.Ratio 480I: 1440 x 480 480P: 720 x 480 576I: 1440 x 576 576P: 720 x 576 Auto / Smart Zoom / Zoom / 16:9 / 720P: 1280 x 720 4:3 / Dot to Dot / Subtitle 1080I: 1920 x 1080 1080P: 1920 x 1080...

  • Page 65: Specifications

    Specifications .Specifications Model L32DLCD11 Panel.System 32 inch LCD Panel Display.Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) Television.System PAL I / BG / SECAM BG/DK / DK Brightness 360-430 cd/m Contrast.Ratio 2500-5000:1 Inputs./.Output SCART. HDMI. PC.AUDIO YPbPr Common.Interface 1 (Output 5V 500mA) AUDIO.IN.(RCA) 1 (L + R) COAXIAL RF.(75.Ω) Speaker.Power 6 W + 6 W Earphone.(3.5mm) Power.Source 100-240V~50/60Hz Dimension.(W.x.D.x.H).with.base 797 x 209 x 582 mm Weight.(Net) 17 kg Features and specifications are subject to change without notice.

  • Page 66: Safety.warnings

    Safety.Warnings .Safety.Warnings • Read all the instructions carefully before using the unit Safety and keep them for future reference. • Always disconnect the unit from the mains supply before connecting / disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit. party make sure to include this manual. • Unplug the unit from the mains socket during a • Check that the voltage marked on the rating label lightning storm. matches your mains voltage. Mains.Cable. Damage • Make sure the unit or unit stand is not resting on top of • Please inspect the unit for damage after unpacking. the mains cable, as the weight of the unit may damage • Do not continue to operate the unit if you are in any the mains cable and create a safety hazard. doubt about it working normally, or if it is damaged • If the mains cable is damaged it must be replaced in any way - switch off, withdraw the mains plug and by the manufacturer, its service agent, or similarly consult your dealer. qualified persons in order to avoid a hazard. Location.of.Unit Interference • The unit must be placed on a flat stable surface and •...
  • Page 67 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level. alert the user to the presence of uninsulated “dangerous voltage” within the unit’s Standby. enclosure that may be of sufficient • The button on the remote control does not switch magnitude to constitute a risk of electric off the unit completely. The unit will continue to draw shock. electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy The exclamation point within an equilateral consumption, never leave the unit in standby while triangle is intended to alert the user to the unattended for long periods of time, e.g. overnight, presence of important operating and while on holiday or while out of the house. Switch it off maintenance (servicing) instructions in the and disconnect the mains plug from the mains socket. manual accompanying the unit. Batteries Service •...
  • Page 68 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement.Part Part.Number TV Base I.01.501321001 Remote Control I.14.000000760 AAA Batteries E.17.101570001 AV Cable E.14.113150013 Screw A I.03.TP4016A01 Screw B I.03.MP4010001 Cover Board I.01.532606281 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. Rovi.Proprietary.Rights This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. Restriction.on.Use.&.Rovi.Trade.Mark.Rights Use of the copyright protection technology contained in this product must be authorised by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorised by Rovi Corporation. The names “Rovi Corporation” and “Macrovision” are protected by trademarks. Notes.for.battery.disposal The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste. For more information, please contact the local authority or your retailer where you purchased the product.
