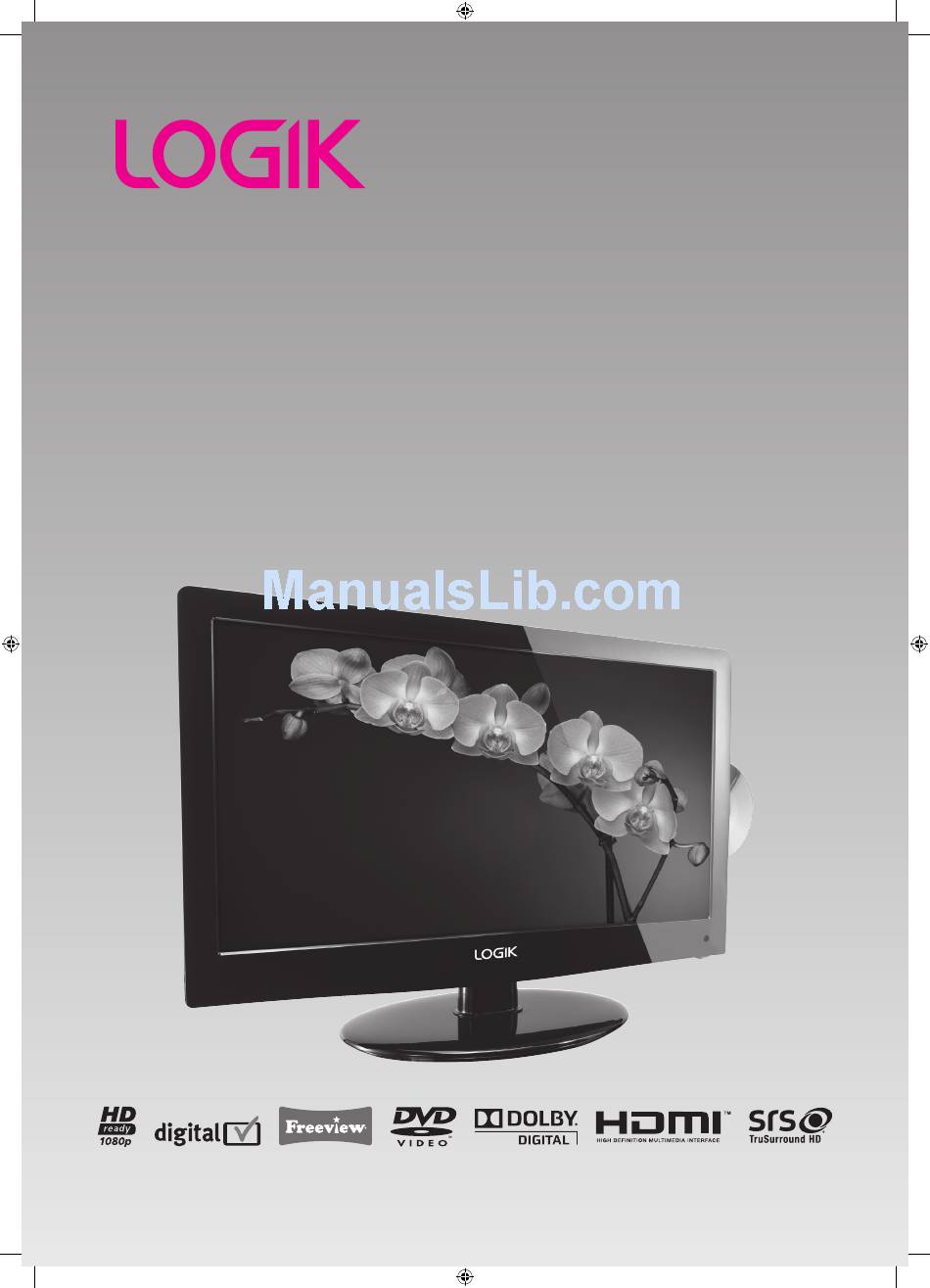

- Page 1 22” HD Ready 1080p Digital LED TV with DVD Player Instruction Manual L22LDVB11 / L22LDVW11 / L22LDVR11 / L22LDVS11 / L22LDVN11 L22LDVB_W_R_S_N11_IB_final111109_Zell.indd 1 09/11/2011 11:40 AM...
- Page 2 L22LDVB_W_R_S_N11_IB_final111109_Zell.indd 2 09/11/2011 11:40 AM...
-
Page 3: Table Of Contents
Contents Preparation ......................................5 Unpacking the TV ..........................................5 Installing / Removing the Base Stand ..................................6 Front View and Controls ........................................7 Rear View and Sockets ........................................8 Installing Batteries in the Remote Control ................................9 Remote Control Operation Range ....................................9 Remote Control ..........................................10 Connections ......................................13 Making Video and Audio Connections ..................................13 Connecting an AV Device with an HDMI Cable ..............................13 Connecting a Computer with a VGA Cable ................................14... - Page 4 Digital Teletext (DTV Mode) ......................................39 − Teletext within Digital Service ..................................39 EPG (Electronic Programme Guide) (DTV Mode) ..............................39 − Switch On / Off EPG ......................................39 − Select a Programme ......................................40 Using the Features via USB Port ..............................41 My Photo ..............................................41 My Music ..............................................41 My Movie .............................................
-
Page 5: Preparation
Thank you for purchasing your new Logik 22" HD Ready 1080p Digital LED TV with DVD Player. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. -
Page 6: Installing / Removing The Base Stand
Installing / Removing the Base Stand • Remove the base stand before mounting the TV onto the wall. • The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. -
Page 7: Front View And Controls
Front View and Controls Item Description Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode. The LED will flash blue and red when the timer programming has started in the standby mode. -
Page 8: Rear View And Sockets
Rear View and Sockets VIDEO HDMI2 Socket Description Press to eject disc. (DVD mode) Press to start playback or pause. (DVD mode) RF Aerial To connect to the aerial socket on the wall with the RF coaxial cable. VGA / PC AUDIO To connect to a computer or other devices with a VGA interface. -
Page 9: Installing Batteries In The Remote Control
Installing Batteries in the Remote Control 1. Press and lift the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment. -
Page 10: Remote Control
Remote Control Switches the TV between on and standby mode. MUTE Mutes and restores your TV sound. 3. 0-9 Number Button • Press to select a programme. • Select numbered items in a menu. (DVD mode) 4. LIST • Display the channel list. (ATV / DTV mode) • Display the text page on the teletext screen. - Page 11 19. FAV Display the favourite channel list. (ATV / DTV mode) SETUP Display and exit the DVD setup menu. (DVD mode) 20. i Display the present screen information such as the current channel on ATV / DTV mode and the input source except ATV / DTV mode.
- Page 12 To skip to the beginning of the next chapter / track / photo. REVEAL Reveals hidden information such as the answer to a quiz in teletext. (ATV mode). To skip to the beginning of the previous chapter / track / photo. HOLD Freezes a multi-page passage on screen in teletext.
-
Page 13: Connections
Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains adapter cable to the mains socket until all other connections are complete. -
Page 14: Connecting A Computer With A Vga Cable
Connecting a Computer with a VGA Cable Rear Right Side View of TV 1. Use a VGA cable to connect the TV’s VGA input socket to a computer’s VGA output socket. Use an audio cable to connect the TV’s PC AUDIO input HDMI1 PC AUDIO SCART... -
Page 15: Connecting An Av Device With A Scart Cable
Connecting an AV Device with a SCART Cable Rear Right Side View of TV 1. Use a SCART cable to connect the TV’s SCART adapter cable to an external AV device’s SCART output socket. 2. Plug the connected devices into the mains socket HDMI1 PC AUDIO SCART... -
Page 16: Connecting A Usb Storage Device
Connecting a USB Storage Device 1. Switch off the TV before connecting any USB storage Rear Right Side View of TV device. 2. Connect your USB storage device to the USB port of HDMI1 PC AUDIO SCART your TV. 3. Press the button on the right side panel of the TV or on the remote control to turn on your TV and your USB storage device. -
Page 17: Initial Setup
Initial Setup Turning the TV on for the First Time 1. Connect the mains adapter to the mains adapter socket located at the rear right bottom side of your TV and then connect to the mains socket after you have completed all the connections. 2. -
Page 18: Selecting The Input Source
Selecting the Input Source 1. Press the button on the right side panel of the TV or the INPUT button Input Source on the remote control to display the Input source list. 2. Press the buttons to select the input source that you want: DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / DMP. -
Page 19: Using The Features
Using the Features Customising the Channel Setting (TV, DTV or Radio Mode) Auto Tuning Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house. 1. -
Page 20: Dtv Manual Tuning
DTV Manual Tuning Allows you to make manual fine tuning adjustments of the channel under DTV mode. 1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION... -
Page 21: Channel Edit (Atv / Dtv Mode)
3. The ATV Manual Tuning screen will pop up. Use the buttons to select ATV Manual Tuning the following options and the buttons to adjust the setting. Storage To 1 Storage To Presets the channel number. Sound System I Selects the sound system: I / DK / BG / L (for Sound System SECAM). -
Page 22: Signal Information (Dtv Mode)
c. Move Press the YELLOW button and then press the buttons to move to the selected channel. Press the YELLOW button or the OK button to confirm. d. Skip Press the BLUE button to skip the selected channel. Press the BLUE button again to undo it. -
Page 23: Ci (Common Interface) (Dtv Mode)
CI (Common Interface) (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider. -
Page 24: Software Update (Over Air Download)
Software Update (Over Air Download) The TV auto detects the latest firmware through the DTV signal and allows you to accept or refuse the firmware upgrade service. 1. Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. -
Page 25: Customising The Picture Setting
Customising the Picture Setting Allows you to set your preferred picture mode. 1. Press the MENU button and then press the buttons to select the PICTURE menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT EXIT 2. - Page 26 Aspect Ratio Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Subtitle / Smart Zoom / Dot to Dot. Input Signal 4:3 Input Signal 16:9 Auto This selection will display This selection will display the picture according to the picture according to the aspect ratio of the...
-
Page 27: Customising The Sound Setting
Customising the Sound Setting Allows you to select an audio-enhancement technique. 1. Press the MENU button and then press the buttons to select the SOUND menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT EXIT 2. -
Page 28: Customising The Time Settings
Stereo / Dual Sound Reception (ATV Mode) When a programme is selected, press the AD button to display the sound information for the selected station. Broadcast On Screen Display MONO / NICAM MONO Mono MONO / NICAM STEREO Stereo Dual MONO / NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II Mono sound selection If the stereo signal is weak in stereo reception, you can switch to mono by pressing the AD button. -
Page 29: Customising The Option Setting
3. Press the buttons to select the options. Press the OK button and then press the buttons to adjust each option’s setting. Clock The clock is set automatically when receiving a digital signal. Off Time Allows you to set the off time that will automatically switch off the TV. Cycle through and select from the following off time options: Off / Once / Every Day / Mon.~Fri. -
Page 30: Audio Language (Dtv Mode)
2. Press the buttons to select OSD Language and then press the OK button. The default on-screen menu language is set as English. OSD Language English Audio Language Subtitle Language Hearing Impaired Country PVR File System Restore Factory Default 3. Press the buttons to navigate the menu and change the OSD Language settings. -
Page 31: Subtitle Language (Dtv Mode)
Subtitle Language (DTV Mode) Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.) 1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. -
Page 32: Pvr File System (Dtv Mode)
PVR File System (DTV Mode) Allows you to select your preferences in the PVR File System. 1. Press the MENU button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK... -
Page 33: Cec (Consumer Electronics Control)
CEC (Consumer Electronics Control) Allows you to command and control two or more CEC-enabled devices, that are connected through HDMI, by using only one of the TV remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). CEC also allows individual CEC-enabled devices to command and control each other without user intervention. -
Page 34: Customising The Lock Setting
3. Press the button to select “Yes”. The TV will turn off and restart after a few seconds. Press the button to select "No" to cancel and return to the main menu. Are you sure? All channel and user settings will be lost and the TV will revert to "First Time Installation". -
Page 35: Set Password
Set Password 1. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT EXIT 2. Press the buttons to select Lock System and then press the OK button. -
Page 36: Block Channel
Block Channel Block Channel is designed to prevent children watching unsuitable programmes. When a channel is blocked, a valid password must be entered. 1. Press the MENU button and then press the buttons to select the LOCK menu and then press the OK button. CHANNEL PICTURE SOUND... -
Page 37: Parental Guidance
Parental Guidance This function allows you to set up blocking schemes to block specific channels and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate. This allows you to set up blocking schemes to block specific channels and ratings. -
Page 38: Teletext (Atv Mode)
Teletext (ATV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. -
Page 39: Digital Teletext (Dtv Mode)
Digital Teletext (DTV Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 31 for details). Teletext within Digital Service 1. -
Page 40: Select A Programme
Select a Programme Press the buttons to select the desired channel and then press the buttons to select the desired programme. Press the OK button to confirm. Button Functions in a 7 Days Guide Remote Control Button Function • Timer Programming RED (Record) See page 46 for details on Timer Programming. -
Page 41: Using The Features Via Usb Port
Using the Features via USB Port My Photo 1. Press the button on the right side panel of the TV or the INPUT button on the remote control then press the buttons to select the DMP mode and then press the OK button. 2. -
Page 42: My Movie
5. Press the buttons to navigate in the music folder. Select the music you want to play, it will show the music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size). Then press the PLAY button to play. -
Page 43: My Text
My Text 1. Press the button on the right side panel of the TV or the INPUT button on the remote control then press the buttons to select the DMP mode and then press the OK button. 2. Press the buttons to select TEXT and then press the OK button. -
Page 44: Pvr (Personal Video Recorder)
PVR (Personal Video Recorder) Time Shift Function This function allows the TV to virtually record the live viewing broadcast programme. If the transfer rate of the USB storage device is too slow • Time Shift Mode and Recording functions for recording or time shift function, a warning statement may not work if the signal strength is weak. -
Page 45: Recording Dtv Programme Onto A Usb Storage Device
Recording DTV Programme onto a USB Storage Device Use this function to record the DTV programme you are watching on the main screen and save it for future viewing. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. -
Page 46: Timer Programming
Timer Programming This function is used to perform scheduled recording. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. Please make sure the USB device is inserted. If not, a warning message will pop up. 1. -
Page 47: Play Recorded Programme
Play Recorded Programme You can play a recorded programme from the recorded programme list or from a USB Storage Device. 1. Press the INPUT button then press the buttons to select the DMP mode and then press the OK button. 2. -
Page 48: Using The Dvd Features
Using the DVD Features Using the Built-in DVD Player 1. Press the button on the right side panel of the TV or the INPUT button on the remote control and select DVD mode. 2. Insert a disc with the label side facing backwards you. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW) Allow 10 seconds for the player to load the disc. -
Page 49: Basic Dvd Playback Functions
Basic DVD Playback Functions Playing the DVD Depending on the disc, a menu may appear on the TV screen once the disc has loaded. When playing the disc, you may use the PLAY / buttons on the remote control to toggle between Play and Pause mode. This product button on the unit or the also supports Menu / Title / Sequential / Program Playback. -
Page 50: Display (For Dvd / Multimedia Discs)
Display (for DVD / Multimedia discs) Press the i button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information. Press the i button repeatedly to turn off the on screen display. For JPEG discs, press the i button once to display first page: Disc type, Track -/- (Current / Full). Press the i button repeatedly to turn off the screen display. -
Page 51: Playing Multimedia Discs
Playing Multimedia Discs MP3 / WMA / JPEG PLAYBACK When you insert a MP3 / WMA / JPEG disc while in DVD mode the menu on the right will appear. Press the buttons to choose the root directory and then press the OK button to enter into the sub directory. - Page 52 1. Repeat steps 1 and 2 as described in “Adding files to the Program List” section. 2. Press the button on the remote control STOP to skip to the left screen in Browser view. /jpeg / Picture 02.JPG Press the buttons on the remote control Picture 01 Edit mode...
-
Page 53: Using The Dvd Language Setup Page
Using the DVD Language Setup Page In DVD mode, press the SETUP button on the remote control. Press the buttons to select the Language menu and then press button to enter the sub menu. Press the buttons to select the menu options. Press the SETUP button to exit the menu. -
Page 54: Using The Dvd Rating Setup Page
Using the DVD Rating Setup Page In DVD mode, press the SETUP button on the remote control. Press the buttons to select the Rating menu and then press button to enter the sub menu. Press the buttons to select the menu options. Press the SETUP button to exit the menu. -
Page 55: Maintenance
Maintenance Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the button on the side panel of the TV or on the remote control and disconnect the mains adapter from the mains socket before any cleaning. -
Page 56: Hints And Tips
Hints and Tips Hints and Tips The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our Customer Technical Services Centre. Tel: 0844 800 6020 (UK only) The TV does not operate properly. - Page 57 There is a problem in PC mode. The signal is out of range (Invalid • Adjust the resolution, horizontal frequency, or vertical frequency. format) Vertical bar or stripe on background • Use Auto configure or adjust clock, phase, or H/V position. &...
-
Page 58: Display Modes
Display Modes Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. -
Page 59: Specifications
Specifications Specifications Model L22LDVB11 / L22LDVW11 / L22LDVR11 / L22LDVS11 / L22LDVN11 Panel System 22 inch LED Backlit LCD Panel Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) Television System PAL I / BG / DK SECAM L / BG / DK... - Page 60 ENERG ENERG ENERG L22LDVB11 L22LDVW11 L22LDVR11 kWh/annum kWh/annum kWh/annum Watt Watt Watt 54.6 21.5 54.6 21.5 54.6 21.5 inch inch inch - 2011 - 2011 - 2011 2010/1062 2010/1062 2010/1062 ENERG ENERG L22LDVS11 L22LDVN11 kWh/annum kWh/annum Watt Watt 54.6 21.5 54.6...
-
Page 61: Safety Warnings
Safety Warnings Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting / disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit. - Page 62 Standby CAUTION • button on the remote control does not switch off the unit completely. The unit will continue to draw RISK OF ELECTRIC SHOCK DO NOT OPEN electricity from the mains supply while in standby. In The lightning flash with arrowhead symbol, the interests of safety and to avoid unnecessary energy within an equilateral triangle, is intended to consumption, never leave the unit in standby while...
- Page 63 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number 102C2242111 (For L22LDVB11) 102C2242211 (For L22LDVW11) TV Base 102C2242412 (For L22LDVR11) 102C2242811 (For L22LDVS11) 504C2236107 (For L22LDVN11) 504C1913112 (For L22LDVB11)
