Logik L22DVDB20 Instruction Manual

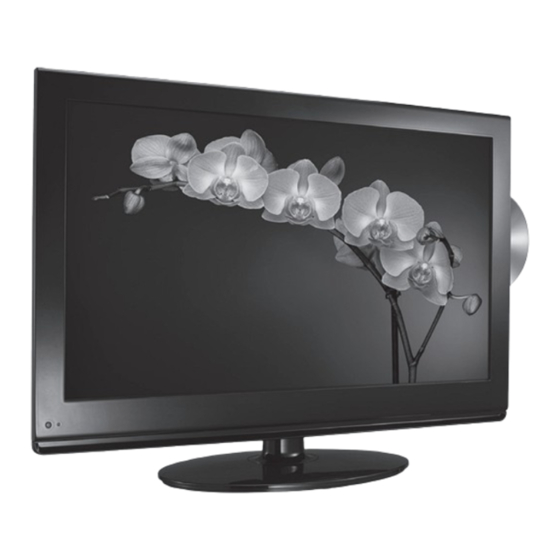

22” hd ready digital lcd tv with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

22" HD Ready Digital
LCD TV with DVD Player
Instruction Manual
L22DVDB20
L22DVDW10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L22DVDB20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L22DVDB20

Summary of Contents for Logik L22DVDB20

  • Page 1 22” HD Ready Digital LCD TV with DVD Player Instruction Manual L22DVDB20 L22DVDW10...

  • Page 3: Table Of Contents

    Contents Perparation......................................5 Unpacking the TV ..........................................5 Installing / Removing the Base Stand ..................................6 Front / Top / Side View and Controls ...................................7 Rear View and Sockets ........................................8 Installing Batteries in the Remote Control ................................9 Remote Control Operation Range ....................................9 Remote Control ..........................................10 Connections.
  • Page 4 Customising the TV Settings (PC Mode) ................................. 33 Customising the TV Settings (HDMI and YPbPr Modes)............................ 33 Teletext (TV Mode) .......................................... 34 − To Turn on Teletext Function................................... 34 Digital Teletext (DTV Mode) ......................................35 − Teletext within Digital Service ..................................35 EPG (Electronic Programme Guide) (DTV Mode) ..............................

  • Page 5: Perparation

    Thank.you .for purchasing your new Logik 32” HD Ready Digital LCD TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features.

  • Page 6: Installing / Removing The Base Stand

    Screw A x 4 part.number I.03.TW3010A02.(L22DVDW10) I.03.TW3012A01.(L22DVDB20) 4.. To remove the base stand, untighten the 4 screws that uncrew hold the base stand to the rear of the TV. Keep all the spare screws should you want to use the base stand option.

  • Page 7: Front / Top / Side View And Controls

    .Front./.Top./.Side.View.and.Controls Item Description Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER.LED mode. The LED will illuminate blue when the timer programming has started in the standby mode. Receives IR signals from the remote control. IR.(Infrared.Receiver) Do not put anything near the sensor, as its function may be affected.

  • Page 8: Rear View And Sockets

    .Rear.View.and.Sockets ON OFF CARD FACE FRONT Item Description POWER.ON/OFF Switch on the POWER.ON/OFF switch to turn the TV to standby mode. Connect the mains cable to the mains socket. Connect earphones for private listening. RF.(75.Ω) Connect to the aerial socket on the wall with the RF coaxial cable. Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video VIDEO./.AUDIO.(L/R) devices.

  • Page 9: Installing Batteries In The Remote Control

    .Installing.Batteries.in.the.Remote.Control 1.. Press and lift the back cover up to open the battery compartment of the remote control. 2.. Insert two AAA size batteries. Make sure to match the (+) and ( – ) ends of the batteries with the (+) and ( – ) ends indicated in the battery compartment.

  • Page 10: Remote Control

    .Remote.Control 1. Transmission.Indicator Illuminates red when you press a button. Switch the TV between on and standby mode. Mute and restore your TV sound. 4. P.MODE Selects picture mode: Personal / Standard / Movie / Mild / Game. S.MODE Selects sound mode: Standard / Music / Voice / Theatre / Personal.
  • Page 11 14. SOURCE Select among the different input signal sources: DTV / TV / DVD / AV / S-VIDEO / SCART / YPBPR / HDMI / 15. CH.+/- Select a channel. 16. VOL.+/- Adjust the volume. 17. MENU Display the OSD (On Screen Display) menu. 18.
  • Page 12 26 REVEAL Reveal hidden information such as the answer to a quiz in Teletext. (TV mode) REPEAT Repeat a title, chapter, track or whole disc. (DVD mode) 27 CANCEL To cancel the teletext mode completely. (TV mode) Repeat a segment between A and B. (DVD mode) 28 SUBPAGE Display the subpage on the teletext screen.

  • Page 13: Connections

    Connections .Making.Video.and.Audio.Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibilty and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

  • Page 14: Connecting A Computer With Vga Cable

    .Connecting.a.Computer.with.VGA.Cable 1.. Use a VGA cable to connect the TV’s VGA input Right Rear Side View of TV socket to a computer’s VGA output socket. Use an audio cable to connect the TV’s PC AUDIO input socket to the computer’s audio output socket. CARD FACE FRONT 2..

  • Page 15: Connecting An Av Device With Scart Cable

    .Connecting.an.AV.Device.with.SCART.Cable Right Rear Side View of TV 1.. Use a SCART cable to connect the TV’s SCART input socket to an external AV device’s SCART output socket. CARD FACE FRONT 2.. Plug the connected devices into the mains socket before switching on the POWER.ON/OFF switch at the side of the TV.

  • Page 16: Connecting An Av Device With Composite Cable

    .Connecting.an.AV.Device.with.Composite.Cable Right Rear Side View of TV 1.. Use the supplied AV cable to connect the TV’s AUDIO(L/R)/VIDEO input sockets to an external AV device’s composite audio/video sockets. (Video = yellow, Audio Left = white, and Audio Right = red) CARD FACE FRONT 2..

  • Page 17: Connecting Earphones

    .Connecting.Earphones Right Rear Side View of TV Connect your earphones to the TV’s socket. Before putting on earphones, turn the volume down then put the earphones on and slowly increase the CARD FACE FRONT volume until you reach a comfortable listening level. Listening to loud sounds for prolonged periods of time may permanently damage Earphones Cable...

  • Page 18: Connecting The Aerial

    .Connecting.the.Aerial Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket on the right rear side of your TV. Do not connect the TV to the mains supply until you have completed all the connections.

  • Page 19: Selecting The Input Source

    Selecting.the.Input.Source 1.. Press the SOURCE button to display the input source list. 2.. Press the buttons to select the input source that you want: DTV / TV / DVD / AV / S-VIDEO / SCART / YPBPR / HDMI / PC. 3..

  • Page 20: Using.the.features

    Using.the.Features .Customising.the.PICTURE.Setting Picture.Mode Allows you to set your preferred picture mode. 1.. Press the MENU button and then use the buttons to select the PICTURE menu and then press the button. 2.. Press the buttons to highlight an individual Picture option. 3..

  • Page 21: Customising The Sound Setting

    .Customising.the.SOUND.Setting Sound.Mode Allows you to select an audio-enhancement technique. 1.. Press the MENU button and then use the buttons to select the SOUND menu and then press the button. 2.. Press the buttons to highlight an individual Sound option. 3.. Press the buttons to change the following settings.

  • Page 22: Customising The Function Setting

    .Customising.the.FUNCTION.Setting Video.Size Allows you to watch the screen in various picture formats. For TV Mode, Auto / Full / 4:3 / 14:9 / Zoom are the available options. For DTV mode, Auto / Full are the available options. For YPbPr and HDMI mode, Full / 4:3 are the available options. 1..

  • Page 23: Tt Language

    TT.Language Allows you to select your preferred Teletext language. 1.. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. 2.. Press the buttons to select TT.Language. 3.. Press the buttons to change the settings. 4..

  • Page 24: Osd Timer

    OSD.Timer Allows you to select the display time of the on-screen menu. 1.. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. 2.. Press the buttons to select OSD.TIMER. 3.. Press the buttons to select time: 5 / 10 / 30 / 60 sec / NEVER.

  • Page 25: Key Locked

    4.. Press the button and then press the button to select CHANGE.CODE. 5.. Use the 0–9 buttons to input a 4-digit password. • The default password is “0000”. • If you change the password, be sure to remember the new password! If you forget your password, press the master password “8899”...

  • Page 26: Reset

    Reset Restores all settings to factory defaults. 1.. Press the MENU button and then use the buttons to select the FUNCTION menu and then press the button. 2.. Press the buttons to select RESET and then press the OK button or the button.

  • Page 27: Customising The Tv Setting (Tv Mode)

    .Customising.the.TV.Setting.(TV.Mode) Country Allows you to select the country where you are using the TV. 1.. Press the MENU button and then use the buttons to select the TV menu and then press the button. 2.. Press the buttons to select COUNTRY. 3..

  • Page 28: Manual Tuning

    Manual.Tuning Allows you to make manual fine tuning adjustments if the channel reception is poor under TV mode. 1.. In the TV menu, press the buttons to select MANUAL.TUNING and then press the OK button or the button. 2.. Press the buttons to change the following settings.

  • Page 29: Customising The Tv Settings (Dtv Mode)

    To.Lock a.. Press the buttons to highlight a channel and then press the BLUE button. b.. Press the BLUE button again to unlock. To.Move a.. Press the buttons and then press the button to select a channel. b.. Press the buttons to move the selected channel.

  • Page 30: Manual Tuning

    Manual.Tuning Allows you to make manual fine tuning adjustments if the channel reception is poor under DTV mode. 1.. Press the MENU button and then use the buttons to select the DTV menu and then press the button. 2.. Press the buttons to select MANUAL.TUNING and then press the OK button or the button.

  • Page 31: Timer

    Timer Timer programming is only available when a USB storage device is connected. 1.. Press the MENU button and then use the buttons to select the DTV menu and then press the button. 2.. Press the buttons to select TIMER and then press the OK button or the button.

  • Page 32: Ci (Common Interface) (Dtv Mode)

    CI.(Common.Interface).(DTV.Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

  • Page 33: Customising The Tv Settings (Pc Mode)

    .Customising.the.TV.Settings.(PC.Mode) Allows you to adjust the PC desktop content. 1.. Press the MENU button and then use the buttons to select the PC menu and then press the button. 2.. Press the buttons to highlight an individual PC Position option. 3..

  • Page 34: Teletext (Tv Mode)

    .Teletext.(TV.Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. To.Turn.on.Teletext.Function •...

  • Page 35: Digital Teletext (Dtv Mode)

    .Digital.Teletext.(DTV.Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. The subtitle will temporarily auto off when digital teletext function is turned on. Teletext.within.Digital.Service 1.. In DTV mode, press the OK button to display the Channel List. Press the buttons to select a channel with a icon displayed.

  • Page 36: Using.the.features.via.usb.port

    Using.the.Features.via.USB.Port My.Album 1.. Press the SOURCE button and select DTV mode and then press the MEDIA button. 2.. Press the buttons and then press the OK button to select My.Album. 3.. Press the BLUE button to open the directory. Press the buttons to select your desired folder and then press the OK button to enter the folder.

  • Page 37: My Music

    My.Music 1.. Press the SOURCE button and select DTV mode and then press the MEDIA button. 2.. Press the buttons and then press the OK button to select My.Music. 3.. Press the buttons to navigate in the music folder. Select the music you want to play and then press the OK button to play it.

  • Page 38: My Recorder

    3.. If more than one USB storage device is connected, press the DISPLAY button to switch to the device type menu. Press the buttons to select the active device and then press the OK button to confirm. 4.. Press the buttons to navigate in the movie folder.

  • Page 39: Recording Device

    To.Play a.. In the Recorded List, press the buttons to select the recorded programme you want to view. b.. Press the GREEN button to preview the recorded programme and then press the OK button to play the selected programme. • If the selected programme was stopped before it had finished the last time you viewed it, the “DVR PLAY OPTION”...

  • Page 40: Recording Preference

    2.. Press the buttons to adjust the settings. Device.Type Indicates that a USB device is connected. Slot Select the active USB storage device connected to the USB hub slot (1 Partition Select the active partition (1 … max.15) on the selected USB device. 3..

  • Page 41: Dvr.(Digital.video.recorder)

    DVR.(Digital.Video.Recorder) .Time.Shift.Function This function allows the TV to automatically record live TV and make it available for viewing at any time. With the Time Shift Mode set to Auto or Pause, you may pause or rewind normal TV viewing at any time without missing any of the live broadcast.

  • Page 42: Recording Dtv Programme Onto A Usb Storage Device

    .Recording.DTV.Programme.onto.a.USB.Storage.Device Use this function to record the DTV programme you are watching on the main screen and save them for future viewing. You may use the DVR Time Shift function during recording to view the recorded programme instantly. Please refer to the section “Time Shift Function”...

  • Page 43: Timer Programming

    .Timer.Programming This function is used to perform scheduled recording. 1.. Press the EPG button on the remote control. The EPG menu will appear. 2.. Press the RED button on the remote control to enter the Timer Programming menu. Alternative 1.. You may press the MENU button and then use the buttons to select the DTV menu and then press the button.

  • Page 44: Using.the.dvd.features

    Using.the.DVD.Features .Using.the.Built-in.DVD.Player 1.. Press the SOURCE.button and select DVD mode. 2.. Insert a disc with label side facing backward to you. (CD-R, CD-RW, DVD-R, DVD-RW, CD, DVD+R, or DVD+RW). Allow 10 seconds for the player to load the disc. 3.. After the disc is inserted, Smart NAVl will show the content of the disc automatically.

  • Page 45: Basic Dvd Playback Functions

    .Basic.DVD.Playback.Functions Playing.the.DVD Depending on the disc, a menu may appear on the TV screΩen once the disc has loaded. When playing the disc, you may use the button to toggle between Play and Pause mode. This product also supports Menu / Title / Sequential / Program Playback. Menu.Playback.(for.DVD) For DVD discs, the screen will display the DVD Disc Menu (Root Menu).

  • Page 46: Info (For Dvd / Cd / Multimedia Discs)

    Info.(for.DVD./.CD./.Multimedia.discs) Press the INFO button to activate the on screen roll-down menu for the current Title, Chapter, Time and other information. For DVD discs, press the INFO button once to display the first page as shown below: Disc Type -/- (Current / Full) -/- (Current / Full) Elapsed disc time Title...

  • Page 47: Using The Dvd System Setup Page

    .Using.the.DVD.System.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the System.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description TV.SYSTEM...

  • Page 48: Using The Dvd Language Setup Page

    Option Description PASSWORD PASSWORD.MODE Select to change old password to new password. (Factory default is 0000) PASSWORD.CHANGE To change the password, you need to: Input old password. Input a new 4 digit password. Input the new password again to confirm. RATING RATING Allows the user to set a maximum rating level for a movie...

  • Page 49: Using The Dvd Audio Setup Page

    Option Description SUBTITLE.LANG SUBTITLE Select the Subtitle language. Not all DVD’s offer subtitles in multiple languages. MENU.LANG DISC.MENU Select the Disc Menu language. The default language is English. .Using.the.DVD.Audio.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the Audio.Setup menu, and the buttons to select the menu options.

  • Page 50: Using The Dvd Speaker Setup Page

    .Using.the.DVD.Speaker.Setup.Page In the DVD mode, press the DVD.SETUP button on the remote control. Press the buttons to select the Speaker.Setup menu, and the buttons to select the menu options. Press the DVD.Setup button to exit the menu. In Setup mode, the disc playback function will not be available. Option Description AUDIO.OUT...

  • Page 51: Maintenance

    Maintenance .Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the POWER.ON/OFF switch and disconnect the mains cable from the mains socket before you start any cleaning. 1.. Use a soft dry cloth to wipe away the dust from the screen and surfaces. 2..

  • Page 52: Hints.and.tips

    Hints.and.Tips .Hints.and.Tips The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our Customer Technical Services Centre. Tel: 0844.800.6020 (UK only) The.TV.does.not.operate.properly. • Check to see if there are any objects between the TV and the remote control causing an obstruction.
  • Page 53 There.is.a.problem.in.PC.mode. The.signal.is.out.of.range.(Invalid. • Adjust resolution, horizontal frequency, or vertical frequency. format) Vertical.bar.or.stripe.on.background. • Use Auto configure or adjust clock, phase, or H/V position. &.Horizontal.Noise.&.Incorrect. position Screen.colour.is.unstable.or.single. • Check the signal cable. colour • Reinstall the PC video card. The.DVD.function.does.not.work. • Check if the disc is correctly inserted. •...

  • Page 54: Display.modes

    Display.Modes .Display.Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr.Mode Resolution Vertical.Frequency.(Hz)

  • Page 55: Specification

    Specification .Specification L22DVDW10 Model L22DVDB20 Panel.System 21.6 inch LCD panel Display.Resolution 1360 pixels (horizontal) x 768 pixels (vertical) Television.System PAL I/BG/DK, SECAM L/BG/DK Brightness 230-300 cd/m Contrast.Ratio 600-800:1 Inputs/Output SCART. HDMI. PC.AUDIO S-VIDEO YPbPr VIDEO.IN.(RCA) AUDIO.IN.(RCA) 1 (L + R) COAXIAL RF.(75.Ω)

  • Page 56: Safety.warnings

    Safety.Warnings .Safety.Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit.
  • Page 57 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level.
  • Page 58 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement.Part Part.Number I.14.000000658 (L22DVDW10) Remote Control I.14.000000661 (L22DVDB20) Batteries (x2) E.17.101570001 AV Cable E.14.113150013 Mains Cable E.14.050150900 I.01.519771122 (L22DVDW10) TV Stand Support I.01.526226310 (L22DVDB20)
