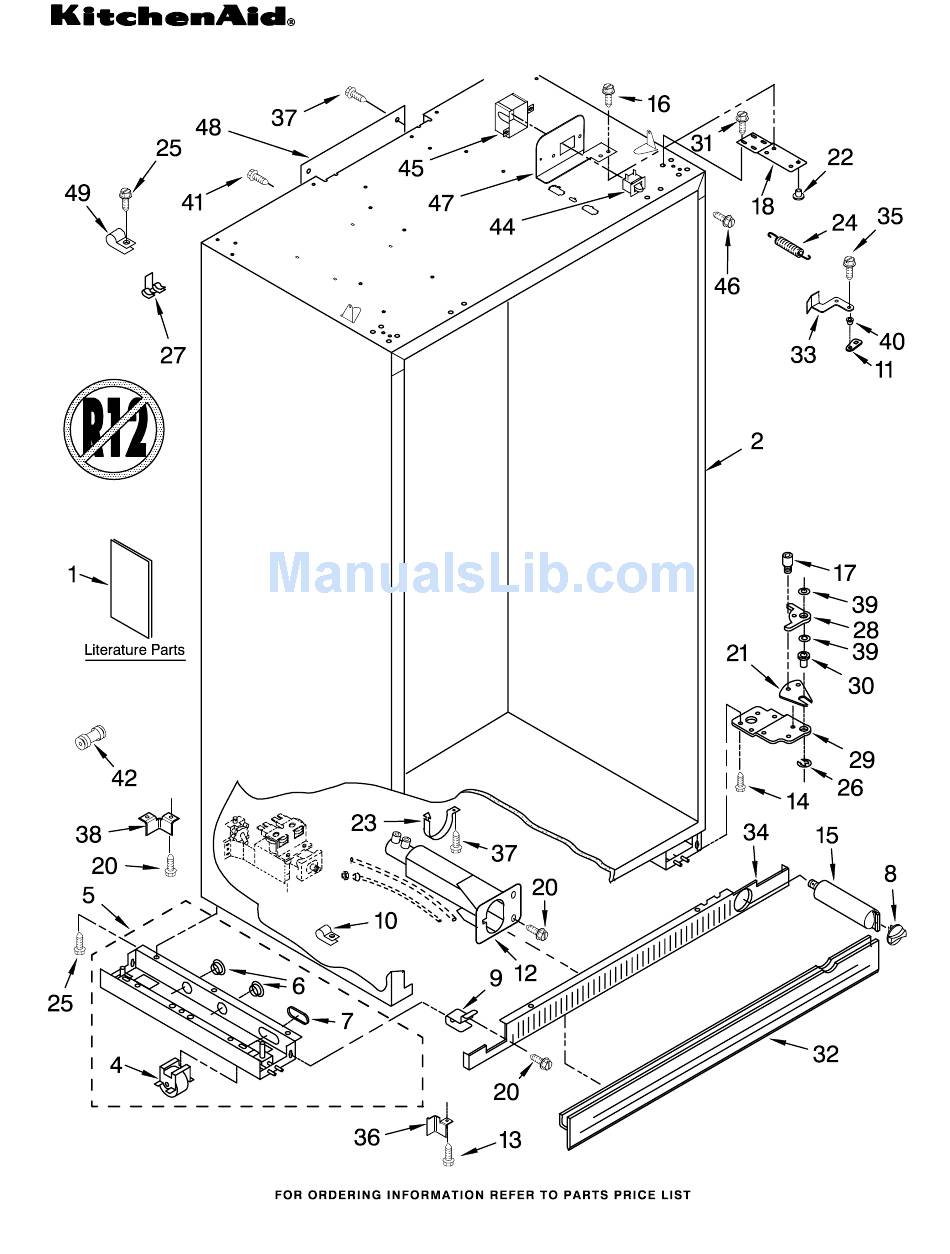

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 5−03 Litho In U.S.A. (ebk) Part No. 8198450...
-
Page 2: Cabinet Parts
For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 Illus. Part DESCRIPTION Literature Parts LIT2254714 Use & Care Guide LIT2221284 Energy Label LIT2254722 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet LIT2266877 Installation Instructions Cabinet (Not A Serviceable Part) 1112023 Roller, Front &... - Page 3 For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 8198450 CABINET TRIM PARTS (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919W White 2215919B Black 2215919T Biscuit 8201535 Etched Aluminum Screw 8281251 White 8281252 Black 8281253 Biscuit 8281250 Stainless Steel...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2220890 Solid Shelf 2220847 Front, Ice 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2220844 Trim, Basket 2208198 Right Side 2208197 Left Side 486194 Screw (White) (Etched Aluminum) -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2208970 Air Duct 2209204 Clip, Thermistor 2221211 Ladder, Shelf (2) 520965 Screw Support, 2006475 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air 2000337 Meat Pan, Air Duct...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 8198450 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2215716 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2003841 Retainer, Knob 2221121 Support, Control... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2215962W White 2215962B Black 2215962T Biscuit 8201577 Etched Aluminum 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 487415 Screw 2187429 Wire Assembly 2215678 Baffle−Air,...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179404 Rack, Wine 2221071 Egg Bin 2006524 Frame, Assembly 1113894 Cover, Crisper 2003379 Glass, Crisper...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003925 Deflector, 487294 Screw, Ground 2162085 Socket, Light (2)
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2003940 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2187421 Wiring Assembly, 489399 Screw...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2259181 Refrigerator 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, 1112533 Gasket Retainer, 1112541 Gasket Retainer, 2188498 Door Gasket, 2005953 White 2005956 Black 2005955 Biscuit...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 18 FREEZER DOOR PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2254749W White 2254749B Black 2254749T Biscuit 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 1112533 Gasket Retainer, 1112540 Gasket Retainer, 2188496 Door Gasket, 486194 Screw (34)
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2221203 Wire Assembly Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw...
- Page 21 UPPER UNIT PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450...
- Page 22 For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 Illus. Part DESCRIPTION 2209324 Inverter Box 489373 Screw, Compressor Mounting (4) 2208937 Compressor (Includes Items 6, 9 & 21) (Also Order 876765 Tube Kit) 2257354 Housing, Control Board 2215641 Bracket, Fan Motor 1100826 Grommet, Mounting...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) Illus. Part 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2257363 Tube, Transition 2209454 Tube, Connect 2209451 Heater, Drain Pan...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 (Black) (Biscuit) (White) (Etched Aluminum) 8198450... - Page 26 For Models: KSSS42QKB02, KSSS42QKT02, KSSS42QKW02, KSSS42QKX02 Illus. Part DESCRIPTION 2221240 Heater, Fill Tube 2221231 Heat Shield 2254792 Wire Assembly, Icemaker 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2221140 Water Inlet Tube Assembly 1106508 Seal Gasket 2254800 Tube, Filter Outlet 2221221 Valve, Solenoid...
