- Page 1 CABINET PARTS 42" BUILT IN 42" BUILT IN REFRIGERATOR REFRIGERATOR For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) 12−07 Litho In U.S.A. (mat) Part No. W10136389 Rev. B...
-
Page 2: Cabinet Parts

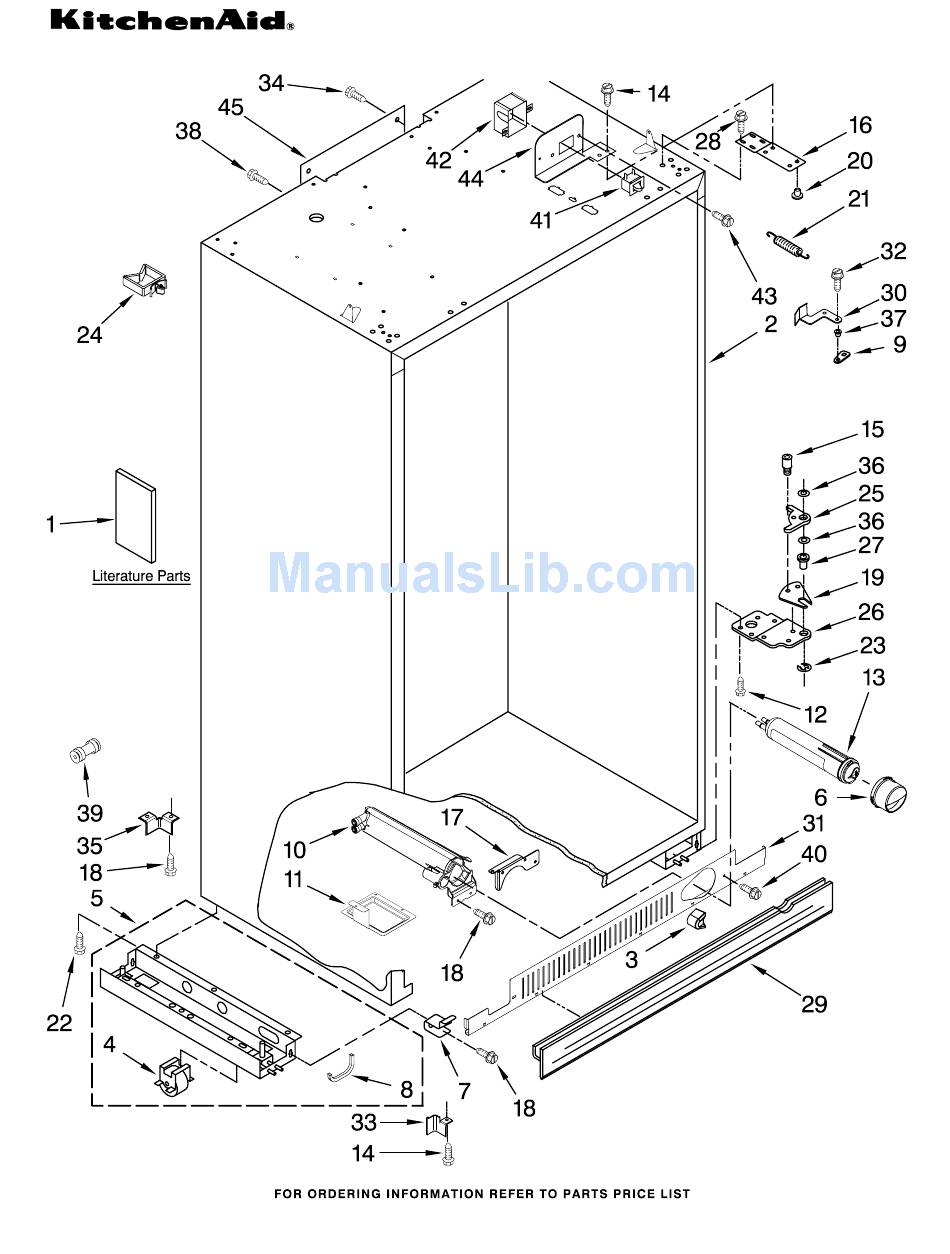

CABINET PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Grille Bottom, Literature Parts 2318189 Tray, Drip Filter 2316571 Use & Care Guide 3400525 Screw Front 4396841 Filter, Water 2325185W White 2316573 Energy Guide 489399 Screw 2325185B Black... - Page 3 CABINET TRIM PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132470 White W10132471 Black W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316687 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2314017W White 2314017B Black 2314017 Brushed Aluminum Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10136389... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2320635 Baffle Control...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316545 Control Box 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Panel, Decorative Assembly 2316825W White 2316825B Black 2316825S Stainless Steel 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2302842 Assembly, Meat Pan Cover 2302835 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2302831 Trim, Glass Front...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor 2220904 Gasket (2) 2215650 Cover, Emitter Evaporator Cover 2198665 Tube, P.C. Board Liner (Not A 2259493 Cover, Receiver 2169142 Fan Blade Serviceable Part)
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222965 Ice Bin 2222964 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252330 Refrigerator Door (Includes #8) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gaasket, Utility 2222811 Door Gasket, Magnetic Handle, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 18 FREEZER DOOR PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #13) W10130858 White W10130857 Black W10130859 Universal Silver 2304896 Safety Barrier 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic Handle, Door...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 8281163 Screw 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly...
- Page 21 UPPER UNIT PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389...
- Page 22 UPPER UNIT PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2317982 Drier 2259350 Power Supply, 489373 Screw, Compressor 2215641 Bracket, Fan Motor Ingredient Care Mounting (4) (Condenser Fan) Center 2206036 Motor, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215648 Damper, Heater 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 9 W10121371 Tube, Discharge 2188820 Thermistor 2306093 Evaporator...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) W10136389... - Page 26 ICEMAKER PARTS For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Motor, (Not 489136 Screw (2) 2320601 Shield, Valve 489464 Screw Serviceable Order 2310191 Wire Assembly, 486194 Screw Item 28) Icemaker 2252228 Bracket, Icemaker 628356 Cup−Water Fill 628379 Clip, Fuse...
