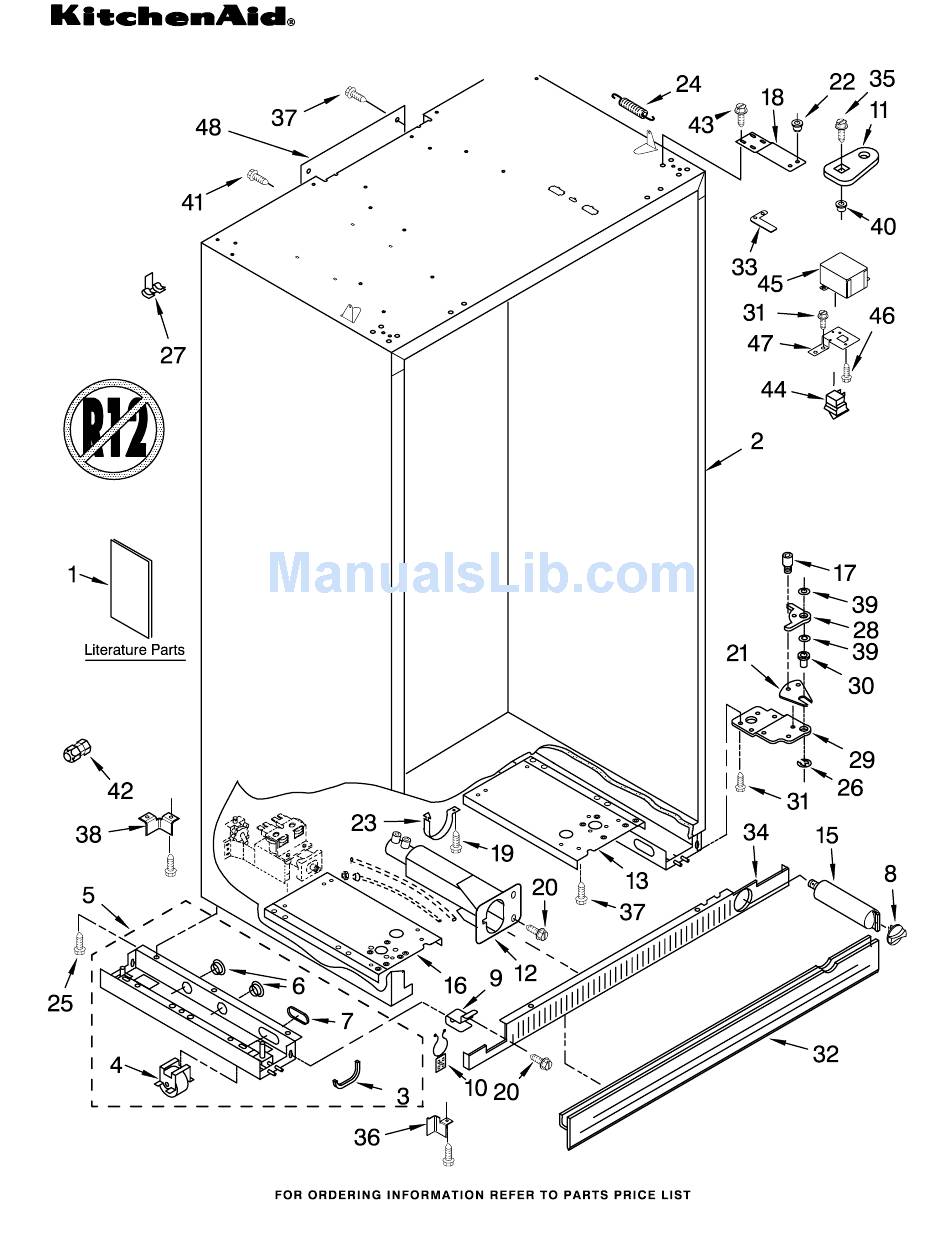

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 5−03 Litho In U.S.A. (rcg) Part No. 8197677...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005783 Cam, Door Closer Literature Parts 8201584 Extension Arm, 2209022 Housing, Water LIT2215850 Use & Care Guide Door Closer Filter LIT2221056 Energy Label Grille Bottom,... - Page 3 CABINET TRIM PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919W White 2215919B Black 2215919T Biscuit 8201535 Etched Aluminum 2003857 Screw Screw 8281251 White 8281252 Black 8281253 Biscuit 8281250 Stainless Steel 2209074 Cabinet, Trim (Bottom) 486194 Screw...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2220890 Solid Shelf 2220847 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2220844 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 8197677... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2208975 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2215716 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2215941 Control Box Wire Harness 2003841 Retainer, Knob 2162085 Socket, Light (2) 2160708 Light Bulb (2) 486194 Screw 2221066 Overlay... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2215962W White 2215962B Black 2215962T Biscuit 8201577 Etched Aluminum 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 487415 Screw 2220808 Wire Assembly...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006524 Frame, Assembly Meat Pan 1113894 Cover, Crisper 2003379 Glass, Crisper (Includes #9)
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2003940 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2209120 Wiring Assembly, Ice Dispenser 489399 Screw...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2215988 Refrigerator Door Panel (Includes Insulation) 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top &...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 18 FREEZER DOOR PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2215658W White 2215658B Black 2215658T Biscuit 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2202585 Wire Assembly Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw Lever, Ice...
- Page 21 UPPER UNIT PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677...
- Page 22 UPPER UNIT PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209324 Inverter Box 487869 Screw Following Parts Not Illustrated 489373 Screw, Compressor 2209062 Condenser Mounting (4) and Optional Parts Not Included 943447 Grommet (4) 2208937 Compressor 2221009 Wire, Jumper...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197677... - Page 26 ICEMAKER PARTS For Models: KSSS42QKB00, KSSS42QKT00, KSSS42QKW00, KSSS42QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489322 Screw 488937 Clamp Tube 841707 Insert, Tube 489276 Screw 2174155 Cover 628379 Clip, Fuse 2171593 Shut Off Arm 628228 Mold &...
