ASL INTERCOM PS 6379 Mk2 User Manual page 9

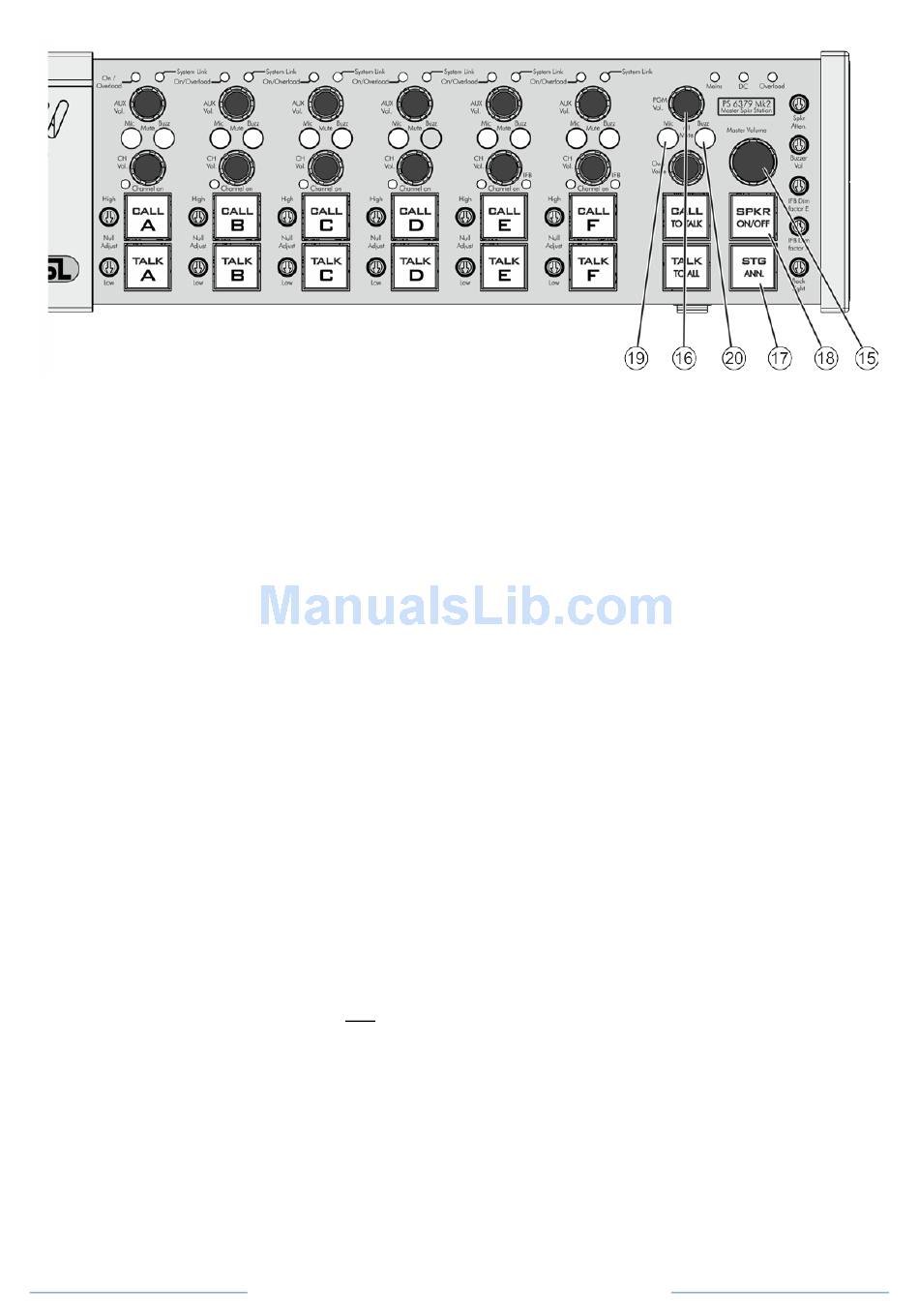

15 MASTER VOLUME knob
By turning this knob one adjusts the volume of the
sum of all intercom signals as heard in the
loudspeaker and/or headset. This knob may also
adjust the master volume control for both the
intercom and the PGM (Program Audio) signals,
depending on the position of jumpers #44.
16 PGM VOLUME
By turning this knob one adjusts the listen volume
of the PGM input. The signal of the PGM input can
only be heard on the speaker and/or headset of
the PS 6379 Mk2 and does not appear on the
intercom lines.
If a TALK button is pushed and the speaker is On,
the speaker is automatically attenuated. This
diminishes the effect that the PGM signal goes
from the speaker into the microphone).
The position of jumpers #44 determine whether
the program audio listen level is also controlled by
the Master Volume knob (#15).
17 STAGE ANNOUNCE button
By pushing this button the microphone signal is
directly routed to the line level output at the rear
panel. The microphone signal (the 'Announce') is
not sent to the intercom channels. Whilst the
Stage Announce button is kept pushed, the
channel TALK buttons are disabled (the built-in
LEDs extinguish if they were lit before) and the
speaker is automatically switched off. To achieve
that the speaker is not automatically being
switched off, the position of a certain DIP switch
has to be changed. See section 11.0 DIP switch
D).
User Manual PS 6379 Mk2 / October 2013 © ASL Intercom BV
18 SPEAKER ON/OFF button
With this button the loudspeaker can be switched
on or off. The LED in the button is lit when the
speaker is switched on. As soon as a headset is
plugged in, the speaker is automatically disabled
(if it was enabled before). By pushing the speaker
on/off button, the speaker is enabled again and
the audio can be heard over both the speaker and
the headset. When unplugging the headset, the
speaker setting (on or off) is as before the headset
was plugged in.
19 ALL MICS MUTE button
By pushing this button the TALK buttons of the PS
6379 MK2 and the TALK buttons of the connected
remote stations are disabled
(if they were previously enabled). After the ALL
MICS MUTE button is being pushed, it is lit for a
few seconds. Also all channel MIC MUTE buttons
(#7) are lit for a few seconds.
Disabled TALK buttons (on the PS 6379 MK2 or
on a connected remote intercom station) can be
enabled again by pushing them.
20 ALL BUZZERS MUTE button
By pushing this button the buzzers of the
connected stations and of the PS 6379 Mk2 can
be muted. After being pushed, all channel Buzzer
Mute buttons (#8) are lit. The buzzers remain
being muted until the ALL BUZZER MUTE button
is switched off again (the buzzer mute status is
abolished). The channel Buzzer Mute buttons
return to their previous status (the ones which
were lit before the ALL BUZZER MUTE button
was pushed remain being lit)
