- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) 11−07 Litho In U.S.A. (mat) Part No. W10177759 Rev. A...
-
Page 2: Cabinet Parts

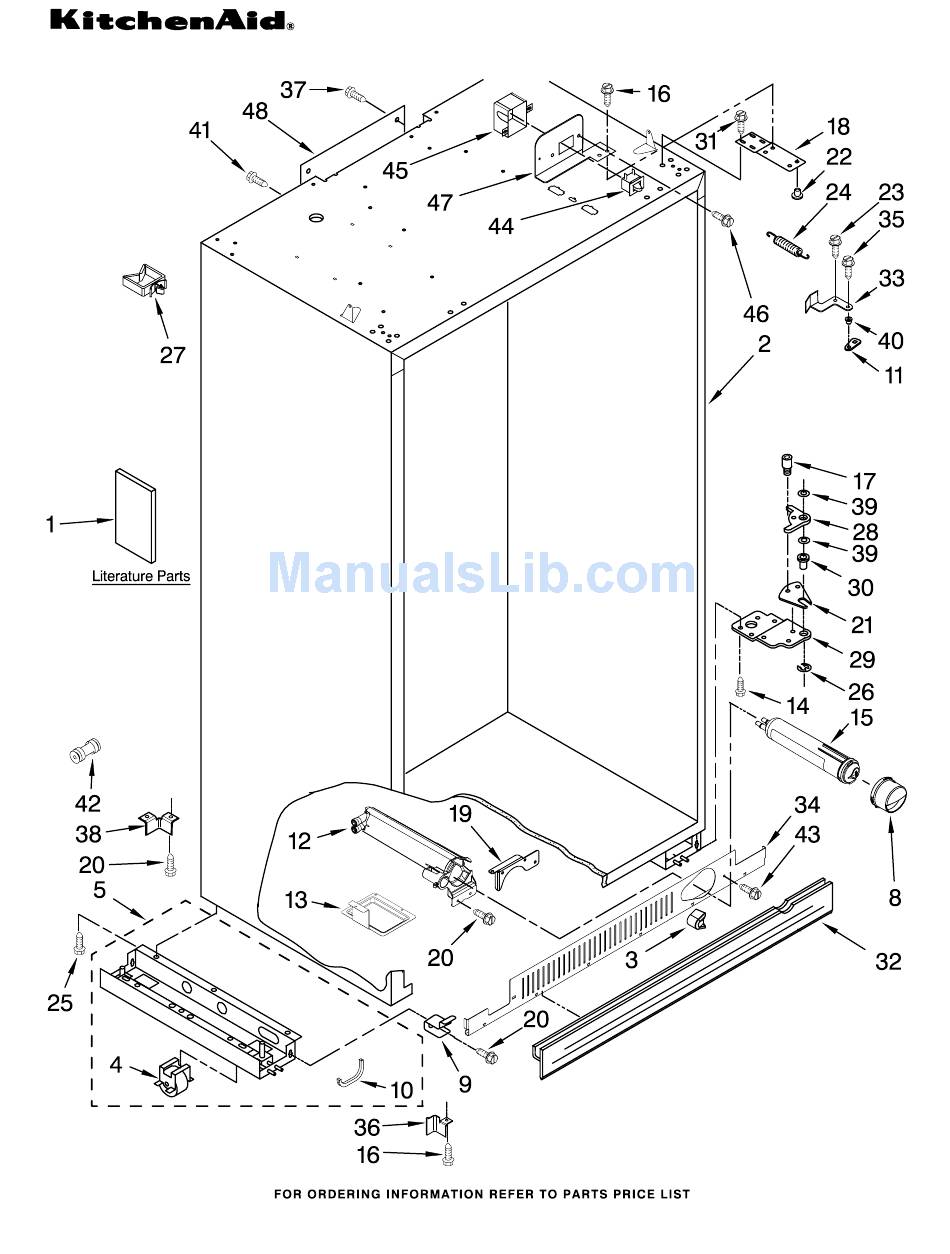

2005783 Cam, Door Closer 2260526 Housing, Water Filter 2318189 Tray, Drip Filter 3400525 Screw 4396841 Filter, Water 489399 Screw CABINET PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 3400230 Screw, Door Stop Hinge (Top) 2252292B RC, Black... - Page 3 W10177759 CABINET TRIM PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132410 Black W10132411 Stainless Steel Screw 1163283 Stainless Steel 2316688 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2313962B Black 2313962S Stainless Steel...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302869 Wire, Shelf (4) 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10177759... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10177759 For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316546 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part 2313979B Black 2313979S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 489348 Clamp...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly (4) 2179404 Rack, Wine 2302843 Assembly, Meat Pan Cover 2302836 Assembly, Crisper Cover 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759...
- Page 12 489214 Screw 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2307775 Air Duct 2198643 Lens Block, Fan Scroll 2209482 Right 2209066 Left For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215650 Cover, Emitter Liner (Not A Serviceable Part) 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part 2222970 Ice Bin 2 W10134777 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2)
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) Hinge Assy, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom 489282 Screw Hinge Assy, Btm 2252293B Black 2252293 Chrome...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759... - Page 18 FREEZER DOOR PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #7) W10160329 Black W10160330 Universal Silver 2304896 Saftey Barrier Hinge, Bottom 2252294B Black 2252294 Chrome 489282 Screw Hinge, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759... - Page 20 DISPENSER FRONT PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2)
- Page 21 UPPER UNIT PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759...
- Page 22 486194 Screw 1157158 Screw 2307998 Condenser 2309431 Grommet (2) 2310207 Wire, Jumper 489399 Screw 2155774 Wire Tie UPPER UNIT PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2317982 Drier 22 W10136614 Bracket, Fan Motor (Condenser Fan) 2188875 Motor, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) W10177759...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO48QTB02, KSSO48QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 1 W10160981 Bracket Assembly, Air Return 486194 Screw 3 W10157752 Bracket, Heater Mounting 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring...
-
Page 25: Icemaker Parts
