KitchenAid KSSO48QTB - 48" - Refrigerator Parts Manual

KitchenAid KSSO48QTB - 48" - Refrigerator Parts Manual

48" built in refrigerator
Hide thumbs Also See for KSSO48QTB - 48" - Refrigerator:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual , Instruction and Installation Manual
CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Models: KSSO48QTB00, KSSO48QTX00
(Black) (Etched Aluminum)
Part No. W10136978 Rev. B
10−07 Litho in U.S.A. (dmm)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSO48QTB - 48" - Refrigerator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSO48QTB - 48" - Refrigerator

Summary of Contents for KitchenAid KSSO48QTB - 48" - Refrigerator

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Part No. W10136978 Rev. B 10−07 Litho in U.S.A. (dmm)

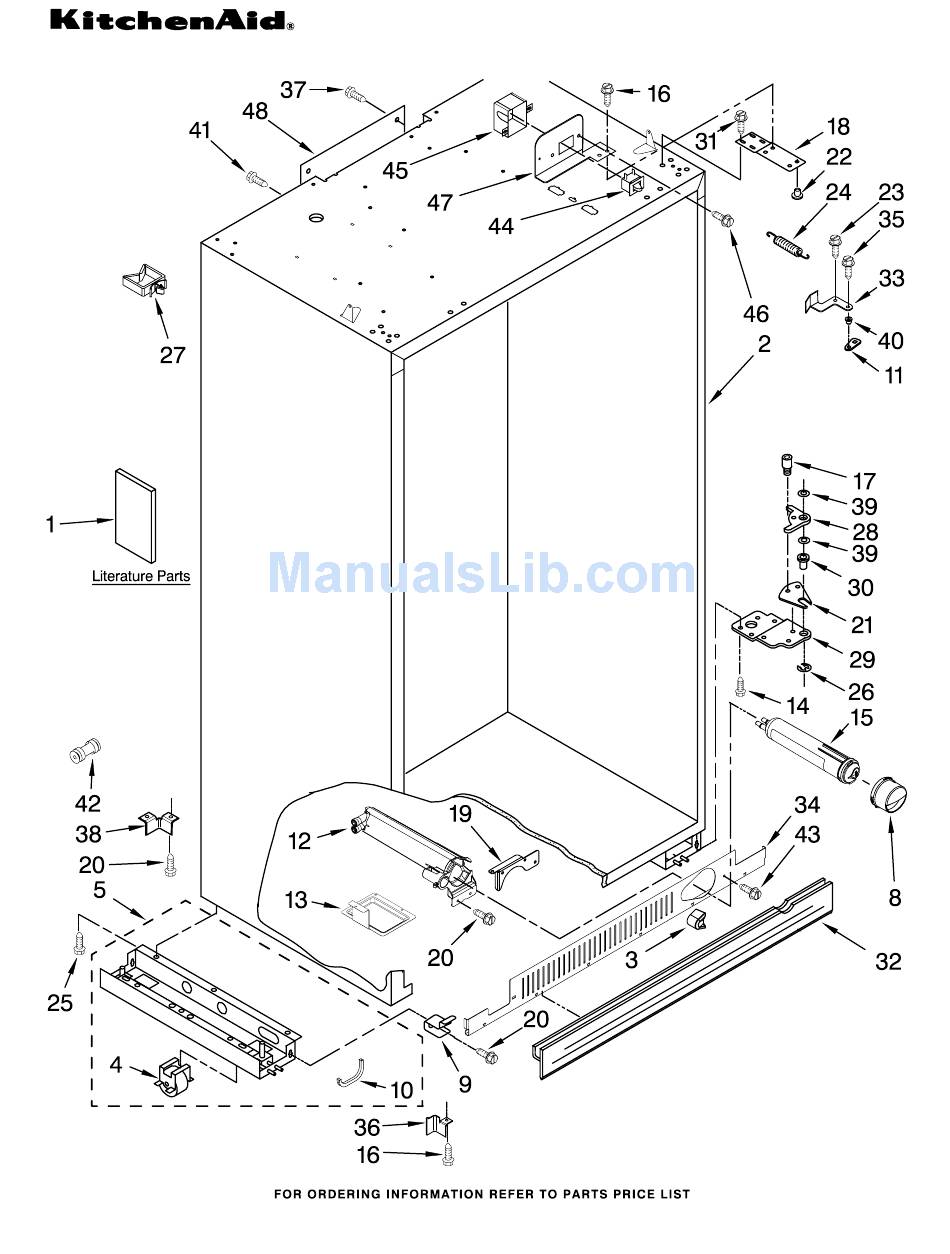

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 4396841 Filter, Water Extension Arm, 2316571 Use & Care Guide 489399 Screw Door Closer 2316574 Energy Guide 3400230 Screw, Door Stop 2267192B Right, Black 2316566 Service &...
  • Page 3 CABINET TRIM PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132410 Black W10132411 Stainless Steel Screw 1163283 Stainless Steel 2316688 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2313962B Black 2313962S Stainless Steel Cabinet Trim (Left Side) W10132415 Black...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302869 Wire, Shelf (4) 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10136978...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2320635 Baffle Control Assembly...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316546 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10136978...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Panel, Decorative Assembly 2313979B Black 2313979S Stainless Steel 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 489348 Clamp 1161548 Nut...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly (4) 2179404 Rack, Wine 2302843 Assembly, Meat Pan Cover 2302836 Assembly, Crisper Cover 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side Trim, Glass Front...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2215650 Cover, Emitter 2259385 Fan Motor 2220904 Gasket (2) Liner (Not A 2198665 Tube, P.C. Board Evaporator Cover Serviceable Part) 2169142 Fan Blade 2259493 Cover, Receiver...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222970 Ice Bin 2222969 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) Hinge Assy, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom 489282 Screw Hinge Assy, Btm 2252293B Black 2252293 Chrome 2222797 Rail, Lid 2222983 Gaasket, Utility 2222812 Door Gasket,...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 18 FREEZER DOOR PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #7) W10130867 Black W10130868 Universal Silver 2304896 Saftey Barrier Hinge, Bottom 2252294B Black 2252294 Chrome 489282 Screw Hinge, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top &...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly...
  • Page 21 UPPER UNIT PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 22 UPPER UNIT PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2259350 Power Supply, 2155774 Wire Tie 489373 Screw, Compressor Ingredient Care 2317982 Drier Mounting (4) Center 2215641 Bracket, Fan Motor 2302967 Compressor (Condenser Fan) (Includes Items...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215648 Damper, Heater 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 9 W10121374 Tube, Discharge 2188820 Thermistor 2306094 Evaporator 2306389 Heater, Defrost...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) W10136978...
  • Page 26 ICEMAKER PARTS For Models: KSSO48QTB00, KSSO48QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 W10122527 Mold & Heater 489136 Screw (2) 2320601 Shield, Valve (Also Order 489464 Screw 2310191 Wire Assembly, 542638 Silicone 486194 Screw Icemaker Grease) 2252228 Bracket, Icemaker...

This manual is also suitable for:

Ksso48qtb00Ksso48qtx00
