KitchenAid KSSO48FMX00 Parts List

Etched aluminum 48" built in refrigerator
Hide thumbs Also See for KSSO48FMX00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual
CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSO48FMX00
(Etched Aluminum)
Part No. 8198507
1−04 Litho In U.S.A. (mek)
1

Advertisement

Table of Contents
loading

Related Manuals for KitchenAid KSSO48FMX00

Summary of Contents for KitchenAid KSSO48FMX00

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSO48FMX00 (Etched Aluminum) Part No. 8198507 1−04 Litho In U.S.A. (mek)

  • Page 2: Cabinet Parts

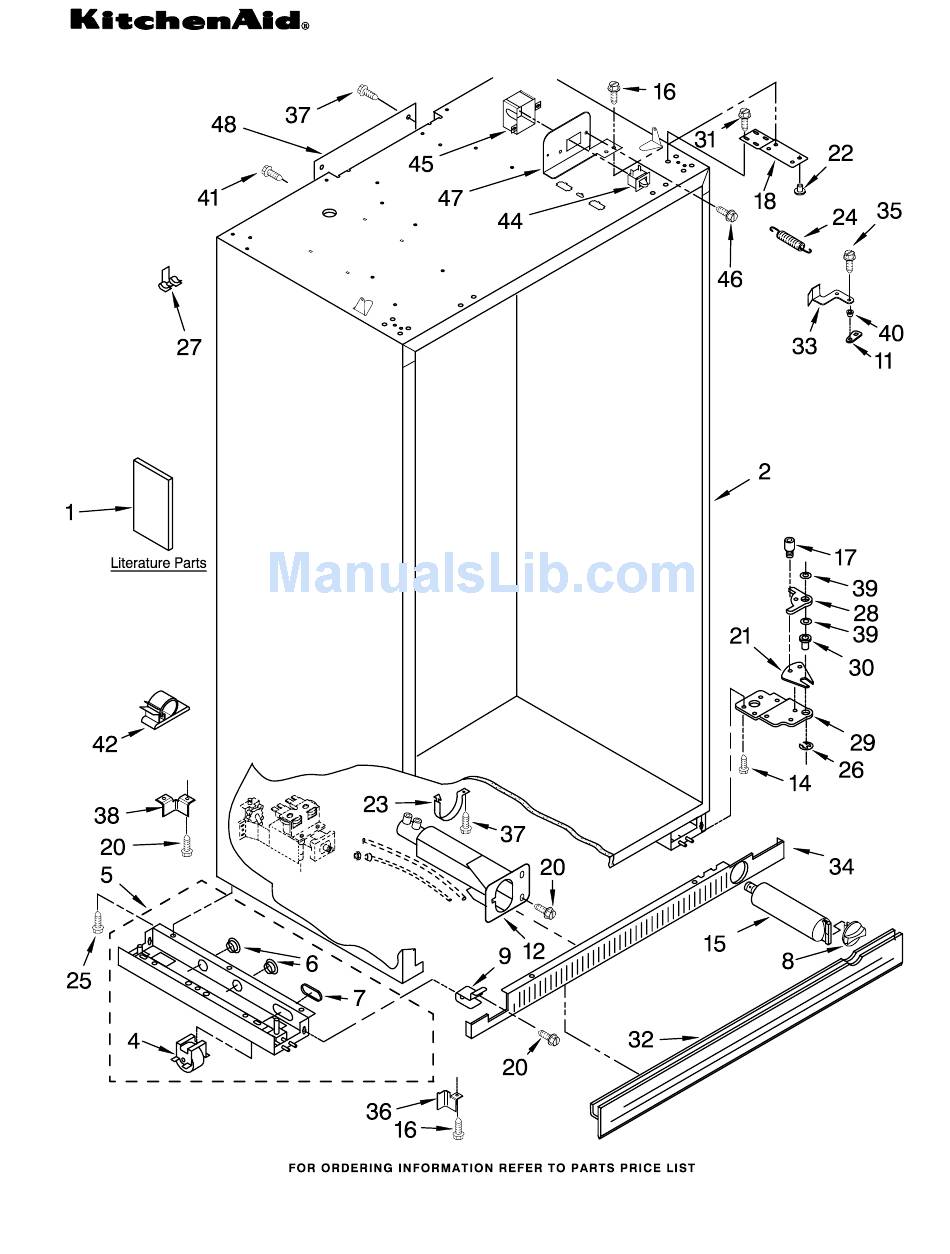

    Flexible Cap, Water Filter 2186494B Black 2006442 Mounting Stud, Grill 2005783 Cam, Door Closer 2209022 Housing, Water Filter CABINET PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 3400525 Screw 2255709 Filter, Water 489399 Screw 3400230 Screw, Door Stop 2257644 Hinge (Top)
  • Page 3 8198507 CABINET TRIM PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688X Etched Aluminum Screw 8281250 Stainless Steel 2254726 Cabinet, Trim (Bottom) 486194 Screw 2257368 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689X Etched Aluminum 2005925 Seal−Trim, Side...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2256206 Wire, Shelf 2266955 Spacer, Ice Door 2259004 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266935 Door, Ice...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid, Meat Pan Baffle...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS 8198507 For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 8201533 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel Control Meat Pan 2221121 Support, Control 489006 Screw (2) 2252067 Touch Pad, Meat...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part 2259424X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2259095 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2215910 Grommet, Flexible 489348 Clamp 2259436X Trim−Grille, 2259420X Trim−Grille,...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2256278 Glass, Meat Pan Cover 2256428 Glass, Crisper Cover 2257611 Trim, Glass Rear Side 2169935 Cover 2257583 Trim, Glass Rear...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 12 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2255743 Light Bulb 2302777 Seal−Light, Socket 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2259020 Air Duct For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION Block, Fan Scroll 2209482 Right 2209066 Left...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket, Magnetic Trim, Door...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 16 FREEZER DOOR PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252328 Freezer Door Panel (Includes Item #14) 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic Cover, Screw (Handle Side) 2259448X Etched Aluminum Trim, Door...
  • Page 17 UPPER UNIT PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 18 2256328 Bracket, Inverter 8281149 Screw 1157158 Screw 2259307 Condenser 943447 Grommet (4) 2187679 Wire, Jumper 487522 Screw UPPER UNIT PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 857547 Wire Tie (2) 2252363 Drier 2206036 Motor, Fan 2190685 Blade, Fan...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259354 Tube, Discharge...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Model: KSSO48FMX00 (Etched Aluminum) 8198507...
  • Page 22 2254800 Tube, Filter Outlet 2254709 Valve, Solenoid 489115 Fastener, Snap−In 2221070 Clamp, Tube 2221231 Shield, Heat Cover PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSO48FMX00 (Etched Aluminum) Illus. Part DESCRIPTION 2208136 Clamp, Nylon Valve 488937 Clamp Tube 2221240 Heater, Fill Tube 2257538 Cover 628228 Mold &...
