KitchenAid KSSO48QMB00 Parts List

KitchenAid KSSO48QMB00 Parts List

42" built in refrigerator
Hide thumbs Also See for KSSO48QMB00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Instruction and Installation Manual
CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Models: KSSO48QMW00, KSSO48QMB00
(White)
(Black)
Part No. 8198483
1−04 Litho In U.S.A. (mek)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSO48QMB00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSO48QMB00

Summary of Contents for KitchenAid KSSO48QMB00

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Part No. 8198483 1−04 Litho In U.S.A. (mek)

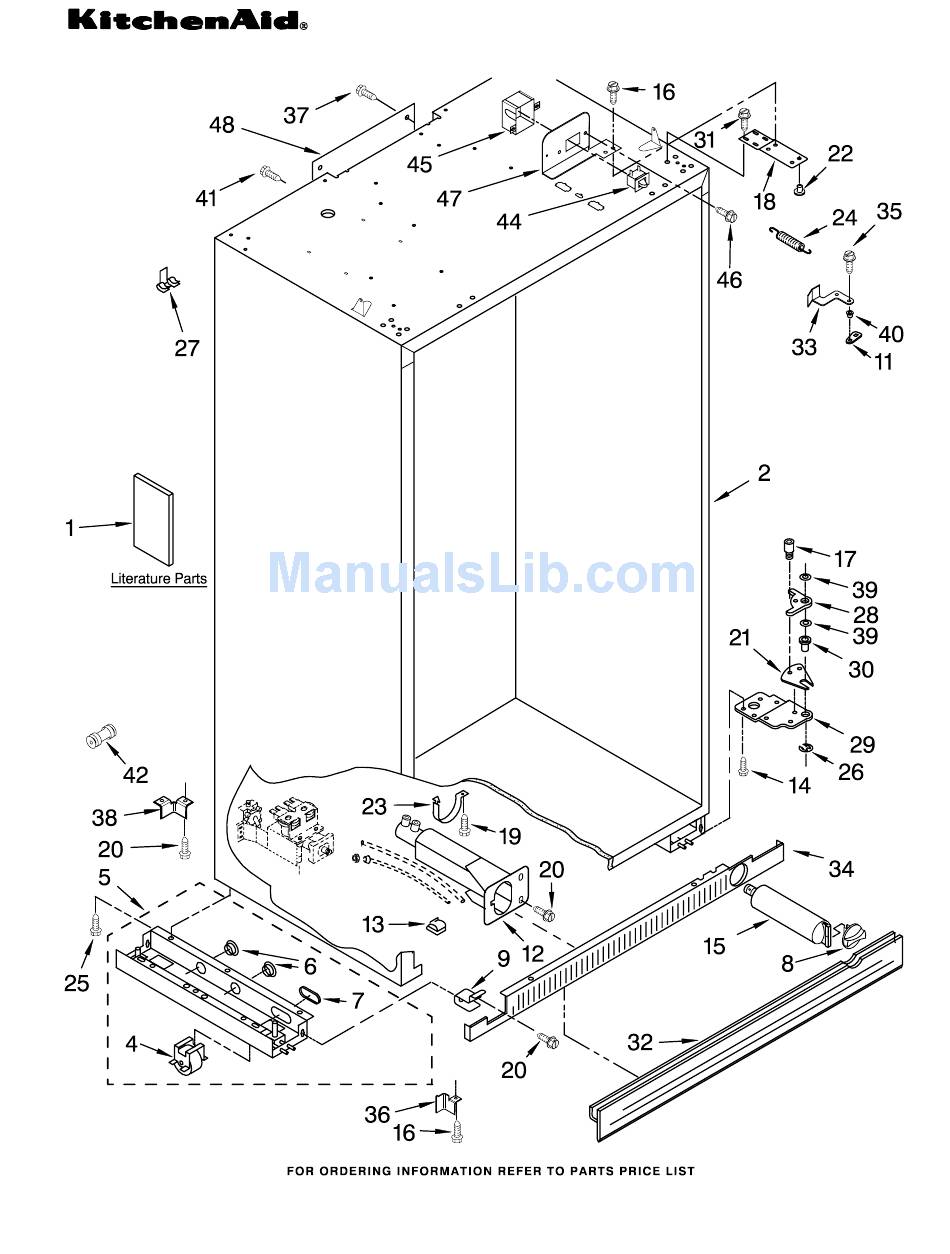

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Extension Arm, Literature Parts 2255709 Filter, Water Door Closer 489399 Screw LIT2266808 Use & Care Guide 2221095 Right LIT2266815 Energy Label 3400230 Screw, Door Stop 2221094 Left LIT2266827 Service &...
  • Page 3 CABINET TRIM PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688W White 2257688B Black Screw 8281252 Black 8281251 White 2254726 Cabinet, Trim (Bottom) 486194 Screw 2257368 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689W White 2257689B Black 2005925 Seal−Trim, Side 489464 Screw...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION 2256206 Wire, Shelf 2259004 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 8198483...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid, Meat Pan Baffle 2257526 Baffle, Control Assembly...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION 8201533 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel Control Meat Pan 2221121 Support, Control 489006 Screw (2) 2252067 Touch Pad, Meat 2252068 Display Board, Temperature Controlled Pan...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2187429 Wire Assembly Grille−Trim. Top Grille Left Side RC/FC Light Switch Assembly 2259421B Black 489348 Clamp 2259424B Black 2259421W White 2221297 Enclosure, 2259424W White Connector...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2256278 Glass, Meat Pan Cover 2256428 Glass, Crisper Cover 2257611 Trim, Glass Rear Side 2169935 Cover 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2256245 Left Side...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor Liner (Not A 2220241 Insulation (4) 2198665 Tube, P.C. Board Serviceable Part) 2213442 Thermistor 2169142 Fan Blade 2259025 Cover, Air Outlet 2209204 Clip, Thermistor 2155590 Retainer,...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION 2222970 Ice Bin 2222969 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gasket, Utility 2222812 Door Gasket, Magnetic Trim, Door (Handle Side) 2259040B Black...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 18 FREEZER DOOR PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2252325W White 2252325B Black 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic Trim, Door (Handle Side) 2259041B Black 2259041W White Cover, Screw...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187523 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw Lever, Ice Dispenser...
  • Page 21 UPPER UNIT PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 22 UPPER UNIT PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2252363 Drier 2221559 Inverter Box 2206036 Motor, Fan 489373 Screw, Compressor Following Parts Not Illustrated 2190685 Blade, Fan Mounting (4) 2003169 Orifice, Fan and Optional Parts Not Included 2223393 Compressor 2259302 Tube, Drier...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259354 Tube, Discharge 2216113 Thermistor 2257639 Clip, Thermistor 2259031 Evaporator...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) 8198483...
  • Page 26 ICEMAKER PARTS For Models: KSSO48QMW00, KSSO48QMB00 (White) (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2300104 Cover, Bottom 628397 Thermostat 2208136 Clamp, Nylon Electrical (Also Order Valve 2187716 Wire Assembly, 488937 Clamp Tube 542639 Cement Icemaker 2259417 Tube, Water Inlet Alumilastic) 628379 Clip, Fuse 489322 Screw...

This manual is also suitable for:

Ksso48qmw00
