- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) 11−07 Litho In U.S.A. (mat) Part No. W10177762 Rev. A...
-

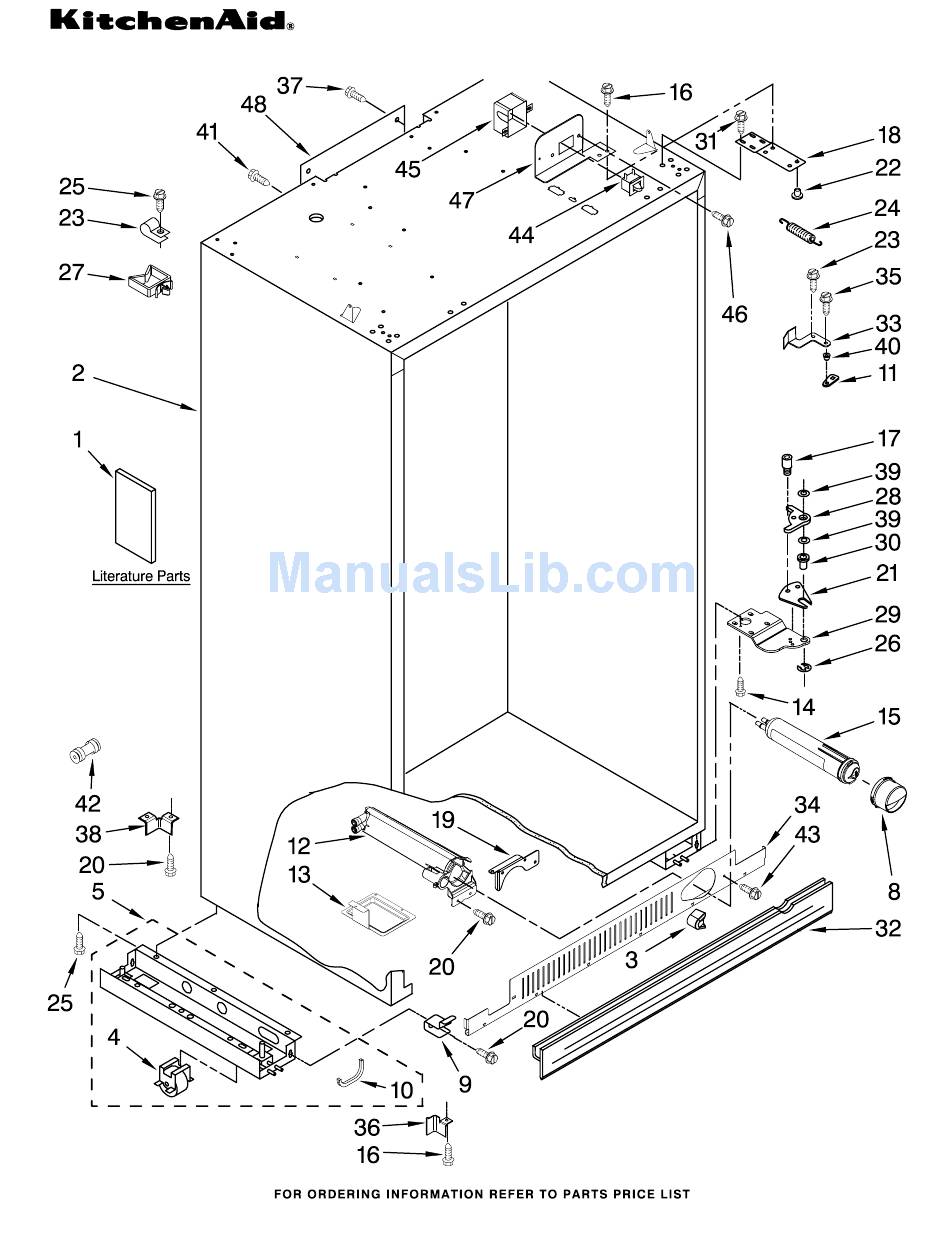

Page 2: Cabinet Parts
2005783 Cam, Door Closer 2260526 Housing, Water Filter 2318189 Tray, Drip Filter 3400525 Screw 4396841 Filter, Water 489399 Screw CABINET PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 3400230 Screw, Door Stop Hinge (Top) 2252292B RC, Black... - Page 3 W10177762 CABINET TRIM PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132410 Black W10132411 Stainless Steel 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2313961B Black 2313961S Stainless Steel Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10177762... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2003577 Guard, Air Return 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10177762 For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316545 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part 2313978B Black 2313978S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 489348 Clamp...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2302842 Assembly, Meat Pan Cover 2302835 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762...
- Page 12 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2307774 Air Duct 2198643 Lens Block, Fan Scroll 2209480 Right 2209066 Left 2215650 Cover, Emitter For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part 2222965 Ice Bin 2 W10134774 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2)
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Item #9) Trim, Screw Cover (Handle Side) 2314003B Black 2314003S Stainless Steel Hinge Assy, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 18 FREEZER DOOR PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #14) W10160327 Black W10160328 Universal Silver Hinge, Bottom 2252294B Black 2252294 Chrome 489282 Screw Hinge, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 20 DISPENSER FRONT PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2)
- Page 21 UPPER UNIT PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762...
- Page 22 1157158 Screw 2307998 Condenser 2309431 Grommet (2) 2310207 Wire, Jumper 489399 Screw 2155774 Wire Tie 2317982 Drier UPPER UNIT PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 22 W10136614 Bracket, Fan Motor (Condenser Fan) 2188875 Motor, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 1 W10160981 Bracket Assembly, Air Return 486194 Screw 3 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) W10177762... - Page 26 Valve 2302756 Tube, Water Inlet 2257538 Cover 488500 Screw 20 W10122527 Mold & Heater (Also Order 542638 Silicone Grease) ICEMAKER PARTS For Models: KSSO42QTB02, KSSO42QTX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Motor, (Not Serviceable Order Item 32) 628356 Cup−Water Fill...
