Summary of Contents for KitchenAid KSSO42QMB02

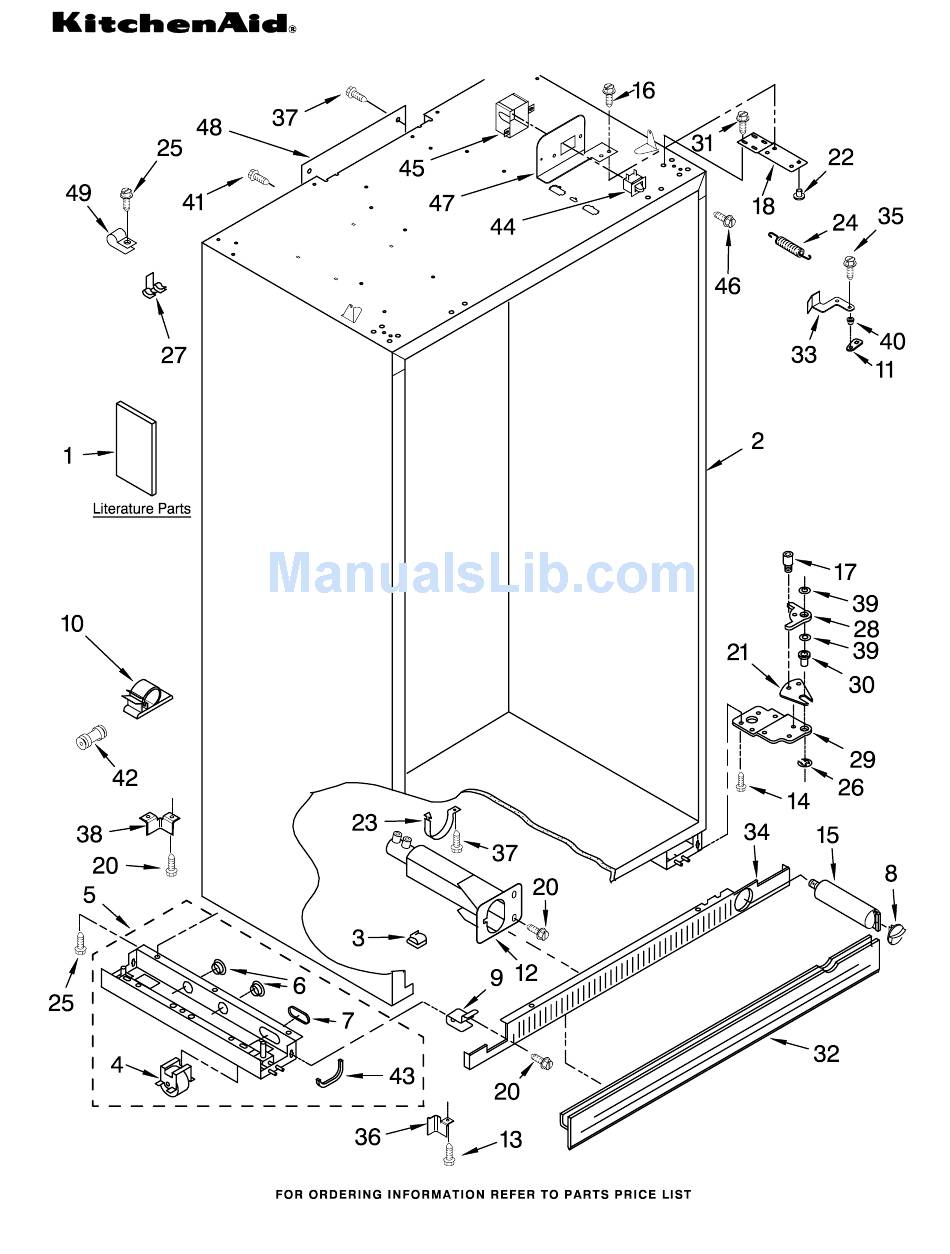

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 11−05 Litho In U.S.A. (mek) Part No. 8214581...
-
Page 2: Cabinet Parts
2186494B Black 2006442 Mounting Stud, Grill 2004514 Clamp, Tube 2005783 Cam, Door Closer 2209022 Housing, Water Filter 488500 Screw CABINET PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 3400525 Screw 2255709 Filter, Water 489399 Screw 3400230 Screw, Door Stop... - Page 3 8214581 CABINET TRIM PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688B Black 2257688X Etched Aluminum Screw 8281252 Black 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw 2313992 Cabinet, Trim Top Cabinet Trim...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Solid Shelf 2302883 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 8214581... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid Baffle,...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS 8214581 For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302772 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2221121 Support, Control 489006 Screw 2306086 Display Board, Ingredient Care Center... - Page 8 Right Side 2259420B Black 2259420X Etched Aluminum Trim−Grille, Left Side 2259421B Black 2259421X Etched Aluminum 1161548 Nut 2003347 Screw Trim−Grille, Top 2259441B Black 2259441X Etched Aluminum Trim−Grille, Bottom 2259435B Black 2259435X Etched Aluminum For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2256250 Trim, Side Glass Meat Pan 2179404 Rack, Wine 2221071 Egg Bin 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257611 Trim, Glass 2169935 Cover...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581...
- Page 12 2259465 Wedge, Air Duct 2302925 Bracket, Vent Tube 2306046 Air Duct 2198643 Lens Block, Fan Scroll 2209480 Right 2209066 Left 2215650 Cover, Emitter For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2302932 Tube, Vent...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) Illus. Part 2222965 Ice Bin 2222964 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 16 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Trim, Screw Cover (Hinge Side) 2259448B Black 2259448X Etched Aluminum...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 18 FREEZER DOOR PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) L2307844B Black Trim, Screw Cover (Handle Side) 2259365B Black 2259365X Etched Aluminum 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door (Top)
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 20 2196195 Pin 2304355 Ice Door Mechanism 2180353 Door, Ice 489000 Screw Lever, Ice Dispenser 2259396B Black Switch Assembly (Not Available Order #25) For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Lever, Water Dispenser 2259395B Black 2194719 Spring, Lever...
- Page 21 UPPER UNIT PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581...
- Page 22 (Left) 2307028 Control Board 2203075 Spacer (5) 2256328 Bracket, Inverter 8281149 Screw 487415 Screw 2259307 Condenser 943447 Grommet (4) UPPER UNIT PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2187629 Wire, Jumper 487522 Screw 2155774 Wire Tie...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259353 Tube, Discharge...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) 8214581... - Page 26 2221070 Clamp, Tube 2198641 Bracket, Icemaker Cover 2208136 Clamp, Nylon Valve 488937 Clamp Tube 2257538 Cover 2259417 Tube, Water Inlet ICEMAKER PARTS For Models: KSSO42QMB02, KSSO42QMX02 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 628228 Mold & Heater (Also Order 542638 Silicone...
