- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) 10−07 Litho In U.S.A. (dmm) Part No. W10136698 Rev. B...
-
Page 2: Cabinet Parts

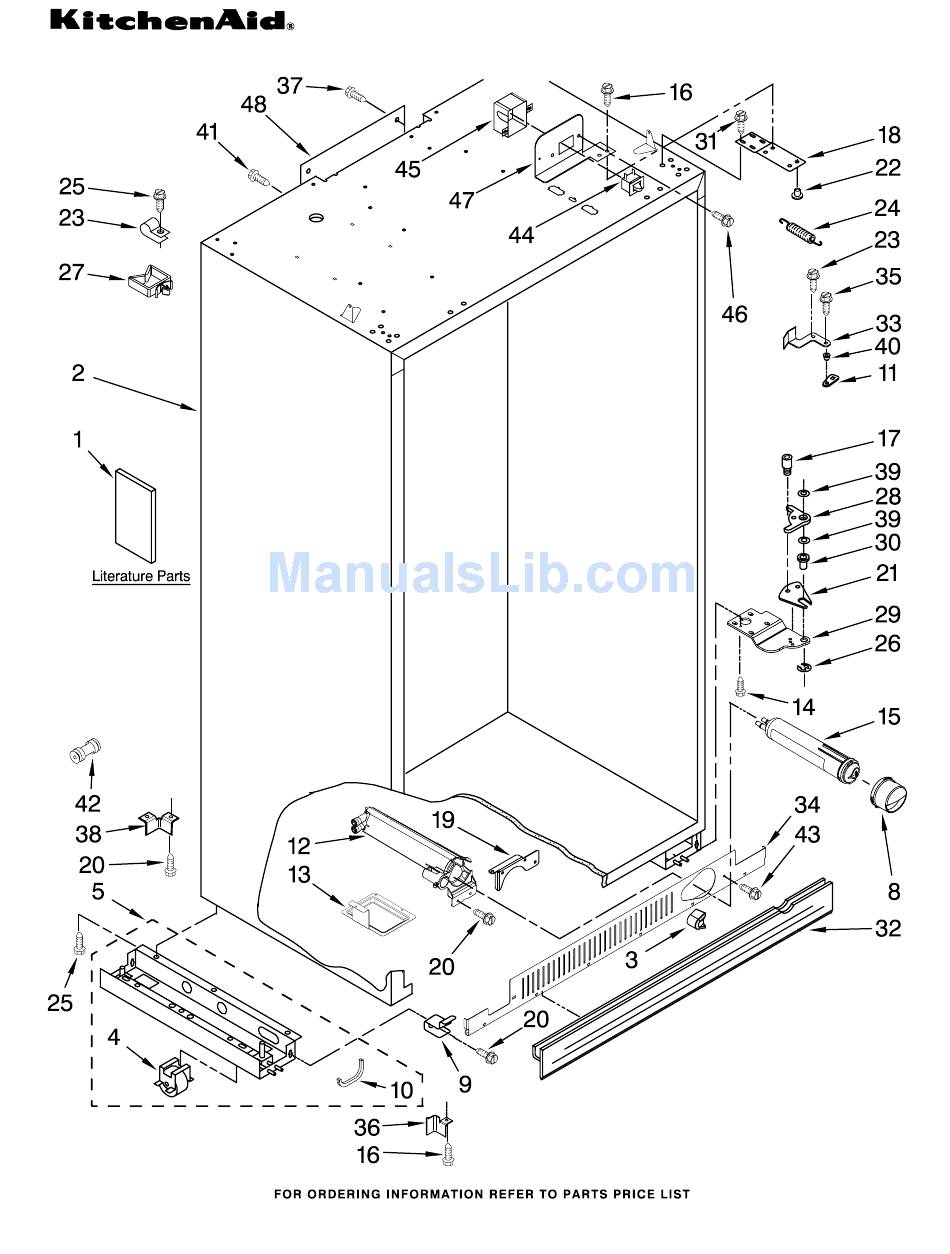

CABINET PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 3400525 Screw Extension Arm, 2316571 Use & Care Guide 4396841 Filter, Water Door Closer 2316573 Energy Guide 489399 Screw 2267192B Right, Black 2316566 Service &... - Page 3 CABINET TRIM PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132410 Black W10132411 Stainless Steel 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw Cabinet, Trim Top 2313961B Black 2313961S Stainless Steel Cabinet Trim (Left Side) 2267122B Black 2267122S Stainless Steel...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10136698... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 2320635 Baffle Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2316545 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10136698... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Panel, Decorative Assembly 2313978B Black 2313978S Stainless Steel 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 489348 Clamp 2003347 Tee Bolt (4)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2302842 Assembly, Meat Pan Cover 2302835 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2302831 Trim, Glass Front 2256254 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Block, Fan Scroll 2259385 Fan Motor 2220904 Gasket (2) 2209480 Right 2198665 Tube, P.C. Board Evaporator Cover 2209066 Left 2169142 Fan Blade 2259493 Cover, Receiver 2215650 Cover, Emitter...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222965 Ice Bin 2222964 Crusher Bin 2320327 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Item #9) Trim, Screw Cover (Handle Side) 2314003B Black 2314003S Stainless Steel Hinge Assy, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top & Bottom 489282 Screw Hinge Assy, Btm 2252293B Black...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698... - Page 18 FREEZER DOOR PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door (Includes #14) W10130865 Black W10130866 Universal Silver 2304896 Saftey Barrier Hinge, Bottom 2252294B Black 2252294 Chrome 489282 Screw Hinge, Top 2252295B Black 2252295 Chrome 2316804 Spacer−Door, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly...
- Page 21 UPPER UNIT PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698...
- Page 22 UPPER UNIT PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2215641 Bracket, Fan Motor 1 W10133449 Inverter Box (Condenser Fan) Following Parts Not Illustrated 489373 Screw, Compressor 2206036 Motor, Fan Mounting (4) and Optional Parts Not Included 2190685 Blade, Fan 2302967 Compressor...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) W10136698...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSO42QTB00, KSSO42QTX00 (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215648 Damper, Heater 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 9 W10121371 Tube, Discharge 2188820 Thermistor 2306093 Evaporator 2306388 Heater, Defrost...
-
Page 25: Icemaker Parts
